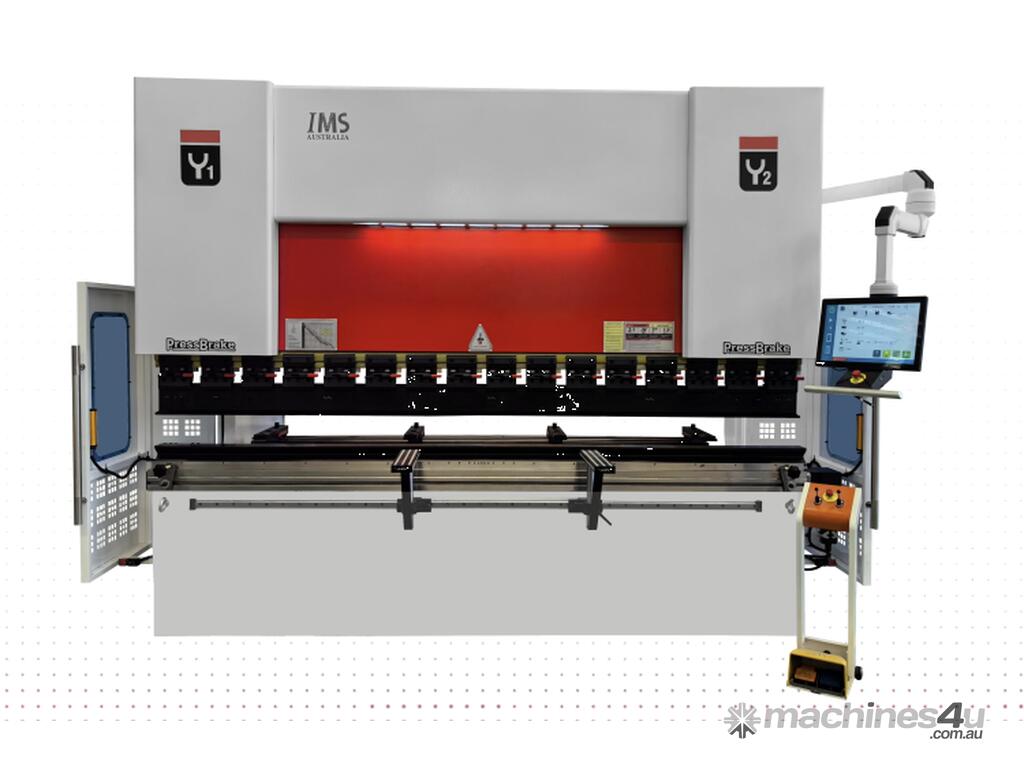

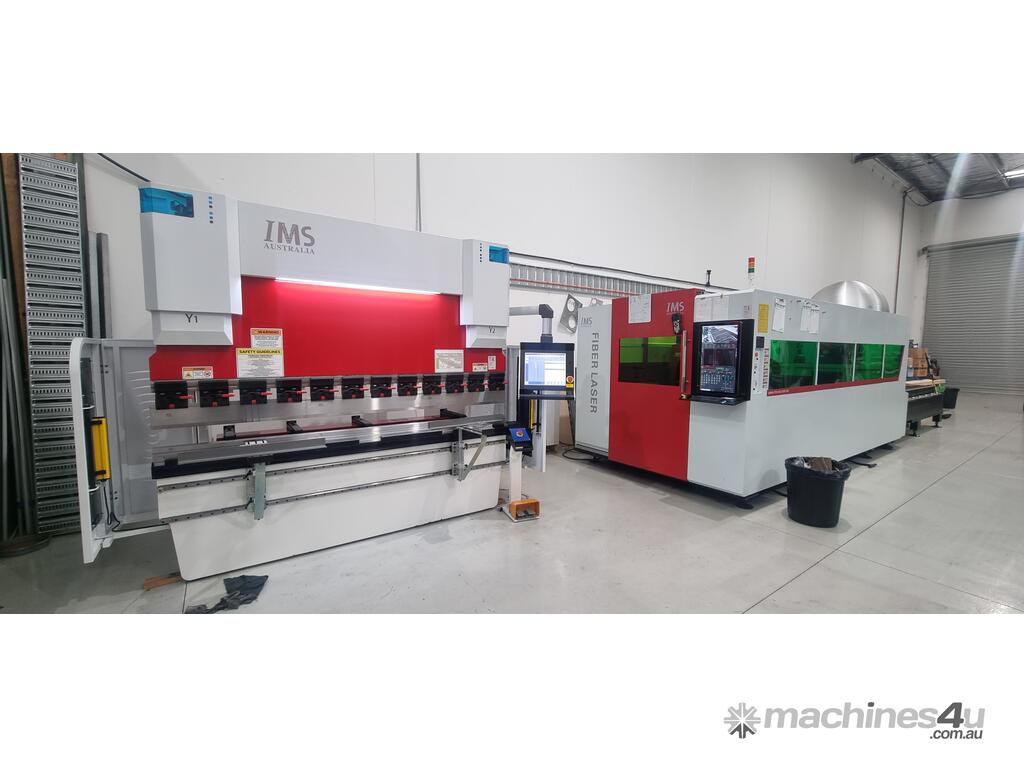

IMS-TRITON CNC Servo-Hydraulic Press Brake – 4m x 220 Ton | 5+2 Axis

High-Precision CNC Press Brake for Modern Metal Fabrication

The IMS-CNC Servo-Hydraulic Press Brake is designed to deliver high accuracy, reliability and productivity for modern sheet metal fabrication.

Supplied by A&S Machinery Sales Pty Ltd, this advanced press brake combines servo-hydraulic technology with a powerful CNC control system to provide precise and repeatable bending performance.

With a 4000 mm bending length and 220-ton capacity, the IMS-TRITON is ideal for workshops requiring a versatile CNC press brake capable of handling a wide range of fabrication tasks.

Machine Specifications

Model: IMS-TRITON CNC
Bending Length: 4000 mm
Press Force: 220 Ton
Axis Configuration: 5 + 2 Axis

• 5 Axis: Y1, Y2, X, R, V
• 2 Electric Axes: Z1 and Z2 back gauge fingers

Key Features

• Servo electro-hydraulic drive system
• IMS-DE18 CNC control system
• High precision bending performance
• Heavy-duty CNC back gauge system with X and R axis
• Electric driven Z1 and Z2 back gauge fingers
• Full machine safety system
• Automatic crowning compensation
• Automatic side frame deflection compensation
• Dynamic pressure regulation

Tooling and Back Gauge

• Fast tooling clamp with tooling load protection
• Multi single-V die or double-V die table
• Table height: 900 mm
• Heavy-duty CNC back gauge system
• X, R, Z1 and Z2 axis control

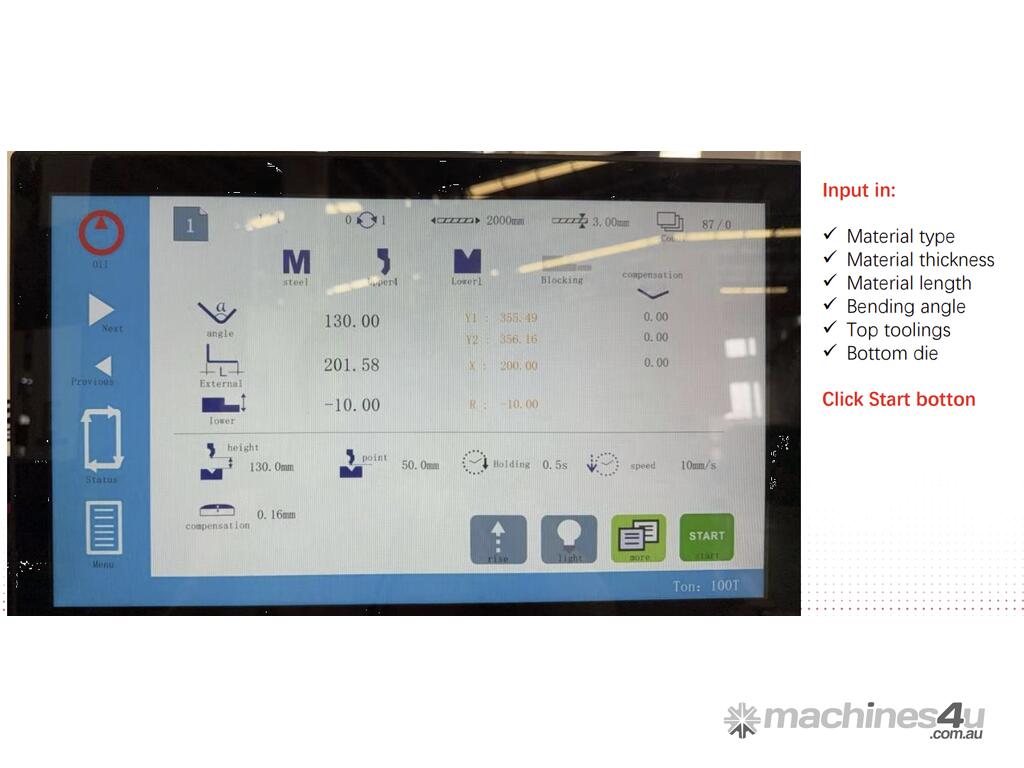

Advanced CNC Control

The IMS-DE18 CNC control system, customised by IMS Australia, provides easy operation and precise bending control.

The system allows operators to:

• Program complex bending sequences
• Automatically control multiple CNC axes
• Improve production efficiency
• Maintain consistent bending accuracy

This user-friendly CNC system simplifies programming while delivering highly precise bending performance.

CNC Axis Configuration

IMS CNC press brakes feature a multi-axis configuration for accurate bending control.

Axis configuration includes:

• Y1 and Y2 axes – Ram positioning and synchronisation
• X axis – Back gauge positioning
• R axis – Back gauge vertical movement
• V axis – Automatic crowning compensation
• Z1 and Z2 axes – Electrically driven back gauge fingers

This configuration allows accurate positioning of sheet metal components during complex bending operations.

Premium Components

The IMS-TRITON CNC Press Brake is equipped with high-quality components from leading international manufacturers to ensure reliability and long service life.

• Electrical components: Schneider (France)
• Hydraulic system: BOSCH-Rexroth (Germany)
• Grating rulers: GV (Italy)
• Hydraulic pump: SYUNY (USA)
• Seal components: NOK / SKF / Parker
• Ball screws and linear guides: HiWIN

These premium components ensure stable machine performance, precise bending accuracy and reduced maintenance requirements.

Advantages of IMS Machines
Local Technical Expertise

Our Melbourne-based R&D technician has over 40 years of experience with CNC press brakes, providing strong technical support and machine expertise.

Local Australian Support

As an Australian supplier, A&S Machinery Sales provides local service and machine support.

Competitive Pricing

Our machines are manufactured in our advanced facility in China, allowing us to offer high-quality machines at competitive pricing compared with major global brands.

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Pricing and machine availability
• Other press brake sizes and capacities
• Delivery throughout Australia and New Zealand
• Installation and operator training
