INDUSTRY 310/450/630/860/1060/1300 mm

Industry

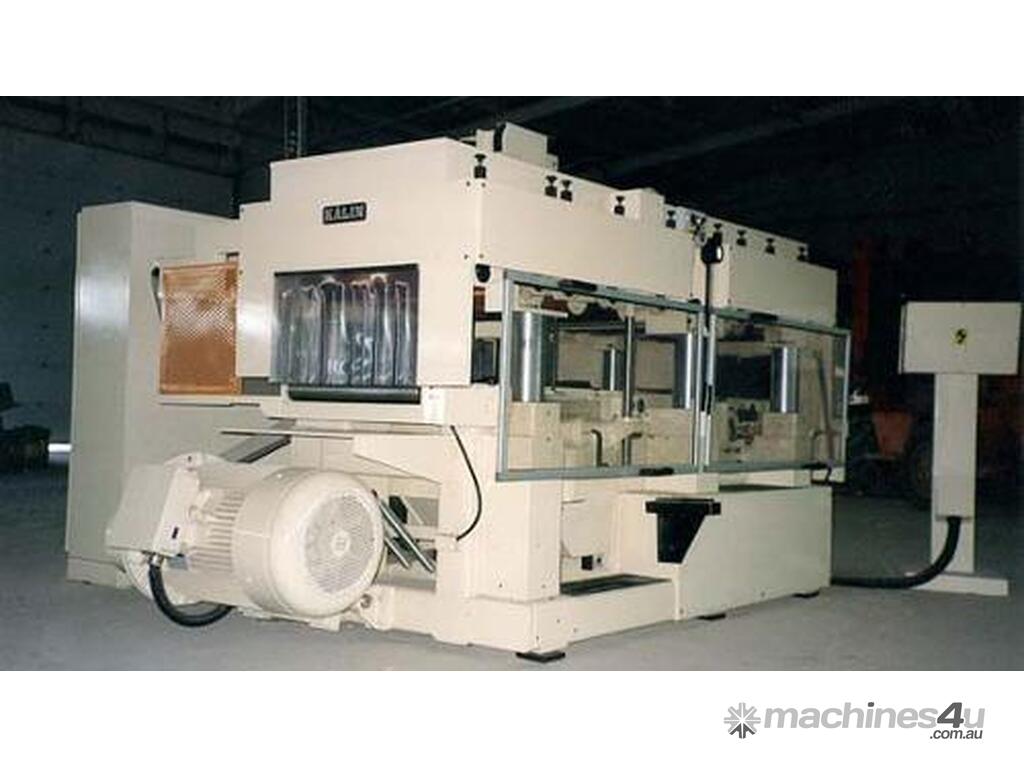

The Kalin Industry is a high speed machine for two and four side planing. Extremely robust and heavy structure with large stroke columns complete with automatic locking, ensure quiet accurate running.

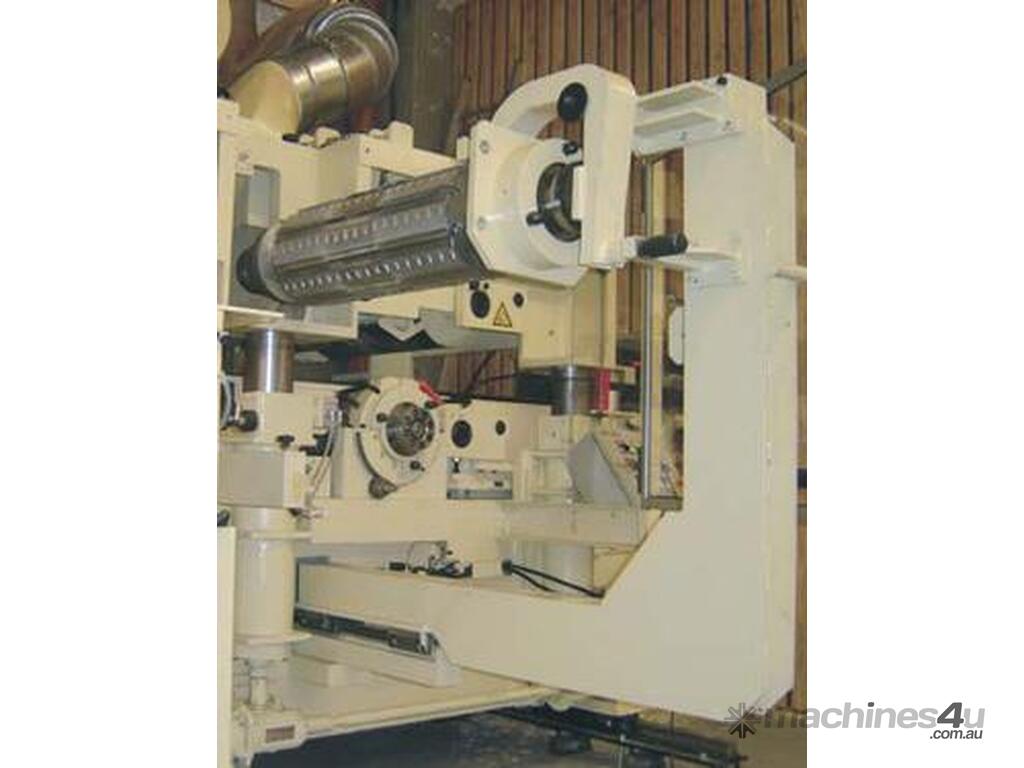

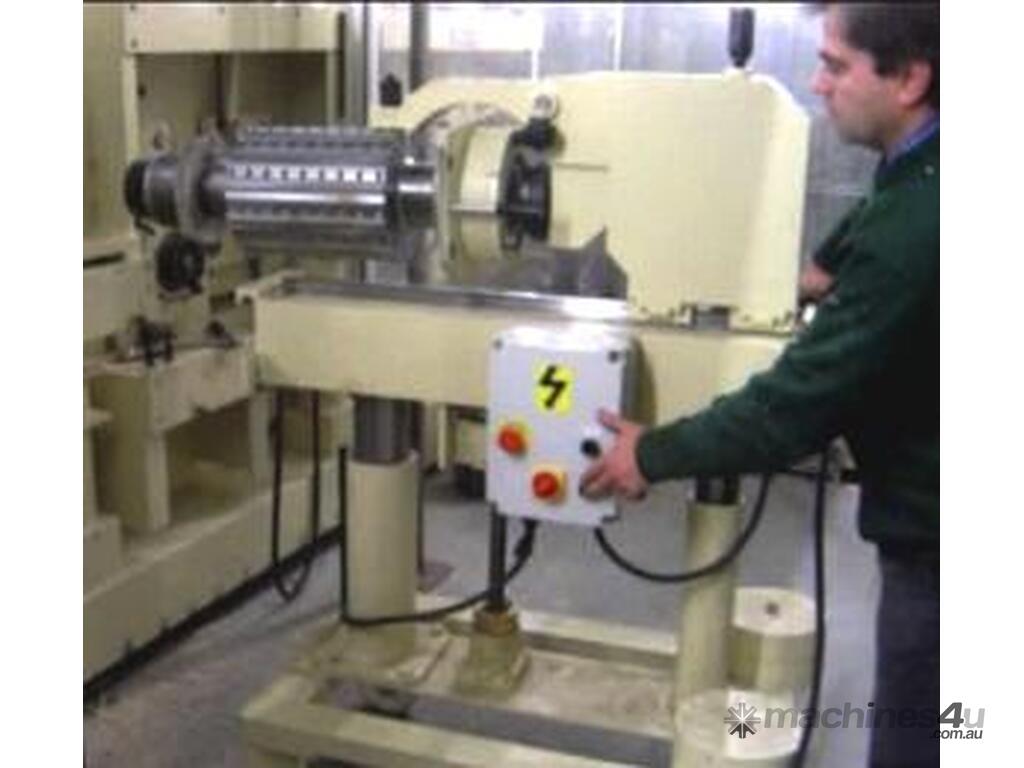

Dedicated cutting units remove from the machine to knife grinder, complete with bearings in their housings. The grinding machine clamps these housings and rotates the cutting unit for a jointed finish straight from the grinder. Drivable from either end, the cutting units are moveable around the machine.

Hydroclamping shafts can be easily interchanged with the cutting units as all spindles are driven by a counter shaft.

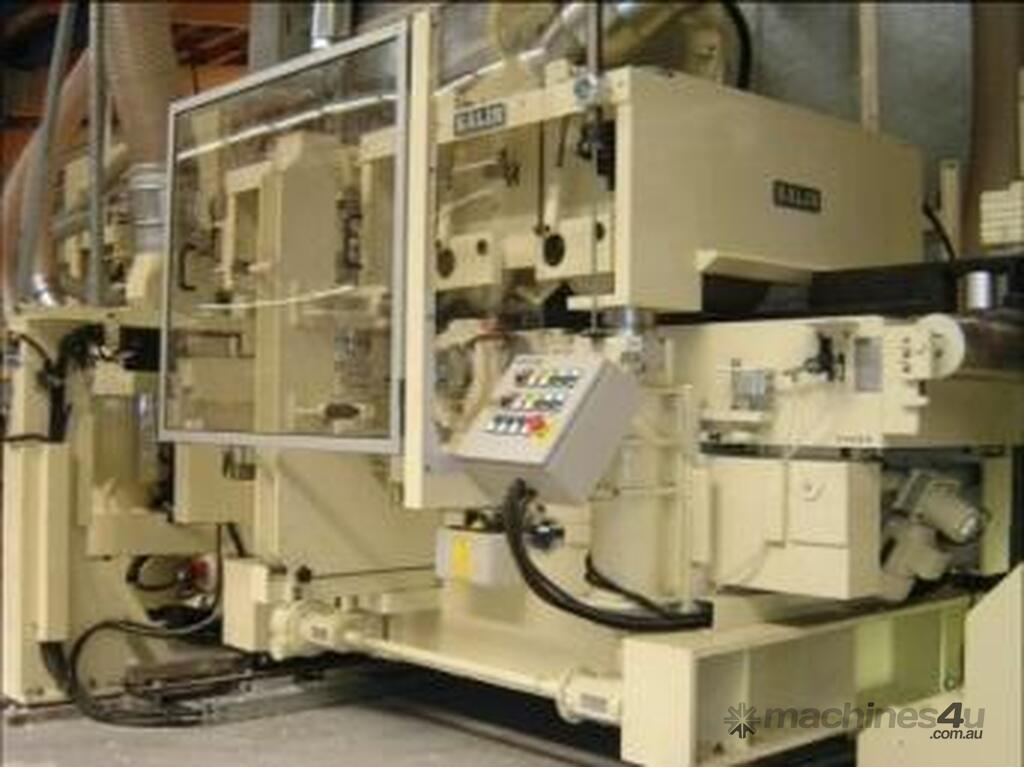

This Industry machine is conceived for the industrial environment with customer personalised operating station.

Kalin have pushed the execution of machining timber to new limits with this machine. Nothing here is compromised.


Specifications

Machining width at out feed: 310 /450 / 630 / 860 / 1060 / 1300 mm

Machining height: 310 mm
(Available as an option) 350 mm

Standard cutter block diameter: 160 - 220 mm

Feed speed: 200 m/min
(Optionable) 10 / 400 m/min

Diameter of the lifting columns: 130 mm

Depth of cut, standard:
Bottom 12 mm (20 mm)
Top 16 mm (25 mm)
Fence side 20 mm
Operator’s side 20 mm

Hydroclamping shaft diameter: 50 / 60 / 100 mm

Motor sizes: 5.5 - 45 kW

Feedroller diameters: 180 mm


Available with oscillating horizontal spindles.

Available as a two or four sided machine.

Cutterhead diameters larger upon request, with outboard bearings on all shafts.

Higher kW motors upon request.

Sawing spindles to customer requirements available.
