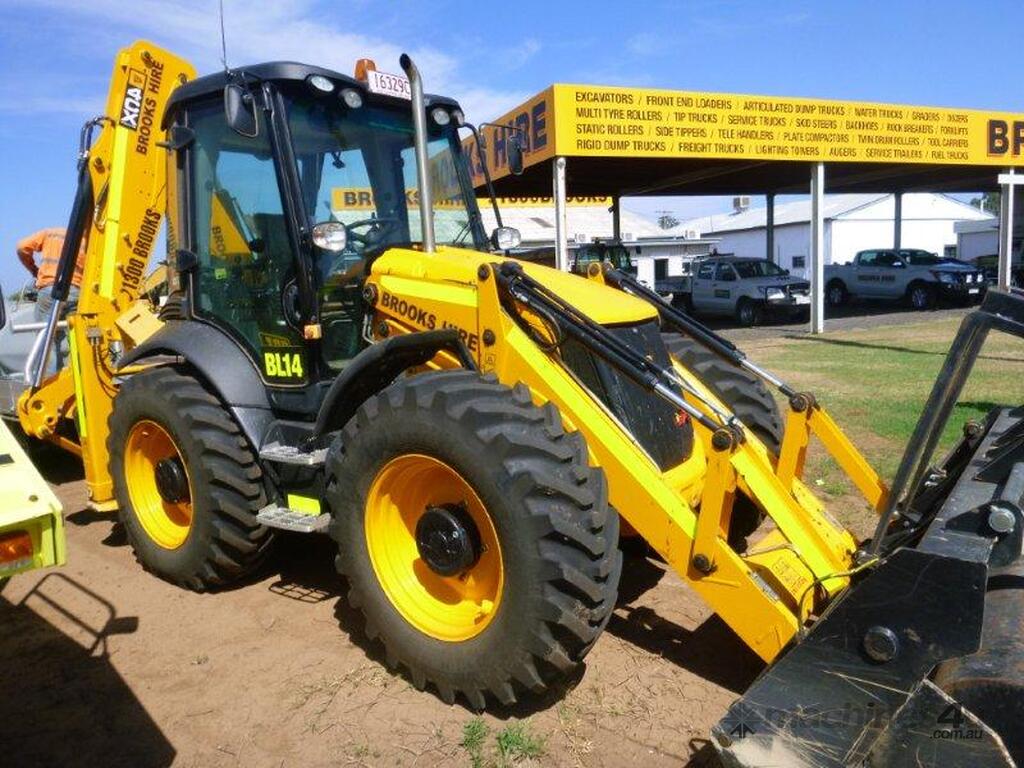

JCB 4CX-4WS ECO Backhoe for Hire

LiveLink telematics can provide accurate up-to-date machine health information on your 4CX. The system can also maximise uptime by making it easy to service your machines at the most efficient times possible.

The 4CX’s power brakes utilise the existing hydraulic supply, reducing operator costs and daily service checks.

The large 150L composite fuel tank is completely rustproof to prevent rust forming in the tank which protects the fuel system. Furthermore, the tank is the largest on the market, extending periods between fill ups and allowing for a more productive day.

Specifications

Weight 8.178 t
Standard tyres 16.9-24
Bucket width 2.33 m
Bucket capacity 1.2 m³
Bucket capacity backhoe 0.26 m³
Drive A
Transport length 5.91 m
Transport width 2.36 m
Transport height 3.54 m
Tear-out force 61.06 kN
Tear-out force backhoe 53.25 kN
Max. Reach horizontal 5.4 m
Dredging depth 4.32 m
Max. discharge height 2.69 m
Travel speed 40 km/h
Engine manuf. JCB
Engine type 444
Engine power 81 kW
Displacement 4.4 l
Revolutions at max torque 1300 rpm
Max. torque 516 Nm
No. of cylinders 4
Cylinder bore x stroke 103x132 mm
