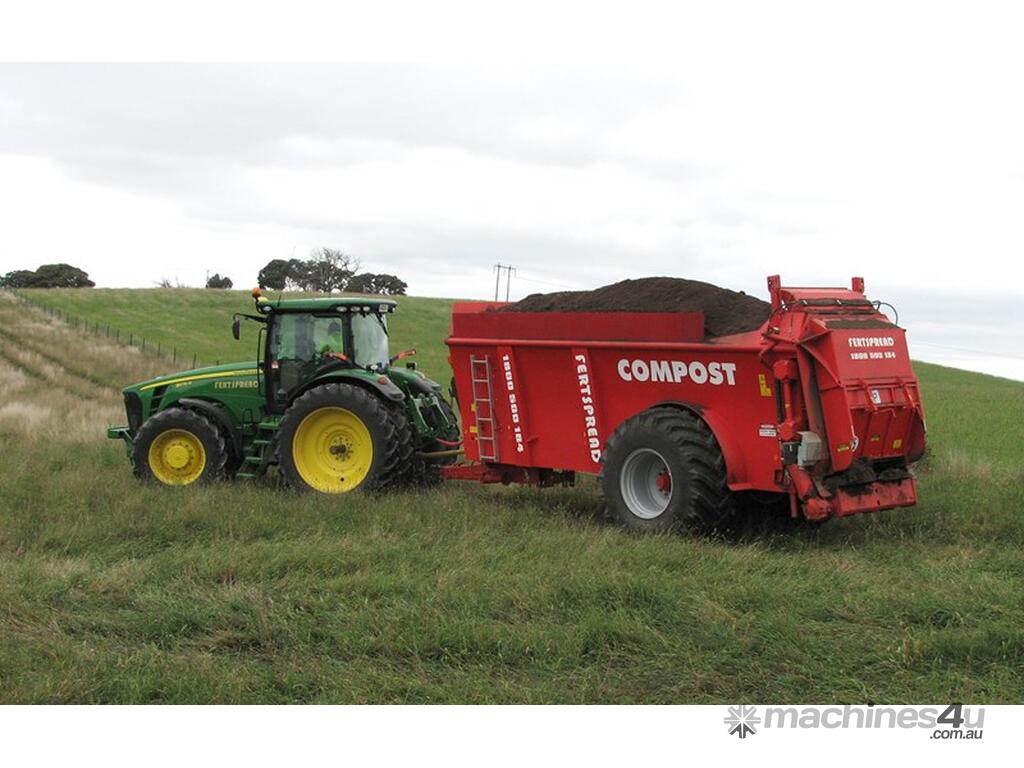

JEANTIL EVR 18-14 MANURE SPREADER (18M3/14 TONNE)

Jeantil, 1st manure spreader manufacturer certified by the DLG (German agricultural Society)

Committed for a long time in technical progress, Jeantil guarantees you precision, regularity and quality of an environment-friendly spreading. Since 2004, Jeantil manure spreaders with vertical augers have obtained the most demanding European certification.

A CERTIFIED MANURE SPREADER
The EVR EPAN 5 is the reference for manure spreader with vertical beaters. Available with a capacity from 10
to 23 m³, it will meet any requirements on spreading as well as on capacities. Certified DLG Signum Test, the
EVR EPAN 5 guarantees you a versatile and quality spreading

THE MOST PRECISE SPREADING DEVICE ON THE MARKET AND CERTIFIED BY THE DLG
The 2 high vertical beaters dynamically balanced with DLG fingers made of anti-abrasion steel ensure a wide spreading and a high work rate. Transmission is done by means of a 540 or 1000 rpm gearbox with automatic security and free wheel.

TOTAL MASTER OF THE SPREADING
The BASIC and SMART proportional electric controls drive the moving floor speed with precision and the DPA system regulates the flow rate proportional to forward speed. The SMART Control electric controls with weighing system ensures a high precision thanks to the settings in tons/ha.

A ROBUST BODY, CERTIFIED DLG SIGNUM TEST
The body made of S355 steel with integrated chassis provides a high resistance to wearing and loading. The parabolical body ease the complete emptying and the cleaning.

EASY TO HANDLE ON ALL GROUNDS
The spring drawbar, the suspension and the integrated chassis make it a heavy-duty and comfortable manure spreader

A REGULAR UNLOADING
2 chains moving floor with bolted bars 80x40 mm.

EASY TRAILING AND CARE OF YOUR SOILS
Thanks to the wide and low pressure wheels, the care of of your soils is ensured.

HIGH PRECISION TECHNOLOGY DEDICATED TO MANURE SPREADING
BASIC, ADVANCED and SMART proportional electric controls drive the moving floor with precision and the DPA system regulates the flow rate proportional to forward speed. The SMART Control electric controls ensure a high precision thanks to the settings in t/ha.

KEY FEATURES
* From 10 to 26 m³ and from 6 to 16 tons payload
* Monobloc narrow body 1.50 m
* Vertical beaters 1.80, 2.00 or 2.25 m high and spreading device certified by the DLG
* Cam safety limiter on the spreading device
* Moving floor 2 chains Ø 14 or 16 mm
* Spring drawbar
* 1 axle or tandem from EVR 16-12
* Direct control on tractor or electric controls
* Electric control of the moving floor speed
* DREAL (French Governement Vehicle Testing)
* Homologation 25 km /h
* Retractable control ladder
* Mudguards
* Compliant with the EC standards

SPECIFICATIONS - EVR 18-14
Empty Weight: 5,720 kg / 6,990 kg
Payload: 14,000 kg
Volume: 17.2 m3 / 20.3 m3
Loading Height: 2.67 m / 2.70 m
Internal Body Height: 1.40 m
Moving Floor Length: 6.25 m
Beaters Height: 2.00 m / 2.25 m
Height Under Frame: 1.70 m / 1.90 m

Machine/Equipment base price only, additional price for optional extras.
