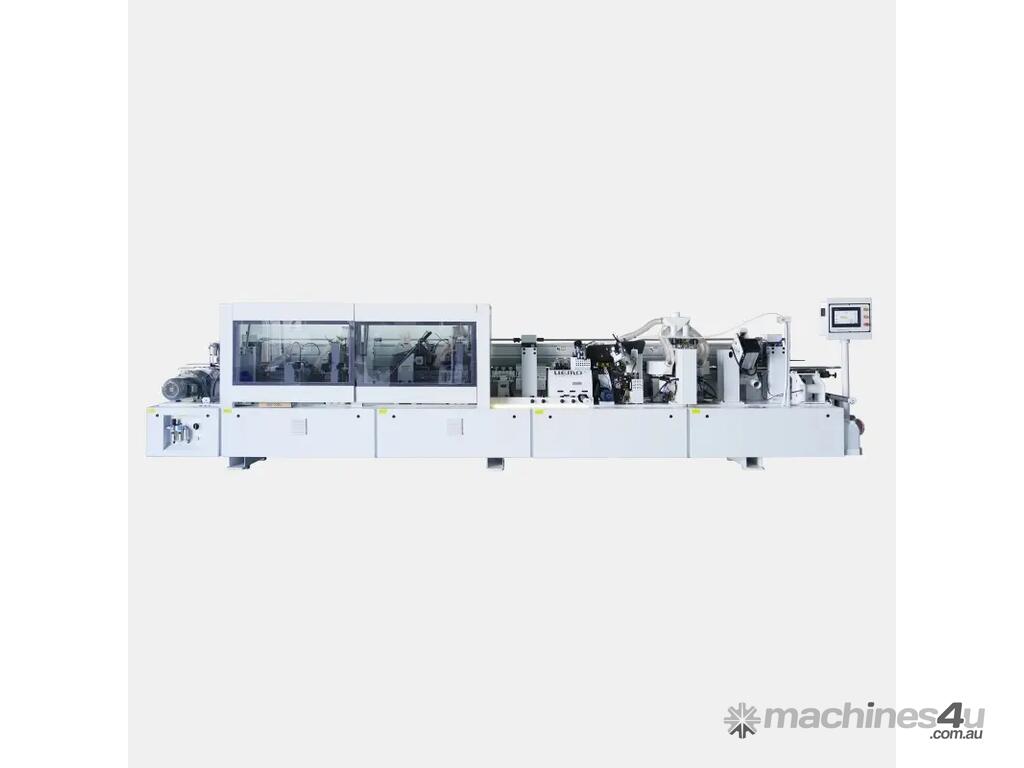

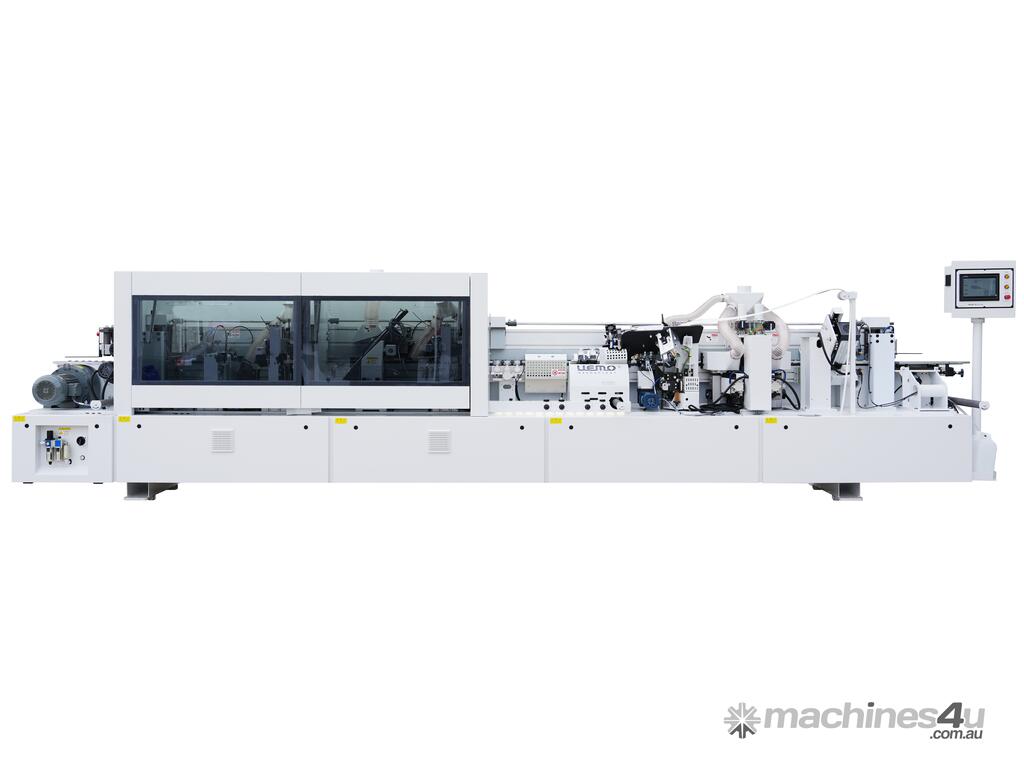

JEFFIA 468SL-K2 45° Full Bevel Edge Banding Machine

Description
For sale: JEFFIA 468SL-K2 45° Full Bevel Edge Banding Machine, designed for high-quality bevel-straight edge banding applications.

This machine is suitable for cabinet making, furniture production, joinery workshops, and panel processing businesses requiring clean, precise bevel edge finishing. It is designed for cross-surface bevel-straight edge banding and supports full bevel edge processing with servo-adjusted straight edge height.

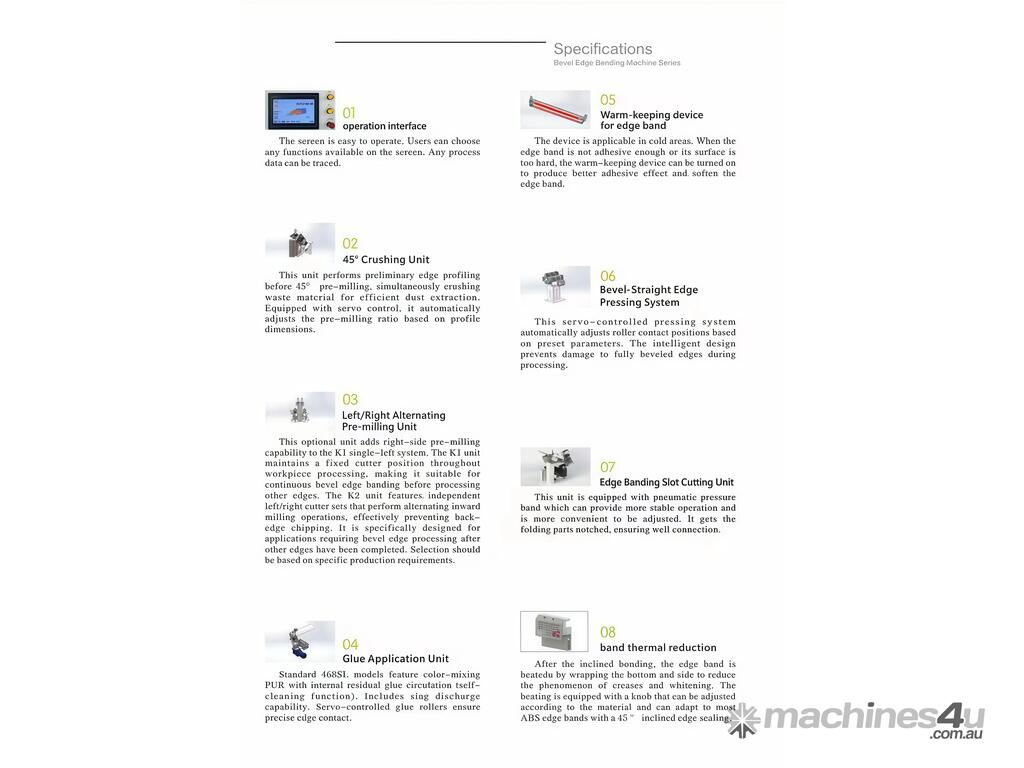

Key Features

45° bevel edge banding

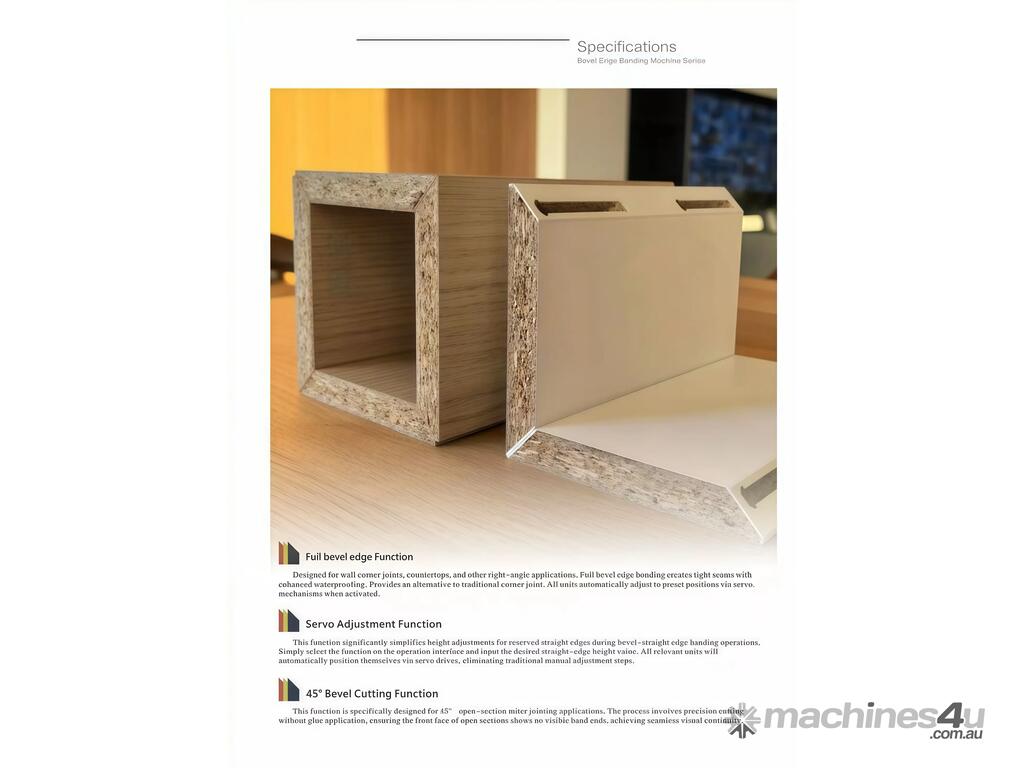

Full bevel edge function
Servo-adjusted bevel-straight edge height
45° cutting
Separating agent
Suspension 45° and 90° gluing
45° and 90° press lamination
End trimming
Two trimming units
Cleaning agent and polishing
Mixed / corner PUR glue machine
Bevel milling without edge banding
Left/right alternating pre-milling unit
Synchronised band-notching unit
Suitable for ABS material
Operation interface with screen control
Warm-keeping device for edge band
Bevel-straight edge pressing system
Edge banding slot cutting unit
Band thermal reduction function

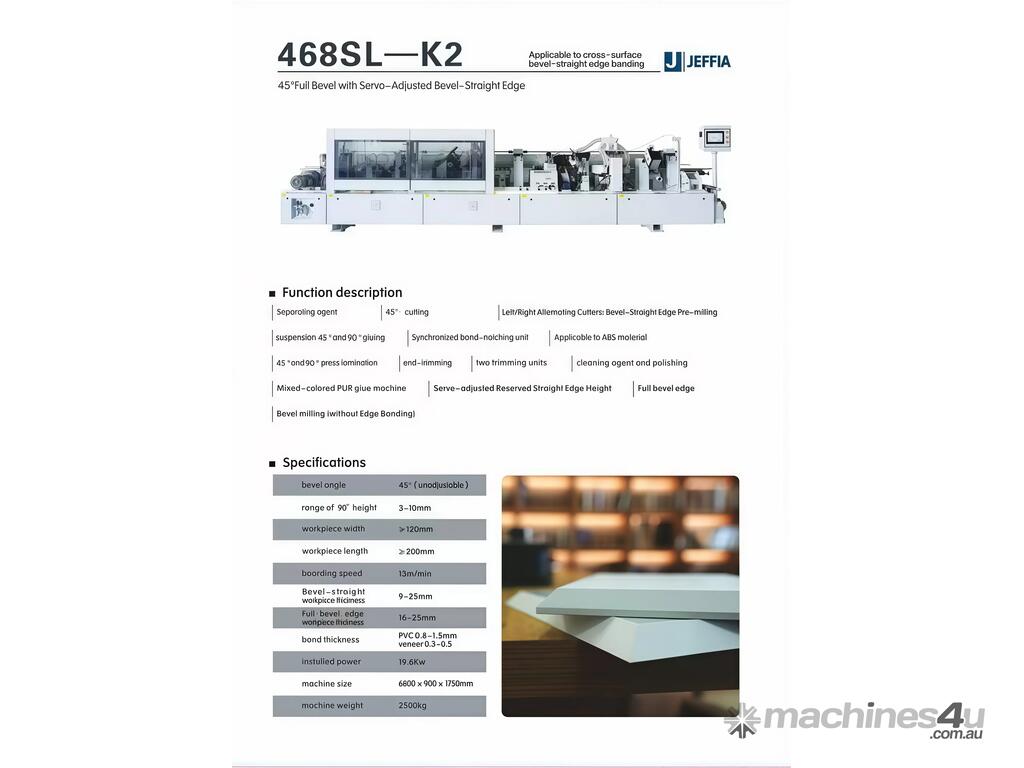

Specifications

Bevel angle: 45°
Range of 90° height: 3-10 mm
Workpiece width: ?120 mm
Workpiece length: ?200 mm
Board speed: 13 m/min
Bevel-straight workpiece thickness: 9-25 mm
Full bevel edge workpiece thickness: 16-25 mm
Band thickness: PVC 0.8-1.5 mm / Veneer 0.3-0.5 mm
Installed power: 19.6 kW
Machine size: 6800 x 900 x 1750 mm
Machine weight: approx. 2500 kg
Suitable For

Cabinet manufacturing
Custom furniture production
Joinery workshops
Commercial panel processing
High-end bevel edge finishing
ABS, PVC, and veneer edge banding applications
Condition
Please confirm machine condition, year, and availability before purchase.
