Sunmill - JHV 710
Optimal Structure Design High rigidity! Lifetime Stability!
The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great rigidity and prolonged precision.
All axes with high precision linear guideway ensure rapid movement and accurate positioning.
The column bottom is specially designed with A-shaped structure to increase machine stability while machining.
Linear-
X Axis Travel(mm) 710
Y Axis Travel(mm) 460
Z Axis Travel(mm) 550
Distance From Table Surface to Spindle nose(mm) 150-700

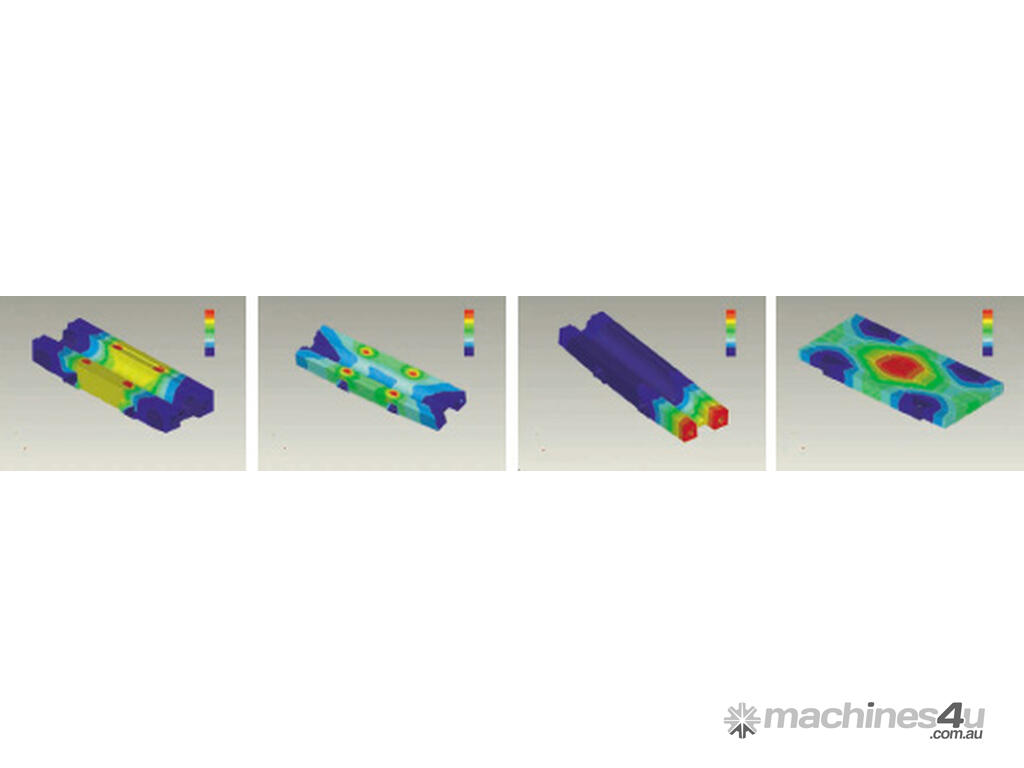

Finite Element Analysis:
The structural parts on JeenXi machine are analyzed and designed by the advanced Finite Element Analysis. It provides a detailed analysis for structural stress/strain condition, and ensures excellent machine rigidity and lifetime stability.

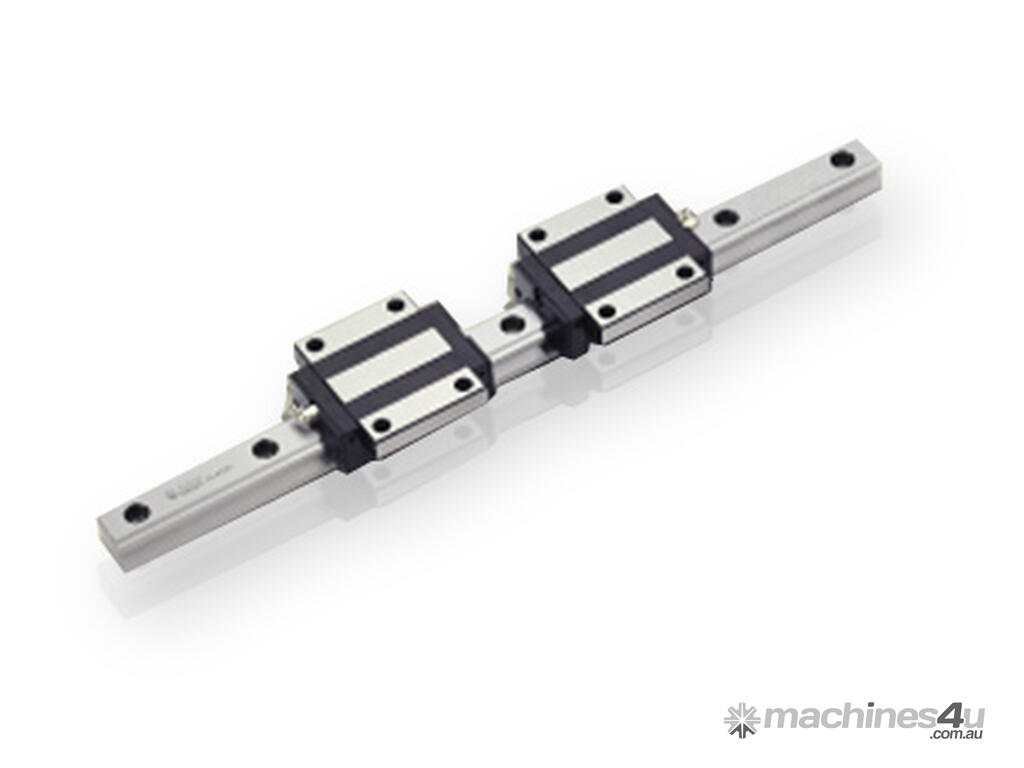

Linear Guide Way:
The machine employs 30/30/35mm wide ball-type linear guide ways.

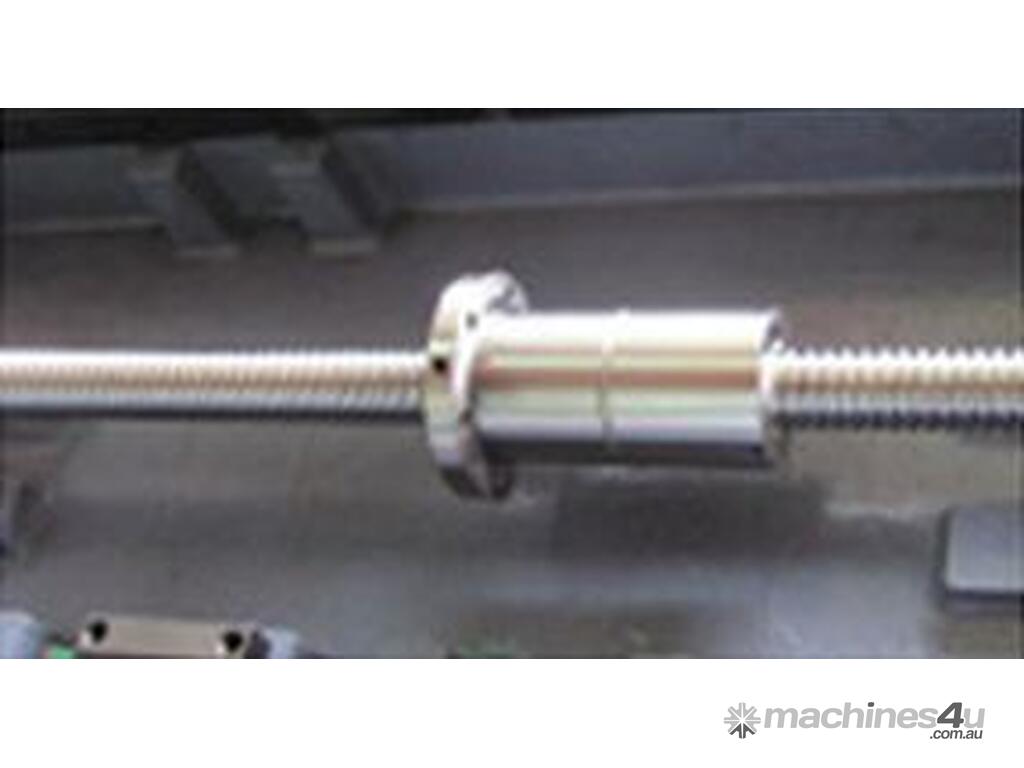

Precision Ball Screw:
Three axes are transmitted by high precision ball screws, preloaded, hardened and ground-assuring dependable feed accuracy.
