Junior CNC Aluminium

100% made in Italy from the long established company LGF (since 1982) with local support and parts from Brewer Machinery.

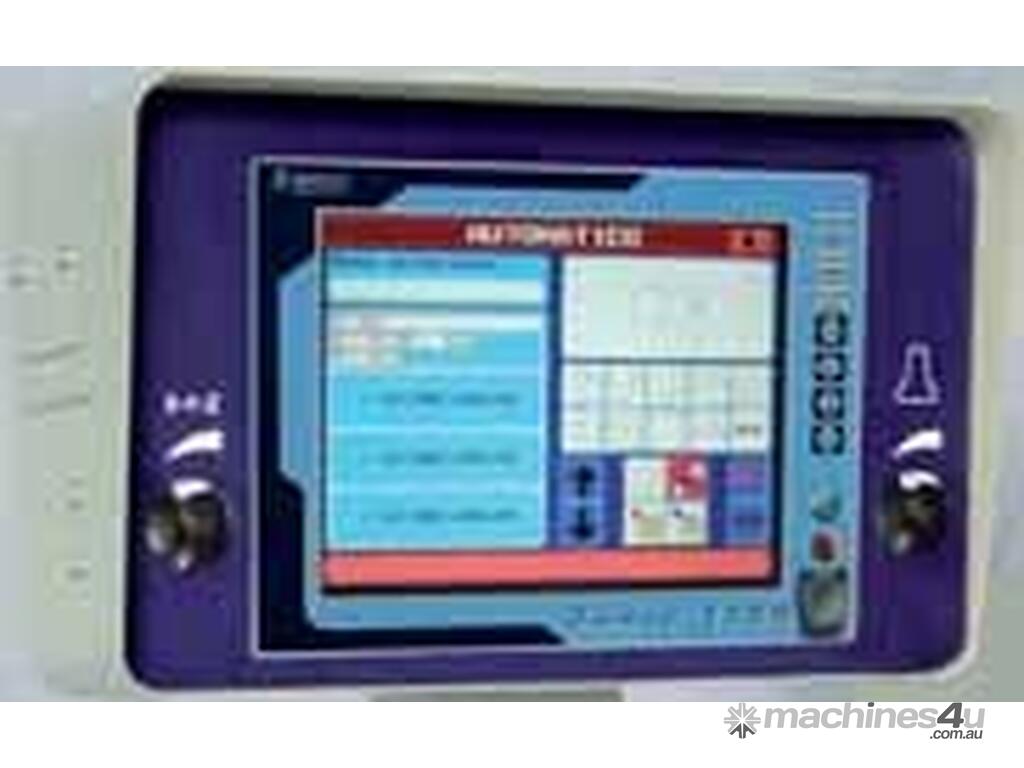

Machine equipped with CNC control complete with colored touch
screen. This control allows the creation of working projects to be saved
either on the machine memory or on a flash drive through an USB port to be reloaded in the future. The machine's software, easy and intuitive allows, by meaning of pre-created macros, an easy programming of the project, assisted by a “step by step” procedure to give dimension as well as position on the profile of the chosen figure.
Moreover it is possible to append singular programs into an entire new project creating a complete working cycle that includes all needed
jobs to be executed into a profile.
Single head copy router with turning table and variable speed

Machine particularly indicated for working on light alloys, PVC and tubulars in steel and inox
WORKING CAPACITY:
AT 0° : 3000X180X140
AT 90° : 3000X180X90
AT -90° : 3000X180X90

Tunnel at right end of machine to allow lengths over 3000mm which can then be rotated and re inserted.

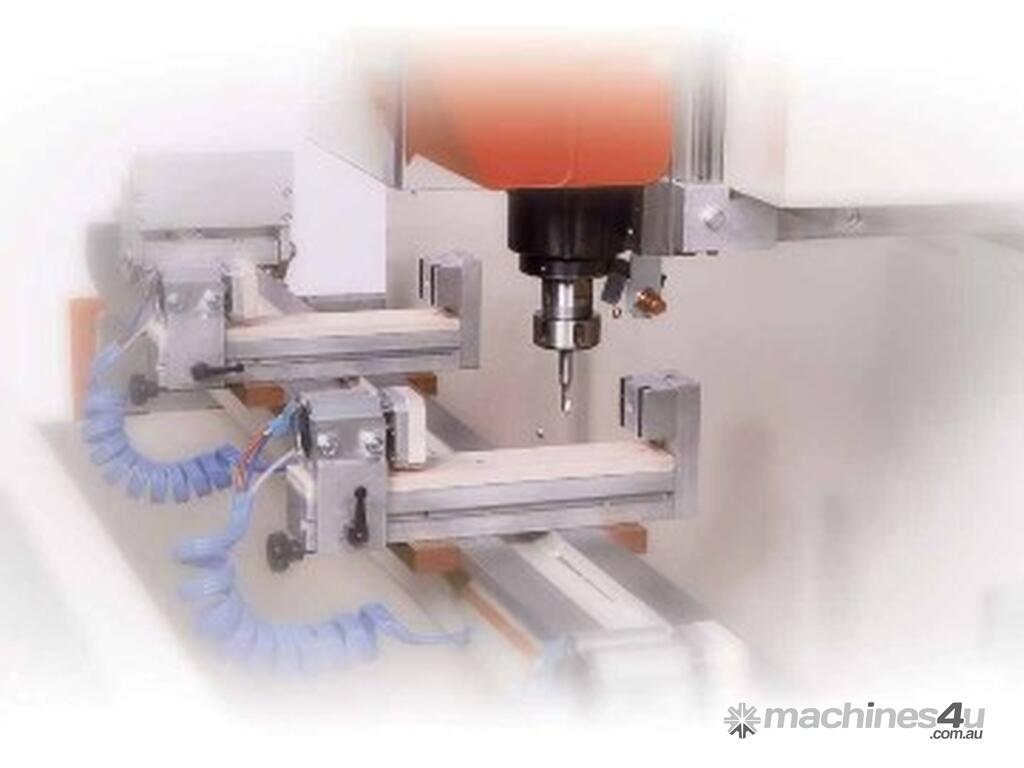

Nr 4 pneumatic clamps with manual displacement (Note positions of clamps can be saved in each program) Jaws in anti-scratch plastic material
USB flash drive
Automatic tool changer with 4 slots (100 software positions) c/w quick release spindle type ISO 30 – 3.6 KW (5 HP) - 18000 rpm
2D label reader
Automatic lubrication by means of nebulizer
2 off ISO 30 cones
1 off router bit Ø 8 mm
1 off drilling bit Ø 5mm
Profile end stop (Left)
Air filter
Air gun
Tool kit

12 Month Warranty
Excludes delivery and installation
Can be delivered anywhere in Australia
Resellers and Technicians located in each state for after sales support

Please contact with any queries or for a quote
