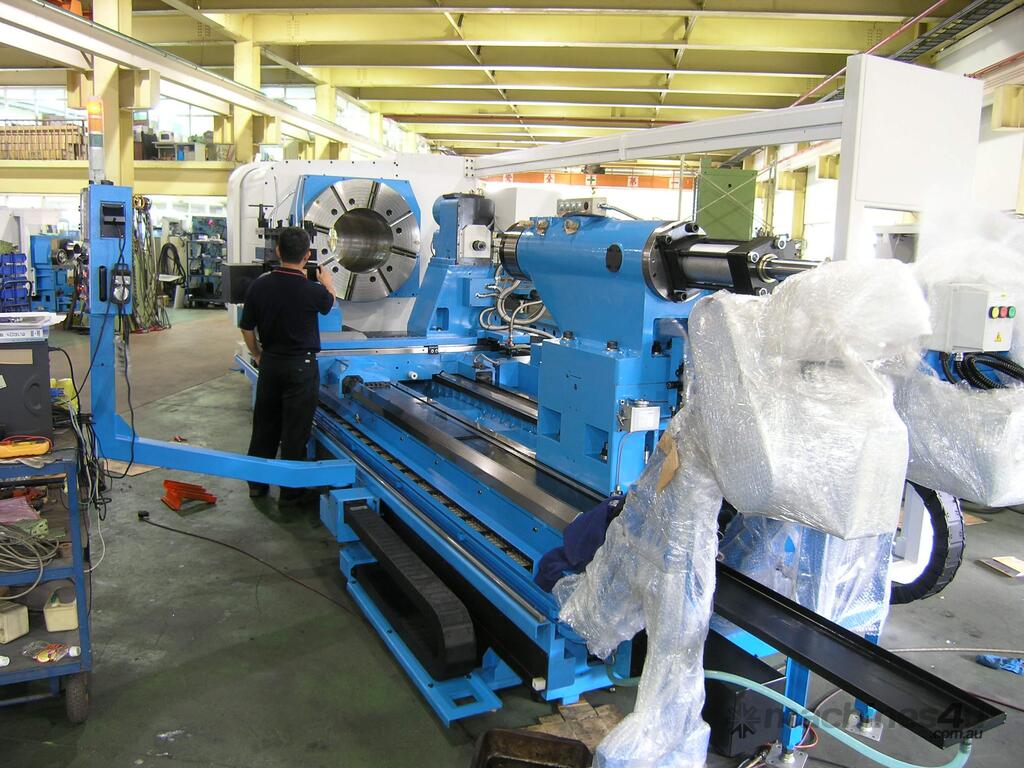

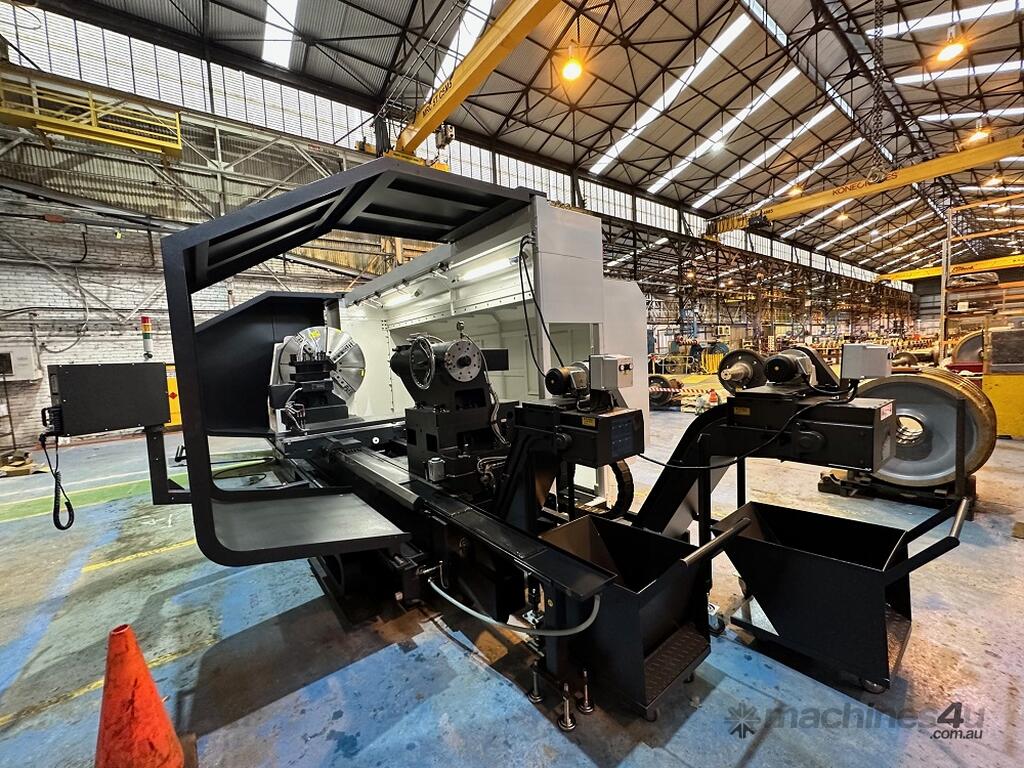

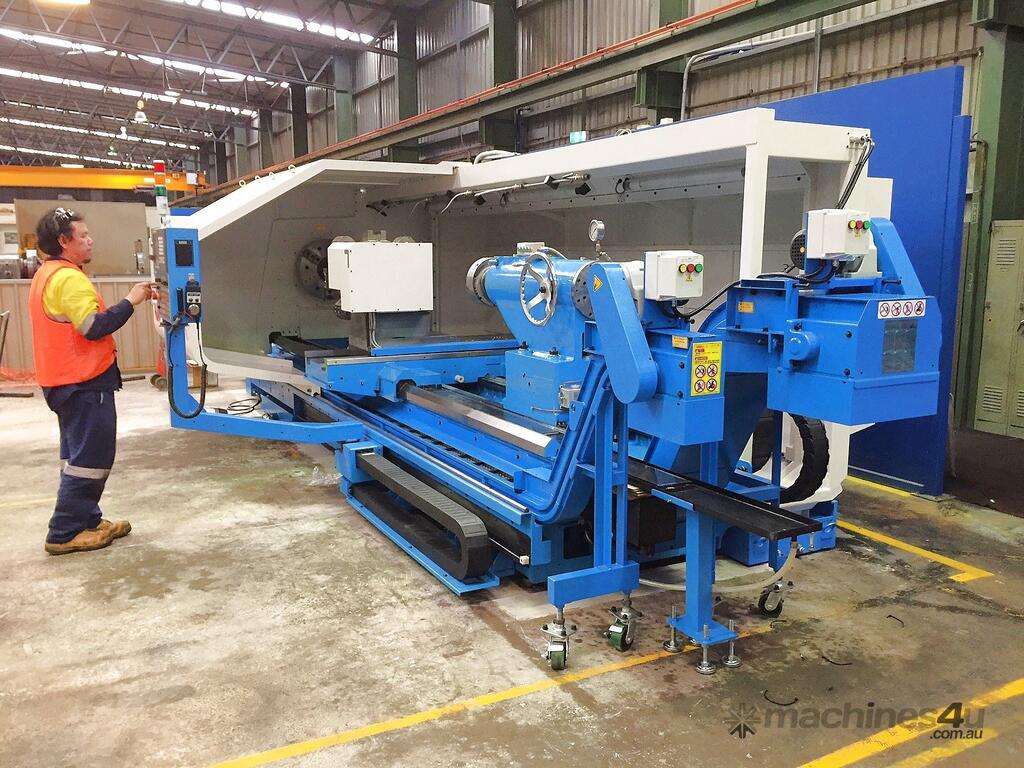

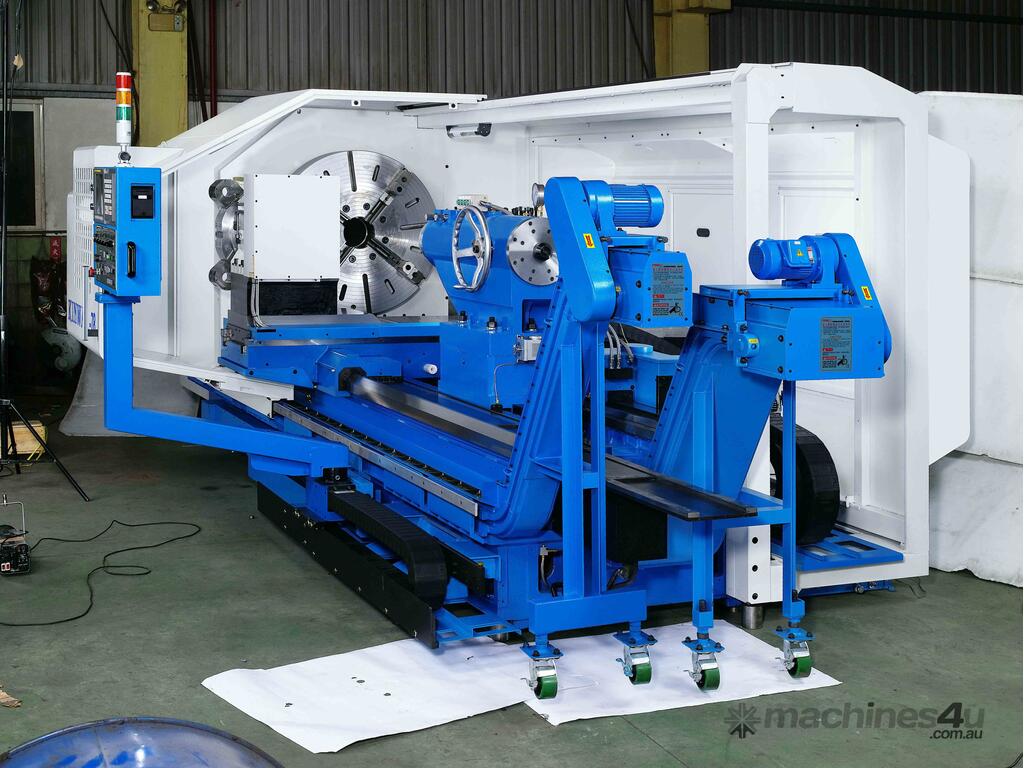

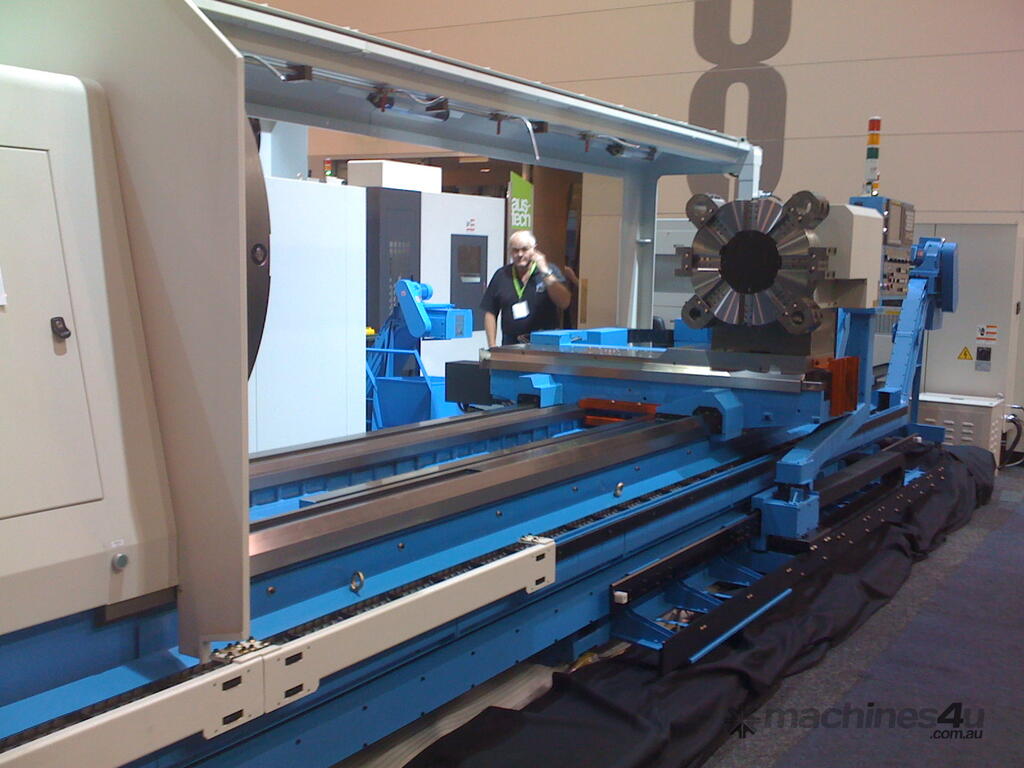

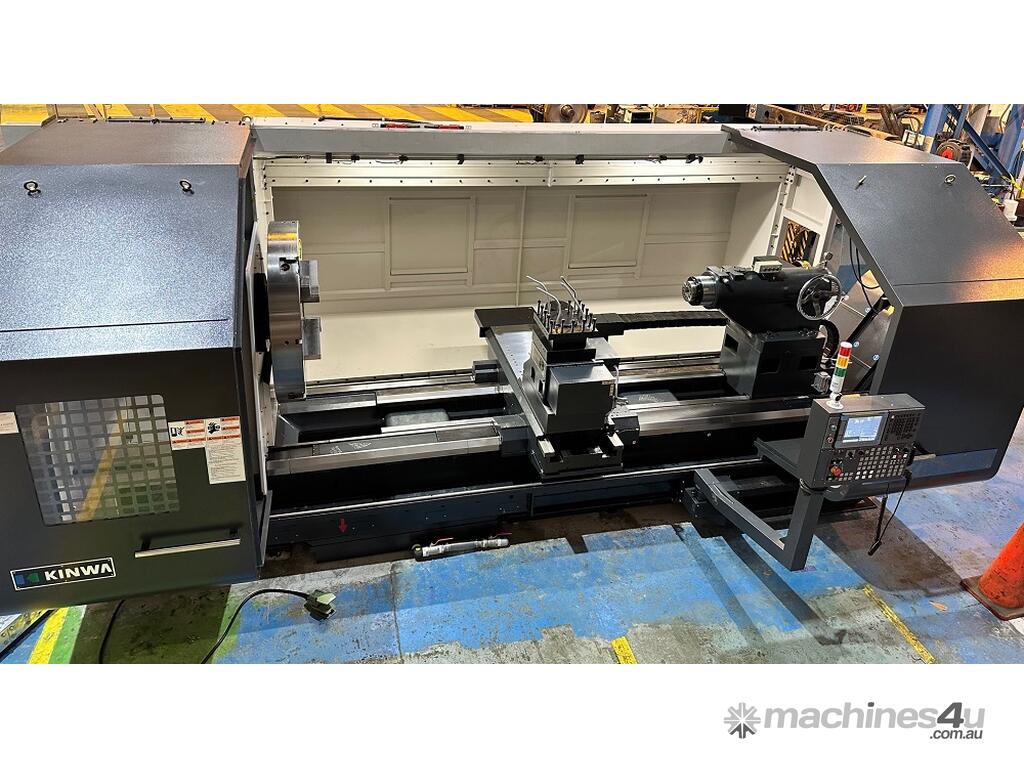

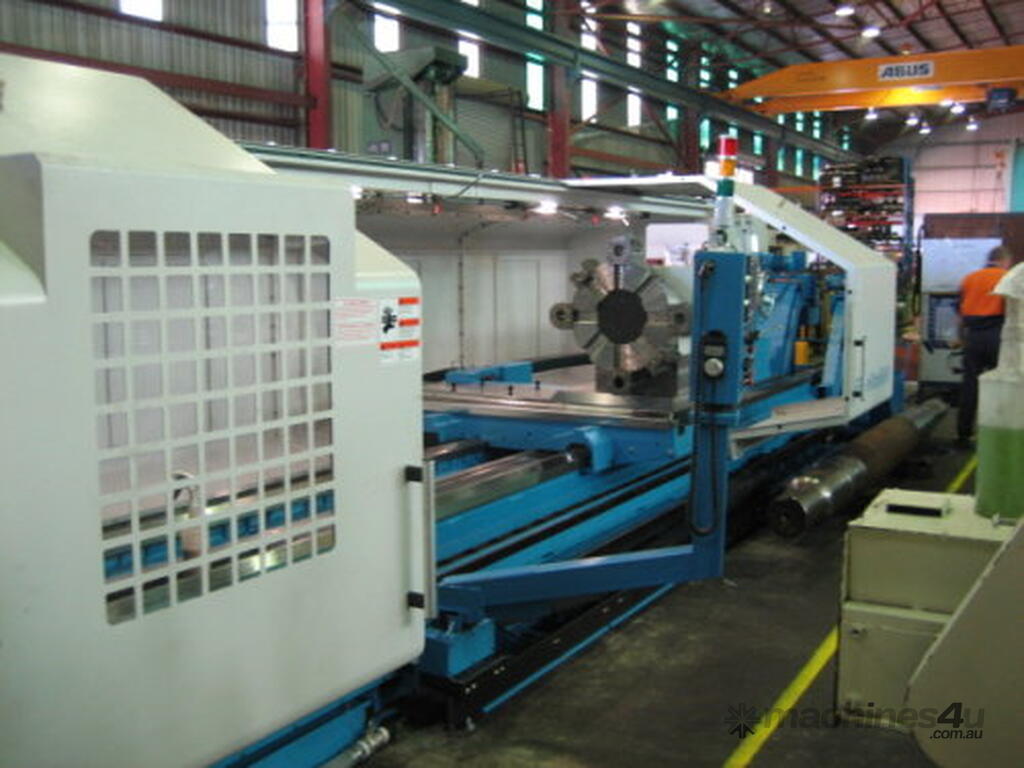

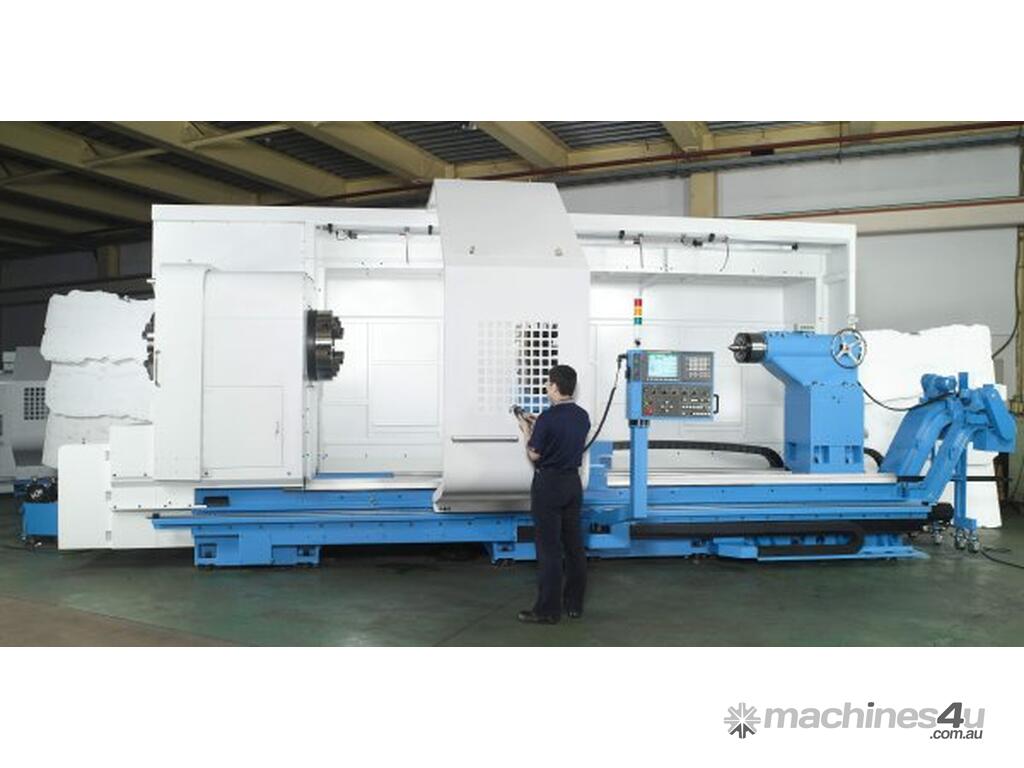

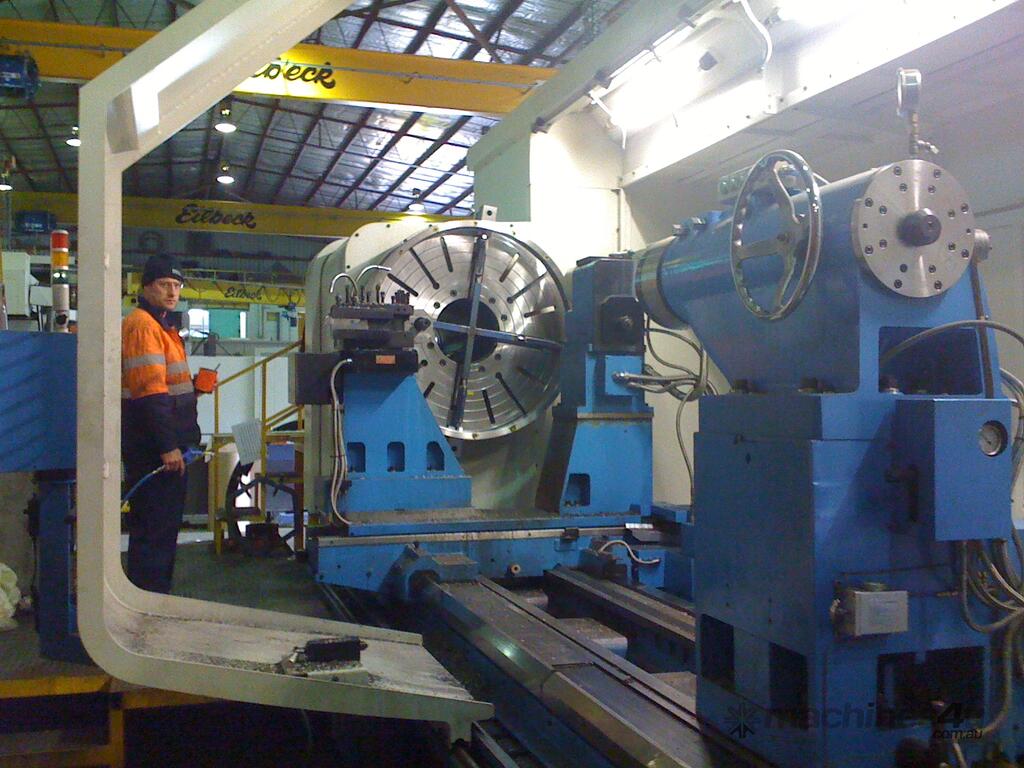

New KINWA CL78 Heavy Duty CNC Lathes with 1500mm swing standard and up to 2500mm swing on request with turning lengths from 2000mm up to 6000mm.

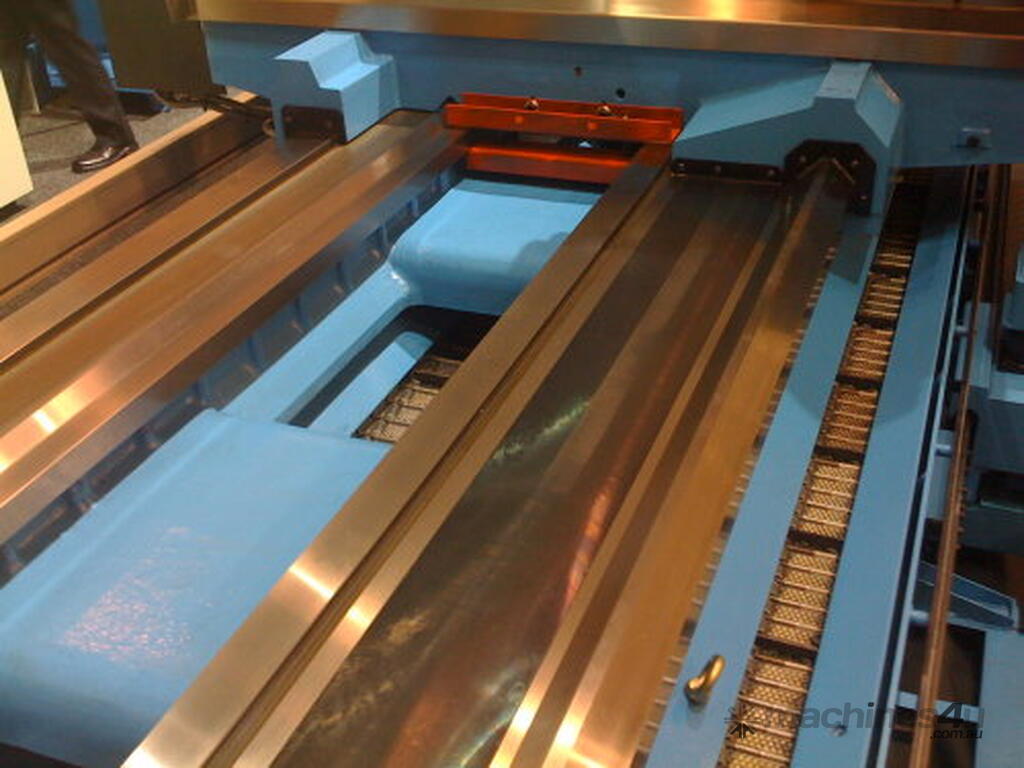

The KINWA CL78 range of CNC Lathes are powerful, heavy duty CNC turning centres with flat bed construction for general turning applications of large work pieces.

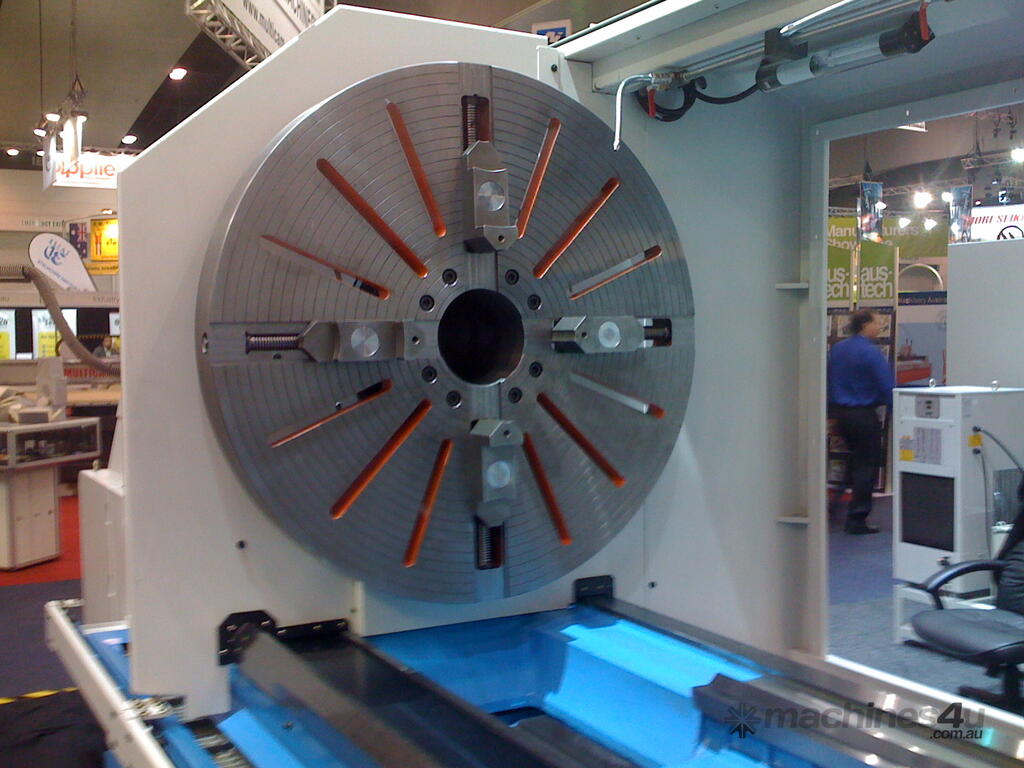

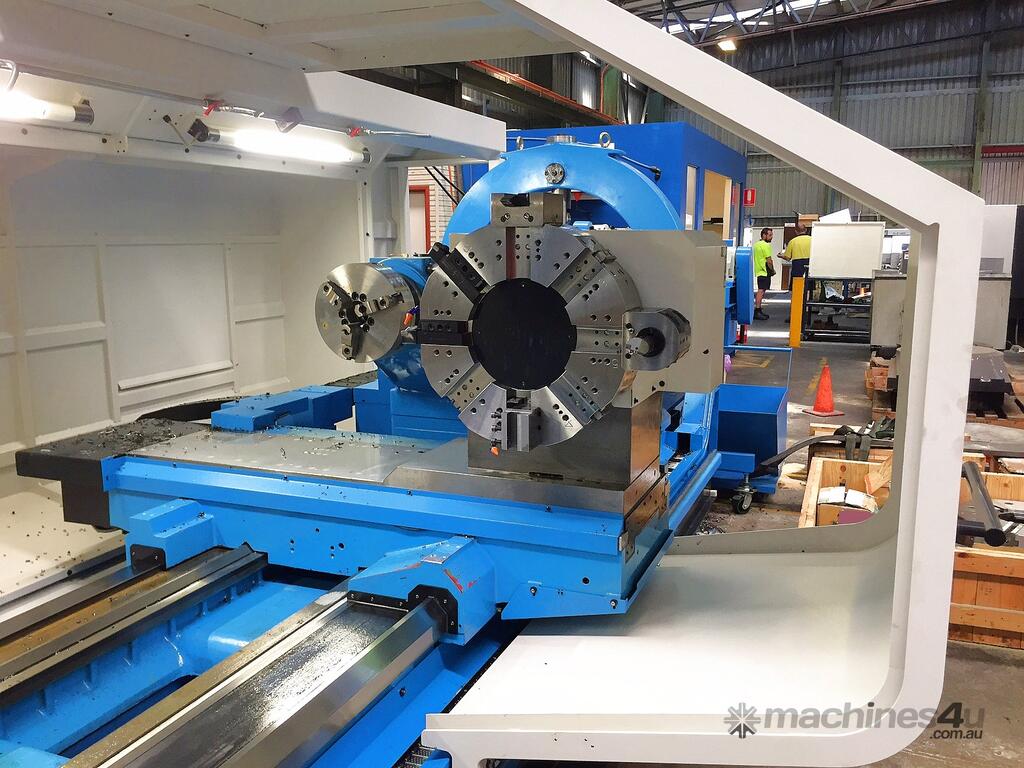

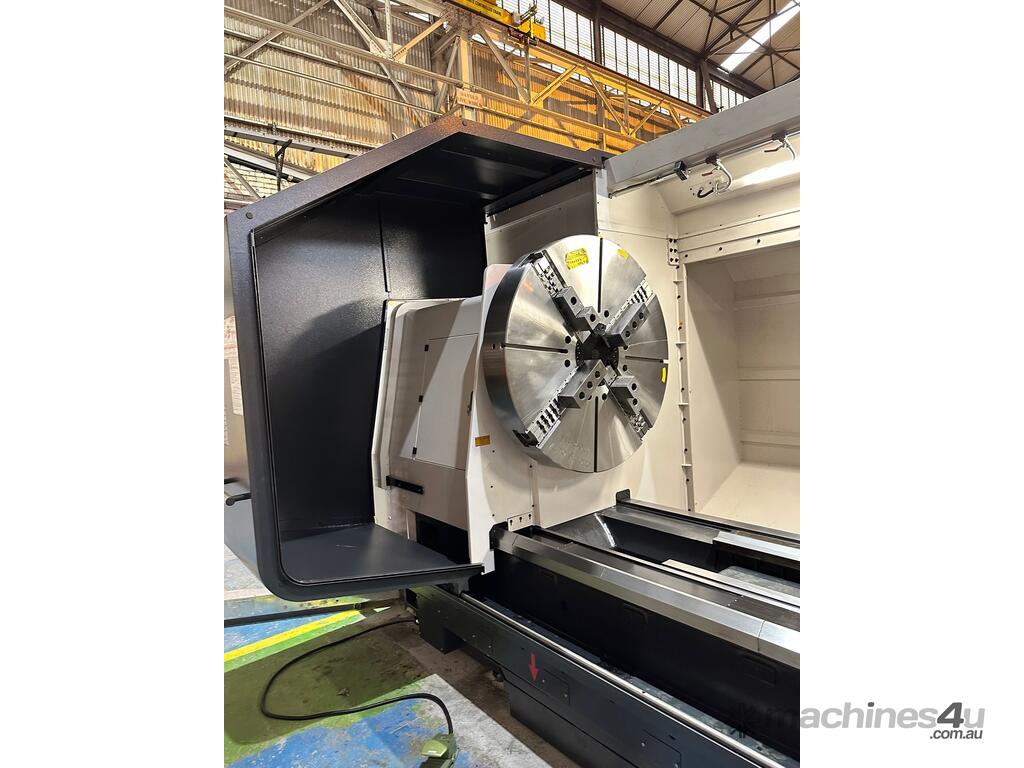

With spindle bores up to 530mm and a choice of H4 and V8 tool turrets or front and rear combinations of these, hydraulic or pneumatic chucks, rear chucks, boring attachments, 20hp drilling attachment with spindle indexing, 10 ton capacity tailstocks options and more allow the client to "assemble" the lathe that suits their needs precisely.
All CL78 series machines come standard with high torque 60hp / 50hp spindle motors which run through a 2 speed range gear box. This power combined with the machines impressive rigidity and build quality makes the CL78 suitable for the most demanding of applications.
The Chin Hung Machinery Company of Taiwan was established in 1968, and has manufactured the KINWA range of metal working lathes since 1973. These high quality lathes are manufactured in Taiwan in line with ISO9001 and CE Standards providing a very high level accuracy, performance, finish and longevity at a realistic price.
Other capacities available.
Delivery, commissioning, training and ongoing support Australia wide.
Please call for additional information.
