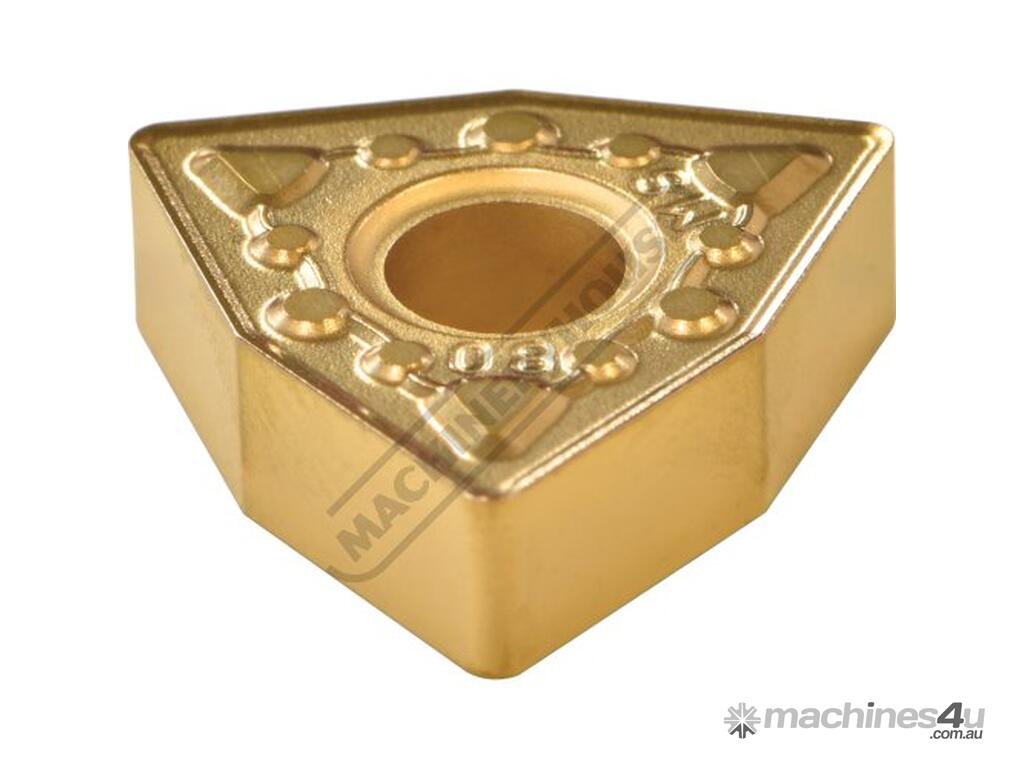

KYOCERA Carbide Inserts - Turning WNMG 080408MS Grade CA6525 - Stainless Steel 10 Inserts Per Pack

KYOCERA KYOCERA Carbide Inserts - Turning WNMG 080408MS Grade CA6525 - Stainless Steel 10 Inserts Per Pack
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L0538

CA6525 Grade CVD Coated Carbide
Suitable for stainless steel, heat-resistant steel and general steel.

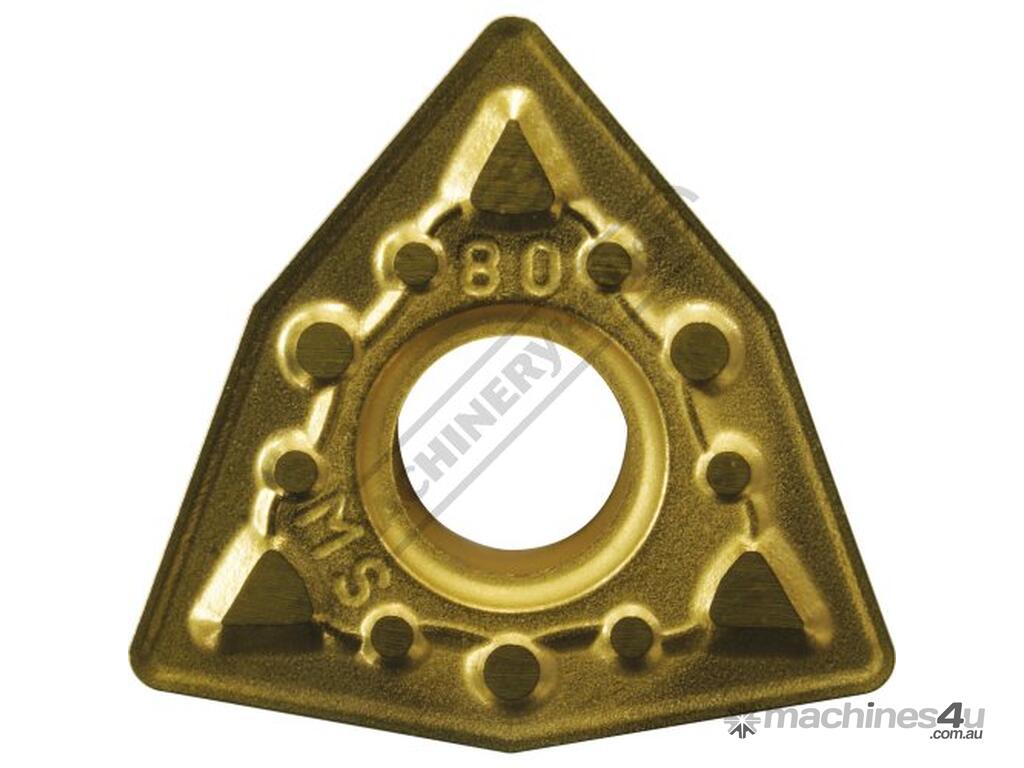

MS Chipbreaker
The first recommendation for medium to roughing applications, featuring a positive land, a tough cutting edge, and excellent chip control.

Features:
Japanese Made
CVD Coated Carbide with Thin Ultra-fine TiCN Coating

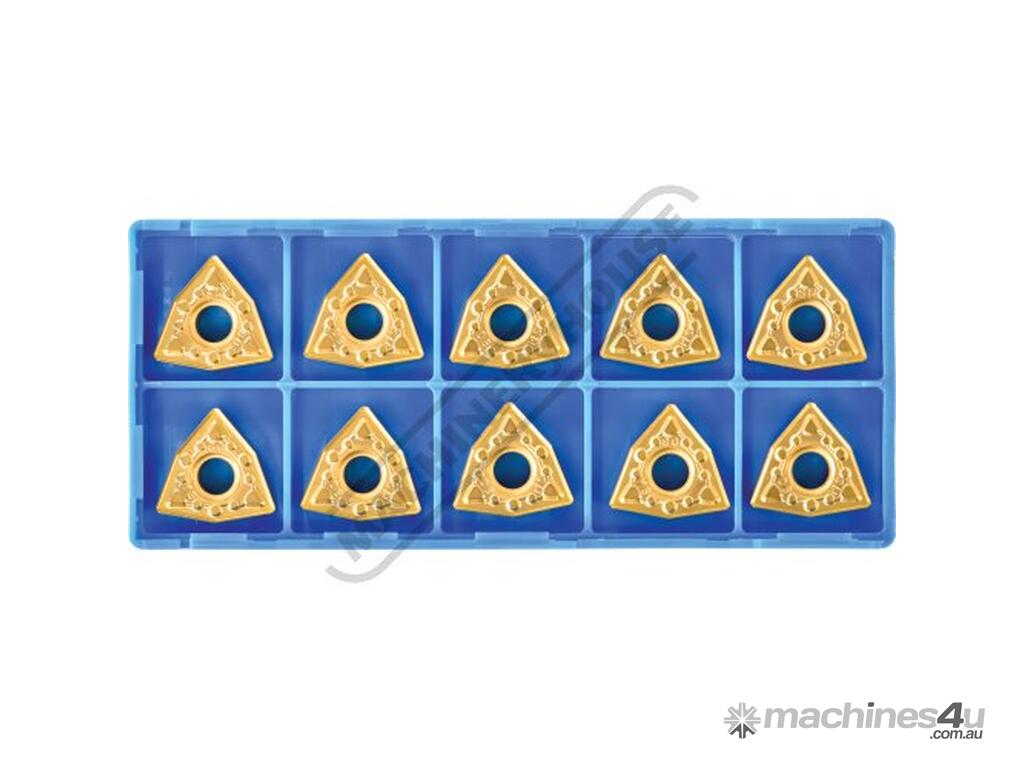

10 Inserts Per Pack


Specifications:
ORDER CODE: L0538
MODEL: WNMG 080408MS
Grade: CA6525
Application: Stainless Steel
Pieces in Set (Qty): 10
[D] Insert IC Size (Inscribed Circle) (mm): 8.7
[D1] Insert Hole Size (mm): 5.16
[L10] Insert Cutting Edge Length (mm): ~
[S] Insert Thickness (mm): 4.76
[R?] Corner Radius (mm): 0.8
Relief Angle (Deg): ~
d (mm): 12.7
Insert shape (Style): ~


To Purchase Online Please Visit The Machineryhouse & Search For 'L0538'
