This machine takes the "black art" out of pipe profiling. With its Menu-Driven Interface, you simply select the joint type (Straight, Mitre, or Branch), input the pipe diameter, and hit "Go." It delivers a machine-quality fit-up in minutes, ready for the welder with zero manual layout required.
Key Technical Specifications:
Drive System: Dual PLC-controlled axes (Rotation + Longitudinal Torch Movement).
Beveling: Optional 3rd Axis for automatic weld seam preparation (beveling).

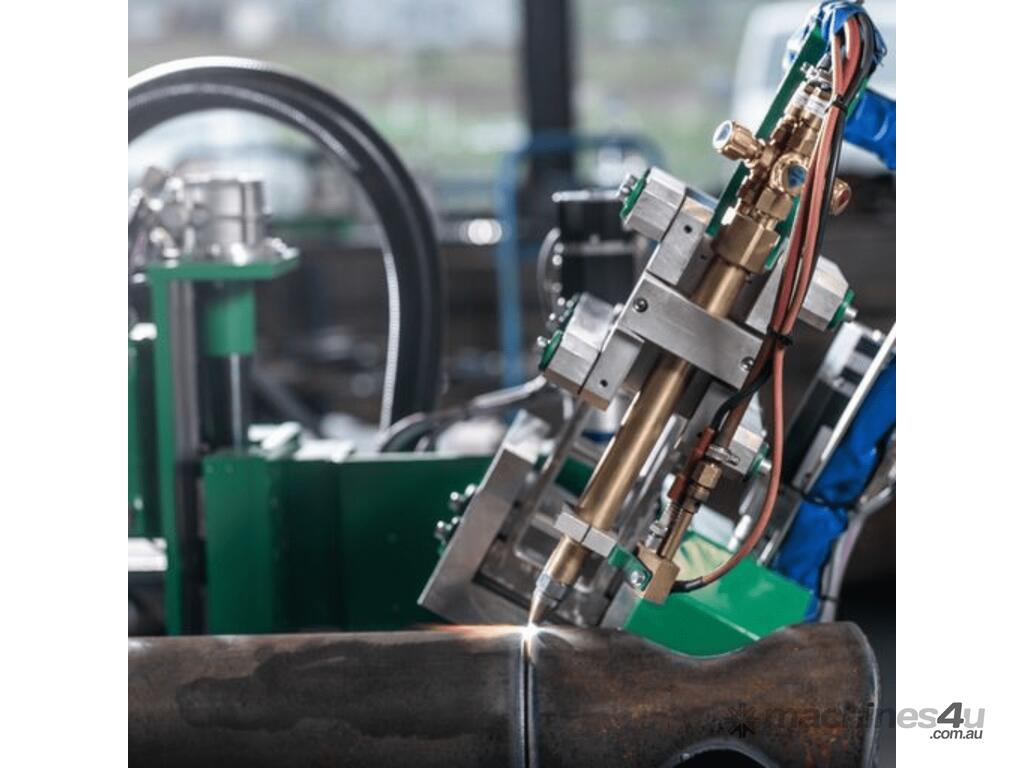

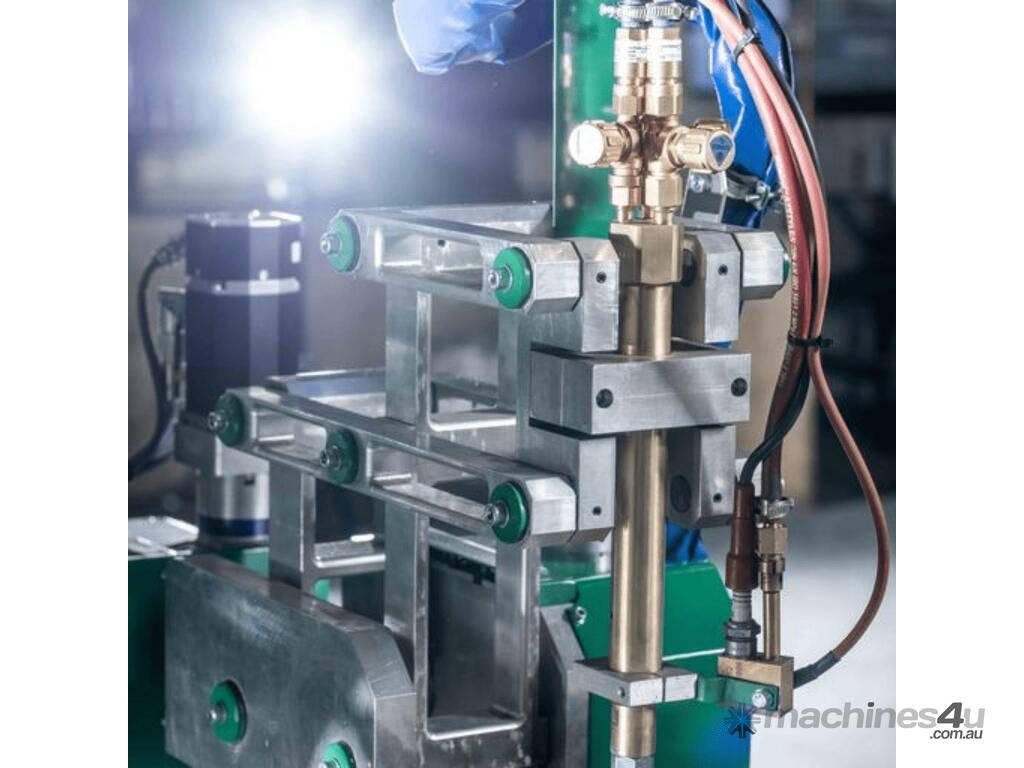

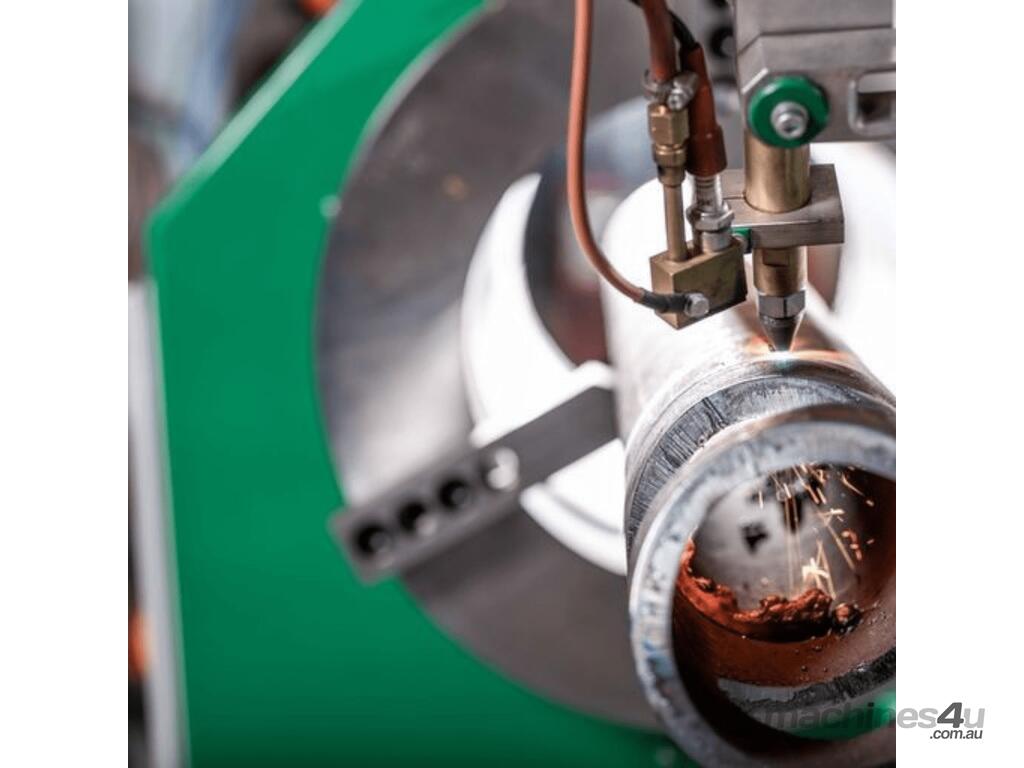

Cutting Process: Compatible with High-Definition Plasma or Oxy-Fuel torches.

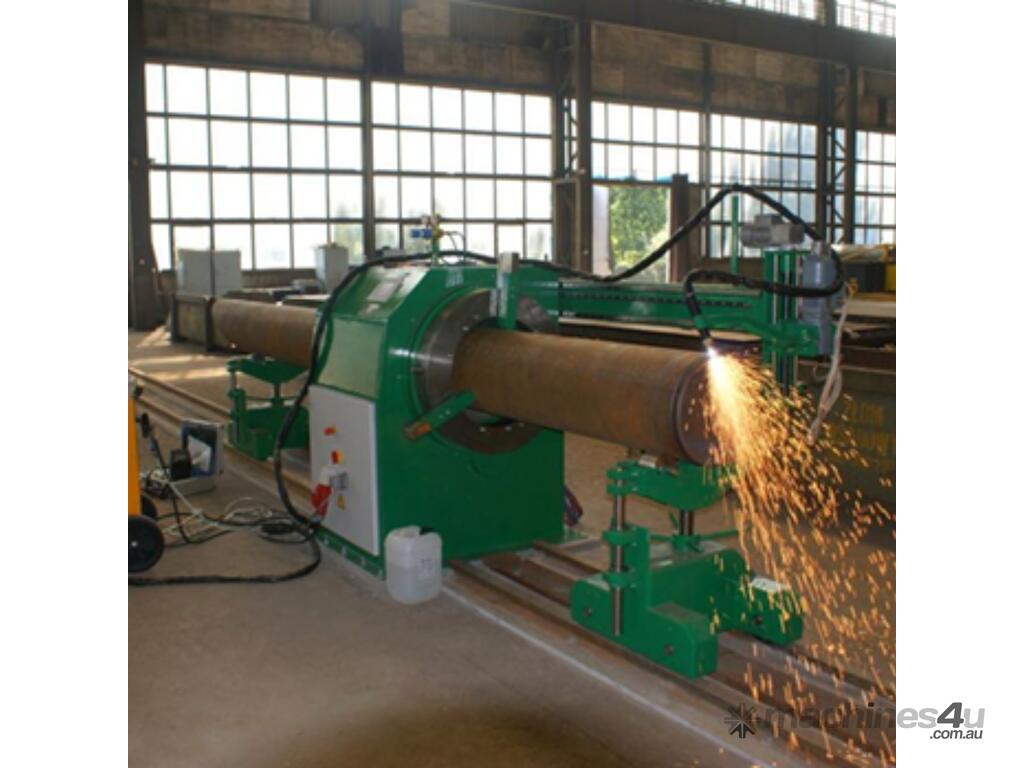

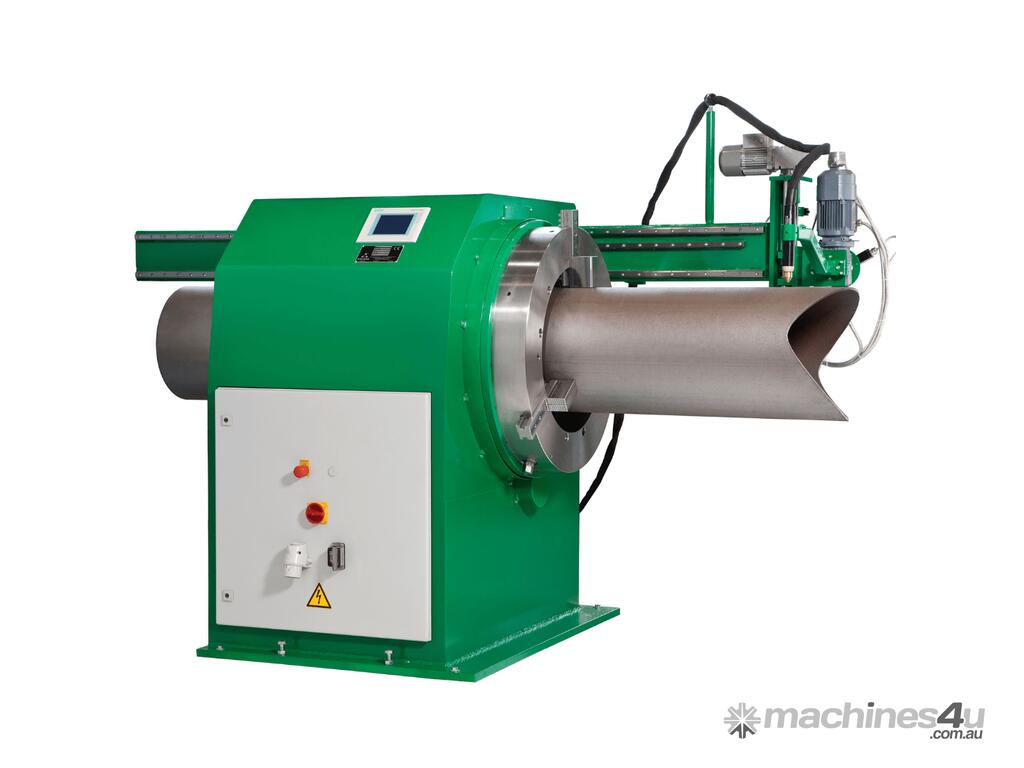

Chuck Design: Powered jaw-chuck with "Through-Hole" capability for long pipes.
Programming: Intuitive, menu-guided touchscreen (no G-code knowledge required).

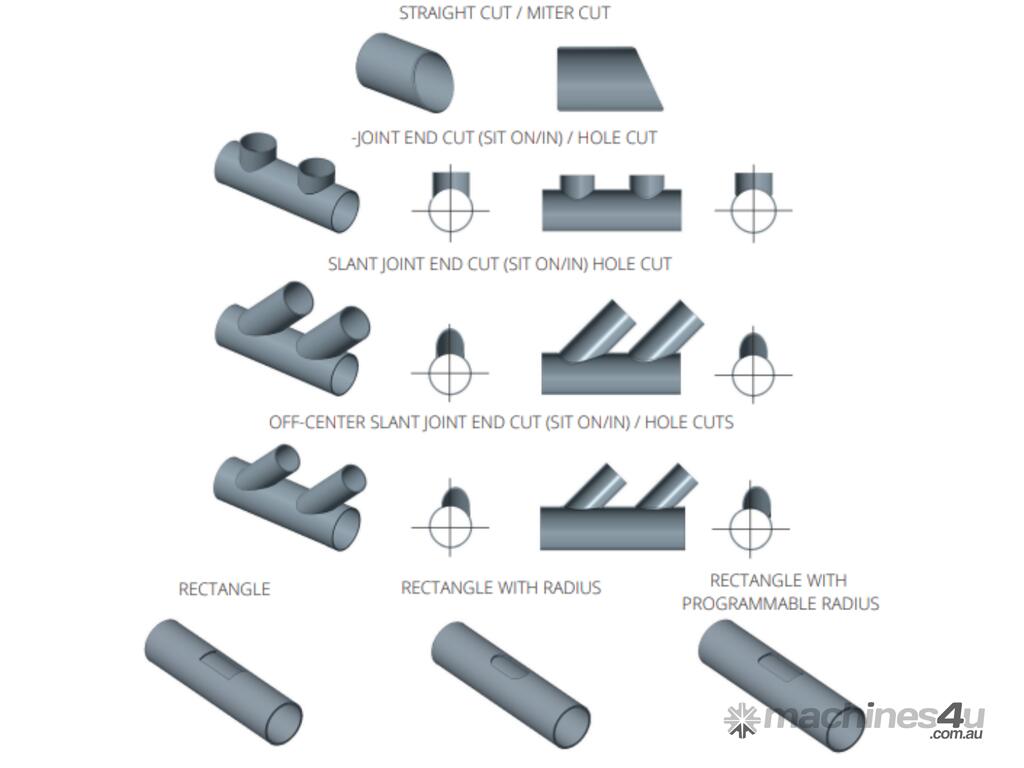

Versatility: Capable of Straight cuts, Miter cuts, Hole cuts, and Off-center branch joints.
Top 5 "Kistler SCM" Advantages:
Walk-Up-and-Use Operation: The menu-driven software is so simple that an operator can be productive in under an hour. No complex nesting software or external PC is required.
Surgical Fit-Ups: By automating the torch trajectory, every saddle and mitre is perfectly matched. This reduces weld-fill volume and ensures consistent penetration for high-spec piping.
On-Site or Workshop Ready: Built with a compact and robust frame, the SCM range is equally at home in a high-production workshop or inside a shipping container on a remote project site.
Automatic Beveling (Optional): With the integrated 3rd axis, the machine doesn't just cut the shape; it prepares the weld edge at the correct angle, eliminating the need for manual grinding.
German Engineering: Designed and manufactured by Kistler in Germany, these machines are built to withstand the rigours of heavy industrial fabrication and site work.
Contact Specialist Machinery Sales today for a technical consultation and to see how the Kistler SCM Series integrates into your current workflow.
