Kistler U Series Welding Pipe Rotator

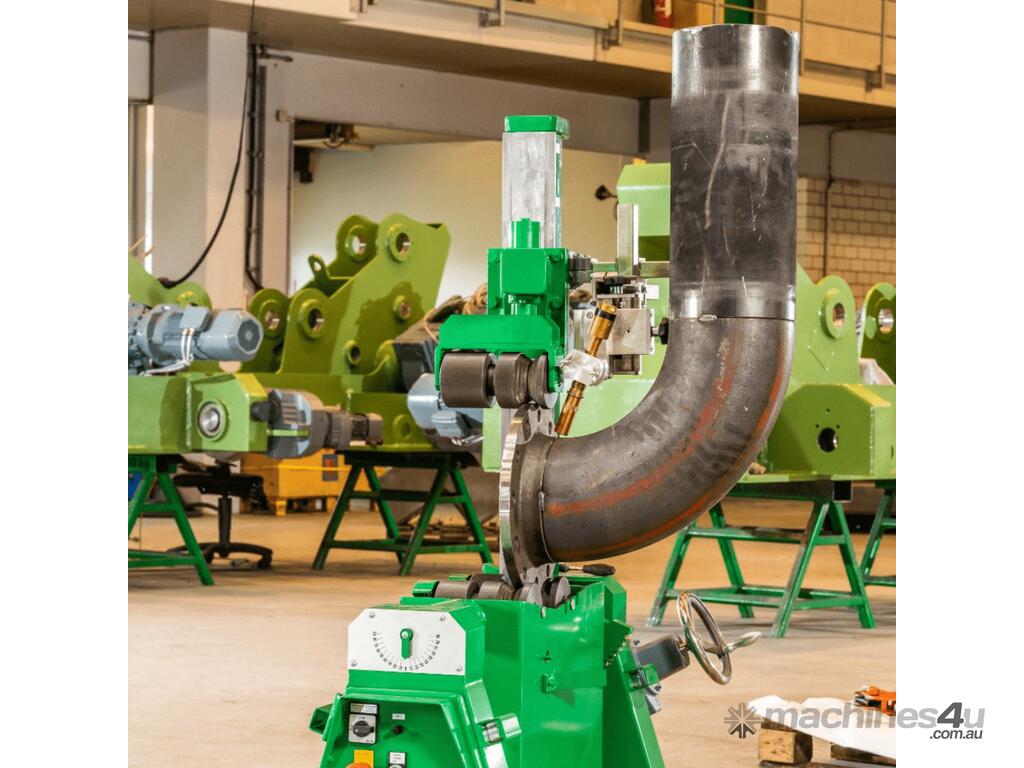

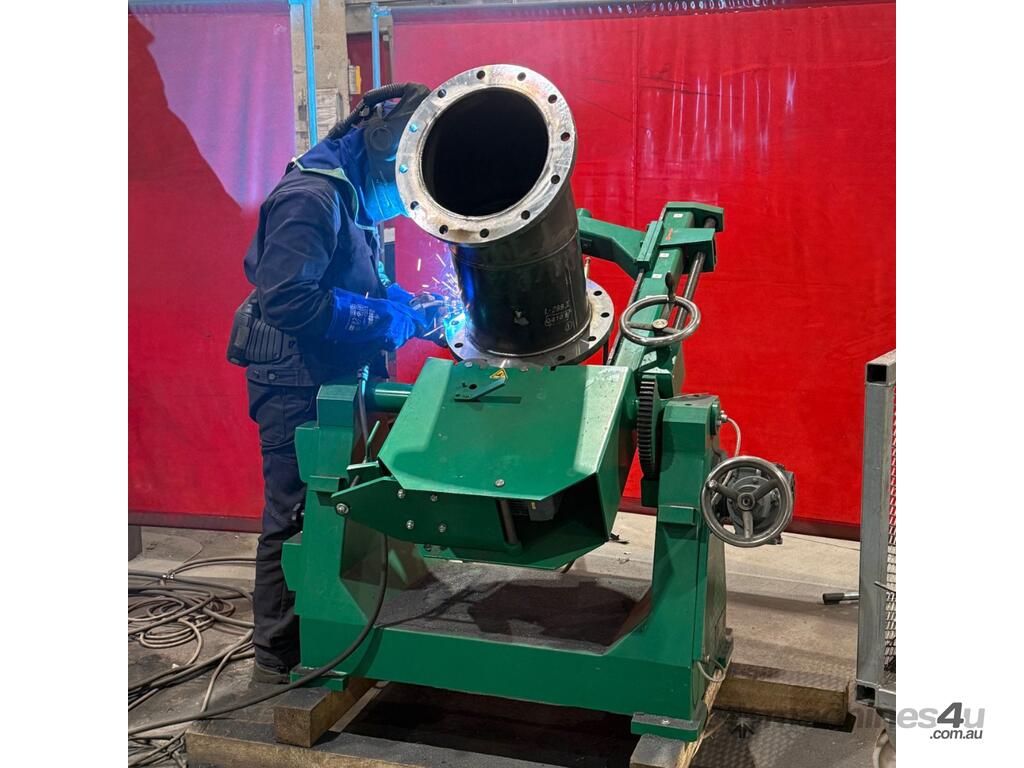

Featuring a patented Clamping Roller System, these machines centre and secure pipes, elbows, and T-pieces in seconds without chucks or shoes. With infinitely variable rotation and 135° tilting, the welder can maintain a perfect "downhand" position for the entire circumference, ensuring X-ray quality welds with zero interruptions.

Key Technical Specifications:

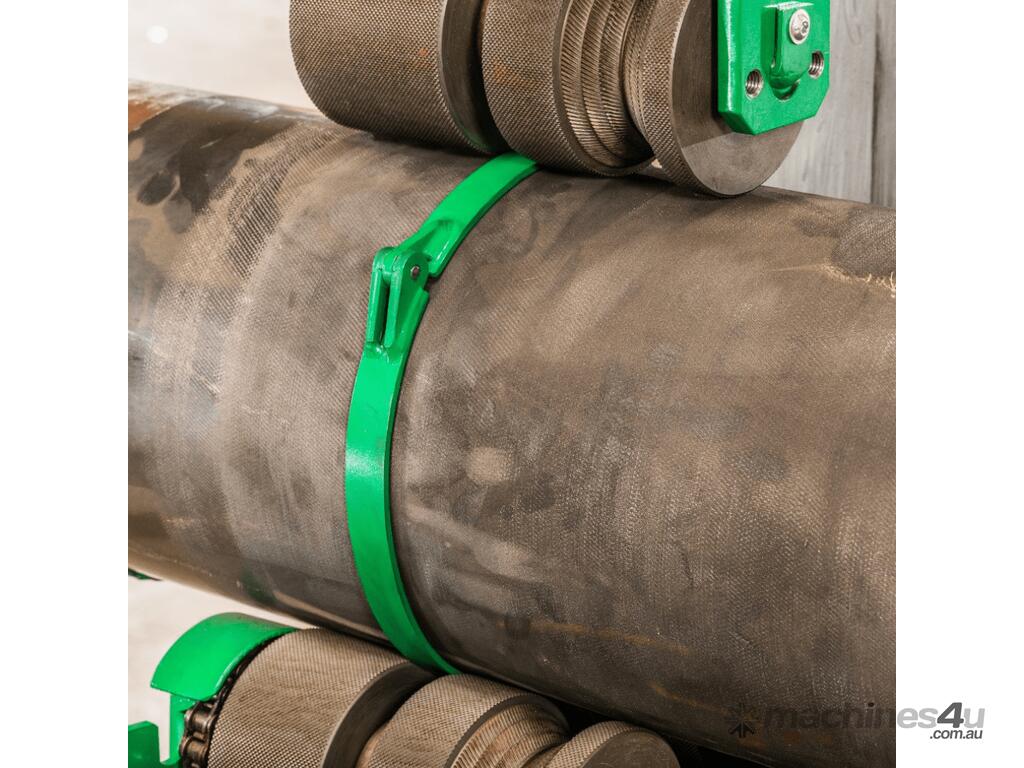

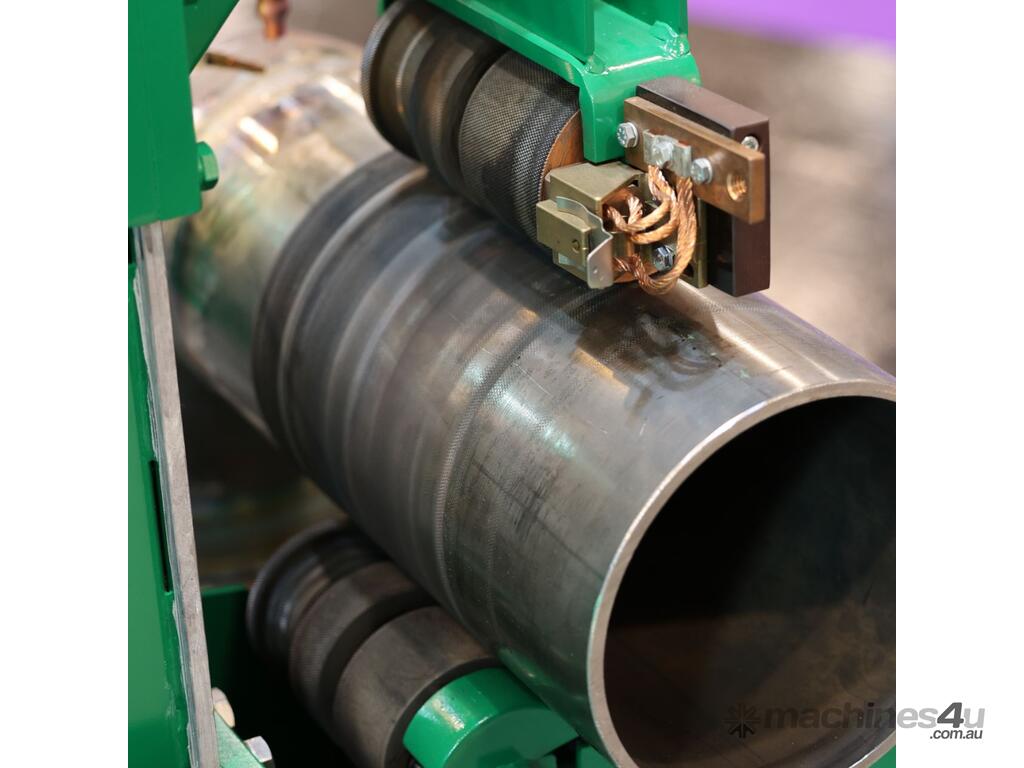

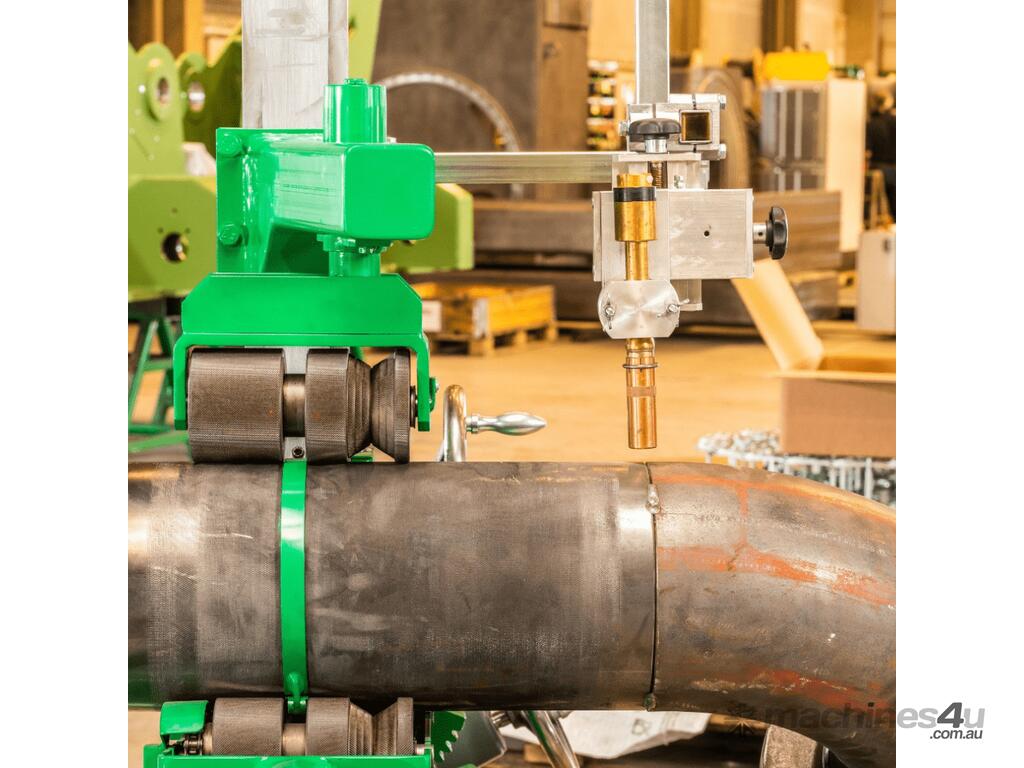

Patented Clamping: Unique roller system centres pipes and elbows without tools.
Tilting Range: Up to 135° (Manual on U-150/500, Motorised on U-1000).
Rotation Speed: Infinitely variable (stays constant regardless of pipe diameter).

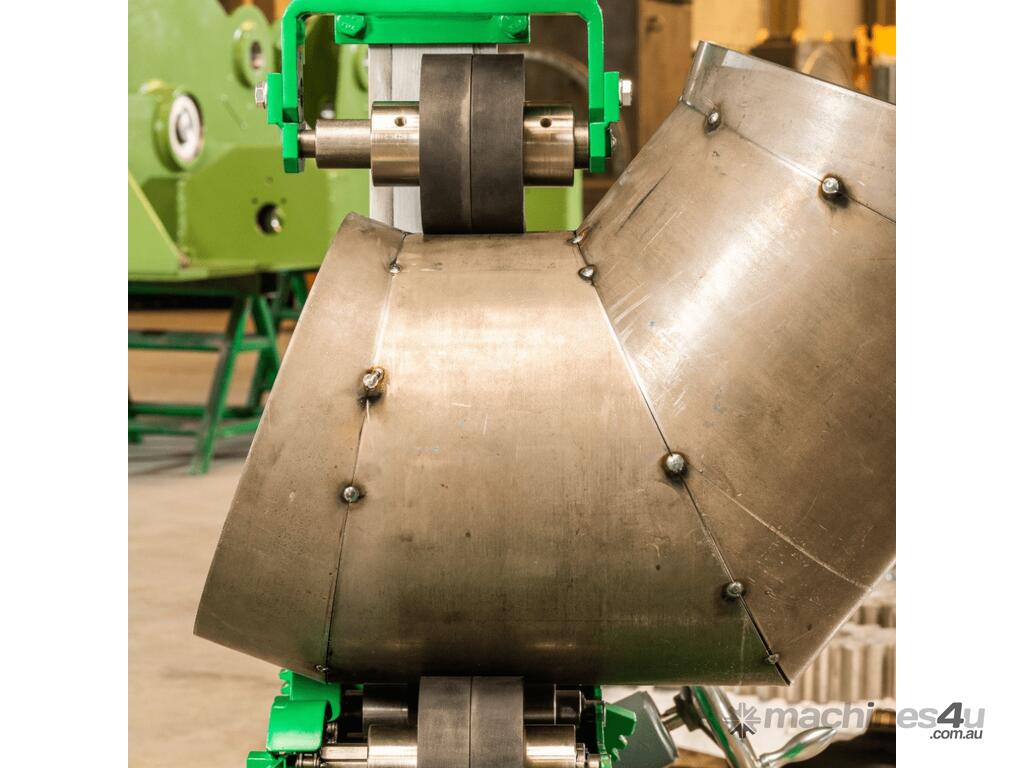

Offset Loading: Specifically designed to handle "lobster backs," tees, and elbows.

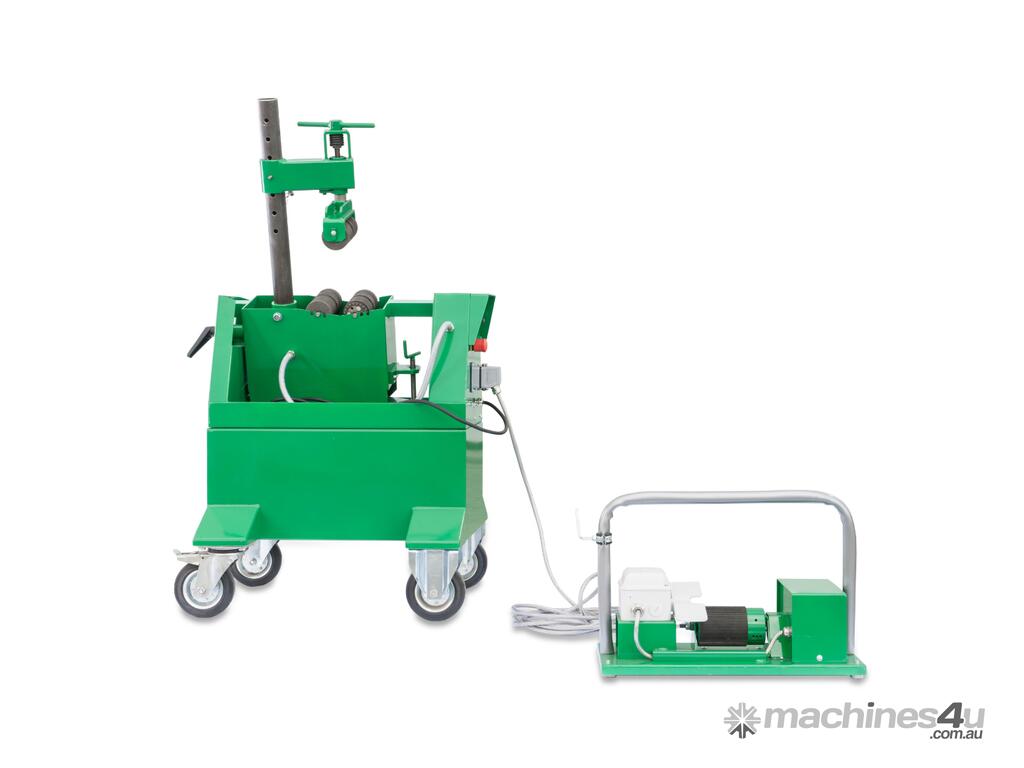

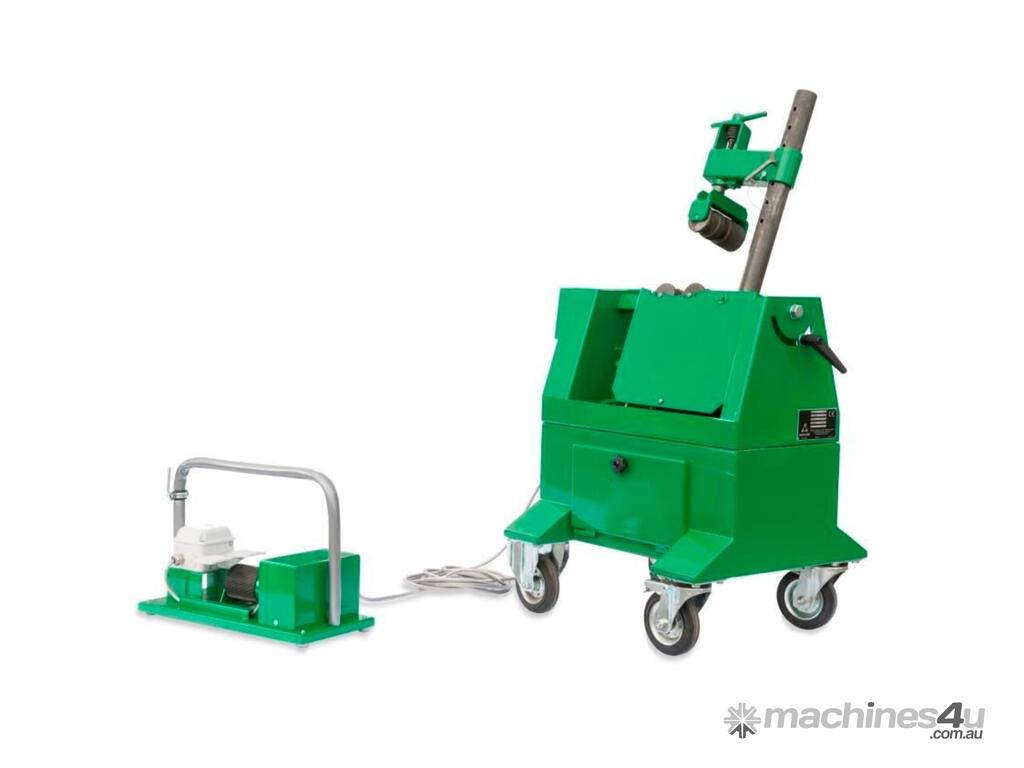

Control Options: Foot switch, hand pendant, or even helmet-integrated switching.
Variants: "H" models available for rotation-only (no tilting) requirements.

Top 5 "Kistler U-Range" Advantages:
Fastest Setup in the Industry: The patented clamping arm replaces old-fashioned chucks. You can clamp and centre a pipe or flange in a fraction of the time it takes on a traditional positioner.

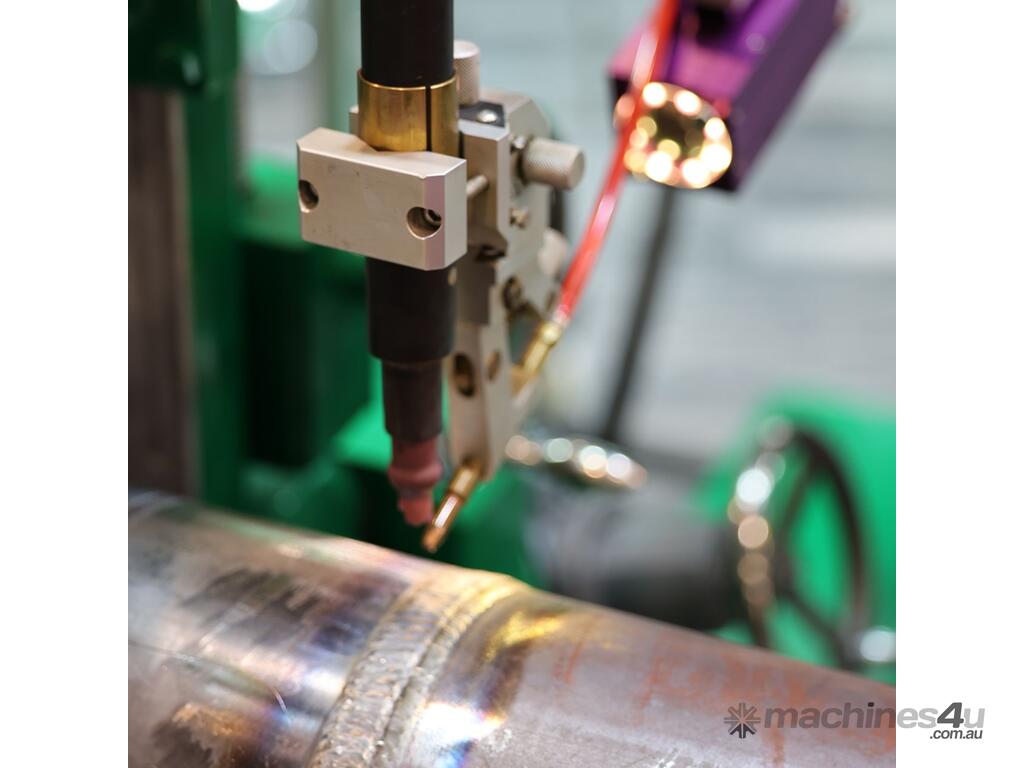

Continuous Bead Quality: By automating the rotation, you eliminate weld "starts and stops." This results in a cleaner aesthetic and significantly higher structural integrity for high-pressure applications.

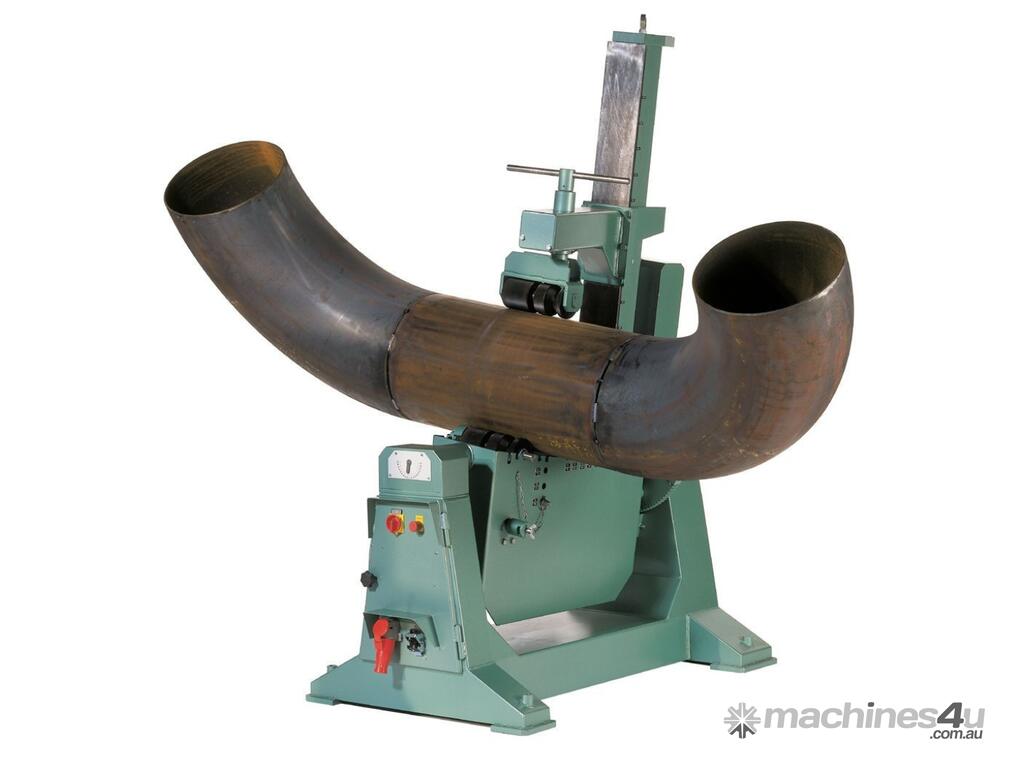

Handles "Impossible" Geometries: Because the pipe is clamped at its centre of gravity, the U-Series easily handles offset loads like long elbows and heavy tee-joints that would topple a standard rotator.
Hands-Free Control: With foot-pedal or helmet-link controls, the welder never has to drop their torch to adjust the speed or direction. This keeps the "arc-on" time at a maximum.
German Engineering: Built by Kistler in Germany, these units are the global benchmark for durability in pipe pre-fabrication and site assembly.

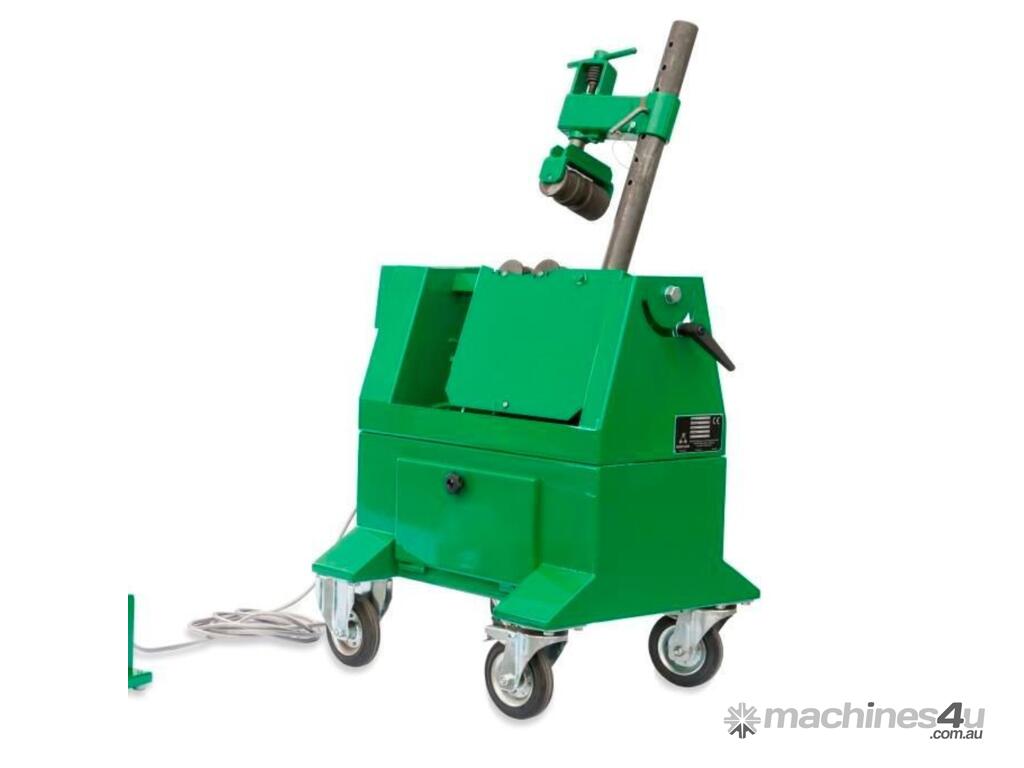

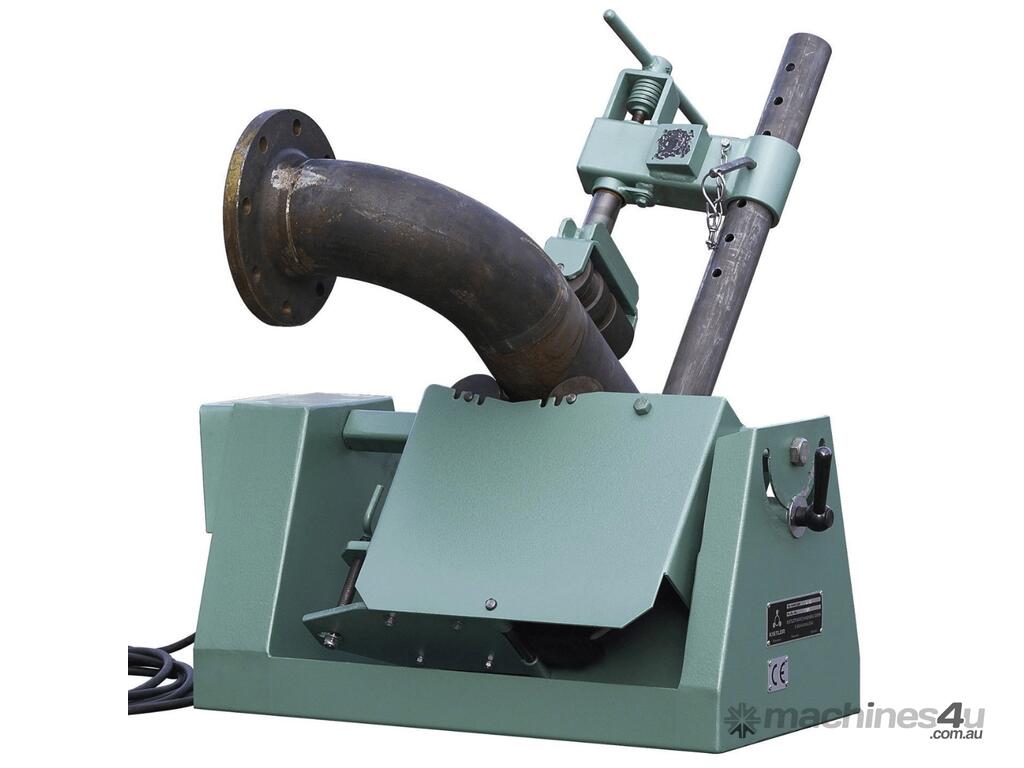

Kistler U-150: The "Spool Specialist"
The Buyer: Light-to-medium pipe shops, HVAC contractors, and welding training centres.

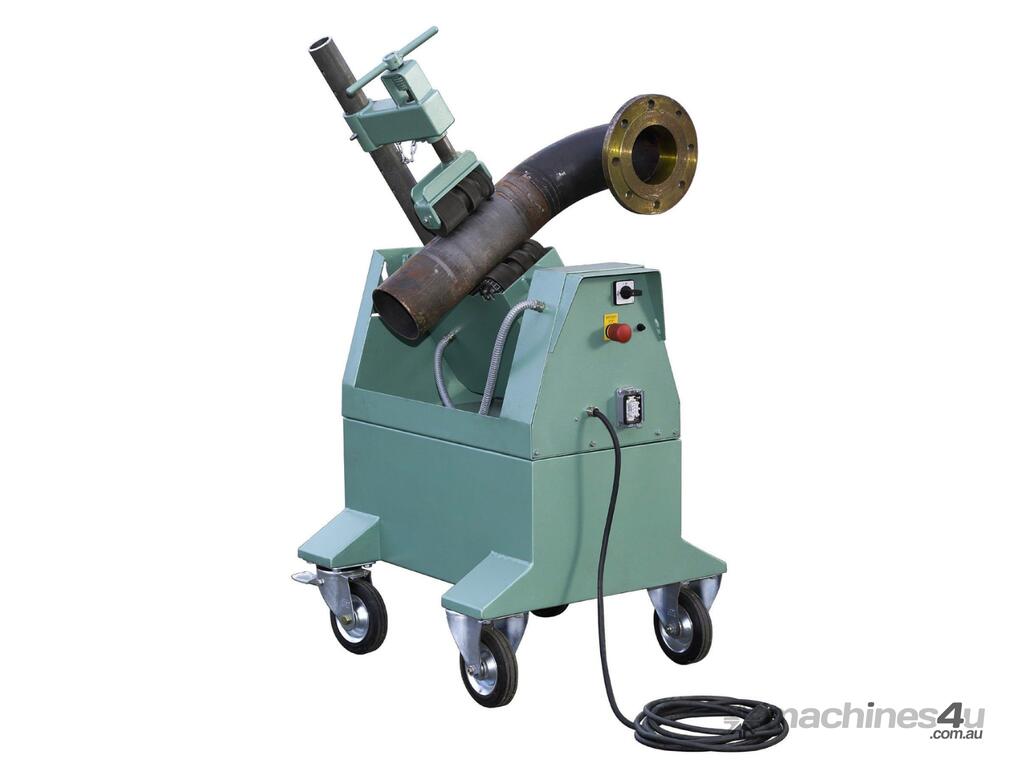

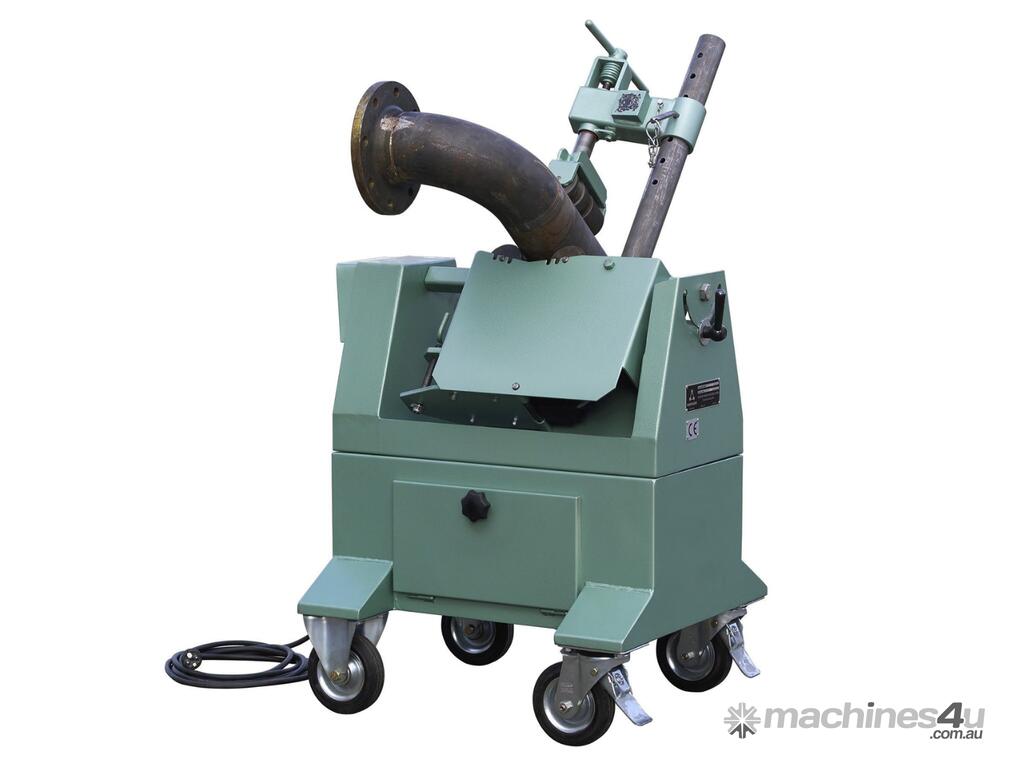

The Pitch: Compact and precise. The U-150 is the "go-to" for pipes up to 8" (200mm). It’s light enough to be moved around the shop but heavy enough to anchor your precision spooling work.
Why buy? You specialise in smaller diameter process piping and need an ergonomic solution to replace manual bench-rolling.

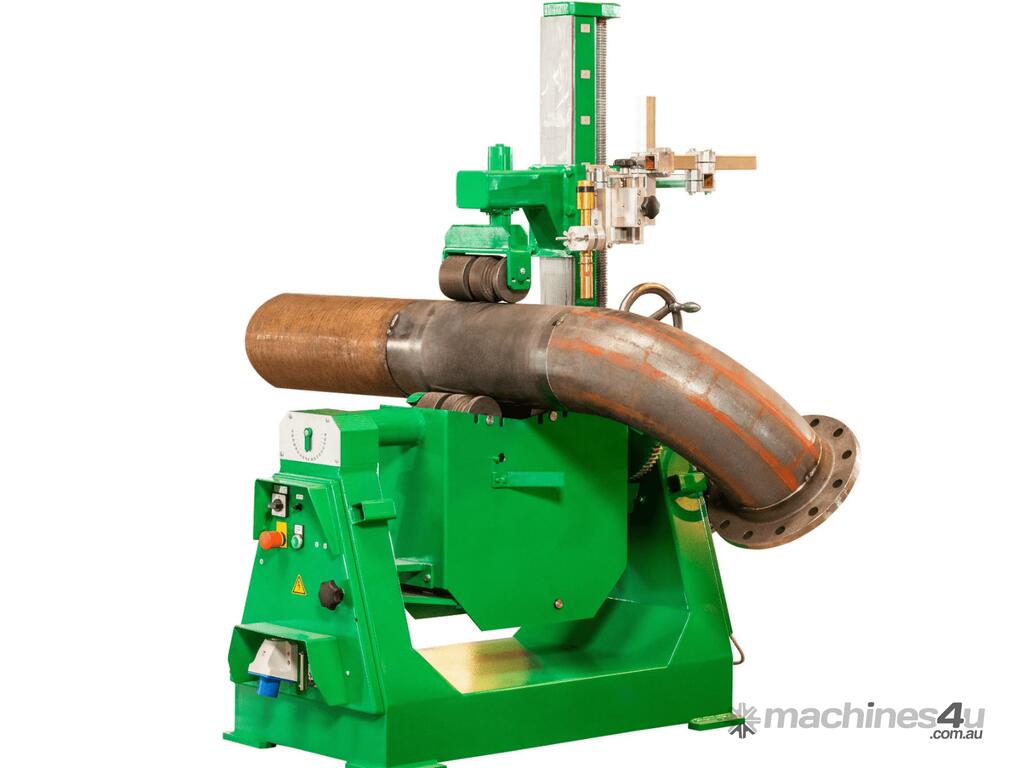

Kistler U-500: The "Production Workhorse"
The Buyer: General industrial fabricators and plant construction companies.
The Pitch: The "Sweet Spot." With a 1000kg horizontal capacity and 16" (400mm) clamping range, the U-500 handles the majority of industrial piping requirements found in water, oil, and gas sectors.
Why buy? You need a versatile, mid-sized rotator that can handle heavier flanges and longer spools with total stability.

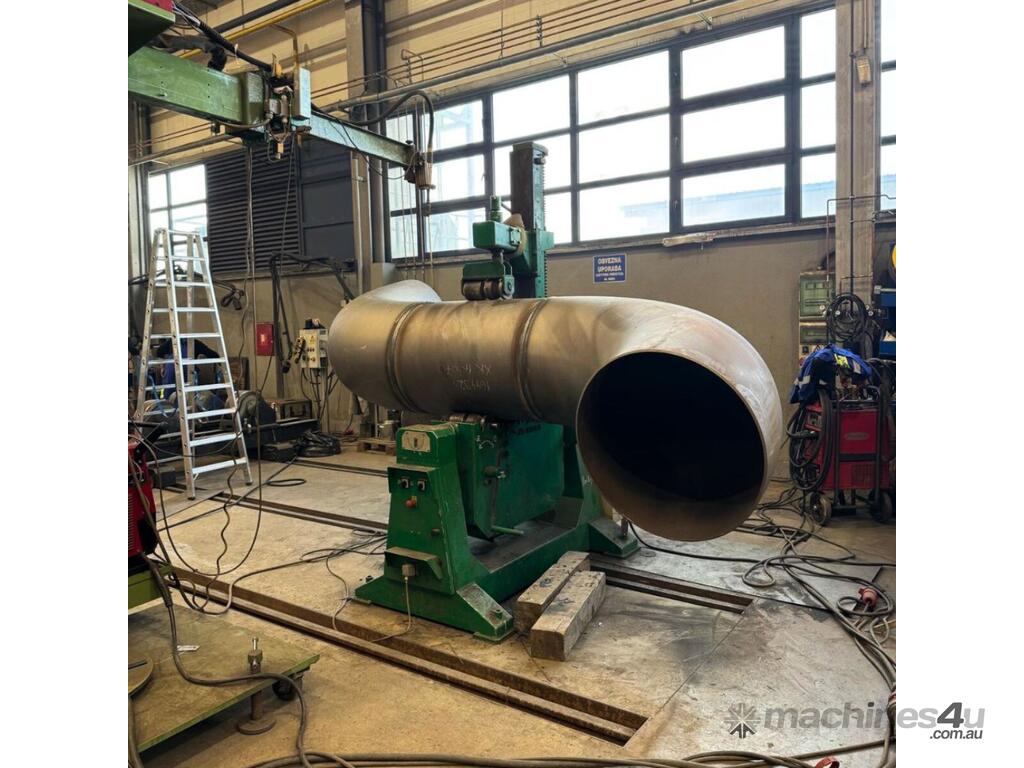

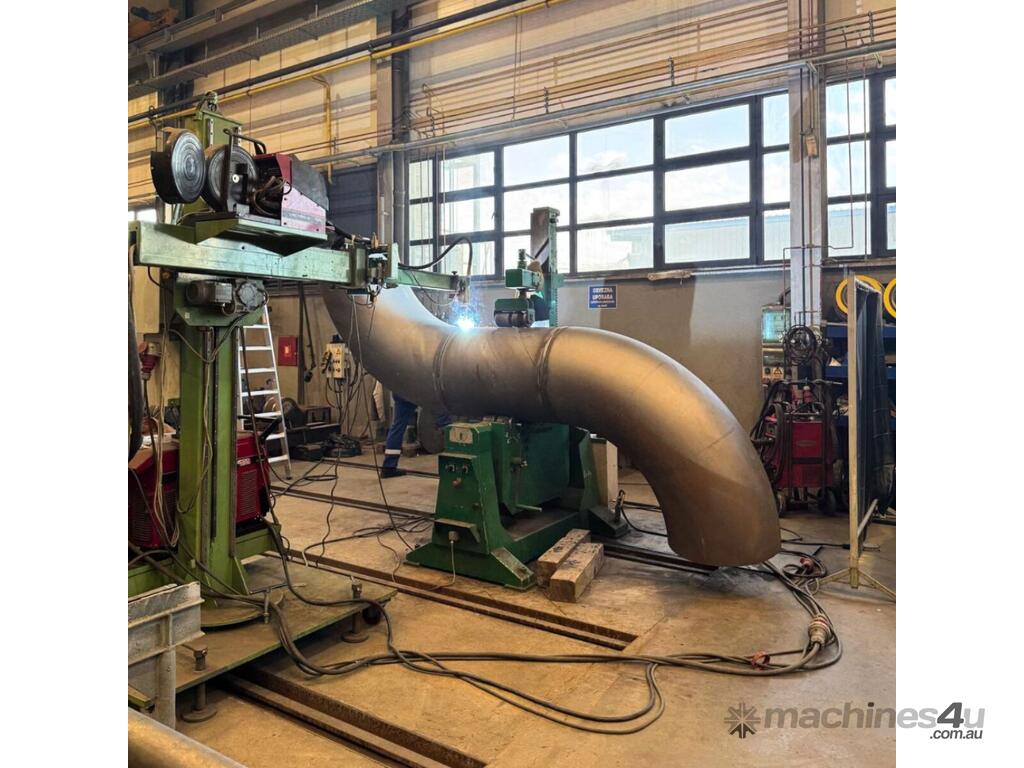

Kistler U-1000: The "Heavy Industrial Giant"
The Buyer: Heavy-wall pressure vessel manufacturers, shipyards, and mining infrastructure fabricators.

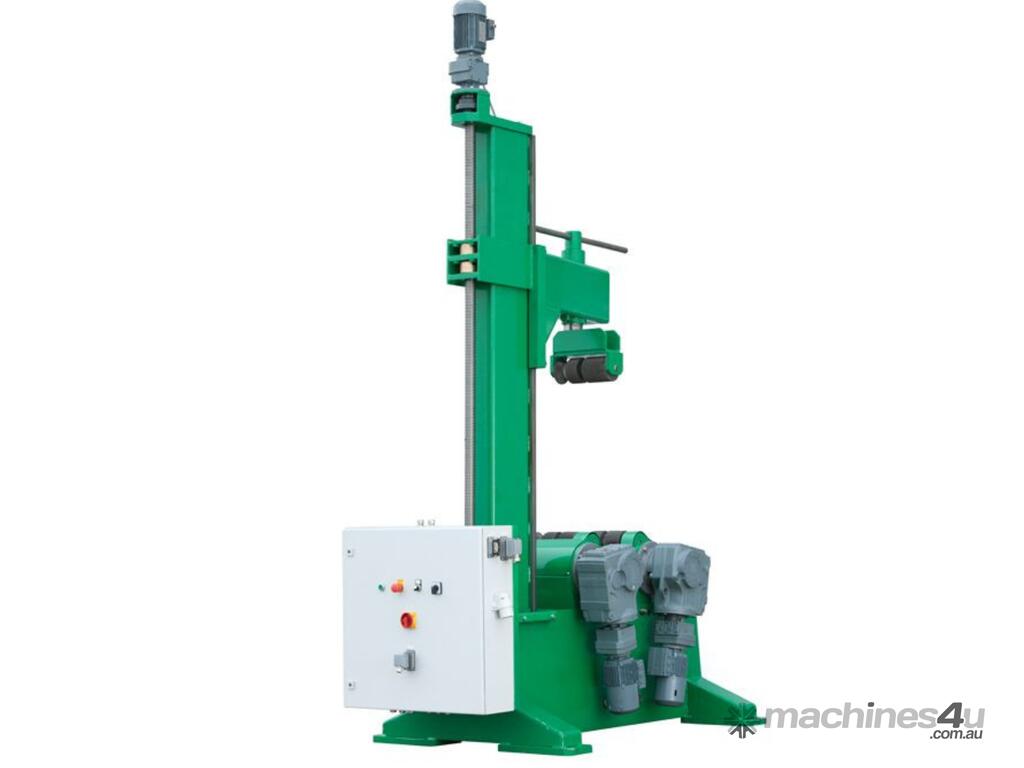

The Pitch: Maximum power with motorised ease. The U-1000 features motorised tilting and a massive 2000kg capacity, handling pipes up to 32" (800mm). It’s designed for the biggest, heaviest, and most awkward offset loads.
Why buy? You are processing large-diameter, thick-wall pipe where manual tilting is no longer safe or efficient.

Contact Specialist Machinery Sales today for a technical consultation and to see how the Kistler U-Range Pipe Rotators integrates into your current workflow.
