Kohler J110 Diesel Generator with FD02
110 kVA Standby and 100 kVA Prime Power | Clarke Energy Supplied
The Kohler J110 diesel generator with FD02 fuel system is a reliable and robust mid range power solution designed for both standby and prime power applications. Supplied and supported by Clarke Energy, this generator combines Kohler’s proven engineering with industry trusted John Deere engine technology, delivering dependable performance and long service life in demanding environments.
The J110 is powered by a John Deere 4045HSG20 industrial diesel engine and matched with a Kohler single bearing alternator. Housed in a silent corrosion resistant steel canopy, the set is engineered for low noise operation and durability across commercial, industrial, and rural applications.
Power ratings at 415 240 V, 50 Hz:
Standby rating ESP
110 kVA 88 kWe
153 A
Prime rating PRP
100 kVA 80 kWe
144 A
Typical applications include:
• Commercial buildings and office facilities
• Agricultural operations and irrigation systems
• Telecommunications and network infrastructure
• Construction sites and site compounds
• Light industrial plants and workshops
• Emergency backup for essential services
Key features:
• John Deere 4045HSG20 water cooled industrial diesel engine
• Mechanical governor for stable and proven operation
• Kohler alternator KH00753T with Class H insulation and IP23 protection

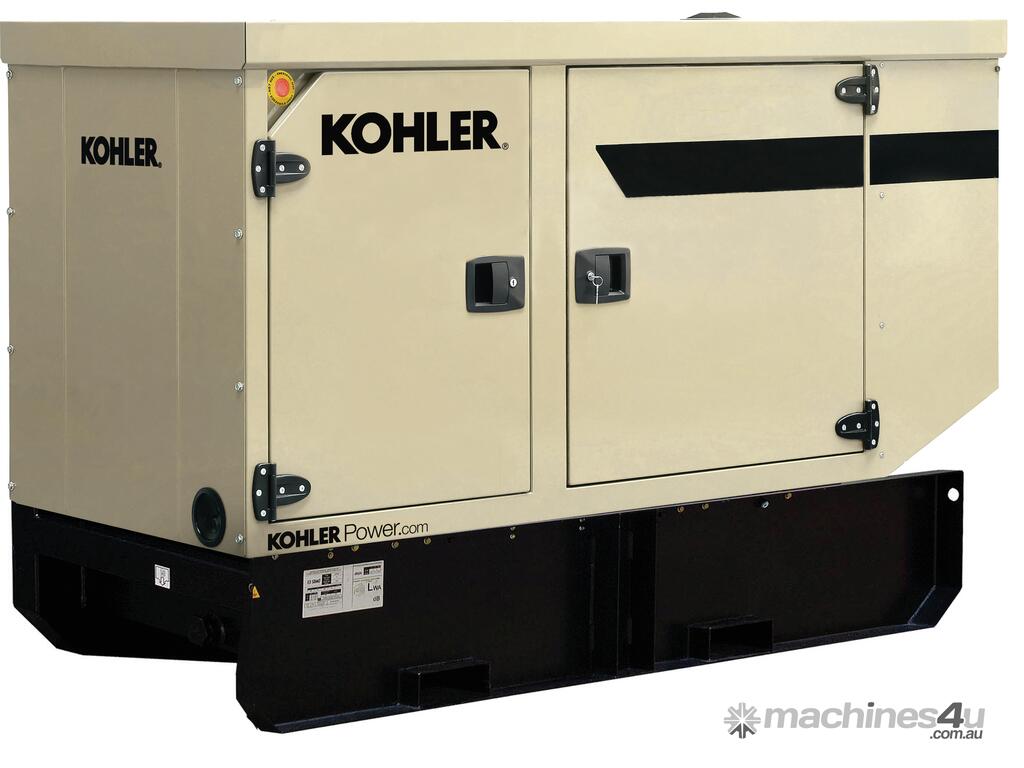

• Silent canopy manufactured from high quality European steel in RAL1014 beige
• Integrated 500 L long run fuel tank
• FD02 fuel system with large autonomy tank, secondary containment bund, drain plug, and retention bund alarm

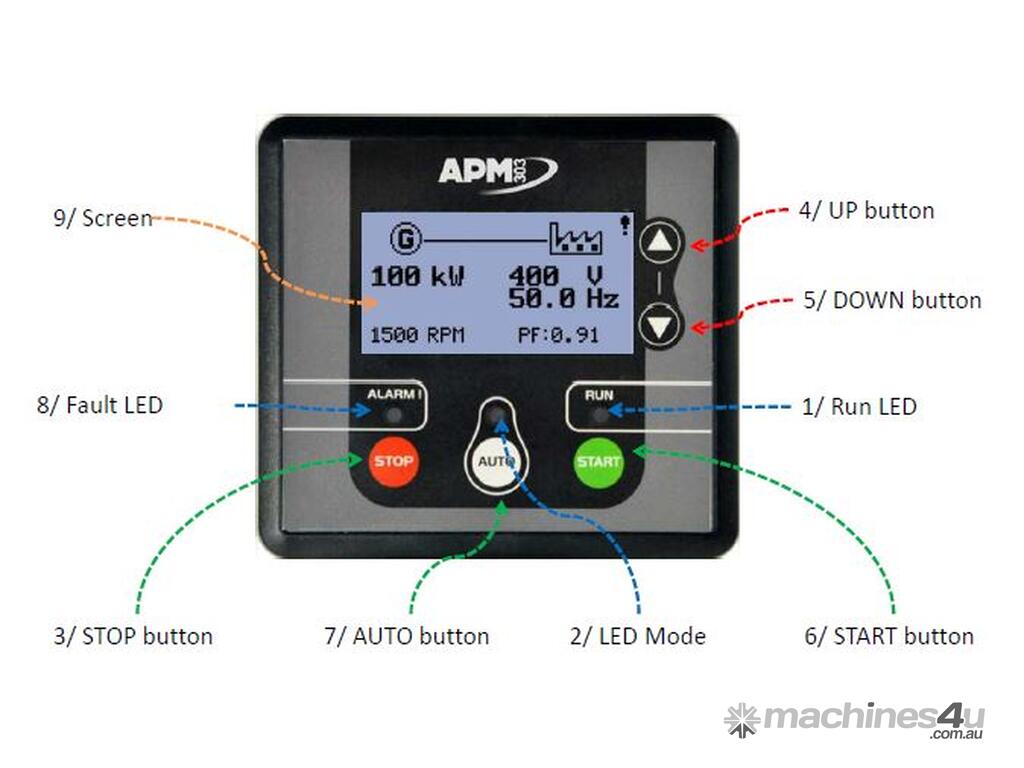

• APM403 control panel with full engine and electrical protection
• Auto start prewiring with automatic control pack including battery charger and engine preheating
• Schneider or ABB 250 A four pole circuit breaker
• Welded steel base frame with vibration isolation mounts and forklift friendly design
• External emergency stop button and stainless steel IP64 locking system
Control and monitoring highlights:
• Voltage, current, frequency, and power monitoring
• Oil pressure and coolant temperature display
• Low coolant level fault protection
• Audible alarms and remote dry contacts
• Remote monitoring via RS485
Backed by Clarke Energy as the authorised Kohler distributor, the J110 with FD02 offers a high quality, long run generator solution supported by nationwide service capability, genuine parts availability, and expert technical support.
Contact us for pricing, availability, or assistance with ATS selection, installation, and commissioning.
