If your application is an urban environment or tighter than normal; the ‘US’ model units offer a larger operational envelope whilst maintaining stability and lifting capability.
It is an integrated design which now includes a host of standard factory installed items, such as: Large ROPS Cabin, Emergency Stops, Quick Hitch and Attachment Piping to name a few!
This holistic approach means piece of mind and compliance with industry and customer expectations; additionally, it ensures a quiet environment for the operator.

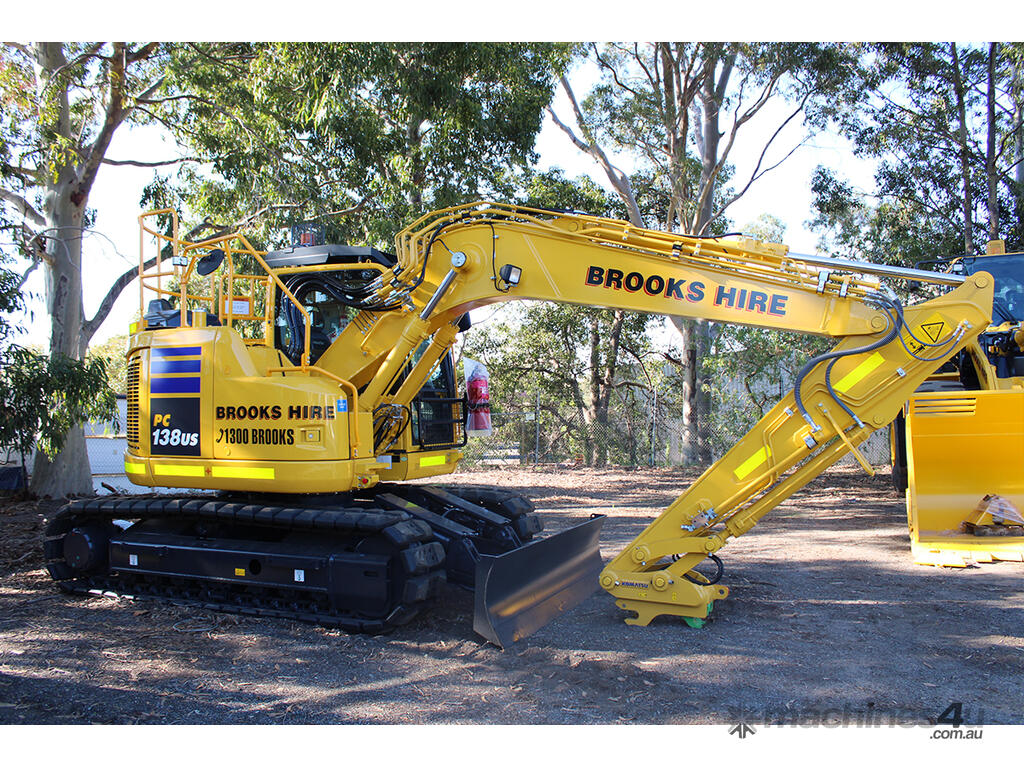

The Komatsu Dash 11 excavators have been founded on an impeccable lineage of proven thoroughbred machines.
SPECIFICATIONS
Operating Weight 13,850 kg
Flywheel horse power 72.1 kW / 2,200 rpm
Bucket size 0.53 m3
PERFORMANCE
Swing speed 11 rpm
Travel speed 2.9 km/h
Gradeability 70%
DIMENSIONS
A Overall length 7260 mm
B Length on ground (transport) 2850 mm
C Overall height (to top of boom) 4400 mm
D Overall width 2490 mm
E Overall height (to top of cab) 2815 mm
F Ground clearance, counterweight 900 mm
G Ground clearance (minimum) 395 mm
H Tail swing radius 480 mm
I Track length on ground 2880 mm
J Track length 3610 mm
K Track gauge 1990 mm
L Width of crawler 2490 mm
M Shoe width 500 mm
N Grouser height 20 mm
O Machine cab height 1980 mm
P Machine cab width 2490 mm
Q Distance, swing center to rear end 1480 mm
WORKING RANGE
A Max. digging height 9340 mm
B Max. dumping height 6840 mm
C Max. digging depth 5480 mm
D Max. vertical wall digging depth 4900 mm
E Max. digging depth of cut for 8? level 5265 mm
F Max. digging reach 8300 mm
G Max. digging reach at ground level 8180 mm
H Min. swing radius 1980 mm
