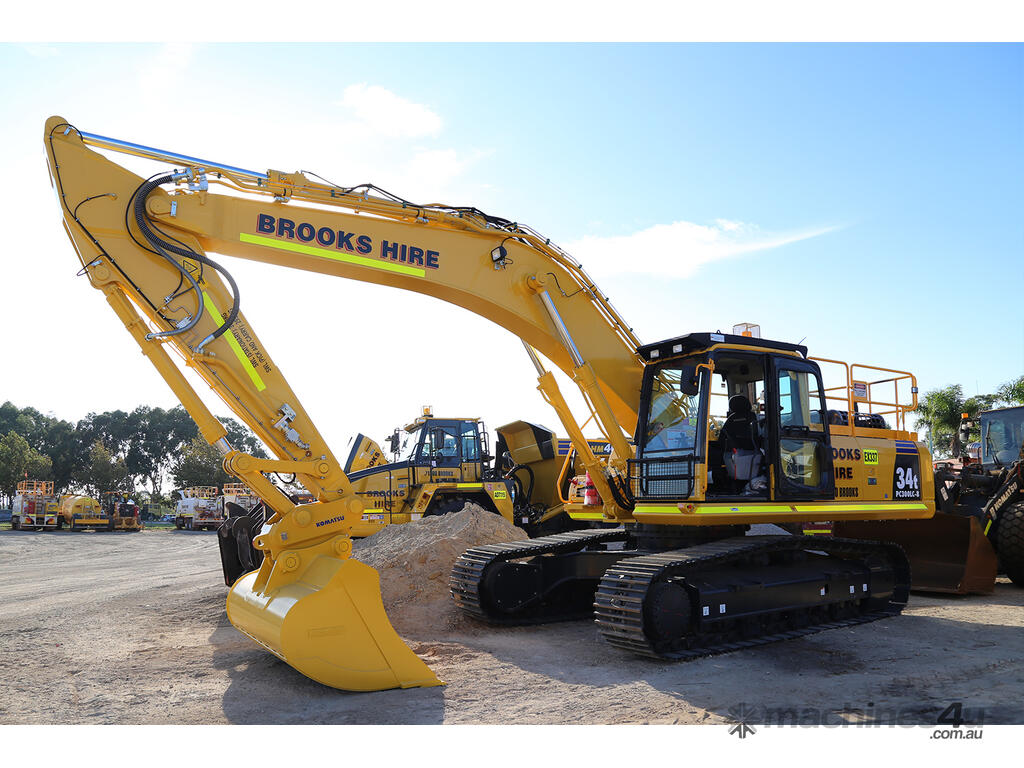

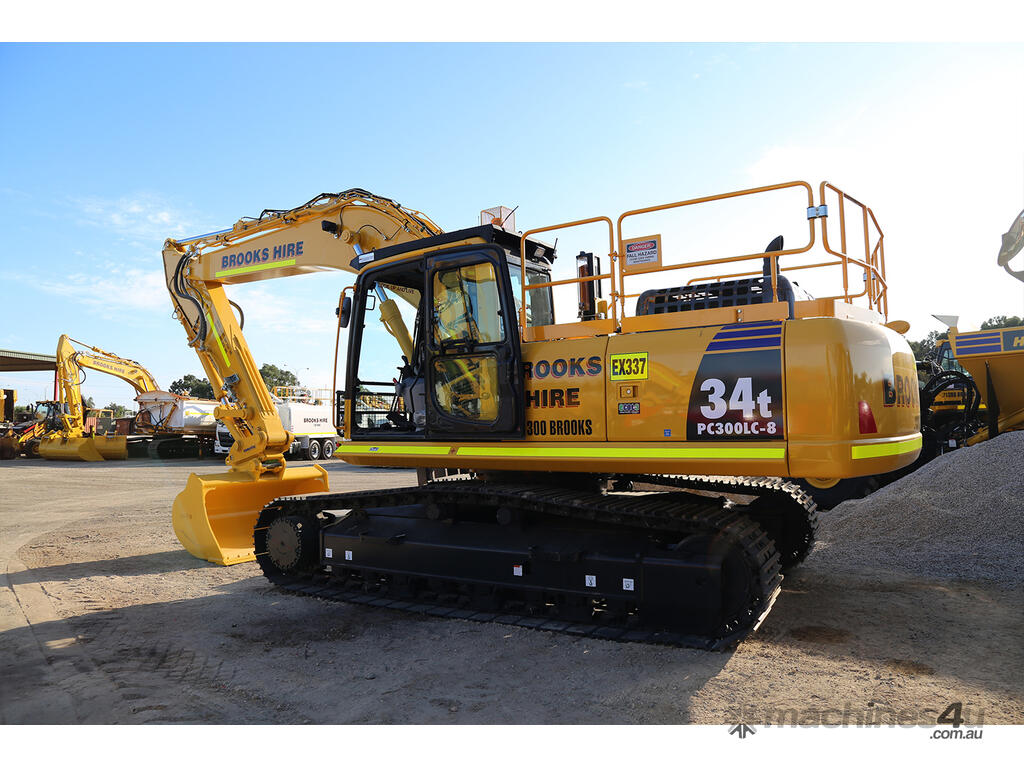

Komatsu PC300LC-8M0 Excavator Steel Tracked - 30 to 34 tonne for Hire

The PC300LC-8M0 incorporates a holistic, integrated design with a host of standard factory installed items to provide piece of mind and compliance with industry expectations. It combines Dash 8 quality and performance with new fuel saving technology to further improve fuel efficiency, upgraded monitor / KOMTRAX functionality and high-capacity air conditioning with increased cool down performance.
This 33+ tonne excavator includes the latest technology, ergonomics and features. It is suited to large construction jobs requiring a combination of heavy lift, wide working range and high productivity.
Highly productive cycle times are achieved through optimum weight and power balance.

EQUIPMENT DETAILS
Make Komatsu
Model PC300LC-8


Performance
Operating Weight 33800kg
Swing speed 9.5 rpm
Bucket digging force (ISO) 23200 kgf
Arm crowd force (ISO) 17400 kgf
Digging depth – maximum 7380 mm
Digging reach – maximum 11100 mm
Maximum reach ground level 10920 mm
Horsepower, Gross – SAE 194 kW
Horsepower, Net – ISO 187 kW
Horsepower, Net – SAE 1950 kW
Rated RPM 1950
Fan drive method Mechanical
Displacement (litre) 8.27
Number of cylinders 6

Dimensions
A Overall length 11150 mm
B Length on ground (transport) 5755 mm
C Overall height (to top of boom) 3285 mm
D Overall width 3190 mm
E Overall height (to top of cab) 3145 mm
F Ground clearance, counterweight 1185 mm
G Ground clearance (minimum) 500 mm
H Tail swing radius 3450 mm
I Track length on ground 3700 mm
J Track length 4625 mm
K Track gauge 2590 mm
L Width of crawler 3190 mm
M Shoe width 600 mm
N Grouser height 36 mm
O Machine cab height 2585 mm
P Machine cab width 3090 mm
Q Distance, swing center to rear end 3405 mm
Working Range
A Max. digging height 10100 mm
B Max. dumping height 7050 mm
C Max. digging depth 7380 mm
D Max. vertical wall digging depth 6400 mm
E Max. digging depth of cut for 8? level 7180 mm
F Max. digging reach 11100 mm
G Max. digging reach at ground level 10920 mm
H Min. swing radius 4430 mm
