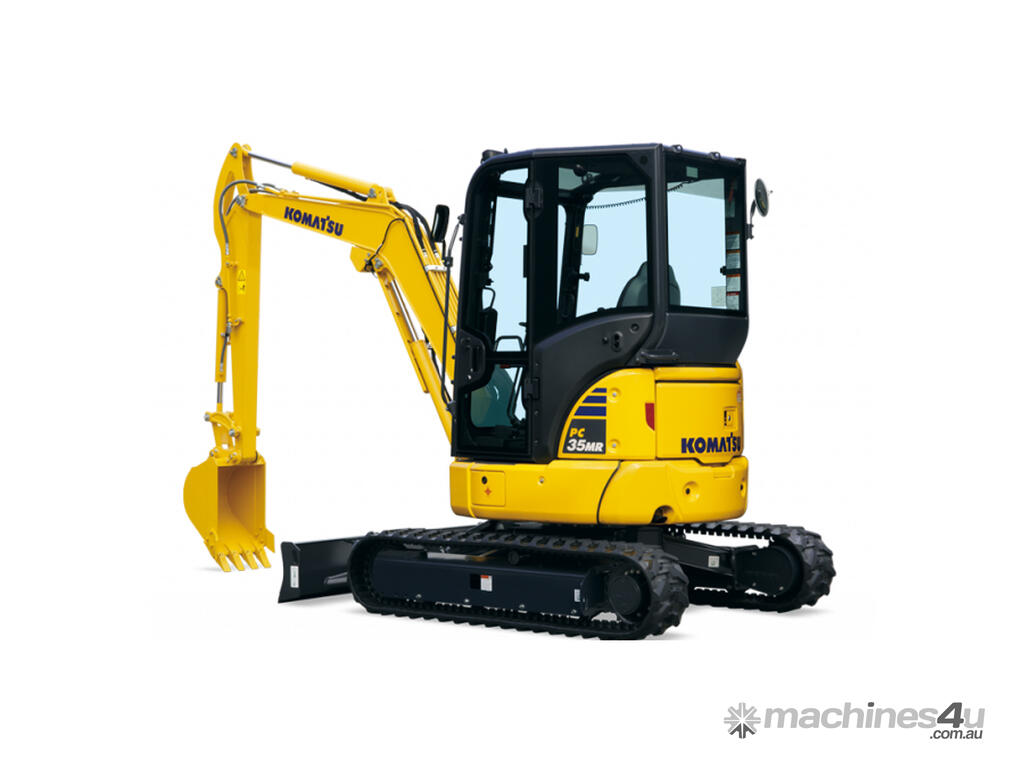

Now with a new technology Komatsu engine, the PC35MR-5 is ideal for anyone who needs a tough compact excavator for confined conditions. It incorporates features of bigger Komatsu excavators, with key components designed and manufactured by Komatsu to work together in an integrated package. And its standard with our KOMTRAX remote monitoring and location system, backed by our Australia-wide service and support network.
Specifications
Weight - 3.73 t
Transport length - 4.83 m
Transport width - 1.74 m
Transport height - 2.56 m
Bucket capacity - 0.11 m³
Track width - 300 mm
Driver protection - KbR
Max. Reach horizontal - 5.17 m
Dredging depth - 3.11 m
Tear-out force - 29.9 kN
Engine manuf. - Komatsu
Engine type - 3D88E 7
Engine power - 18.2 kW
Displacement - 1.642 l
Revolutions at max torque - 1400 rpm
Max. torque - 105.1 Nm
No. of cylinders - 3
Cylinder bore x stroke - 88x90 mm
