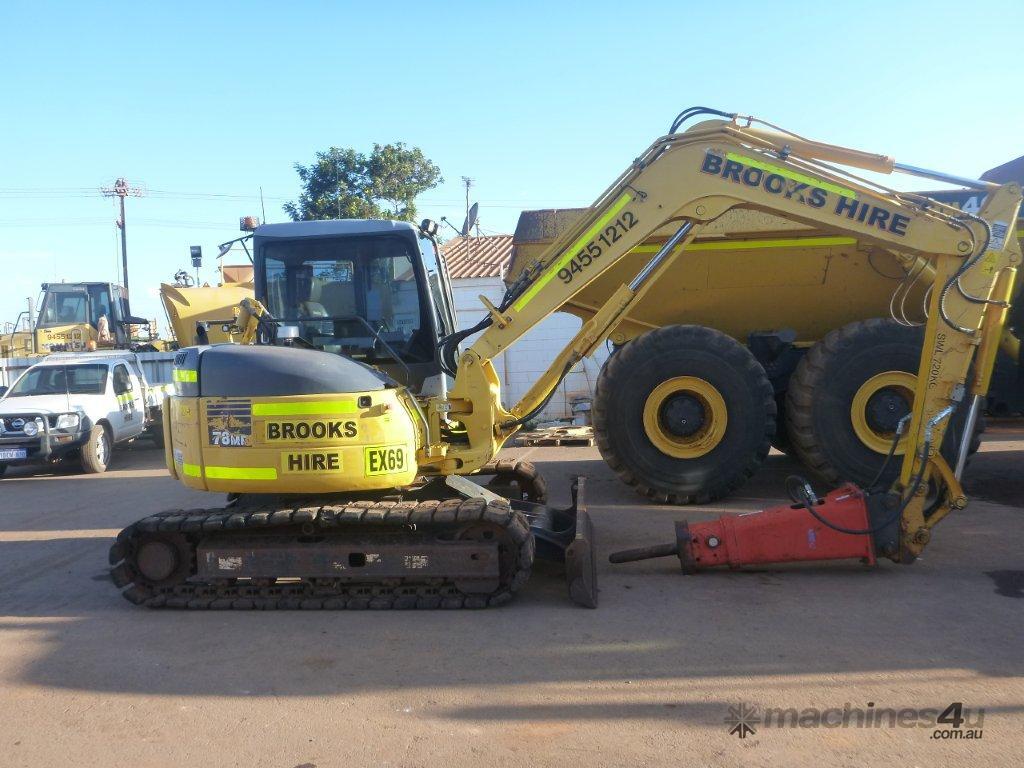

Mini excavators assure safety in the work even under such a constraint as they need only a limited space for a swing. This machine is at the top of it’s class, ideal for house footings, plumbing and draining, loading trucks. This little compact excavator is great for all purpose use and has the Komatsu reliability.
FEATURES
– Compact design with superior performance and visibility means maximum productivity even in confined spaces.
– PPC proportional servo-controls provide easy operation and precise control for operators of all skill levels.
– Powerful Komatsu engine is economical, quiet, and has low exhaust emissions.
– Operator’s environment is spacious and comfortable to minimise fatigue
SPECIFICATIONS
Operating Weight 8,000 kg
Flywheel horsepower 40.3 kW / 1,850 rpm
Bucket capacity (SAE heaped) 0.90 m3
PERFORMANCE
Travel speed 4.2km/h
Swing speed 10 rpm
Ground pressure 37.2 kPa
DIMENSIONS
A Shipping Length of Unit 6,200 mm
B Width to Outside of Tracks 2,320 mm
C Shipping Height of Unit 2,730 mm
D Length of Track on Ground 2,235 mm
E Ground Clearance 360 mm
F Track Gauge 1,870 mm
G Height to Top of Cab 2,730 mm
H Tail Swing Radius 1,405 mm
