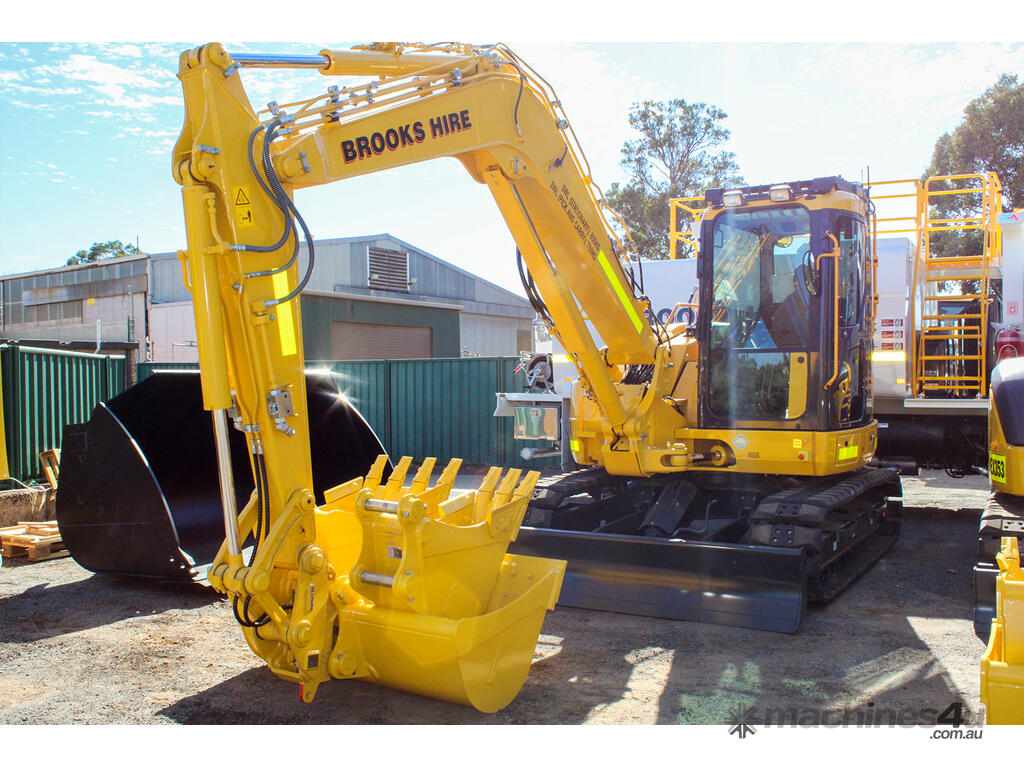

Incorporates the features of bigger Komatsu excavators, with key components designed and manufactured by Komatsu to work together in an integrated package. And its standard with our KOMTRAX remote monitoring and location system, backed by our Australia-wide service and support network.
EQUIPMENT DETAILS
Make Komatsu
Model PC88MR-10
SPECIFICATIONS
Operating Weight 8,500 kg
Flywheel horsepower 49 kW / 1,950 rpm
Bucket capacity (SAE heaped) 0.34 m3
PERFORMANCE
Travel speed 5 km/h
Swing speed 10 rpm
Ground pressure 38.2 kPa
Horsepower, Gross – SAE (kW) 50.7
Horsepower, Net – ISO (kW) 49
?Horsepower, Net – SAE (kW) 49
?Rated RPM 1950
?Fan drive method Mechanical
?Displacement (litre) 3.26
?Number of cylinders 4
DIMENSIONS
A Shipping Length of Unit 6,350 mm
B Width to Outside of Tracks 2,330 mm
C Shipping Height of Unit 2,730 mm
D Length of Track on Ground 2,235 mm
E Ground Clearance 410 mm
F Track Gauge 1,870 mm
G Height to Top of Cab 2,760 mm
H Tail Swing Radius 1,485 mm
WORKING RANGE
I Max Cutting Height 6,800 mm
J Max Loading Height 4,770 mm
K Max Reach Along Ground 7,345 mm
L Max Vertical Wall Digging Depth 3,115 mm
M Max Digging Depth 4,200 mm
O Counterweight Clearance NA
N Shoe Size 450 mm
