ACCESSORIES:
3&4 Jaw chcuk,face plate, travelling & fixed steadies,Dead centres,Foot Brake,Coolant system,Splash Guard,Digital Readout
OPTIONAL ACCESSORIES:
Quick change tool post, Drill chuck & arbor,Centre Drills,Boring Tool,Drill set,Turning tool,Parting off tool
FEATURES:* Taiwanese toolroom quality lathe * Geared head stock for quick speed change * Oil bath gear box * Gap bed with D1-4 Spindle nose * Precision hardened & ground V-bed * Change gears for metric & imperial threading * Equipped with 2 axis digital readout * Apron Control for forward & reverse *
Parameters of Category: Machine Tools
Swing Over Bed 360mm
Swing Over XSlide 225mm
Swing Over Gap 520mm
Distance Btw Centres 1000mm
Bed Width 190mm
Tool Size 16mm
Spindle Nose D1-4

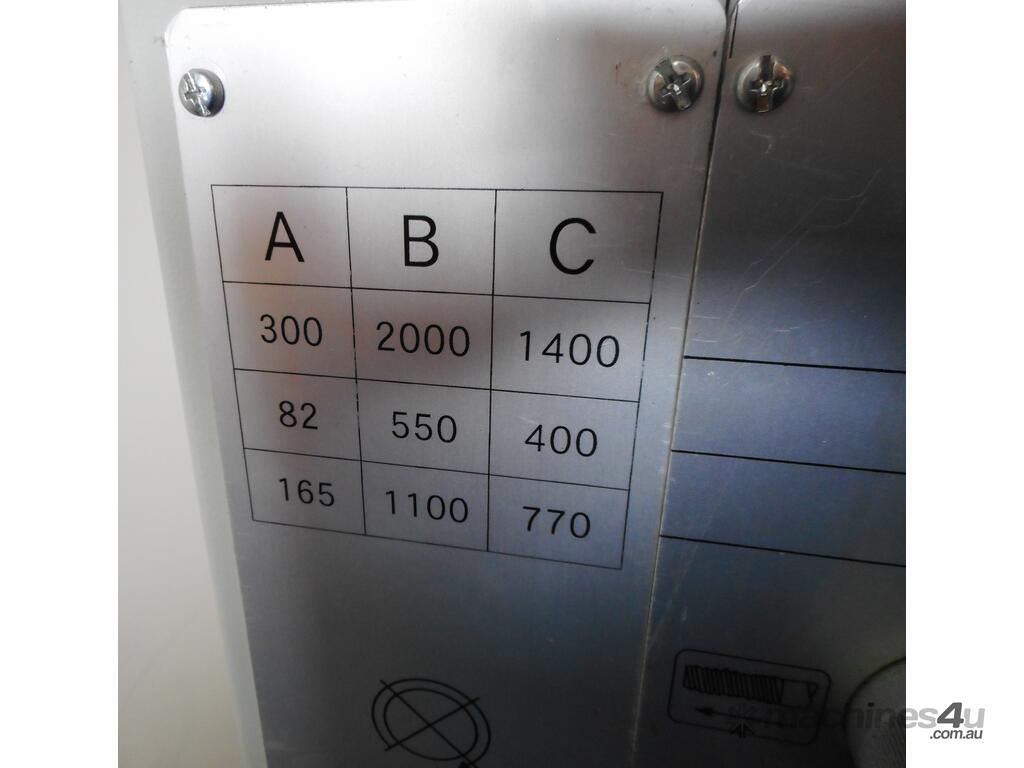

Spindle Speeds 9 Steps
Speed Range 82-2000rpm
Spindle Bore 40mm
Spindle Taper MT5
Threading Metric 0.4-7mm(30)
Threading Imperial 4-56TPI(32 types)
Tailstock Taper MT3
Motor 2hp 1ph 240V
Weight Nett/Gross 720/720
Volume 2.1326
