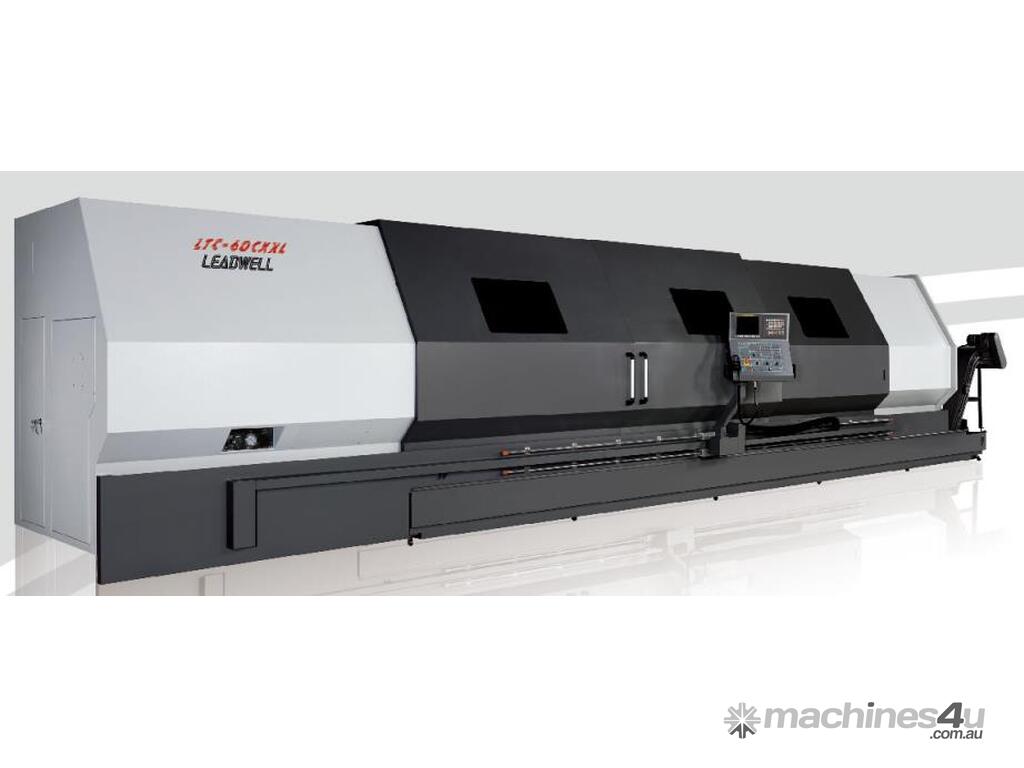

LEADWELL LTC-60 SLANTBED BOXWAY CNC LATHE
Technical specifications.
ITEM LTC-60 CL/CXL/CXXL
Max swing - mm (in) 1020 (40.2)
Bar capacity - mm (in) 117 (4.6)
X axis - mm (in) 405+23 (15.9+0.9)
Z axis - mm (in) 4000/5000/6000 (157.5/196.9/236.2)

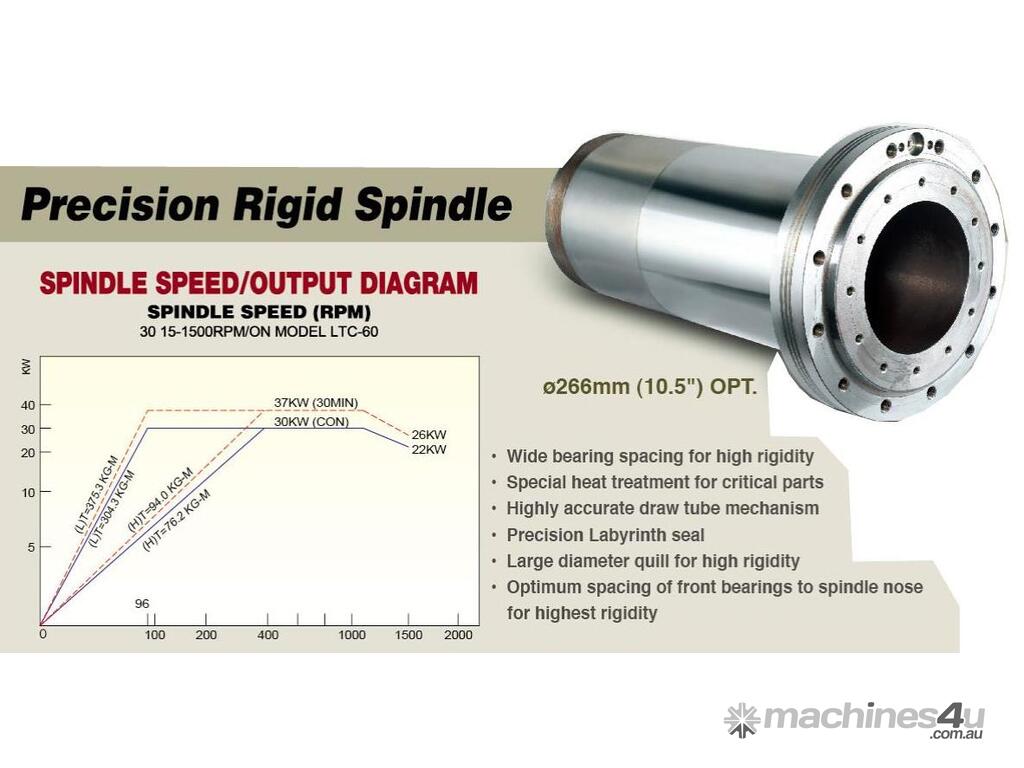

Spindle speeds range - rpm 1500

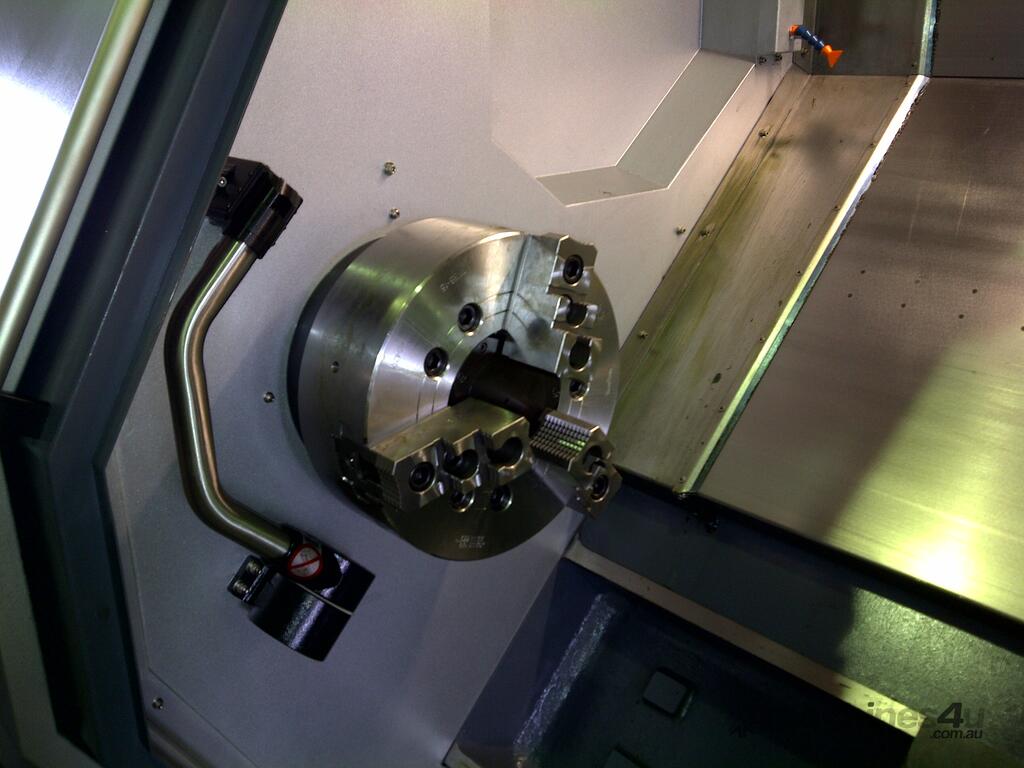

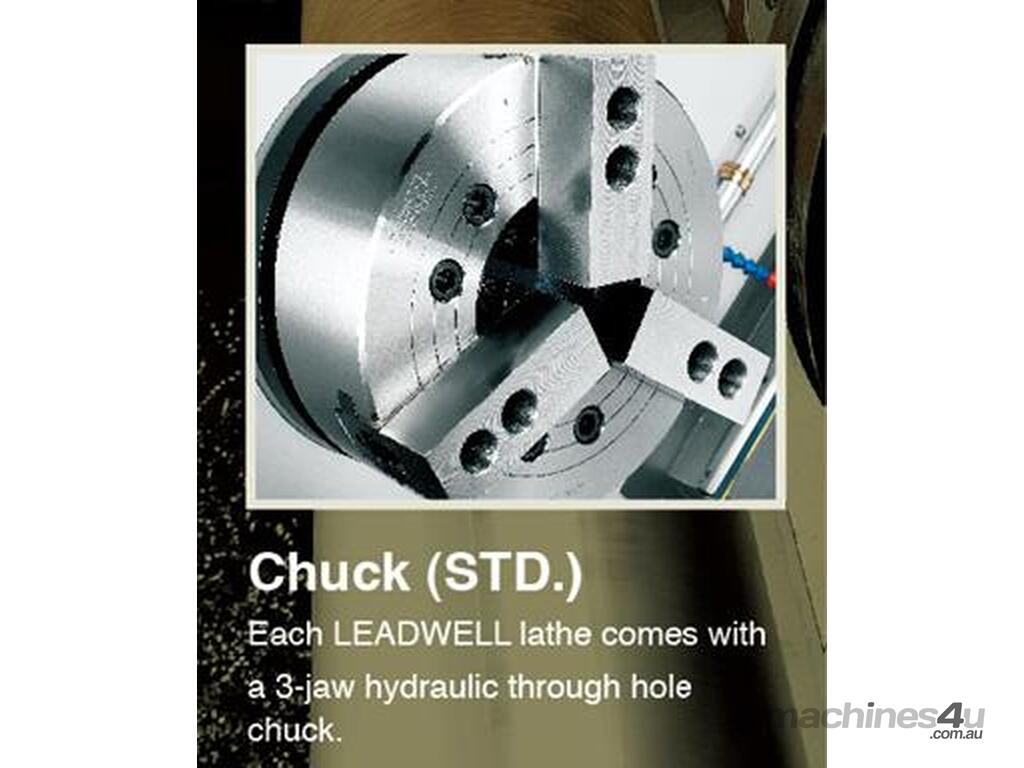

Chuck size - mm (in) 533.4 (21)

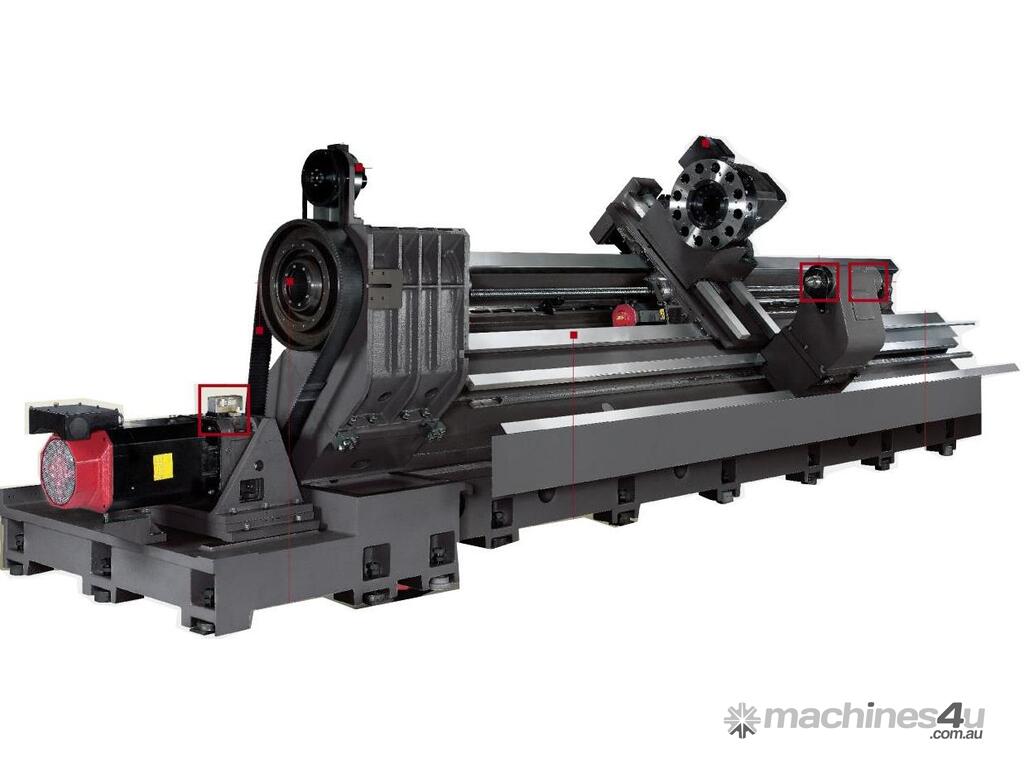

LEADWELL uses only top quality well-ribbed castings.
Advanced Finite Elements Analysis (FEA) is used for analysing new castings to confirm the size and location of all internal ribs, ensuring high torsional stiffness and minimum vibration.
The cast iron base, saddle, headstock, slide and tailstock are ruggedly constructed for superior stability and machining accuracy.
Isolated gear box
Standard H.T.D belt.
The LTC-60 series utilizes oversized box ways for high horse power machining. The extremely rigid base frame in combination with the box ways provide outstanding stability for precision turning.

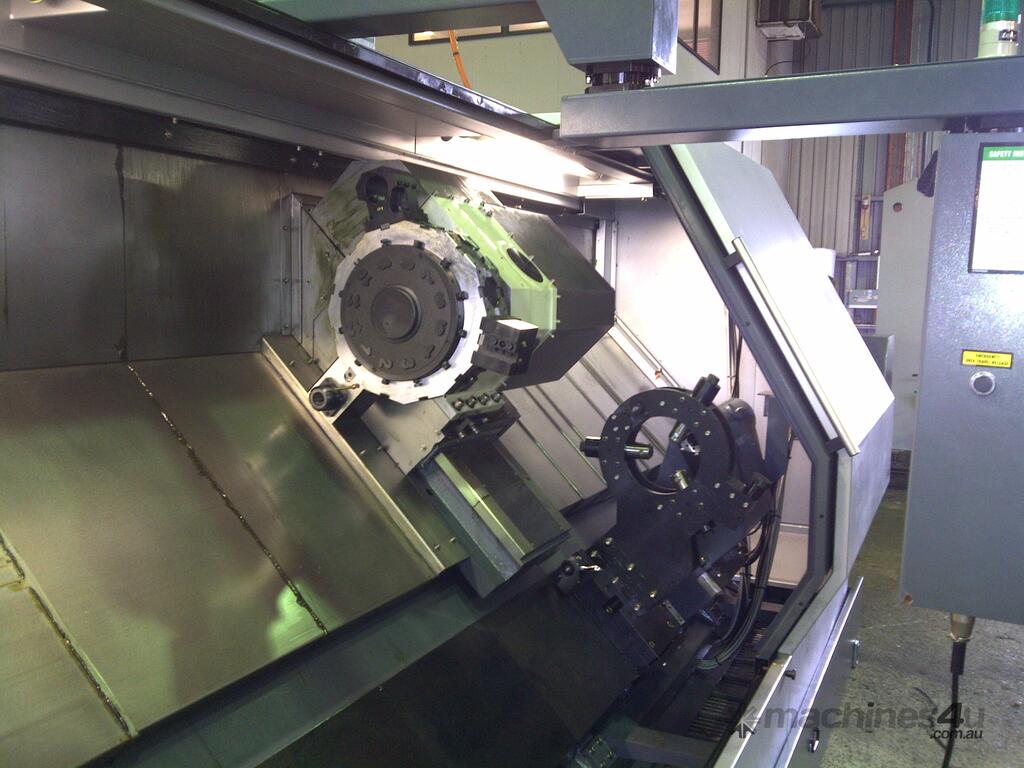

Live Tooling Option & C-Axis Option.

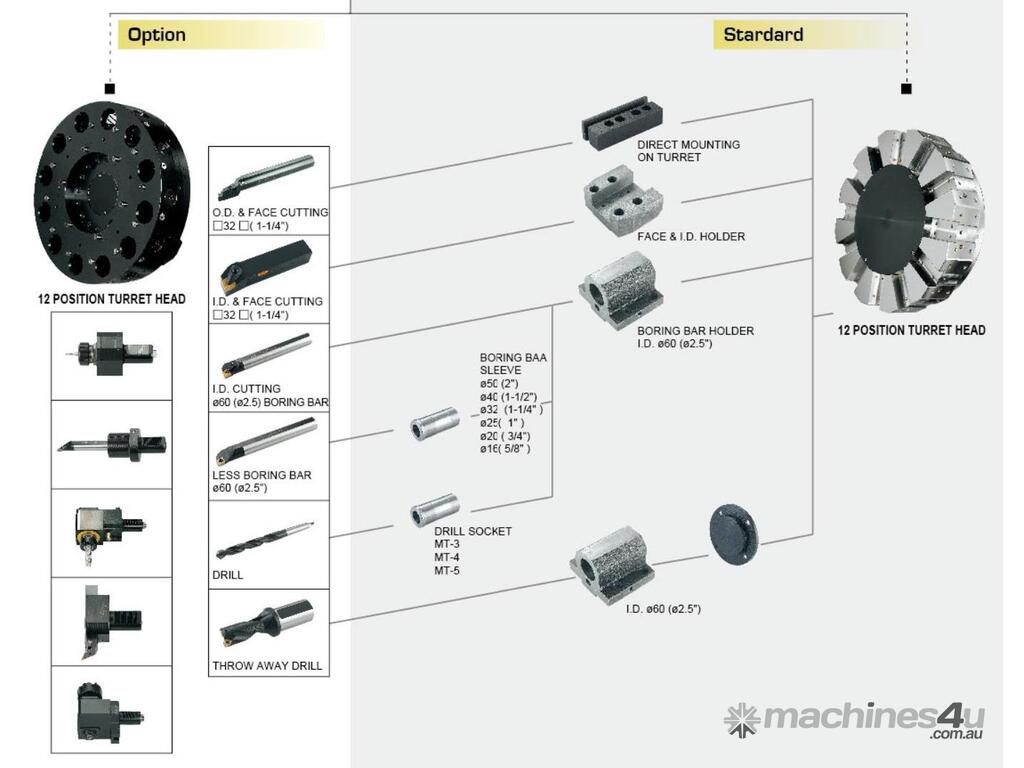

The Live Tooling option turns the turret into multiple auxiliary spindles.
The turret spindle supports milling, drilling and tapping.
The headstock spindle becomes a fully programmable servo axis with the C-Axis option.
C Axis index resolution: 0.001 degrees.
By synchronizing the optional C Axis with the live tooling, machining of cylindrical cams and other complex work pieces becomes easy saving time and money for each part.
Switching between normal turning & synchronization with live tooling takes less than 1 second.
Easy Chip Disposal.
The 45 - degree slant bed design allows chips to fall into the chip tank, avoiding accumulation inside the machine.
The chip tank has large wheels, making it easy to move for chip removal and cleaning.
Available on all models.
Box Ways (LTC series).
The LTC-Series utilizes precision box ways for high horse power machining. The extra rigidity of the box ways provides stability for precision turning.

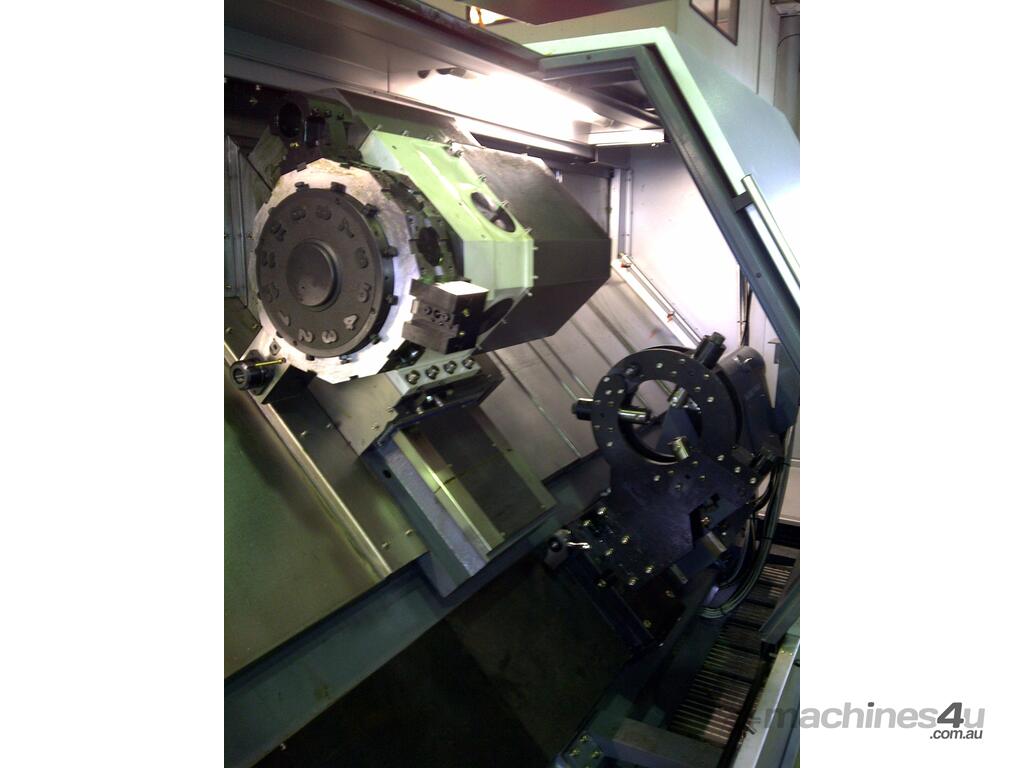

Tailstock.
The quill adjustment is hydraulic adding to the rigidity of the machine.
Programmable tailstock is standard on LTC-60 series all models.
Servo motor drive for tailstock
Tool Setter option.
The tool setter has a touch sensor that can measure varying tool lengths and detect broken tools.
It can be easily programmed to store all the tool information to reduce tool changing time.
Headstock.
The headstock is a thermally symmetric design with heat dissipating fins. This design prevents thermal distortion during long machining cycles.
