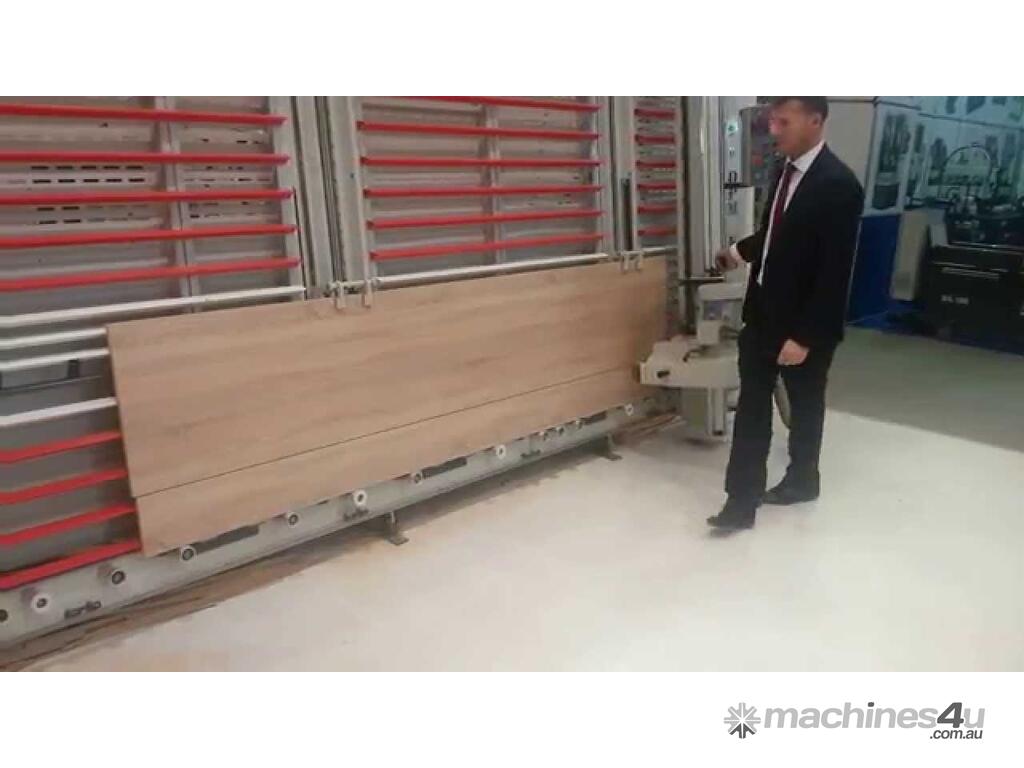

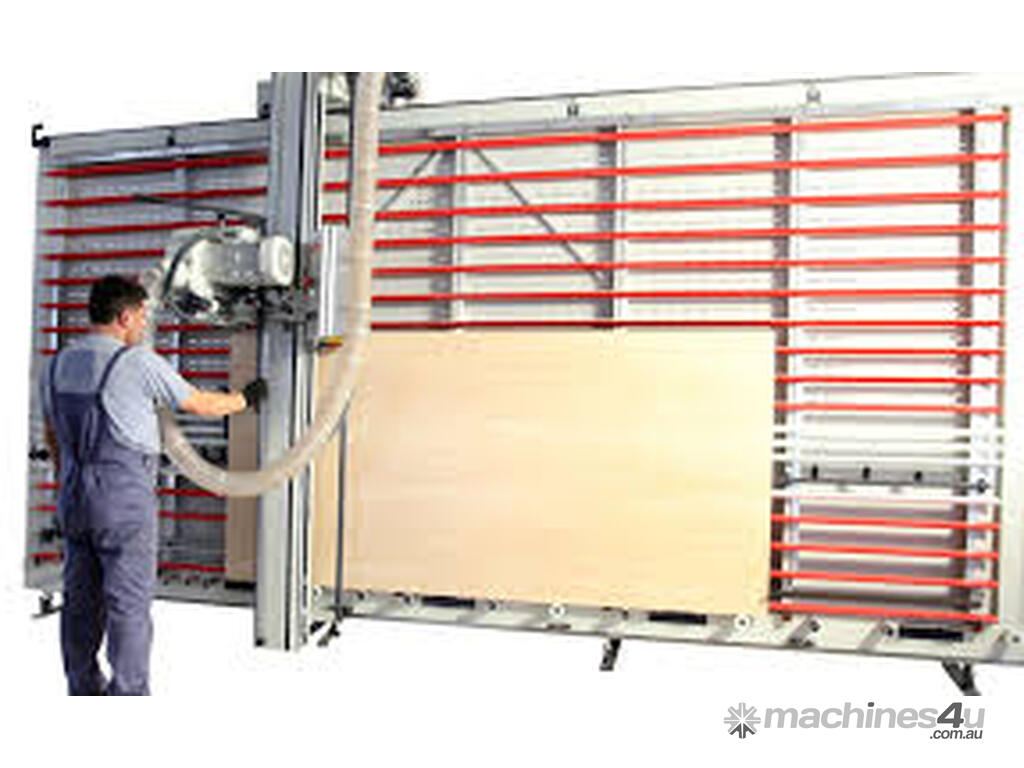

LEDA DPME-21x41 HEAVY DUTY VERTICAL PANEL SAW

LEDA MODEL DPME-21x41 HEAVY DUTY VERTICAL PANEL SAW

Specifications
250mm diameter saw blade – 42mm maximum depth of cut.
OPTIONAL: Scoring saw unit driven by belt from main saw blade shaft.
3kw (4hp) Motor
Automatically moving backing battens grid to prevent damage if saw blade position
coincides with a batten when cutting horizontally.
Dust extraction connection to saw unit with collection at rear of machine.
Steel rollers in base support rail to allow easy panel movement.

Technical Data
Overall size of machine 5000 mm x 2900 mm x 1150 mm
Maximum workpiece length with scoring 4100 mm
Maximum workpiece height with scoring 2100 mm
Speed of saw blade 5800 rpm
Saw unit rotates 90 degrees
Maximum workpiece thickness 42 mm
Nett weight of machine 685 kg

Other Features
Heavier model for optimum performance and accurate sizing.
Pneumatically moving grid avoids any damage of support battens by saw blade when
cutting horizontally.
Still with the same space saving and convenience of use as any other model vertical panel
saw
It is important to be able to cover 12’ x 6’ (3660mm x 1830mm) sheets as conventional 3
metre dimension saws cannot do this and 12’ sheets are difficult to handle on a
dimension saw where they must be laid horizontally.
Available with optional equipment for grooving Alucobond composite sheeting.
SCORER IS OPTIONAL - NOT INCLUDED IN LISTED PRICES


Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST

TRADE INS WELCOME and COMPETITIVE Finance options available T.A.P.
Contact us for details
