M-CRANE 1030 RT Crawler Crane - Pick & Carry Capable

Tight access?
Still need to carry materials into site?

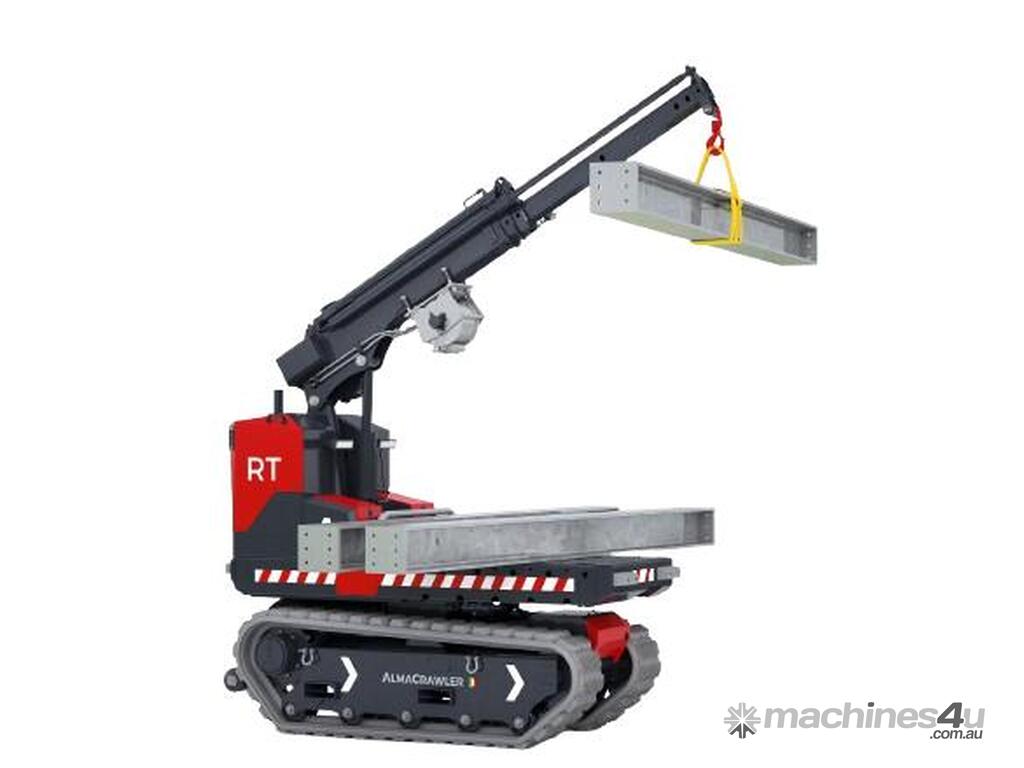

The M-CRANE 1030 RT offers the benefits of a tracked carrier with a 1.5t load carrying capacity on the forward deck, whilst bringing the lifting capabilities of a pick and carry crane.

Battery Electric AGM, Electric Drive motors, 990kg Maximum Lift Capacity, 1.5t load carrying on the material deck.

We've got stock on the ground available EXW Pakenham VICTORIA.

Get in touch for more information or to arrange a demonstration!

***

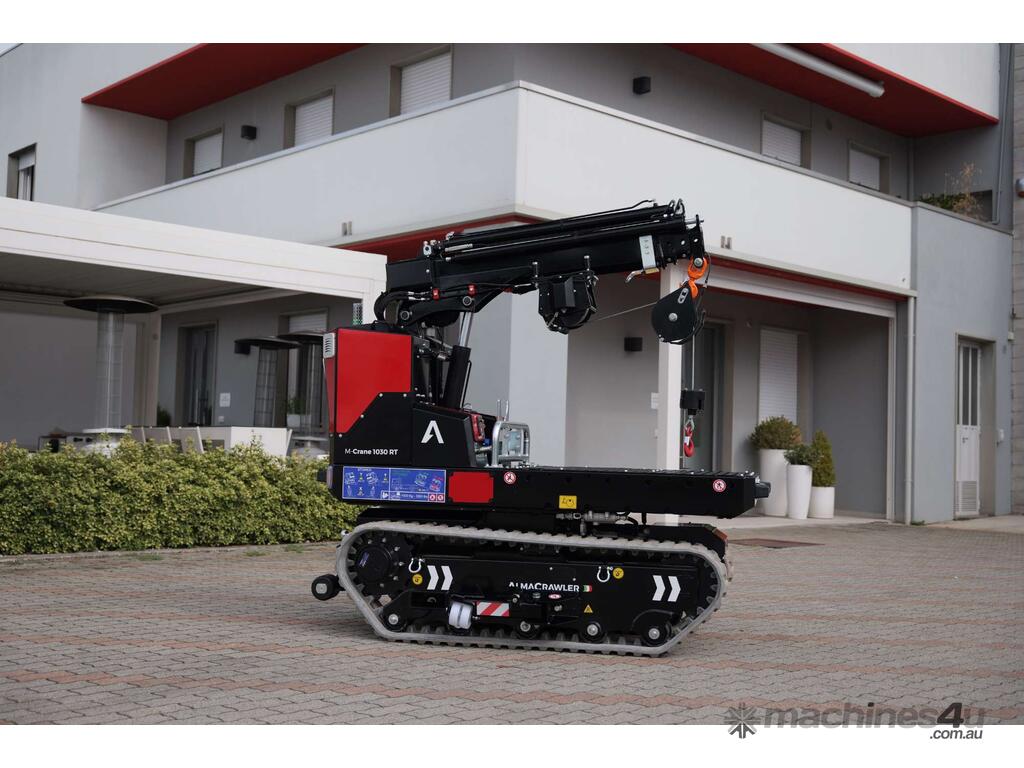

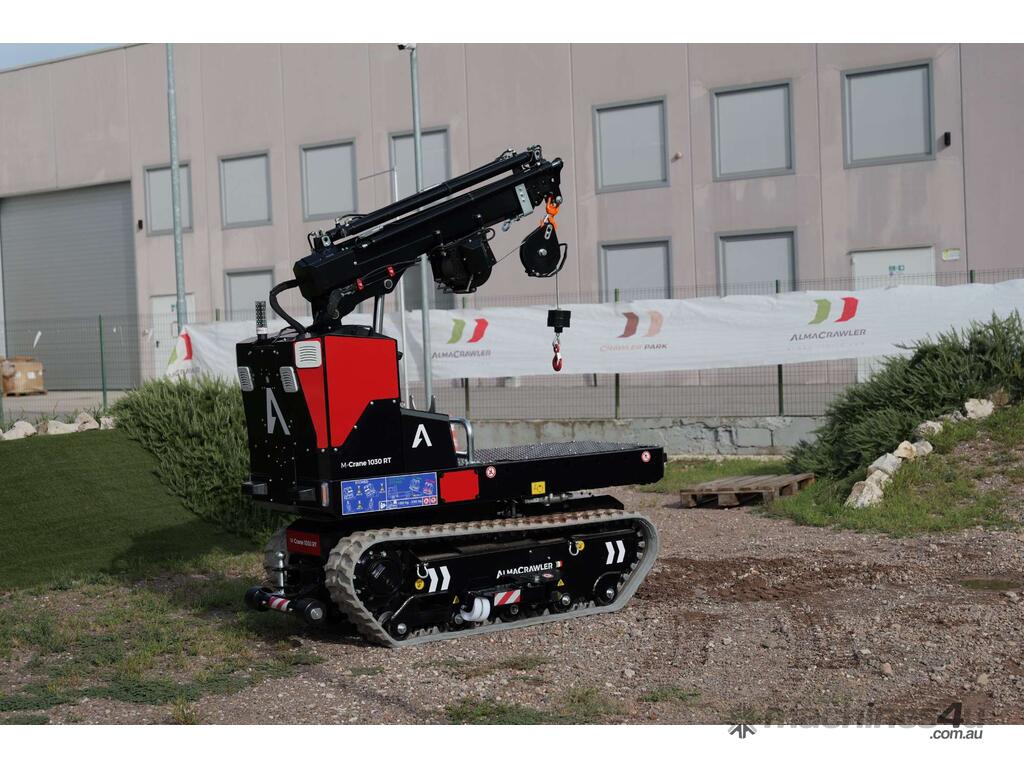

The M-Crane 1030 RT is a powerful and versatile Crawler Crane equipped with a 990 kg max lift capacity. Providing a Pick & Carry work performance, and a carrying capacity of 1,500Kg on the load deck, the machine is a stragic asset in various conditions to manage materials lifting and carrying, working to reduce and eliminate manual handling tasks.

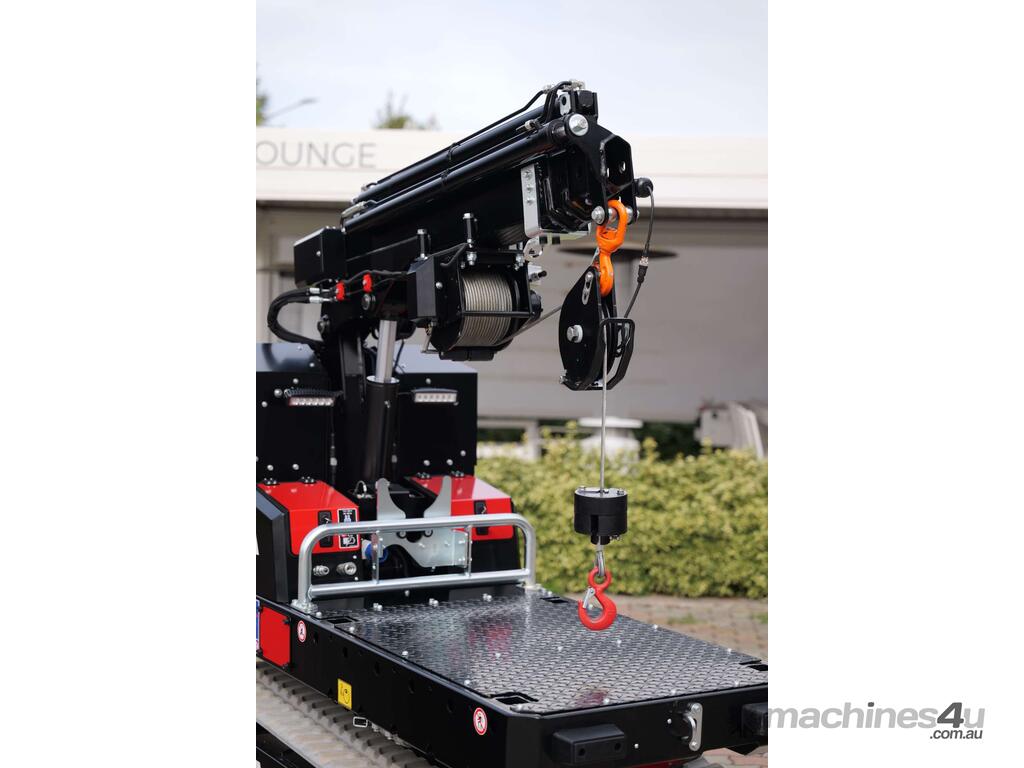

Equipped with a telescopic crane, it has a maximum lifting capacity of 990 kg and a variable outreach that can be used on slopes up to +/-10° longitudinal and +/- 5° lateral. The M-Crane 1030 RT, with a maximum carrying capacity on the forward load deck of 1500 kg, can handle a wide range of loads, making it a versatile solution for a variety of material handling needs

With a ground clearance of a good 170 mm, can be used in various heavy-duty applications both indoors and outdoors. Full electric drive, it has class-leading electric drive with two super quiet AC electric motors 5.3 kW each (rated IP67), and features three power management configurations: ECO 1.2 km/h, STD 1.8 km/h, POW 4.2 km/h

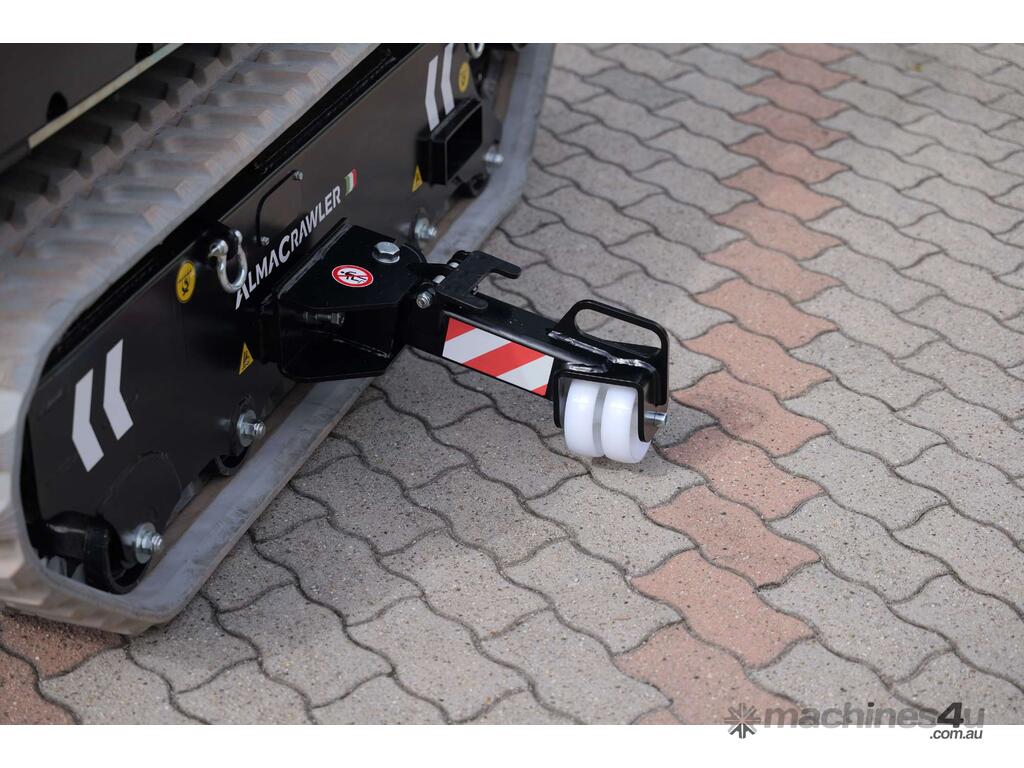

Side pothole stabilising bars are installed as an option to assist in lateral stability during pick and carry tasks.

Options:
Almac Pacific’s aim is to offer its customers platforms that are high-performance, safe and able to meet their needs.

For these reasons, the M-CRANE 1030 RT can be equipped with several options including:
- Winch KIT
- Lateral Potholes
- Work lights
- Non-marking tracks

Technical Data M-CRANE 1030 RT:
Max Capacity 1500 kg (<25°)
Max Capacity Crane 990 kg
Max Longitudinal Gradient in Translation +/-22°
Max Lateral Gradient in Translation +/-10°
Max Longitudinal Gradient in Crane Use +/-10°
Max Lateral Gradient in Crane Use +/-5°
Width 890 mm
Length 2170 mm
Height 1900 mm
Track Length 1230 mm
Track Width 250 mm
Ground Clearance 170 mm
Platform Ground Height 830 mm
Max Speed 4.2 km/h
Power of Electric Motors 10.6 kW
Ingress Protection IP IP67

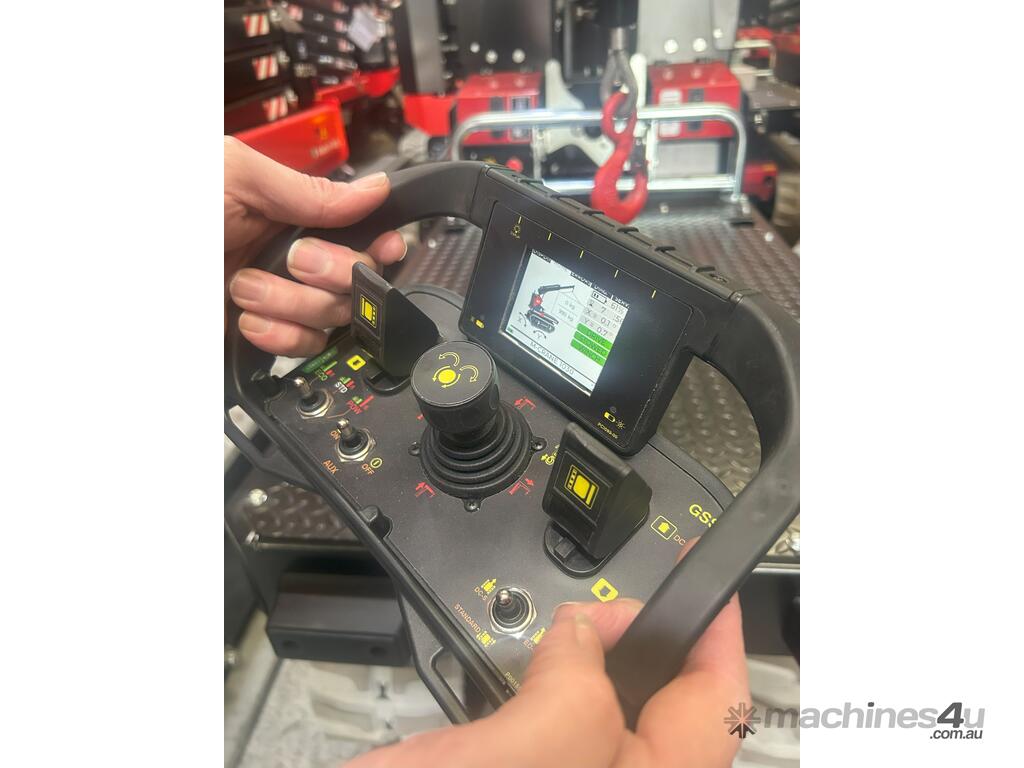

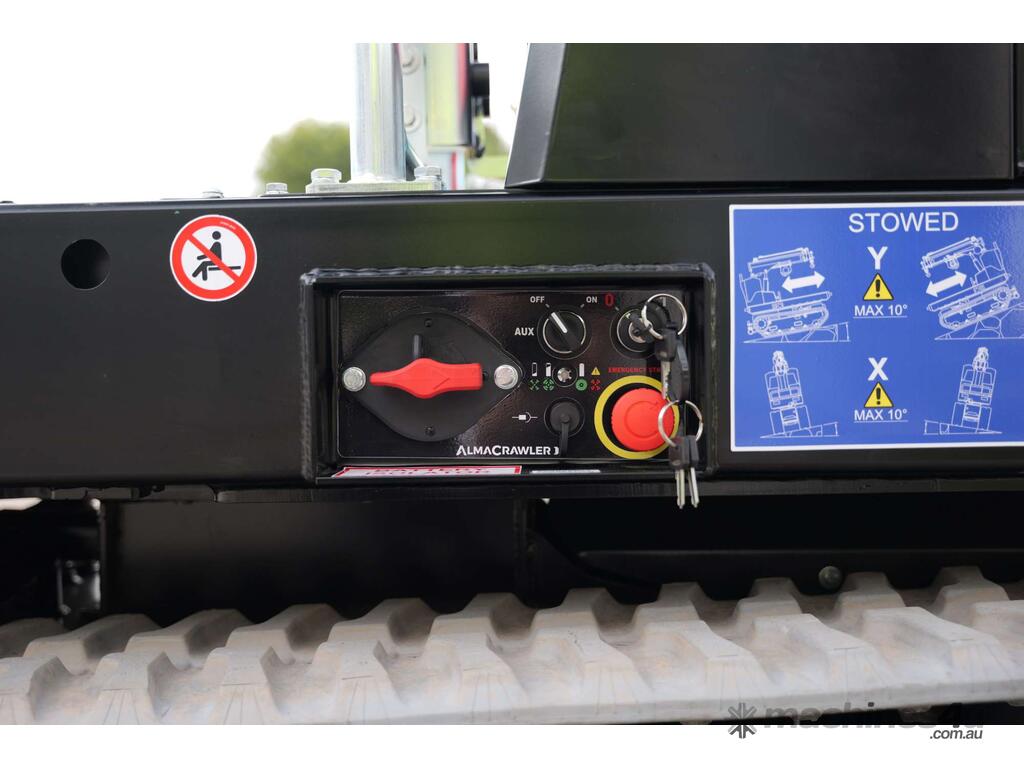

Controller Remote radio control
Electric Pump for Crane and AUX 48V – 4.5KW
Voltage 48 V
Battery Pack (180Ah) AGM
Charger Input & Time (110V–230V) 32A 48V / 9h
Total Weight 2000 kg

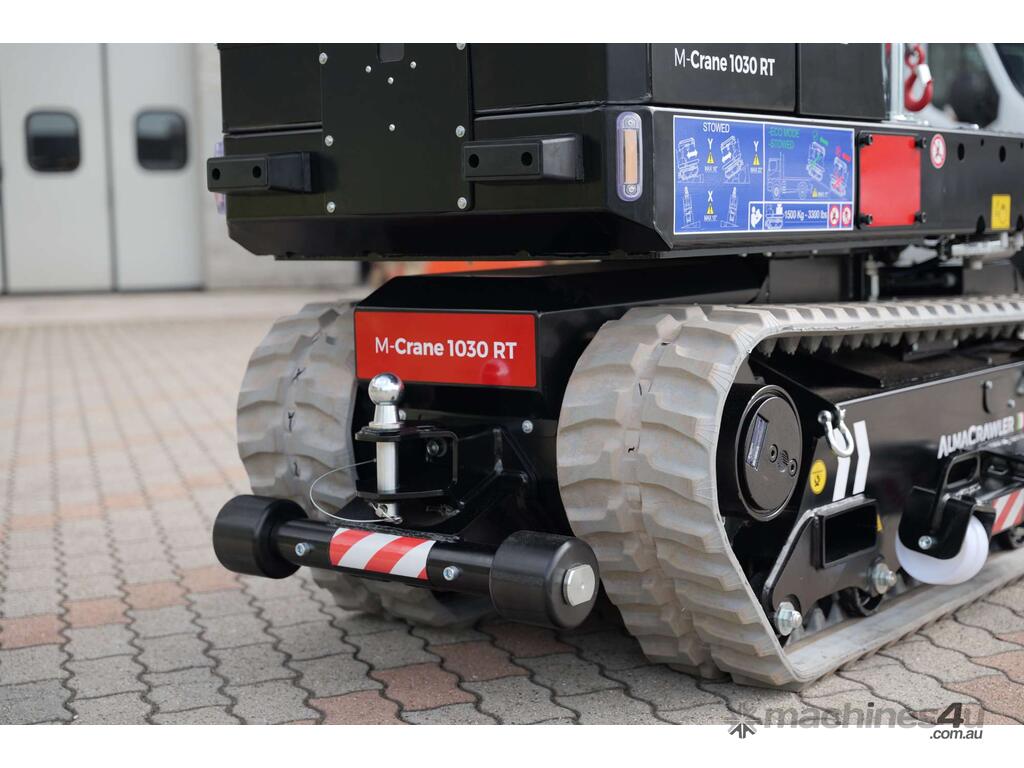

Tow Hook Standard
Rear Pothole Standard
