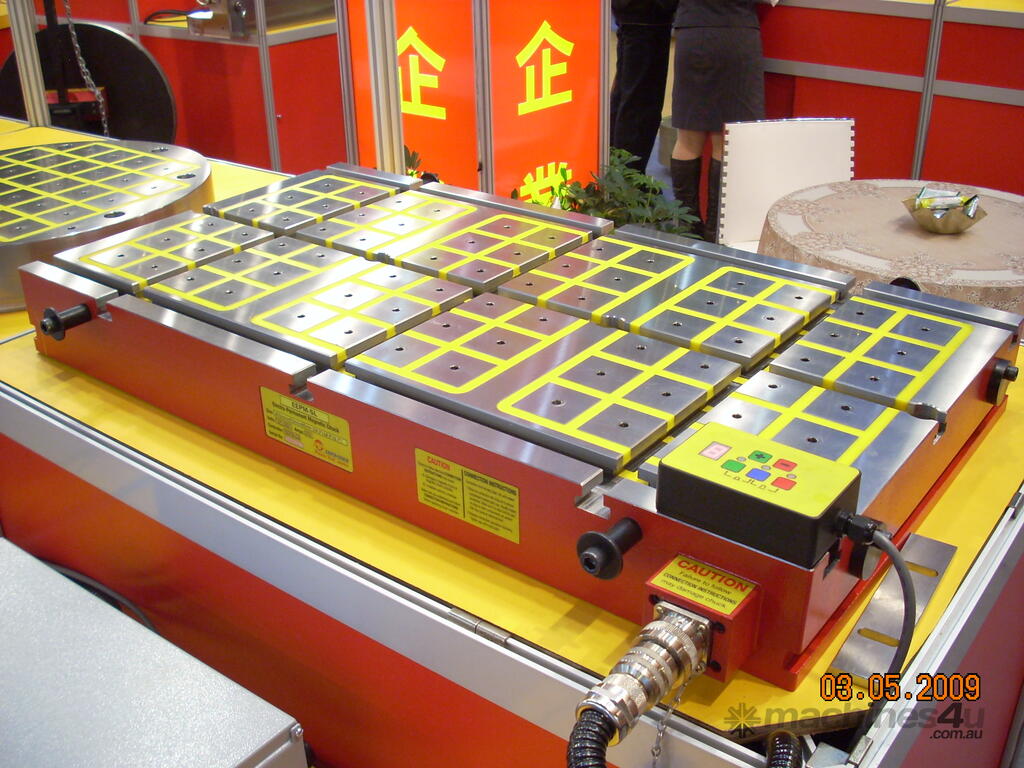

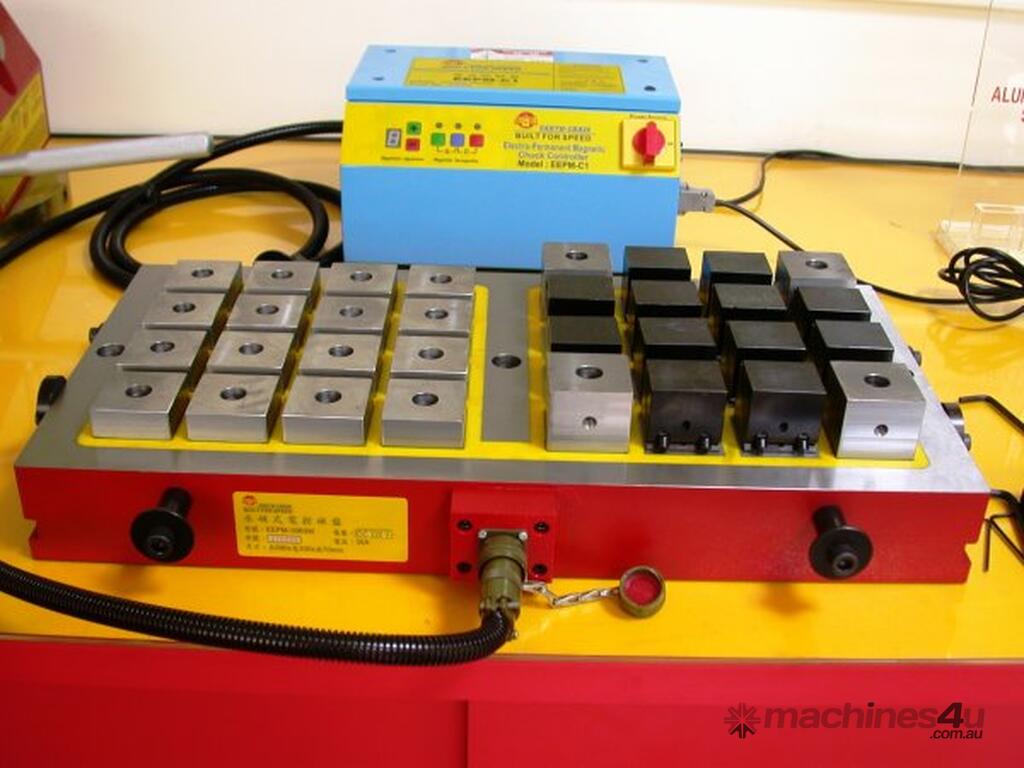

MagVise EEPM Electro-Permanent Magnetic Chucks provide an easy and conveinent method of clamping workpieces and greatly reducing normal clamping times.
Fast 3~10 seconds control for power on and off.
No electric power supply is required to keep the magnetic chuck on, providing safety in the event of a power failure.
Super power magnetic force of 1000kgf/sq metre.

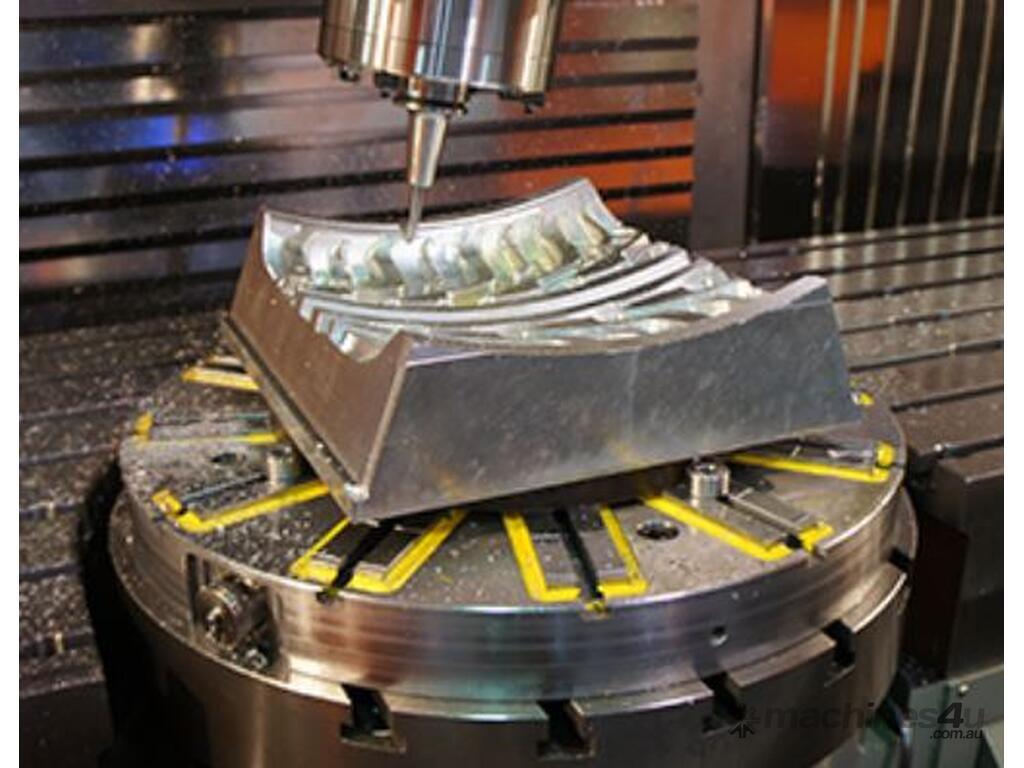

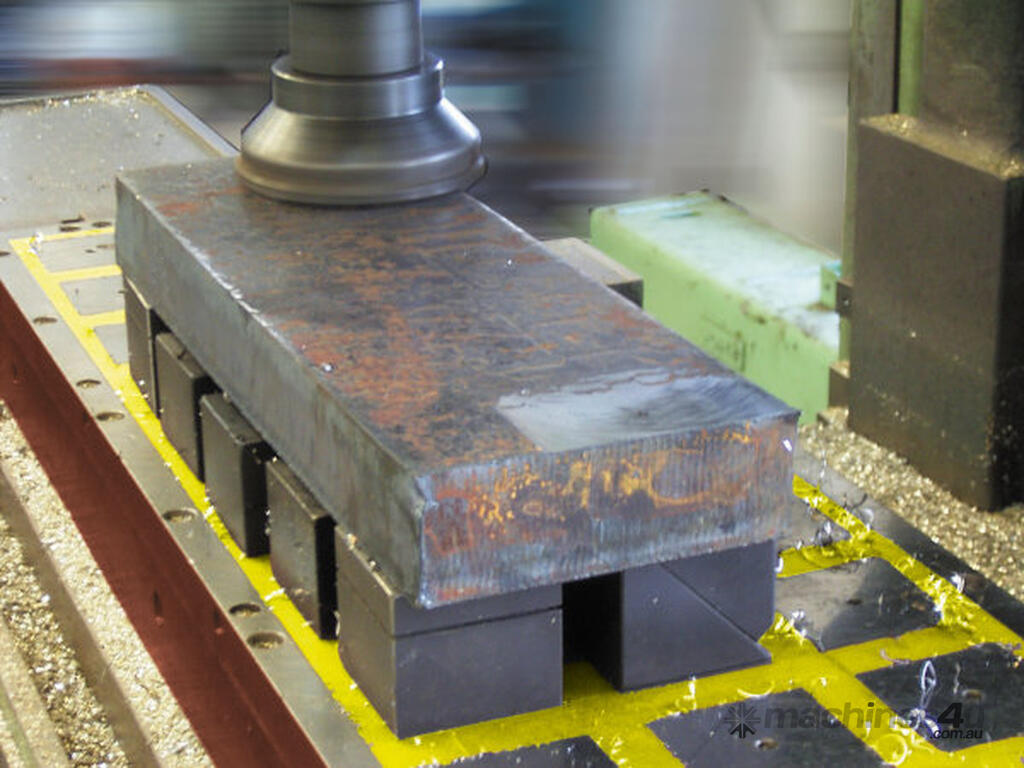

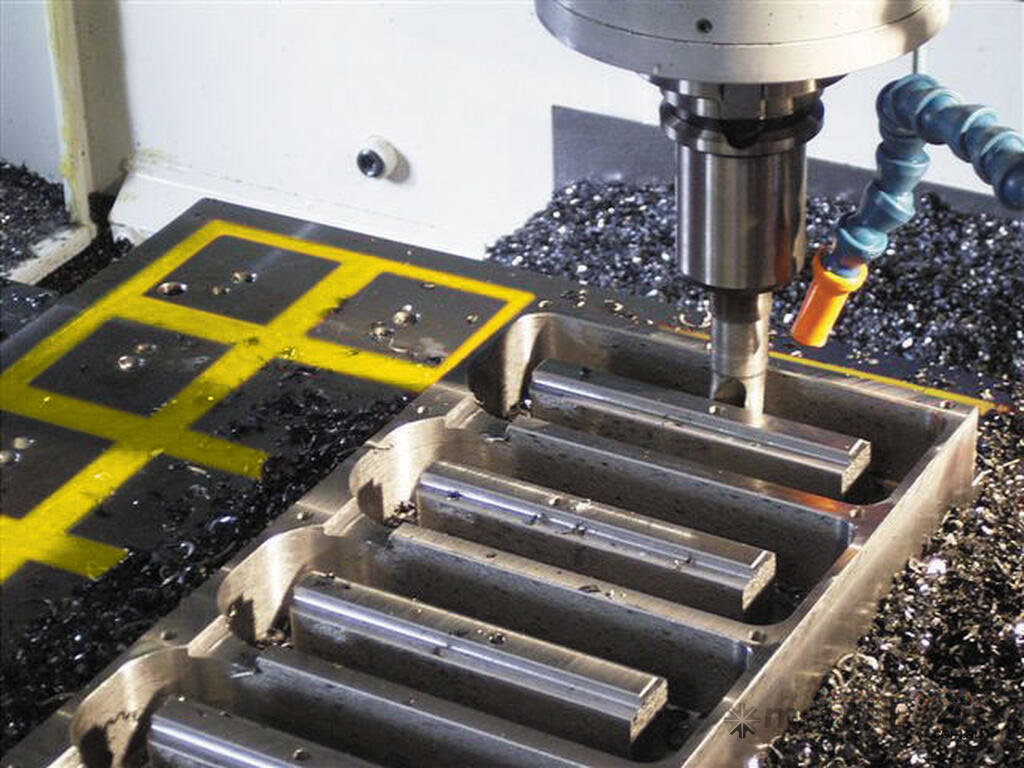

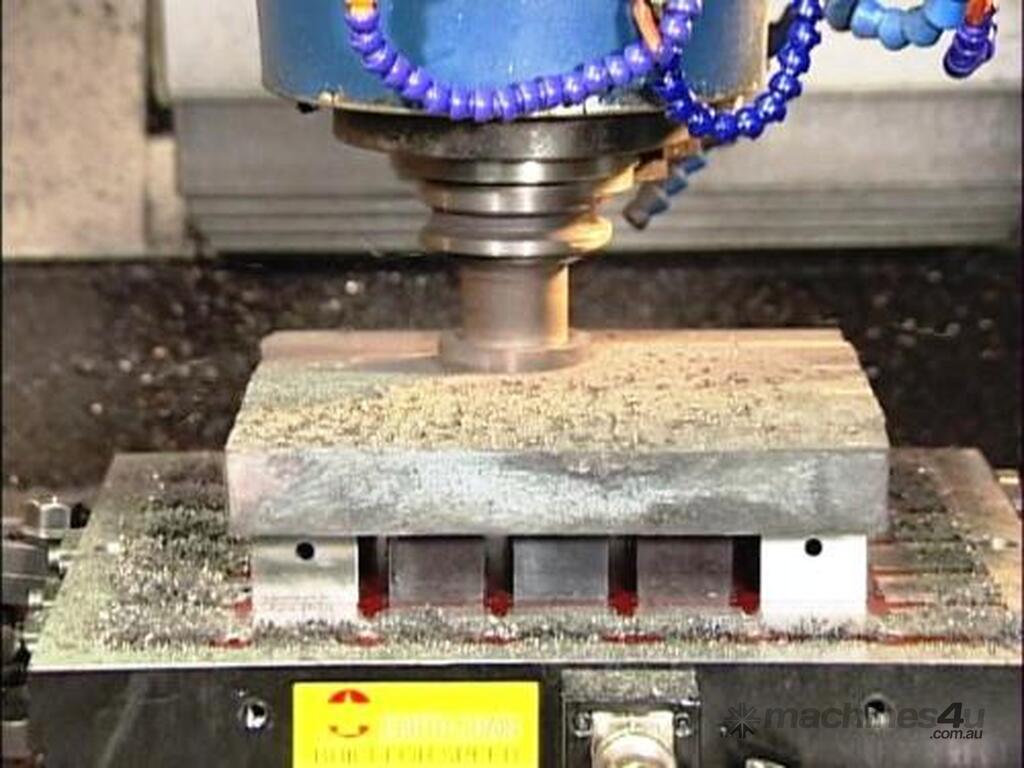

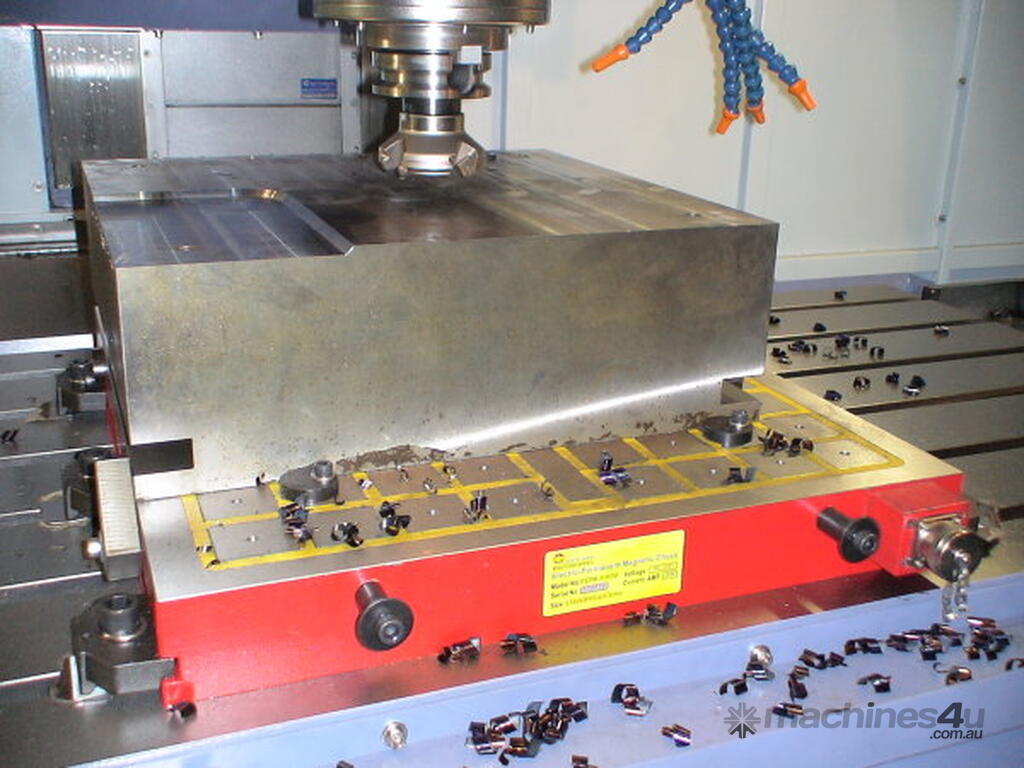

It is possible to machine 5 sides of a workpiece, with unobstructed movement of the cutter during machining.
Only one cycle is required to finish a workpiece helping to achieve the best machining accuracy and increasing efficiency.
Applications:
Most suitable for medium and small or even rough or irregular workpieces.
Suitable for drilling and finishing machining on small workpieces.
Minimum size of workpiece required as 4 alternate magnetic square poles and above contacts are
necessary for optimum clamping.
Minimum thickness of workpiece required is 10mm.

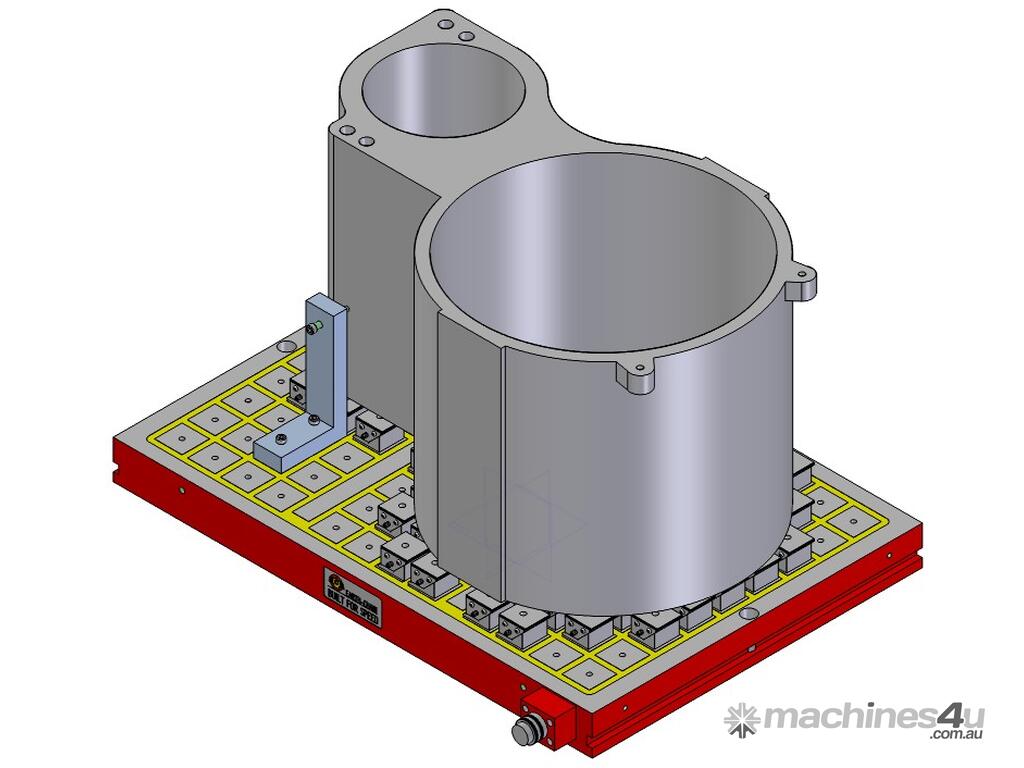

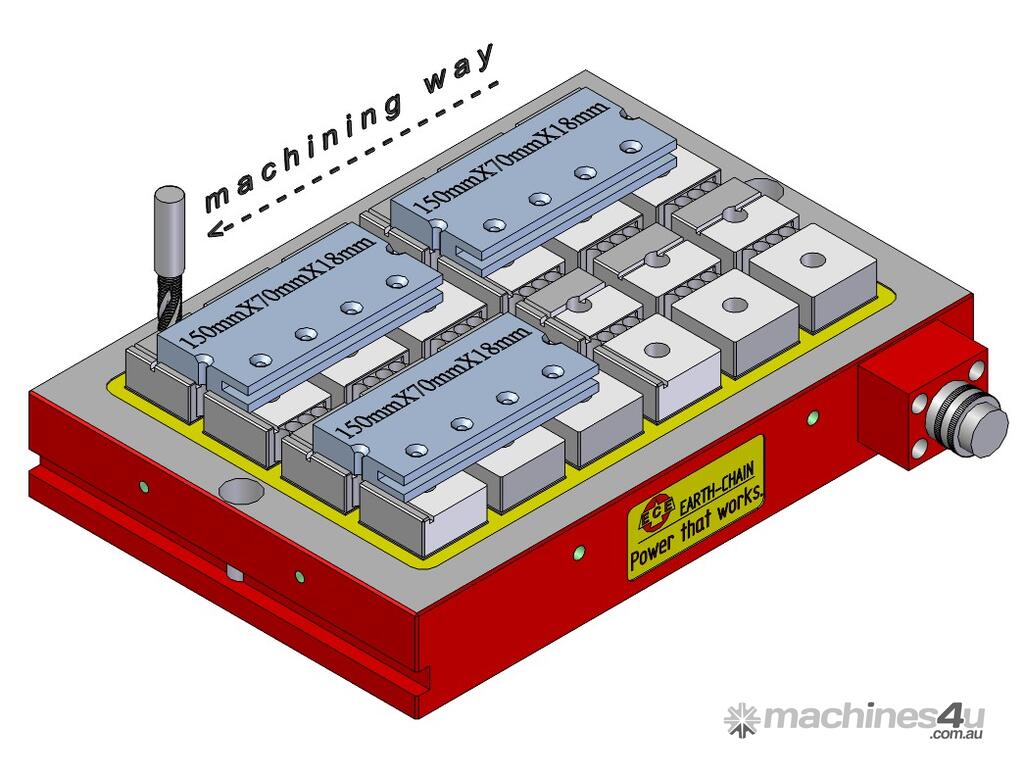

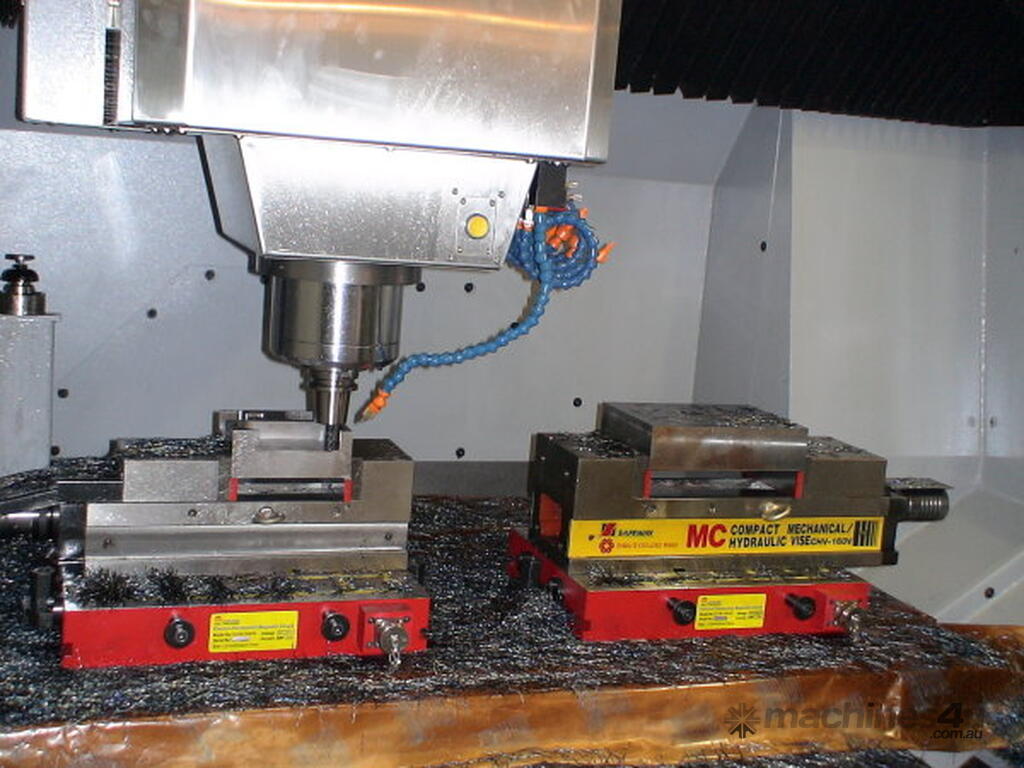

A broader range of functions are available with the addition of Induction Blocks and Spring Blocks.
Delivery and ongoing support Australia wide.
Please call for additional information.
