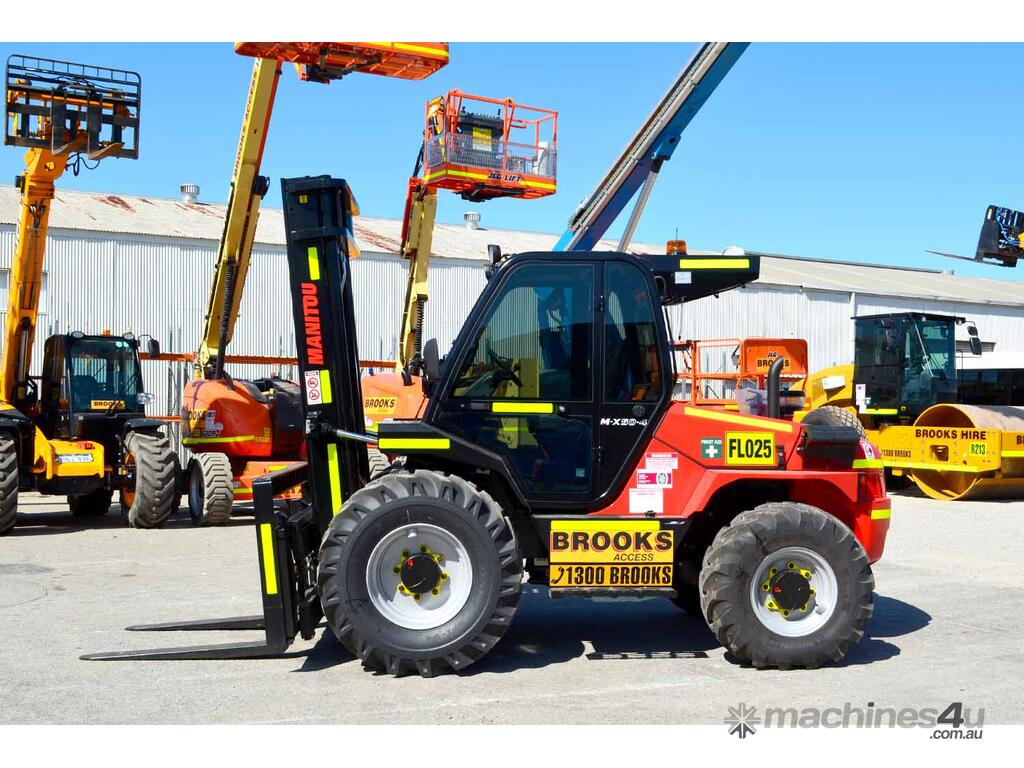

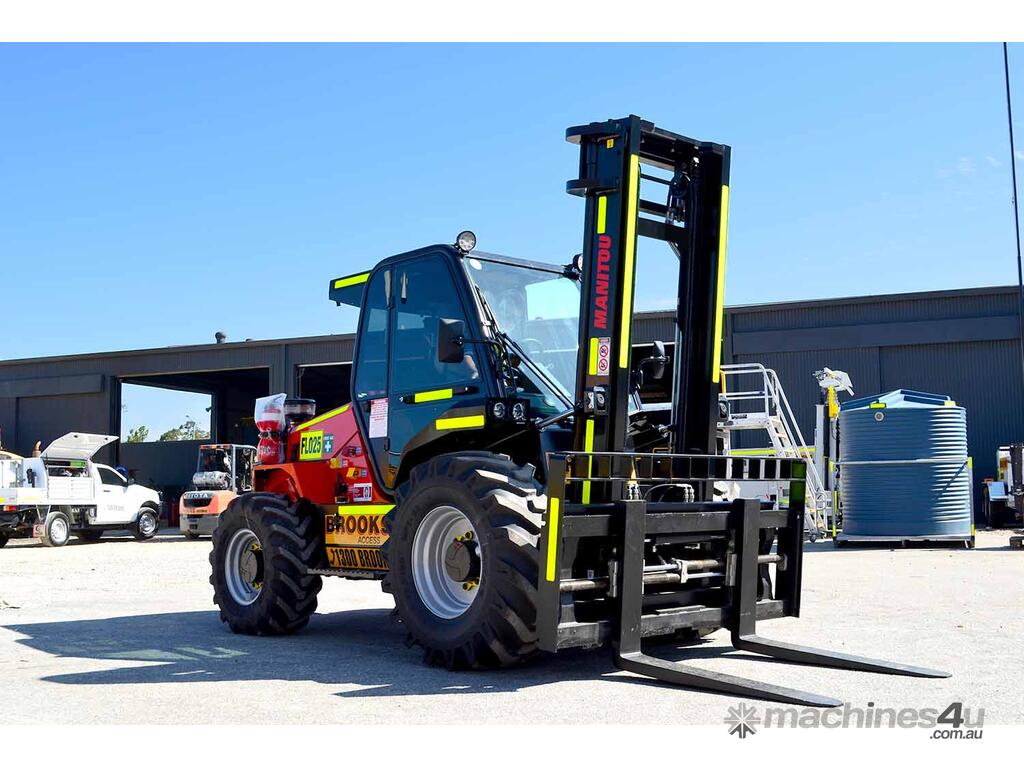

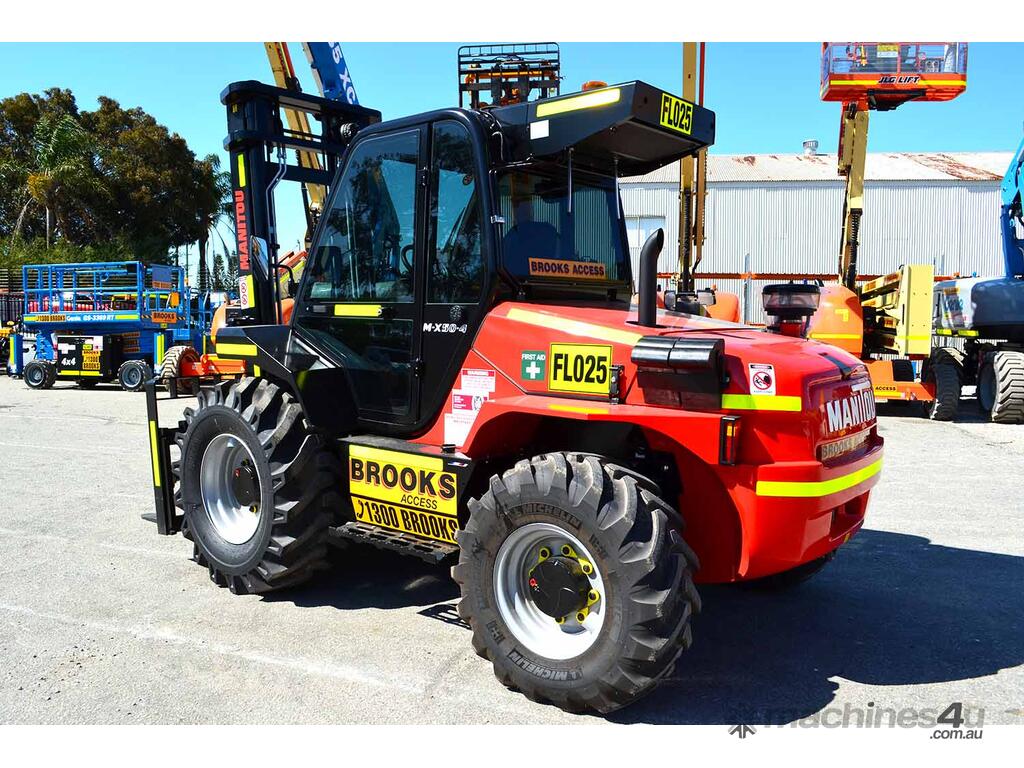

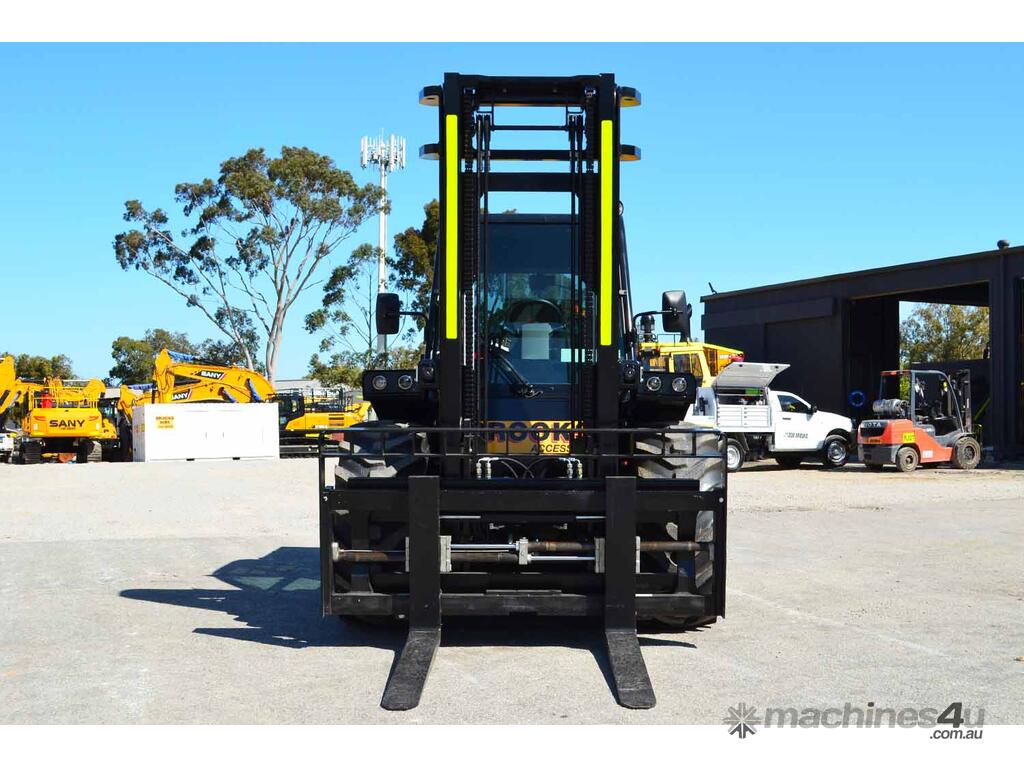

Manitou M-X 50-4 Forklift 4WD- 5 Tonne Forklift for Hire

Description
The M-X 50-4 rough-terrain forklift is designed for activities on difficult terrain or with obstacles. With 4 drive wheels and a ground clearance of 43 cm, this truck offers good manoeuvrability in all circumstances. To allow you to adapt to every ground context, you benefit from a choice of tires to optimize your productivity. Accessible from both sides, the suspended cab offers a spacious driving position with ergonomic controls. The high driving position offers a 360° panoramic vision for enhanced safety of the operator and his environment.

Features

3.7m duplex mast
enclosed a/c cab
LED amber beacon
1.5kg & 4.5kg dry powder fire extinguishers
lockable battery isolator
lockable starter isolator
12v CAT jump start
2000mm sideshift fork positioner
UHF radio
full road lighting

SPECIFICATIONS
Engine Brand / Model Perkins / 1104D-44T NL38894
Engine Rated Speed 2360 rpm
Max. Capacity 5000 kg
Load Centre of Gravity 600 mm
Load Distance, Centre of Drive Axle to Fork 762 mm
Wheelbase 2120 mm
Service Weight 7660 kg
Weight on Front Axle (Laden) / Rear Axle (Laden) 10800 kg / 1869 kg
Weight on Front Axle (Unladen) / Rear Axle (Unladen) 2570 kg / 5090 kg
Dimensions of Rear Wheels 340/80R18 XMCL 143A8
Tilt of Mast Forward (Deg) / Backwards (Deg) 6 / 12
Overall Dimesions LxWxH 4945 x 2080 x 2495 mm
Length to Face of Forks 3745 mm
Forks Section x Width x Length 50 mm x 150 mm / 1200 mm
Ground Clearance Below Mast 265 mm
Ground Clearance at Centre of Wheelbase 375 mm
Turning Radius 4155 mm
Travel Speed (Laden / Unladen) 24 km/h / 23.40 km/h
