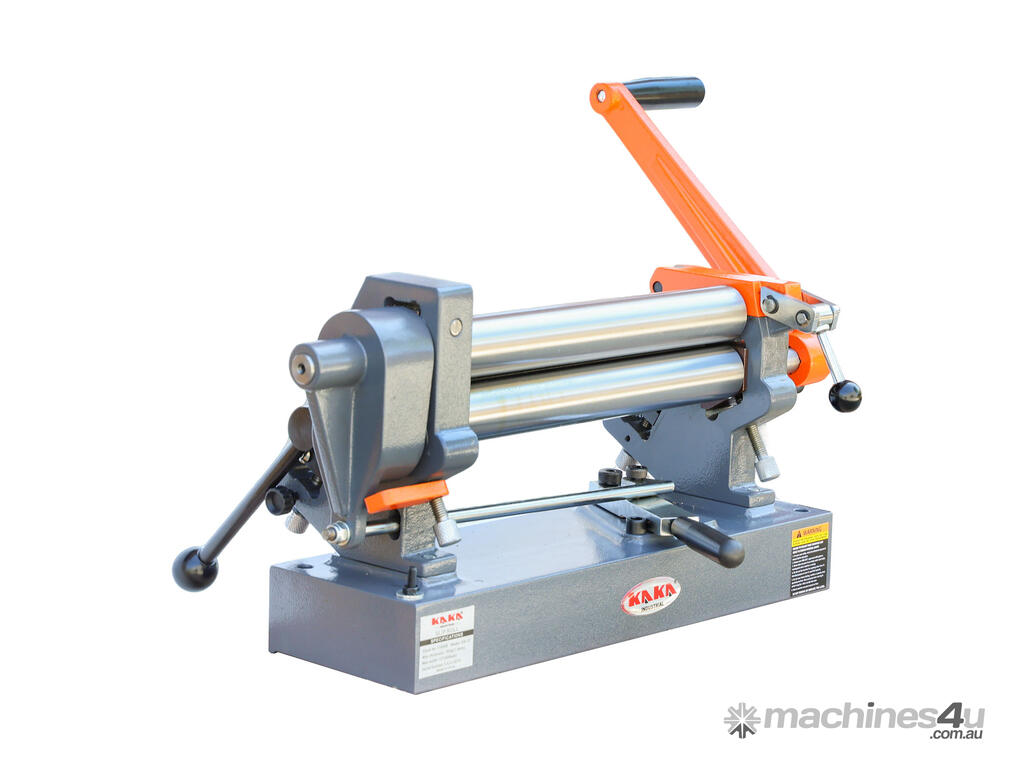

Heavy Duty Manual Sheet Metal Curve Roller SR-12

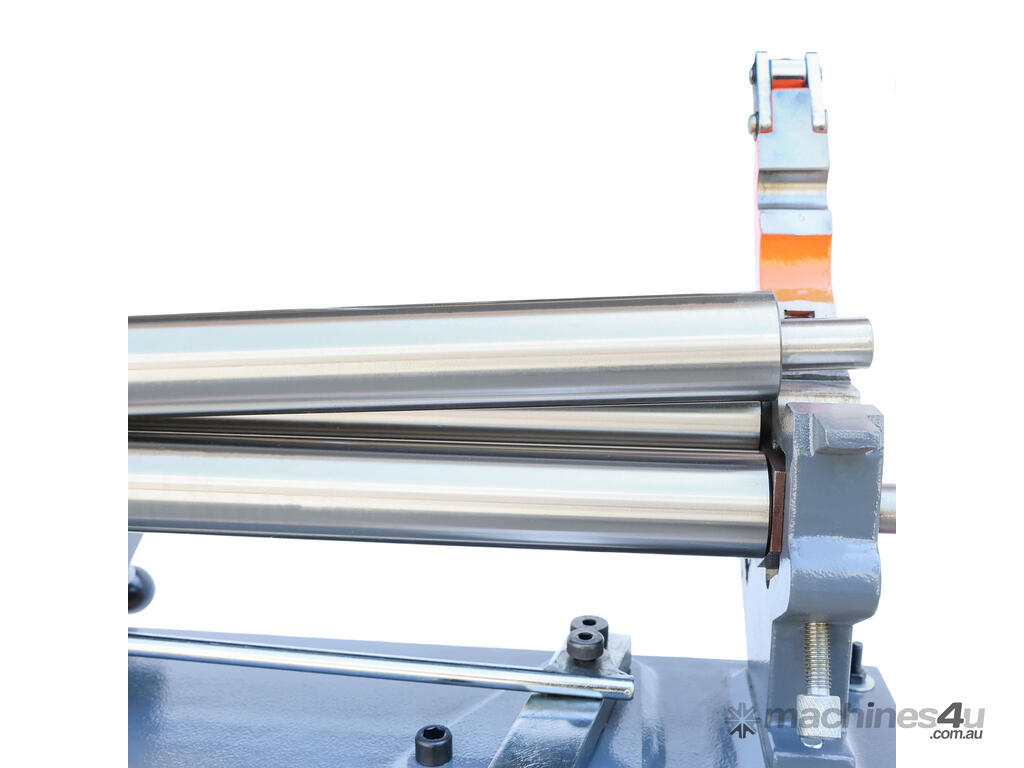

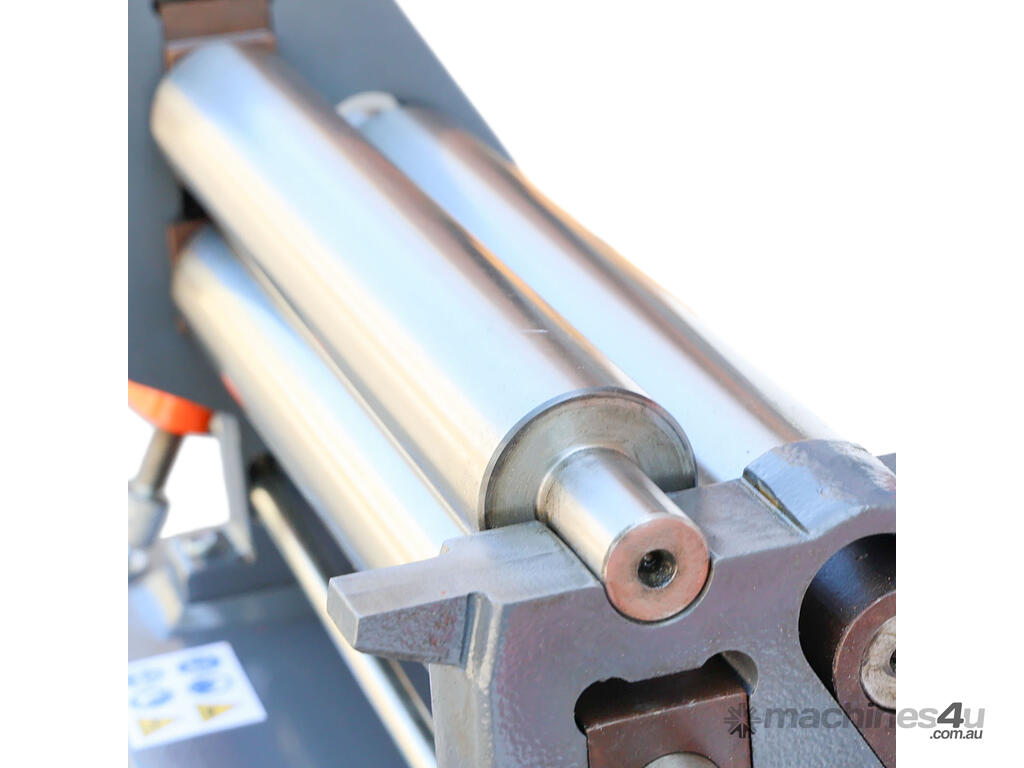

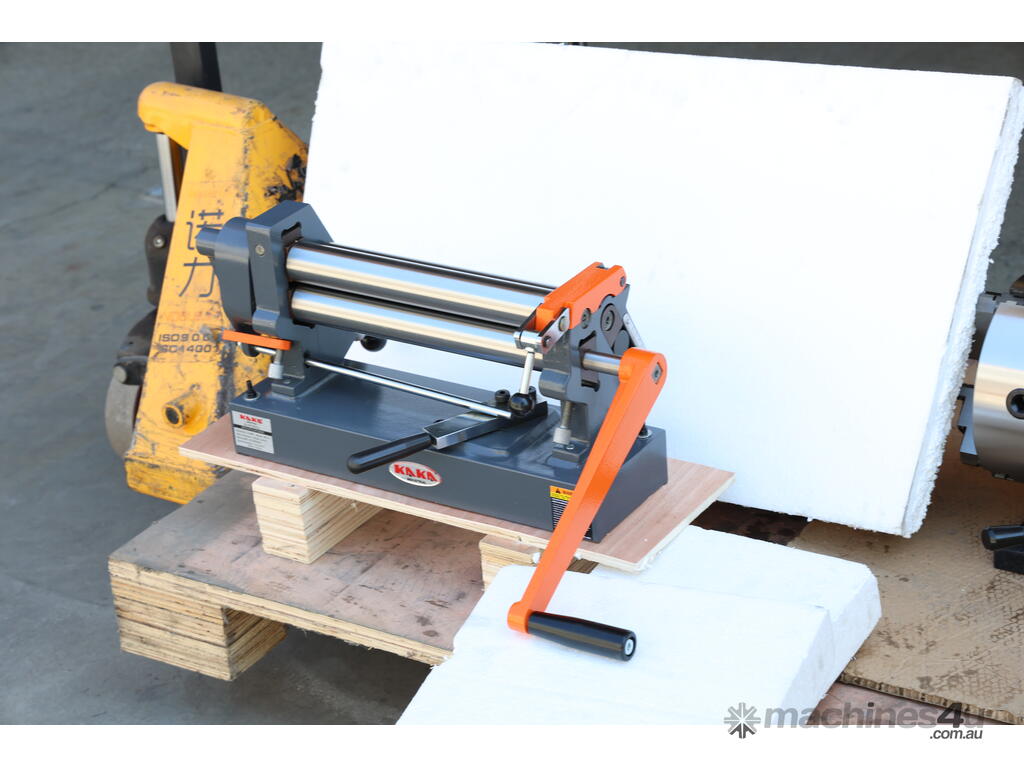

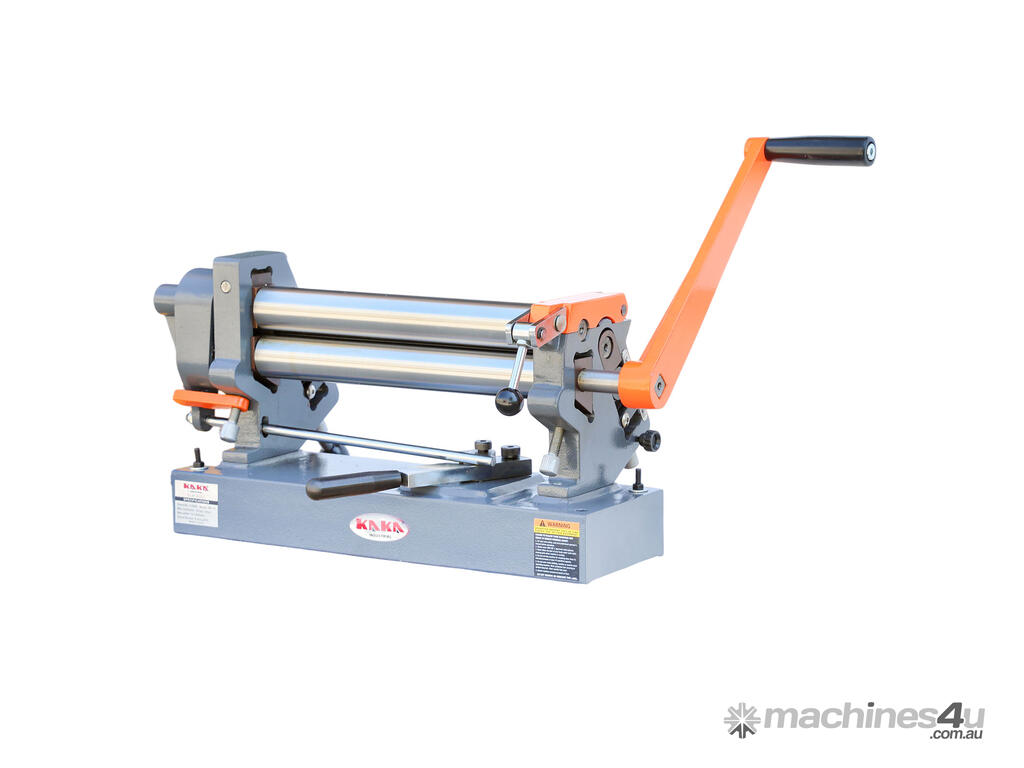

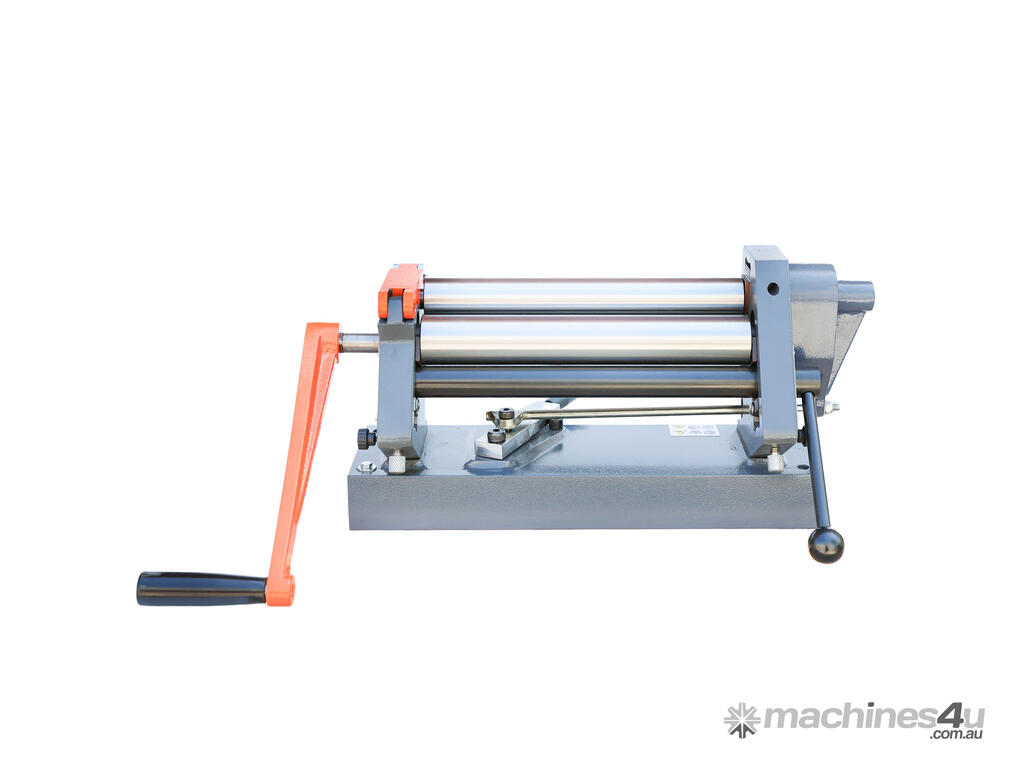

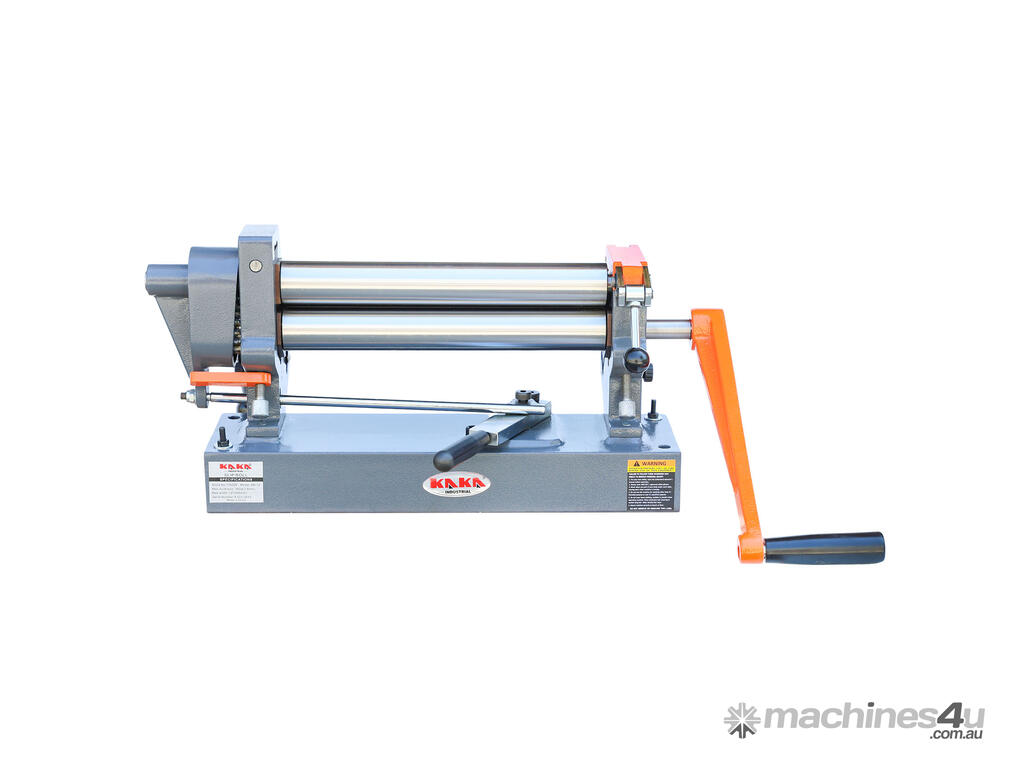

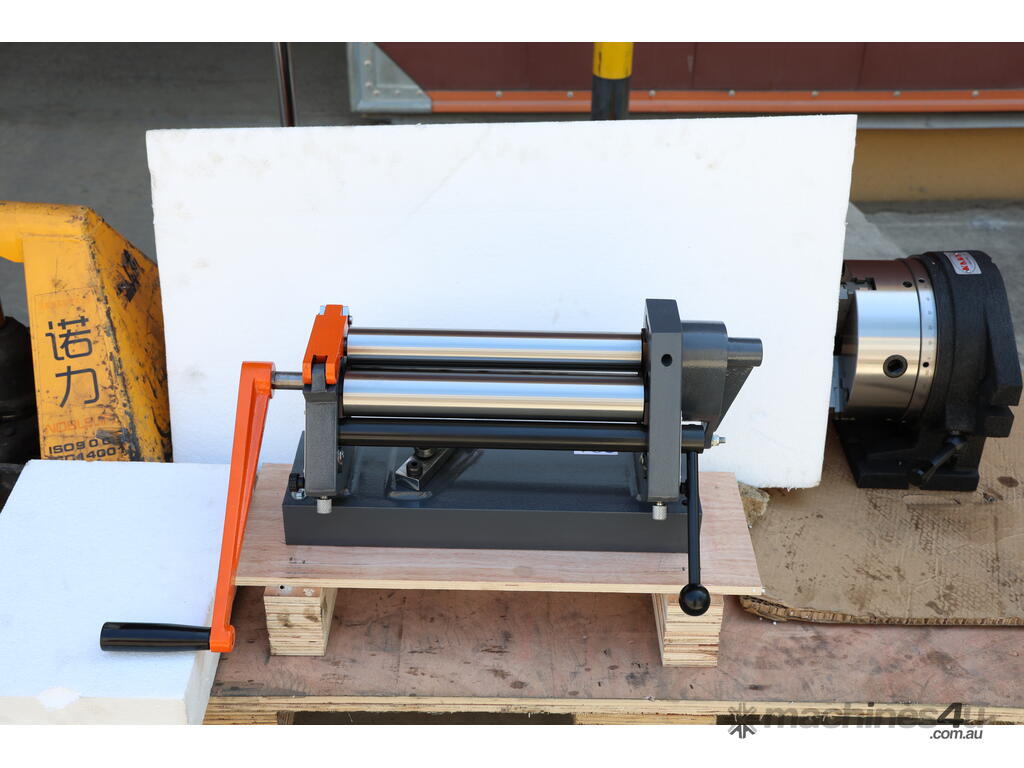

The KANG Sheet Metal Roller SR-12 is a compact, heavy-duty manual sheet metal roller designed for precision forming of small to medium-sized projects. It features three precision-ground steel rollers (42mm diameter) with a maximum forming width of 305 mm and a capacity for mild steel up to 1.6 mm thick. The standout feature is the cam-actuated idler roll, which allows forming perfect circles without flat spots, enables bends at any point along the material, and returns to the pre-set position for accurate duplication of parts. Rear roll indicators help quickly reset adjustments. Fully manual operation uses a side crank handle, making it ideal for benchtop use in workshops, garages, or schools.
Ultra-Compact Size Sheet Roller for Small Workshops. At just 305 mm working width, it's perfect for space-limited garages, home workshops, or mobile setups common among hobbyists, apprentices, and small repair shops.
Superior Repeatability. Equipped with rear roll indicators, the operator can precisely return the Idler Roll to a pre-set position, guaranteeing high-degree accuracy and ease of duplicating parts.
Superior Precision & No-Flat-Spot Forming. The unique cam-actuated idler roll produces true circles and allows bending anywhere on the material—ideal for high-quality prototypes, custom brackets, toolboxes, or decorative items without the "flat" ends typical of standard sheet metal rollers
Versatile Radius Capability. Capable of achieving a tight 25.4mm minimum radius up to an unlimited maximum radius, offering flexibility for a wide variety of small-scale fabrication projects.
Easy to Store & Move Sheet Metal Roller. Compact footprint and benchtop design make it simple to relocate or store when not in use, ideal for Australian homes or small commercial spaces.
Features
305mm rolling width, can roll 1.5mm mild steel over the entire width
1:1 gear ratio for powerful rolling
Form min. 50.8mm circle

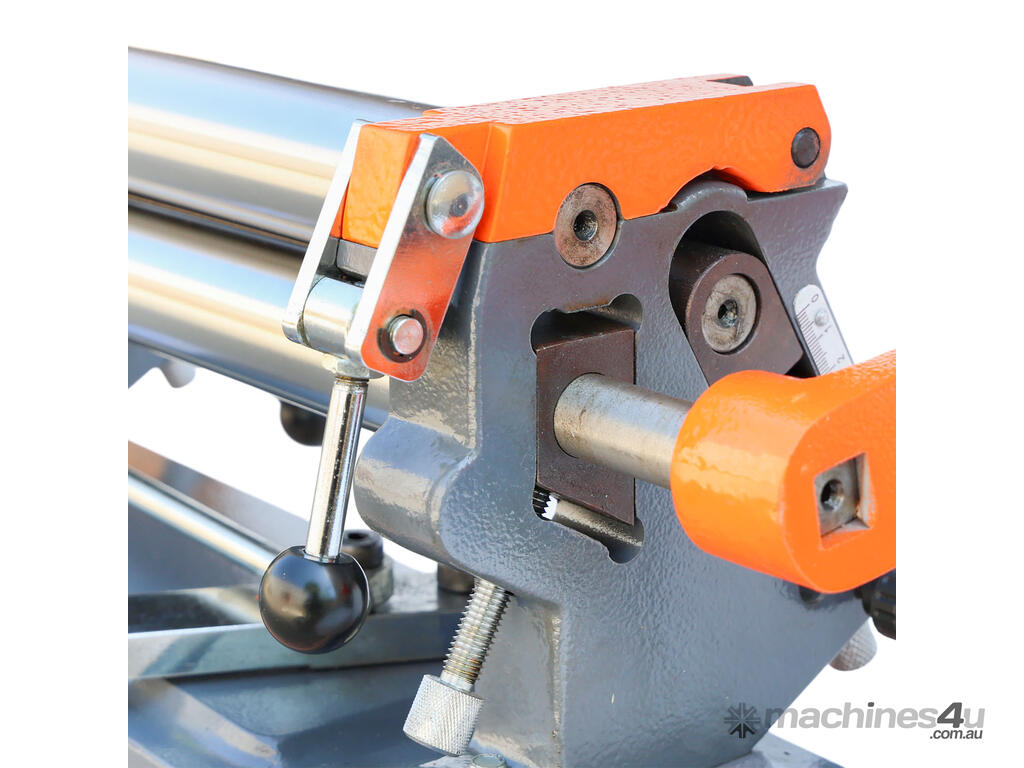

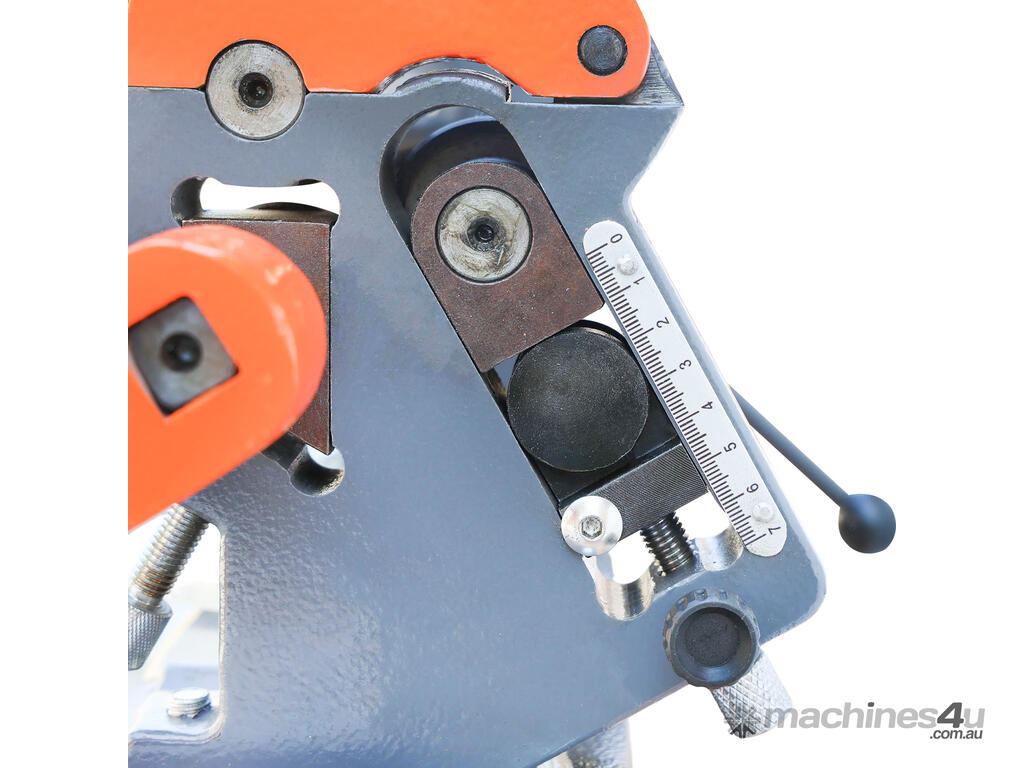

The rear roll indicator enables the operator to adjust the idler roll to a previous setting
The eccentric idler roll is designed to form circles without flat spots on the leading edge of the plate
Solid roller, round, flat, and square grooves can be machined into rollers for various applications. This is an optional service at an extra charge
Specifications
SKU 174008
Model SR-12
Max. capacity
1.5mm (mild steel)
0.9mm (Stainless steel)
Max. forming width 305 mm
Roll dia. 42 mm
Min. forming dia. 50.8 mm
Rear roll lift 25.4 mm
Packing size 59x23x39cm
N.W./G.W. 35/41 kg
