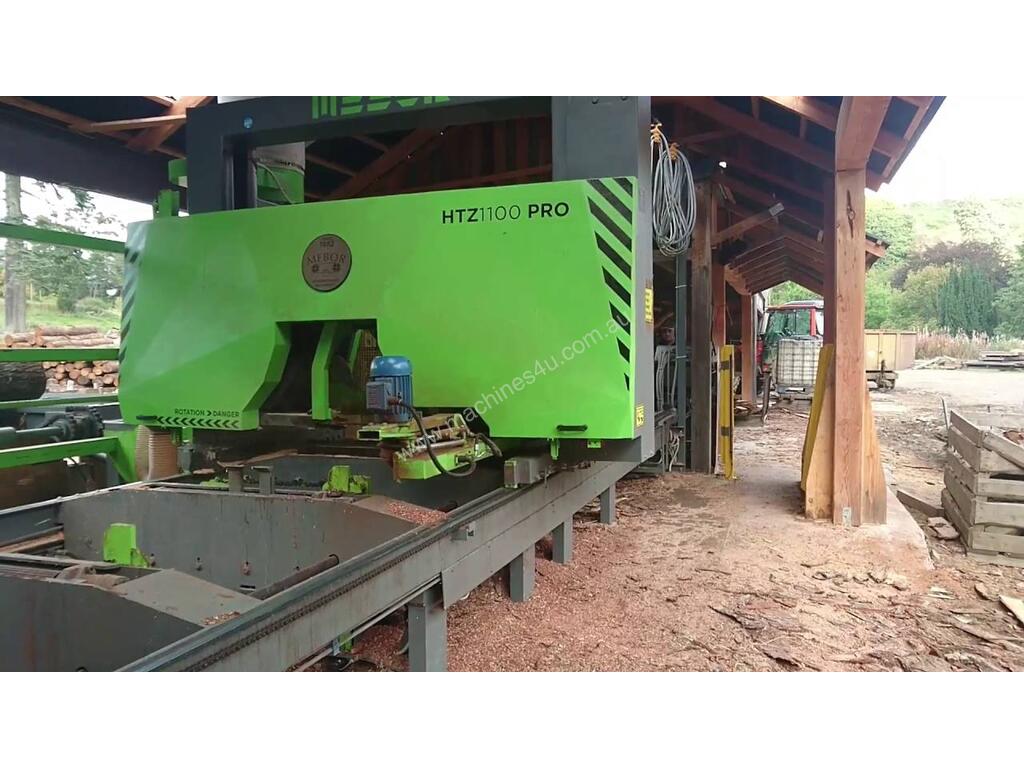

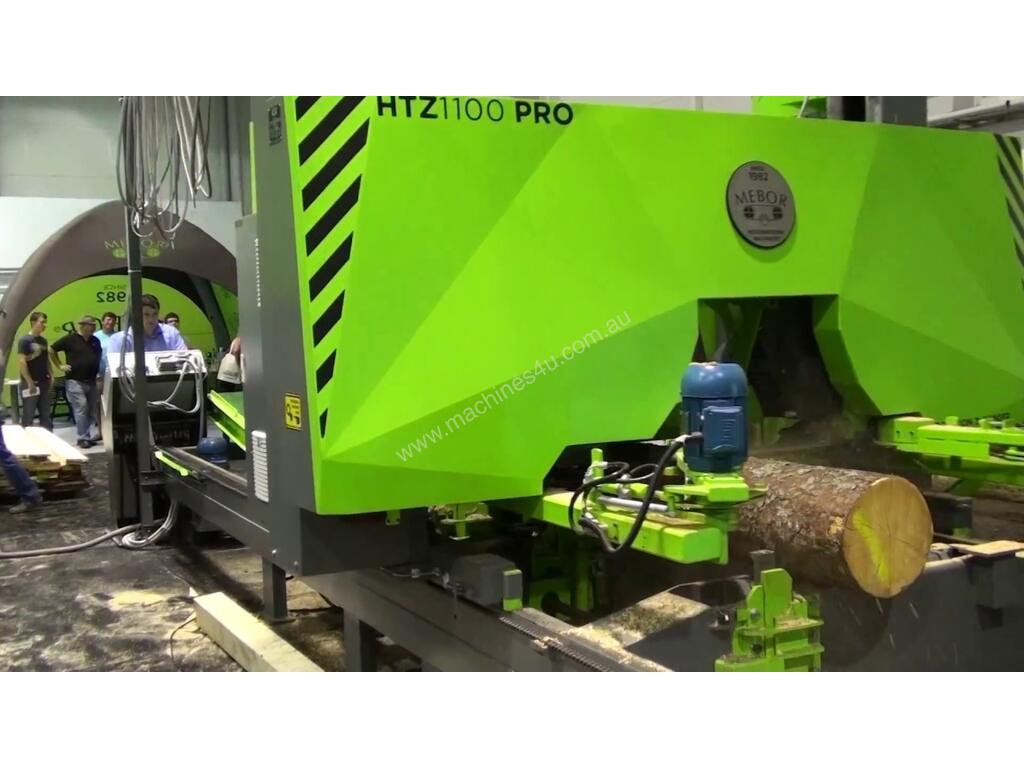

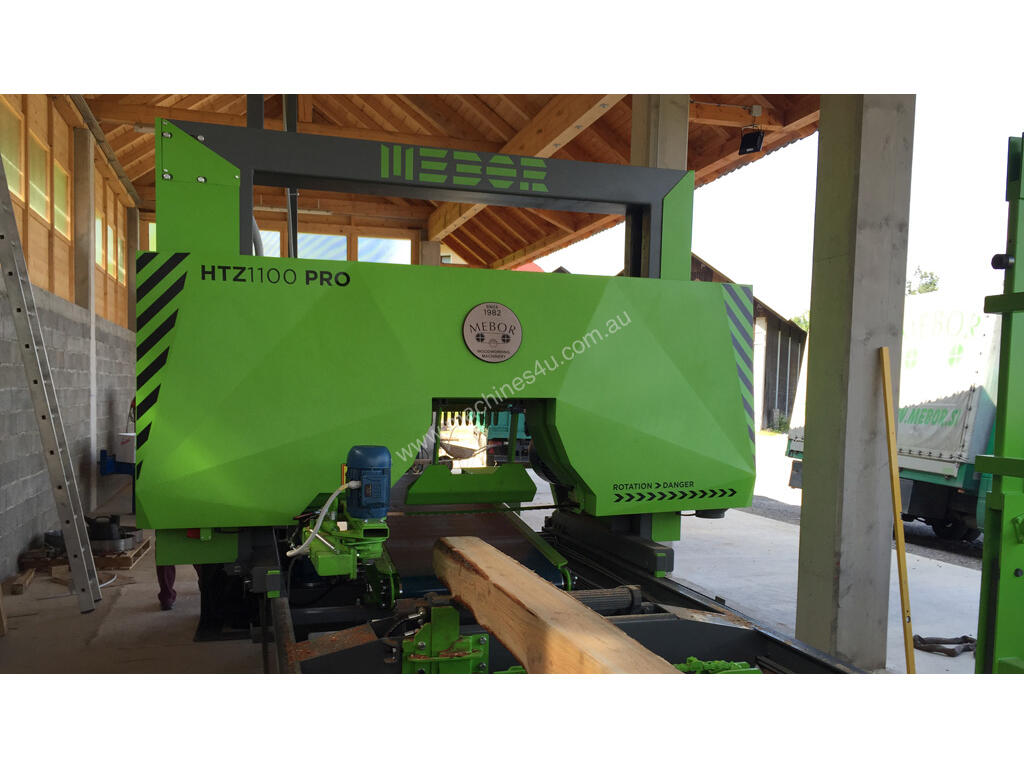

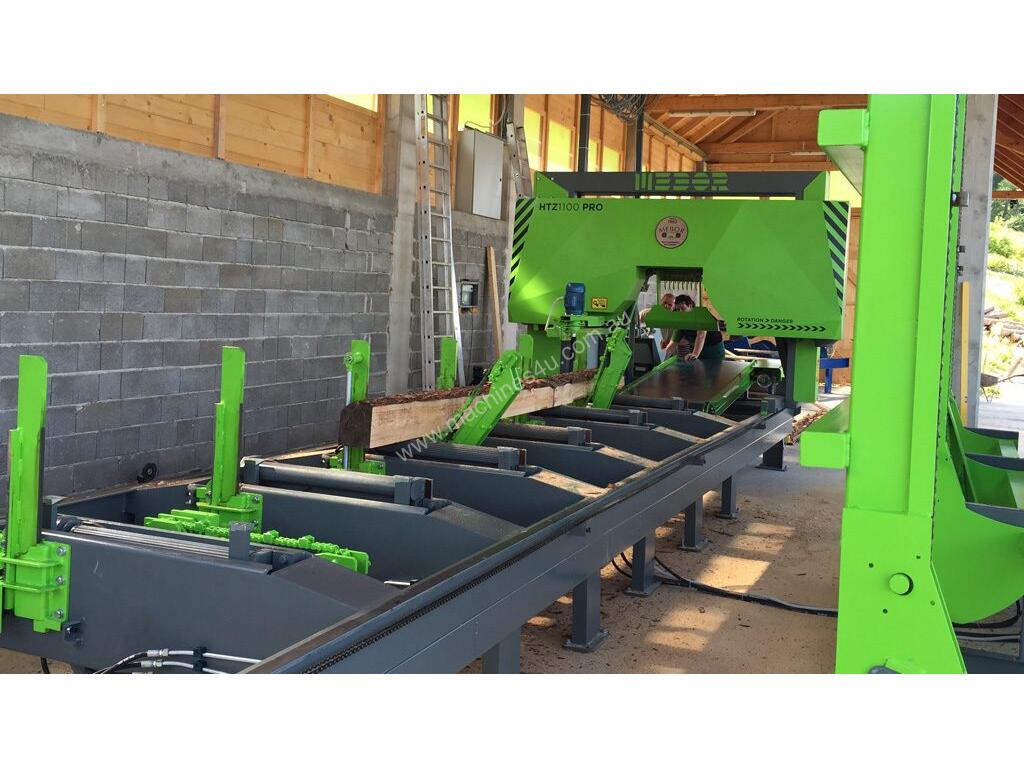

Mebor HTZ 1100 this is a saw with stability and power to give a flat cut. This saw moves fast with small diameter logs, productivity comes from this model, without big costs. Mebor can supply all the band maintenance equipment. Their out feed and edging / multisawing options are many.
TECHNICAL DATA HTZ 1100 PRO
Productivity: up to 38 m3/8h*
Max. Log diameter: 1000 mm
Max. Cutting width: 1000 mm
Max. Log length: custom made
Diameter of flywheels: 1120 mm
Width of flywheels: 120 mm
Blade length: 7100 mm
Blade width: 120** mm
Blade thickness: 1.2 mm
Approximate weight: 5500 - 7500 kg***
Width: 3110 mm
Total height (blade in highest position): 3050 mm
Total length: log length + 3,5m
Main motor power: 18.5/22/30/37 kW
* depends on log sizes, sawn wood dimensions, machine’s configuration etc.
** Blades for two sided cutting are 20 mm wider
*** depends on machine’s configuration
