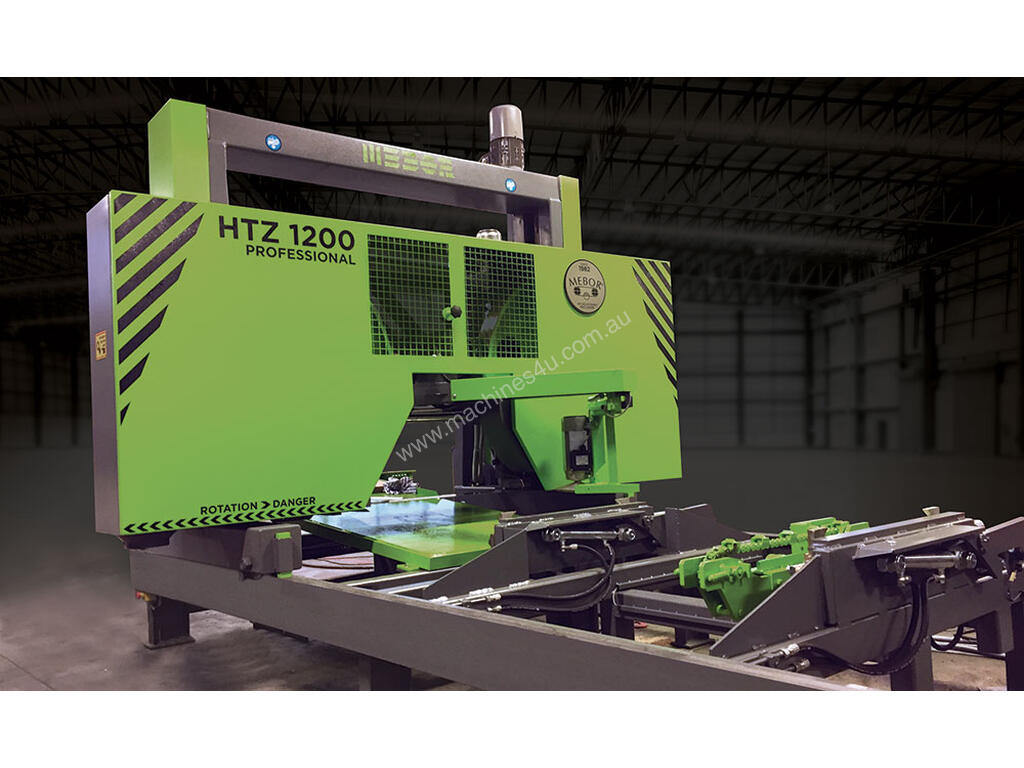

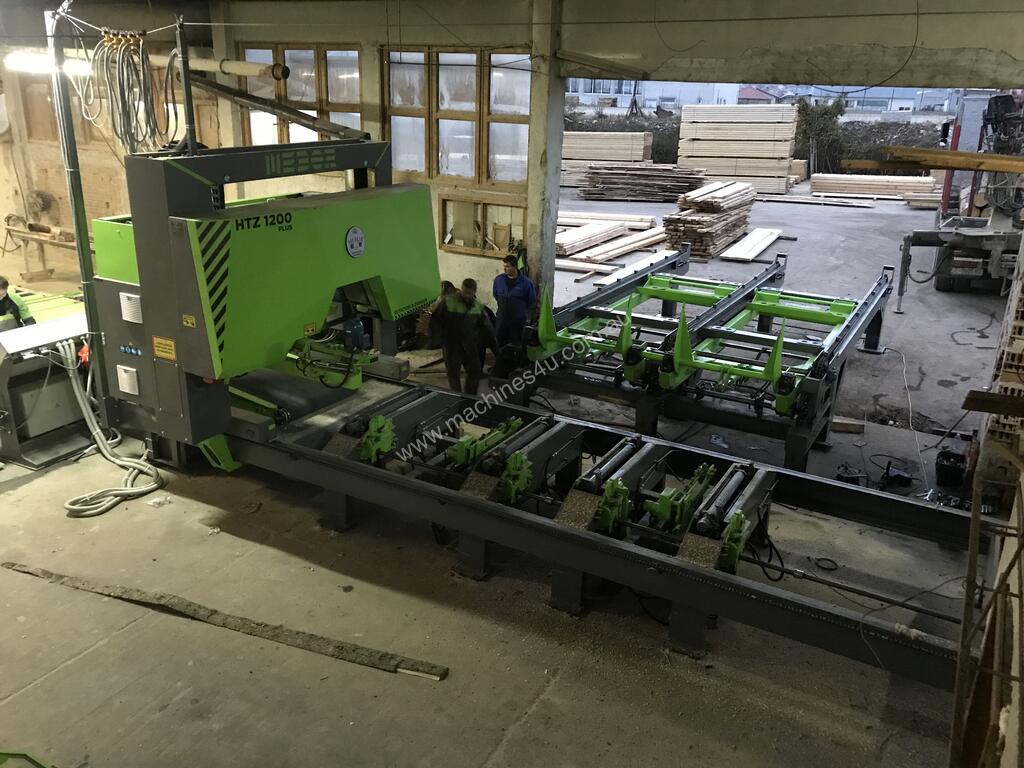

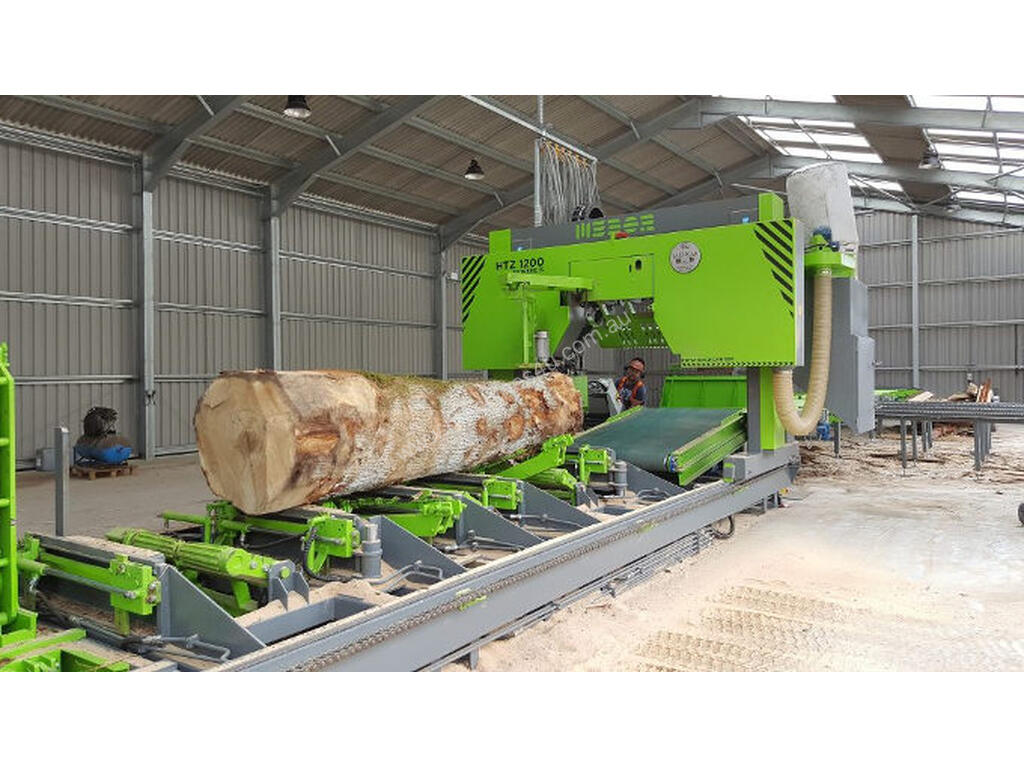

Mebor HTZ 1200 Band mill
Small log high productivity mill

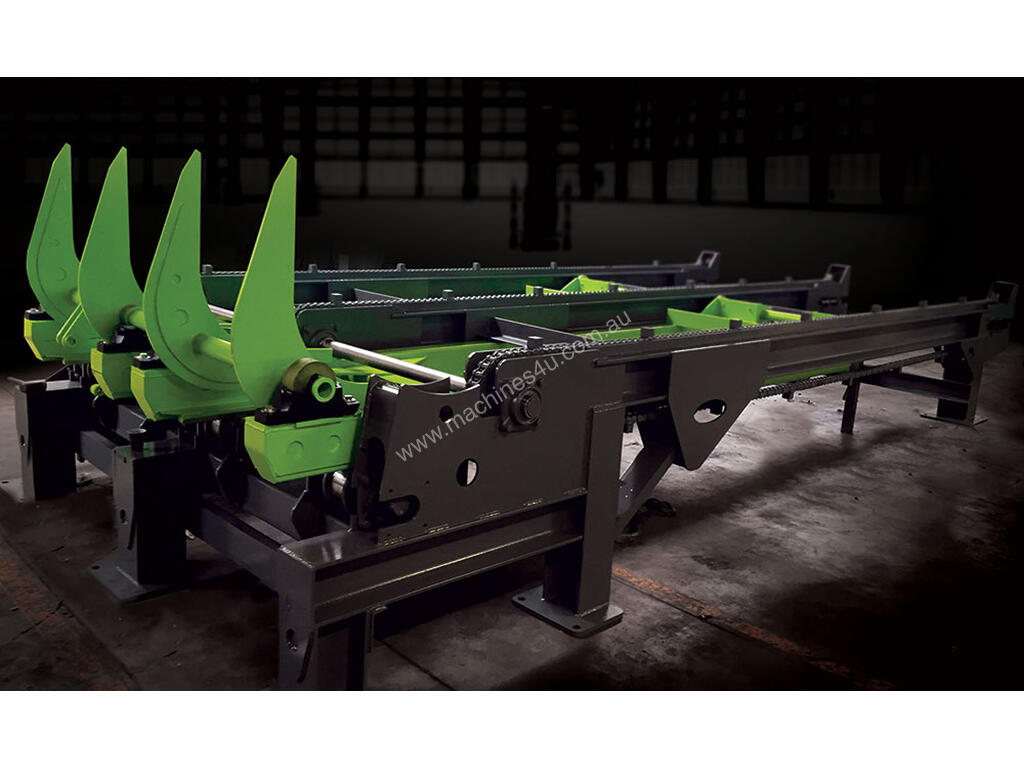

Saw motor power and log handling options. This gives a big range of productivity from this model.

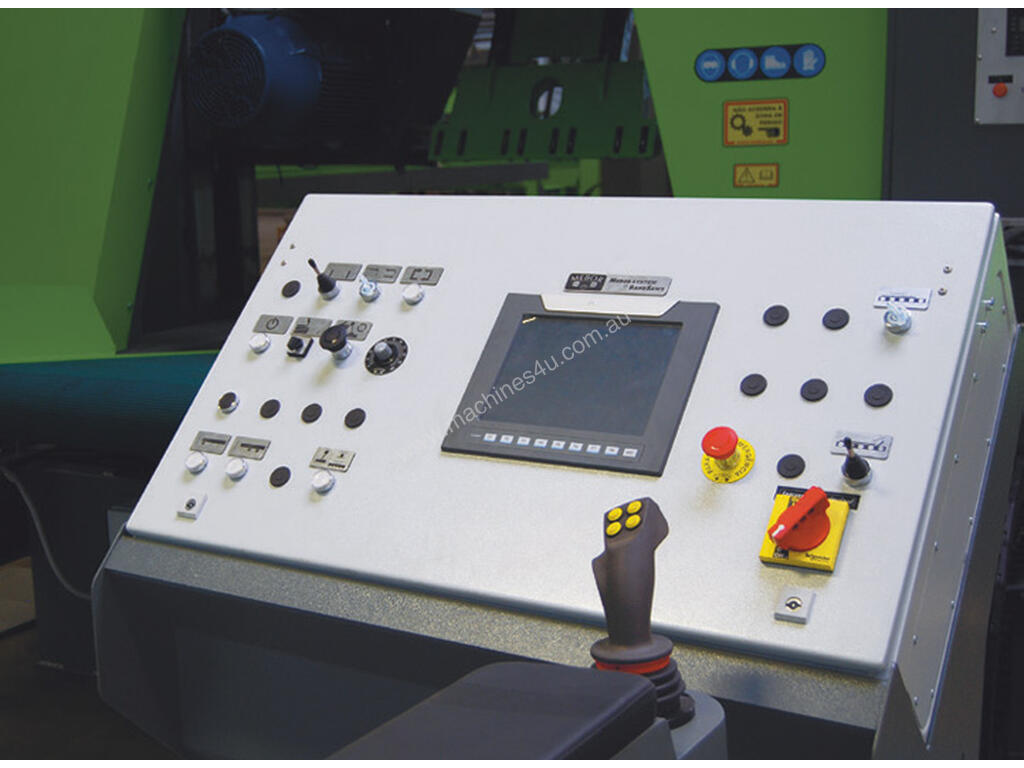

Hydraulic packages for all workloads. Operators panel with well constructed base. This saw can be supplied with slabbing saws and a complete range of band maintenance gear.
TECHNICAL DATA HTZ 1200 PLUS
Productivity: up to 60 m3/8h*
Max. Log diameter: 1200 mm
Max. Cutting width: 1200 mm
Max. Log length: custom made
Diameter of flywheels: 1220 mm
Width of flywheels: 140 mm
Blade length: 7750 mm
Blade width: 160** mm
Blade thickness: 1.3 mm
Approximate weight: 11000 - 14000 kg***
Width: 3415 mm
Total height (blade in highest position): 3300 mm
Total length: log length + 4m
Main motor power: 37/45/55 kW
* depends on log sizes, sawn wood dimensions, machine’s configuration etc.
** Blades for two sided cutting are 20 mm wider
*** depends on machine’s configuration
