Fixed or mobile versions with a range of options to give productive days.
Available in a manual version for a simplified low cost setup.

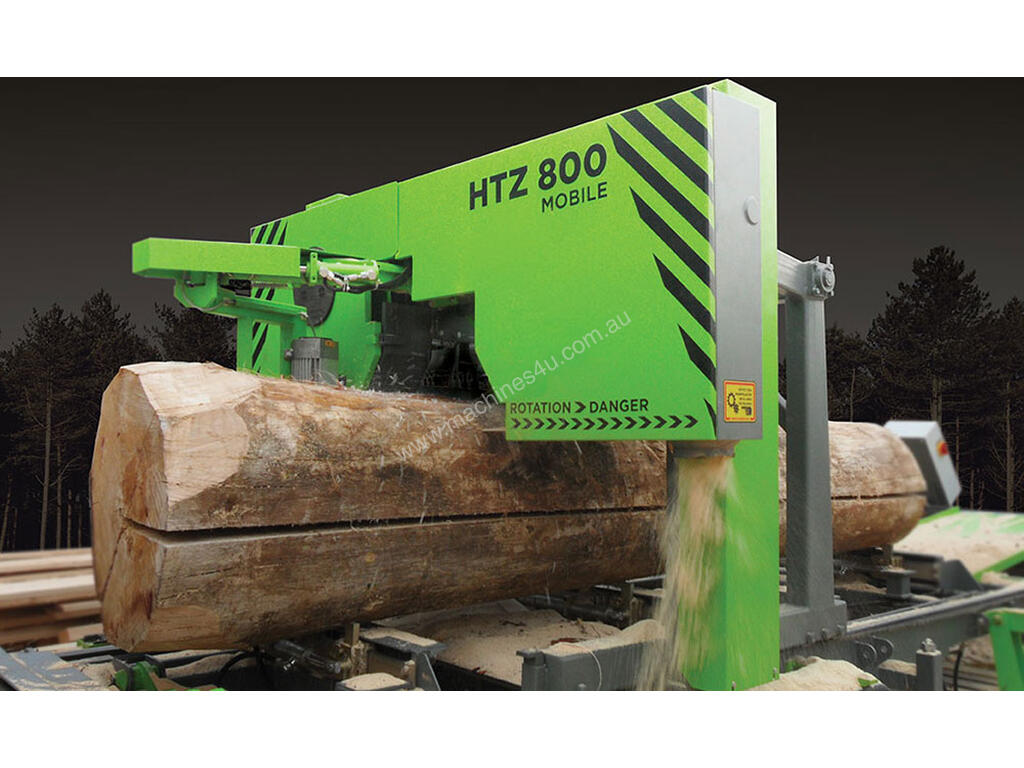

TECHNICAL DATA HTZ 800 / MOBILE
Productivity: up to 25 m3/8h*
Max. log diameter: 900 mm
Max. cutting width: 800 mm
Max. log length: custom made

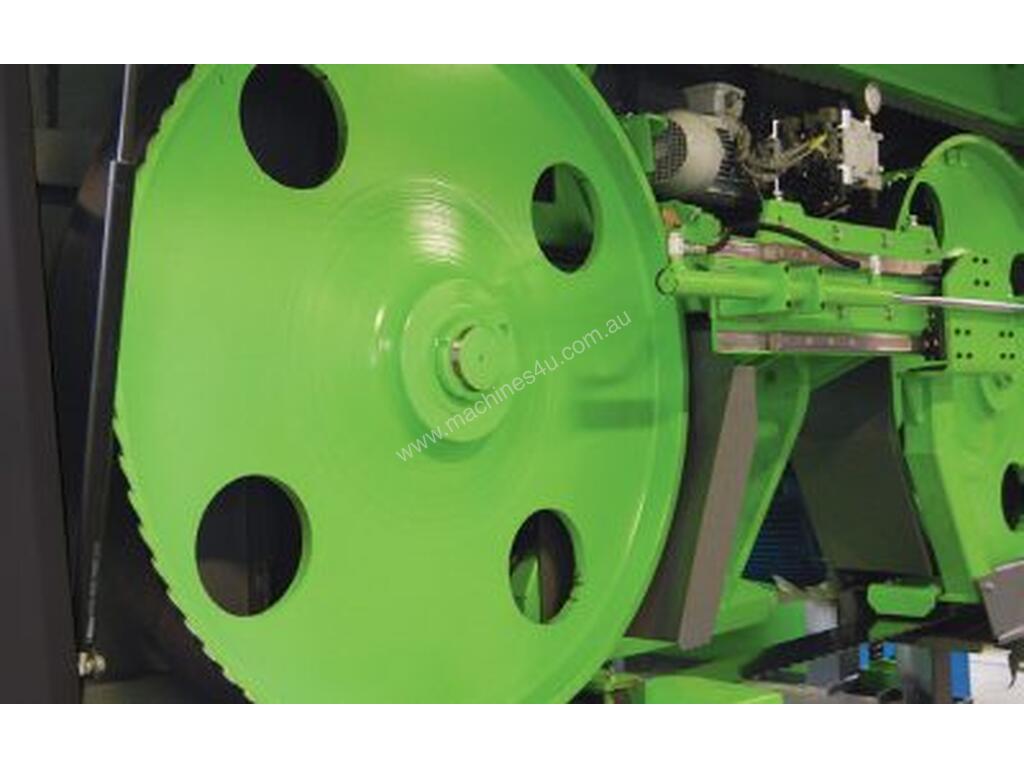

Diameter of flywheels: 820 mm
Width of flywheels: 80 mm
Blade length: 5300 mm
Blade width: 100 - 120 mm
Blade thickness: 1 mm
Approximate weight: 2900 - 3800 kg***
Width: 2330 mm
Total height (blade in highest position): 2330 mm
Total length: log length + 3,5m
Main motor power: 11/15/18,5/22 kW
* depends on log sizes, sawn wood dimensions, machine’s configuration etc.
** blades for two sided cutting are 20 mm wider
*** depends on machine’s configuration
