200 tonne INDUSTRIAL SLIDING RAM HYDRAULIC PRESS
Suited for the Industrial workshop, for the repair of axles removal & press fit of bearings & bushings
"CALL FOR OUR BEST PRICE"
Features
Easy to use and powerful press for most applications
Ideal for the repair of axles, shafts, & press fit of bearings & bushings
Heavy duty welded steel fabricated frame
Strong hydraulic cylinder ensures precise pressing during operation

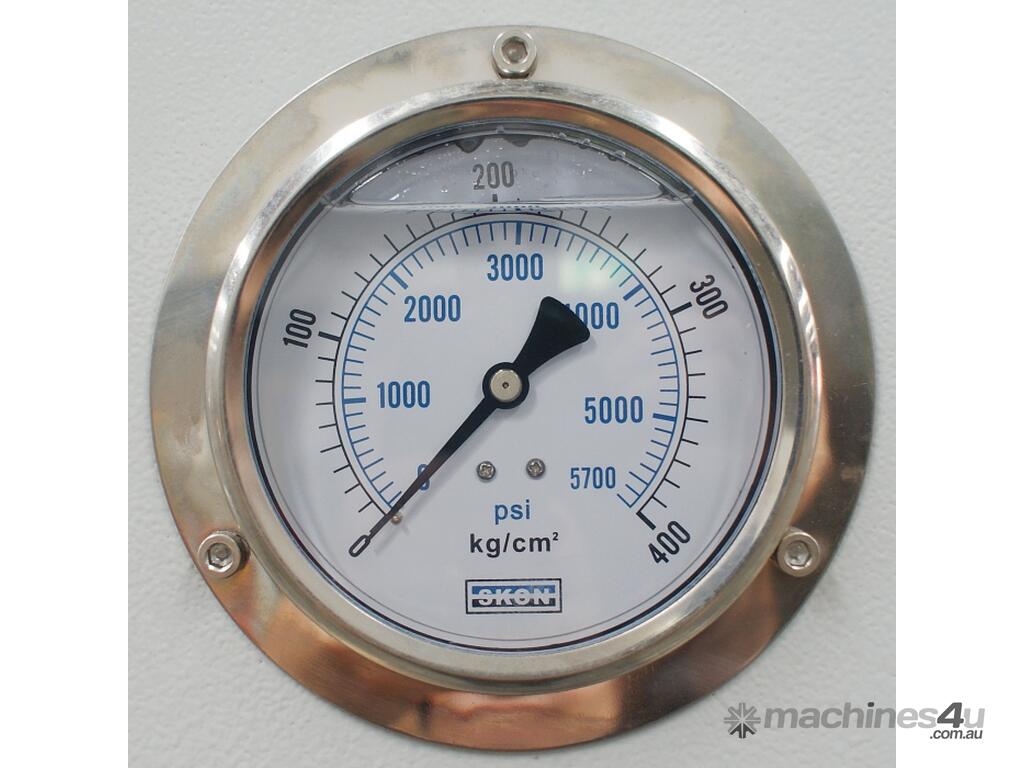

Fitted with pressure gauge
Safety overload valve

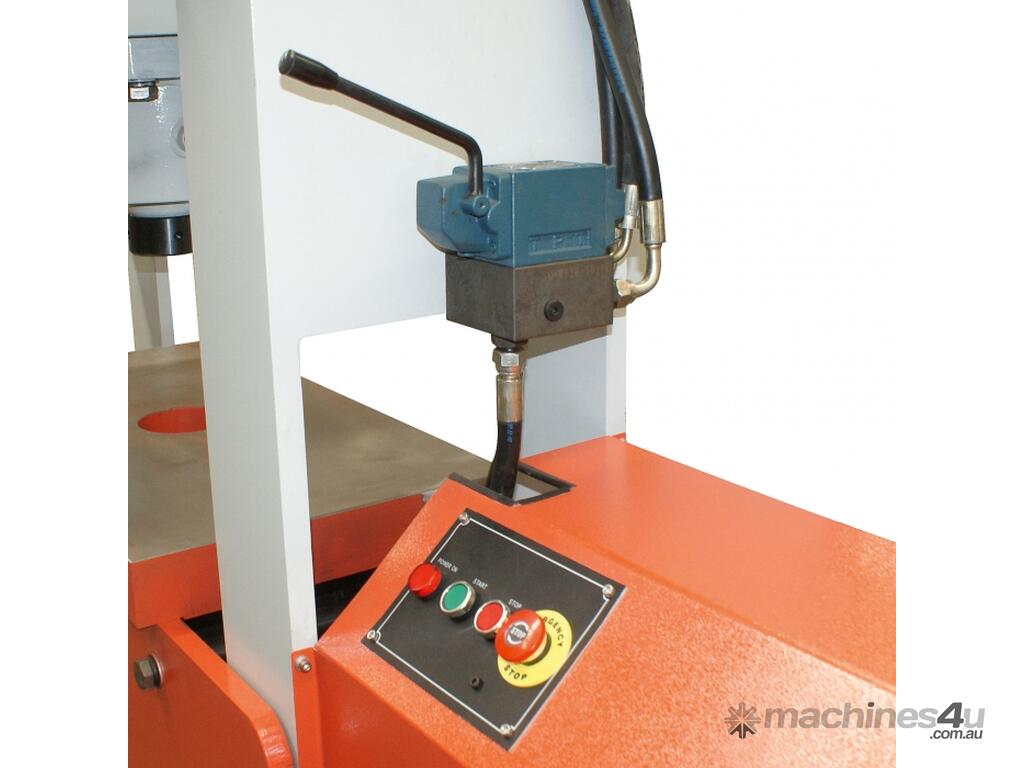

Hydraulic joystick control lever
Powerful TEFC motors

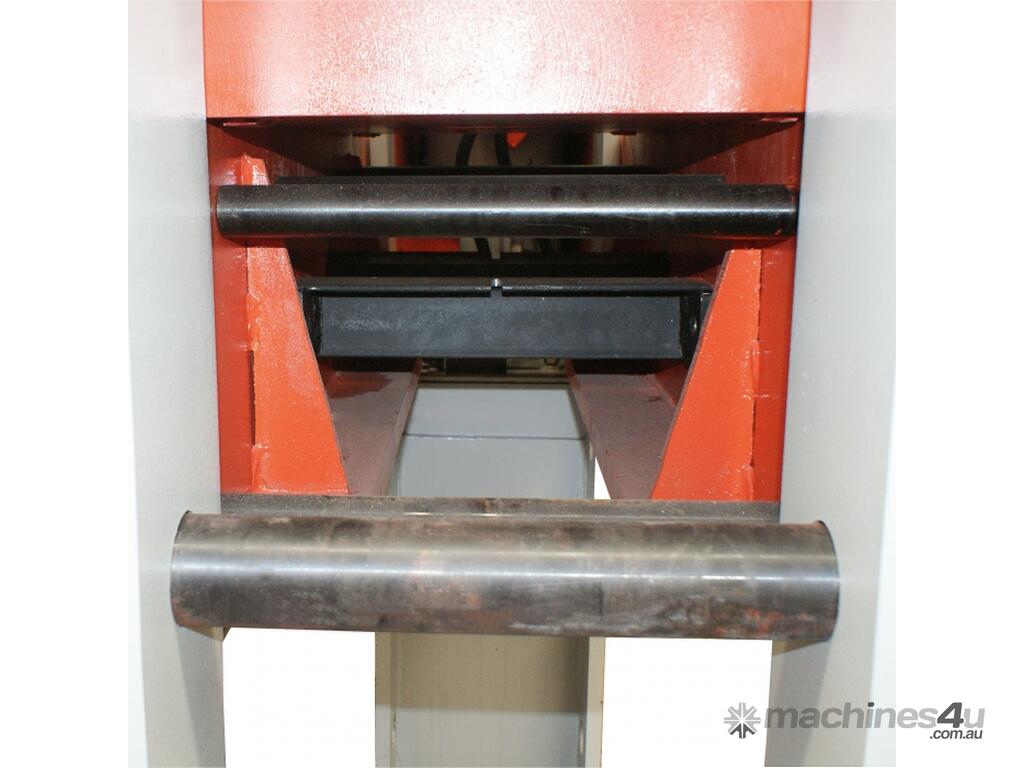

Heavy duty one piece table plate insert

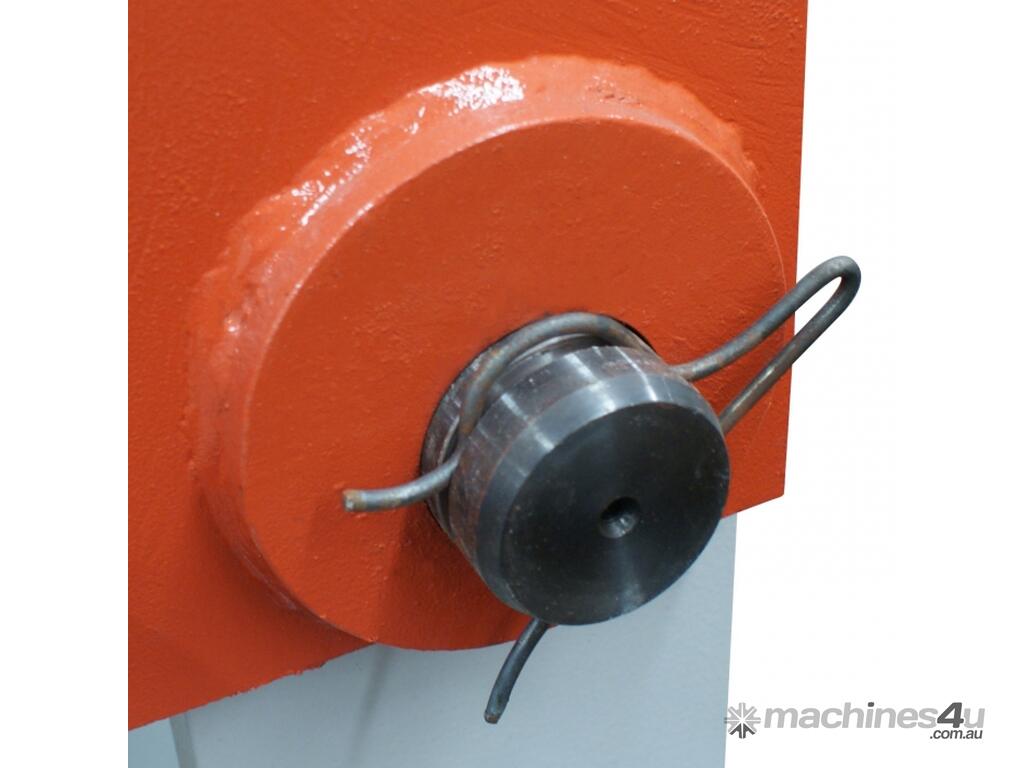

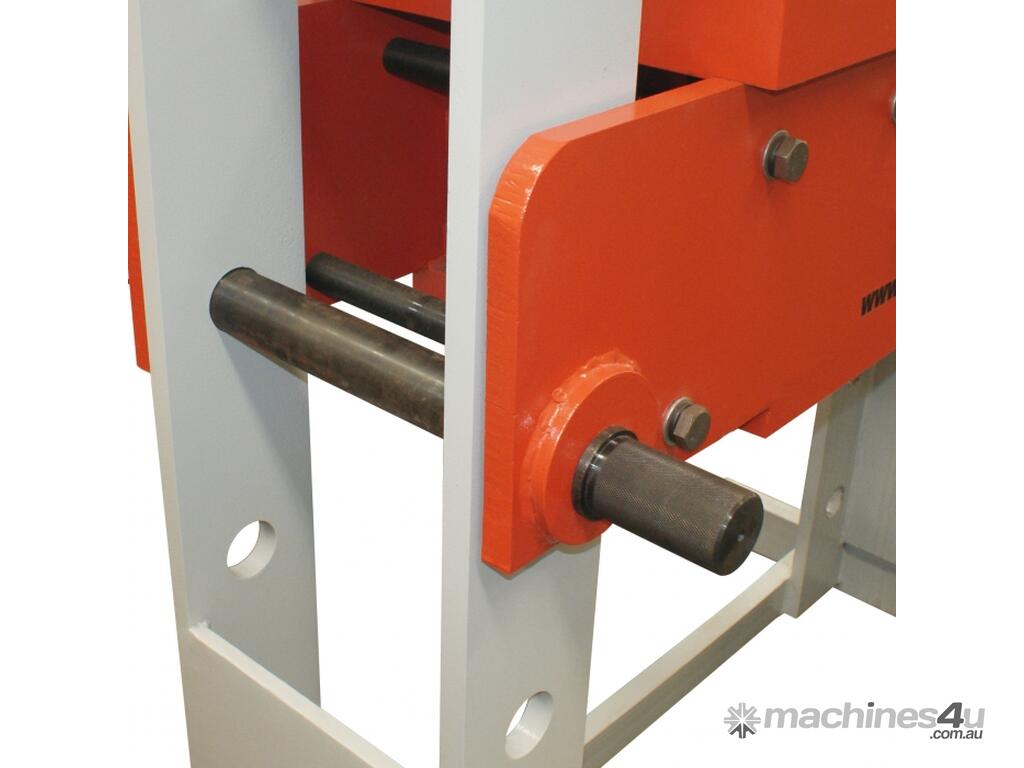

Extra heavy duty table support with high tensile setting pins
Tables can be adjusted for height using chains and Hydraulic ram
Supplied with hydraulic oil
ORDER CODE: P406M
Model: HPM-200T
Pressing Capacity: 200 tonne
Hydraulic Ram Operation Type: Motorised / Hydraulic

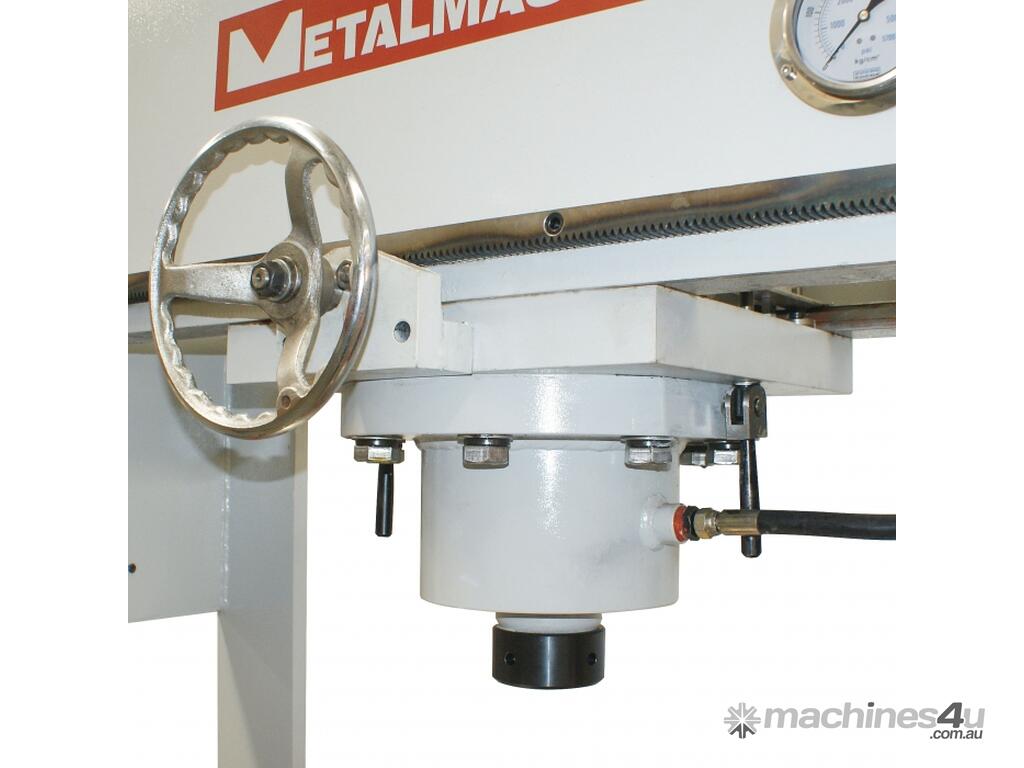

Sliding Ram (left-right):Yes
Working Pressure: 30mpa
Width Between Front Posts: 1250mm
Width Between Side Posts: 420
Maximum Ram To Table: 700mm
Piston Ram Stroke: 420mm
Motor Power: 7.5kW / 10hp
Motor Voltage: 415V
Dimensions (L x W x H): 2280 x 1130 x 2210mm
Weight (nett): 2680kg
All prices and specifications are subject to change
