Table working area (mm): 1220 x 620
Max table load (kg): 1000
Travels X, Y, Z (mm): 1200 x 600 x 675
Rapid traverse X, Y / Z (m/min): 24 / 18
Cutting feed range (m/min): 1 ~ 10,000
Spindle taper: BT 40 (BT-50 also available)
Spindle speeds (rpm): 8,000

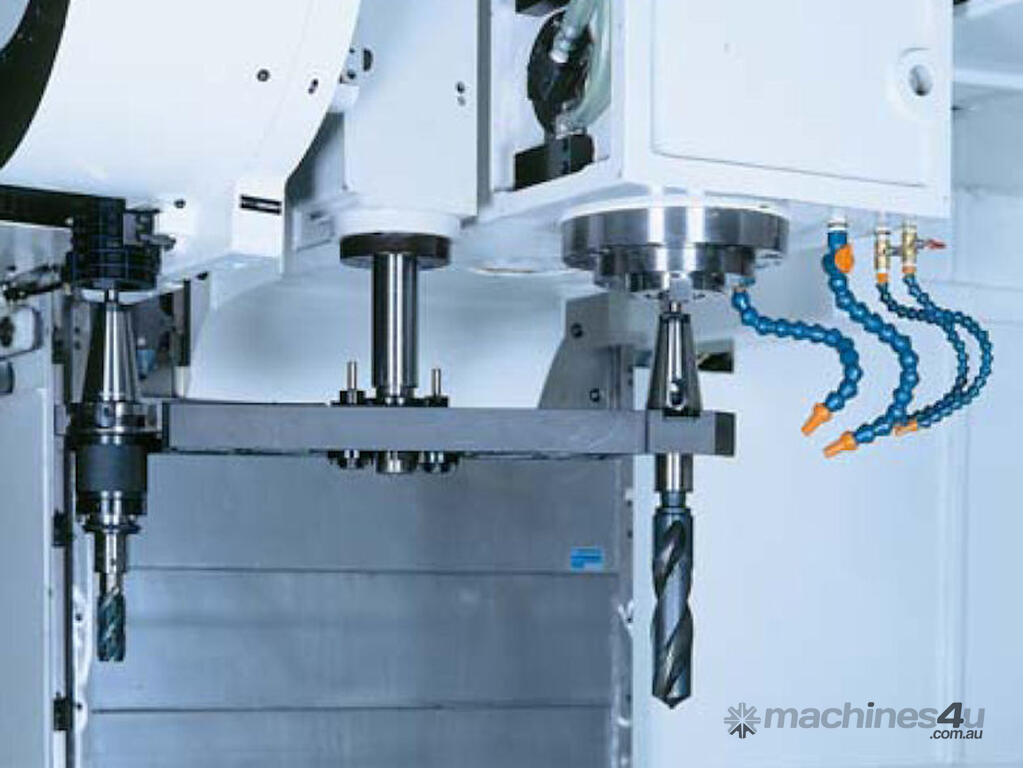

ATC (arm type): 24 tools
Spindle motor (kw): 15 / 11
Controller: Siemens 828D ShopMill Conversational Control (Fanuc OiMF, 31i also available)
Machine weight (kg): 8000

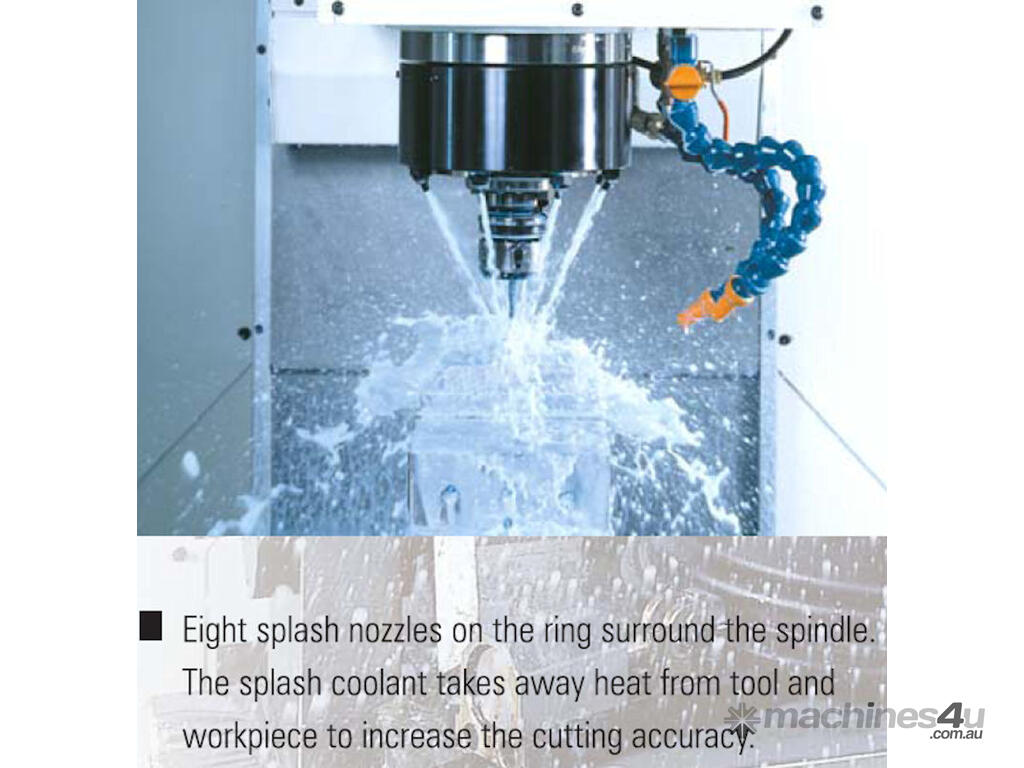

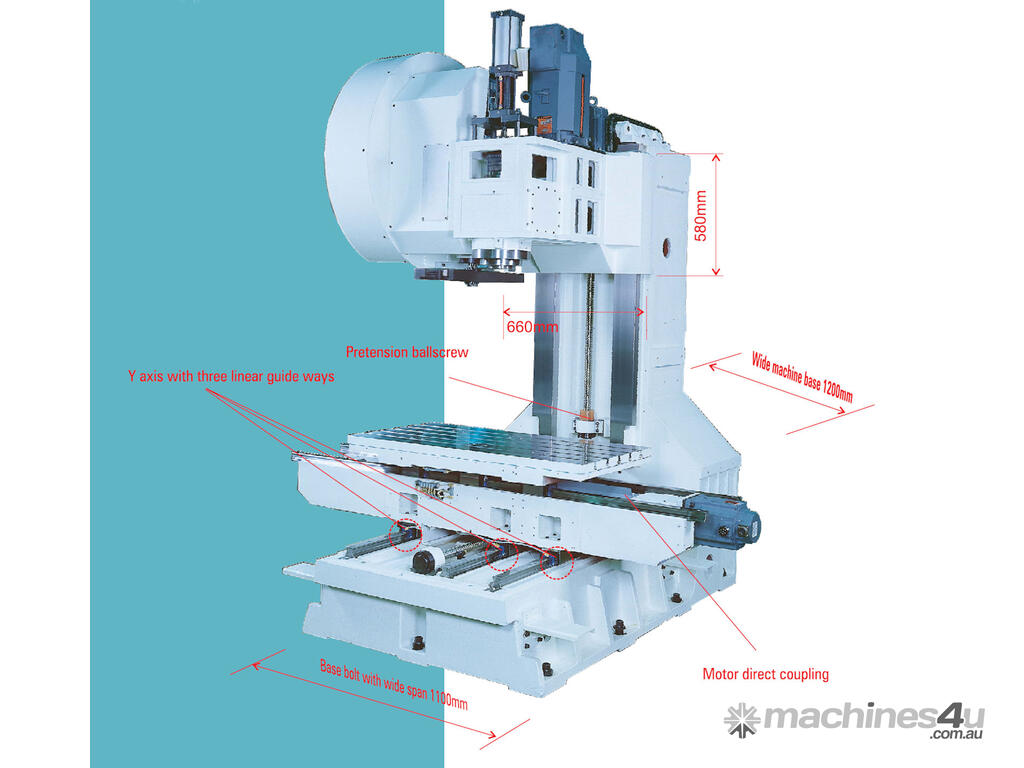

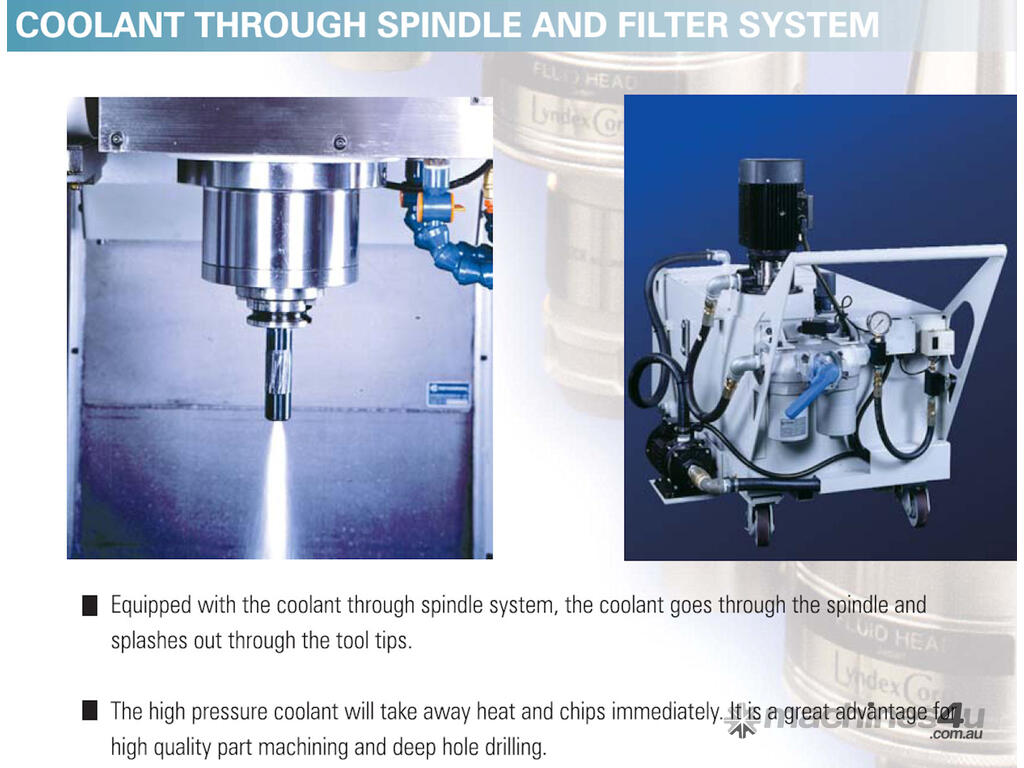

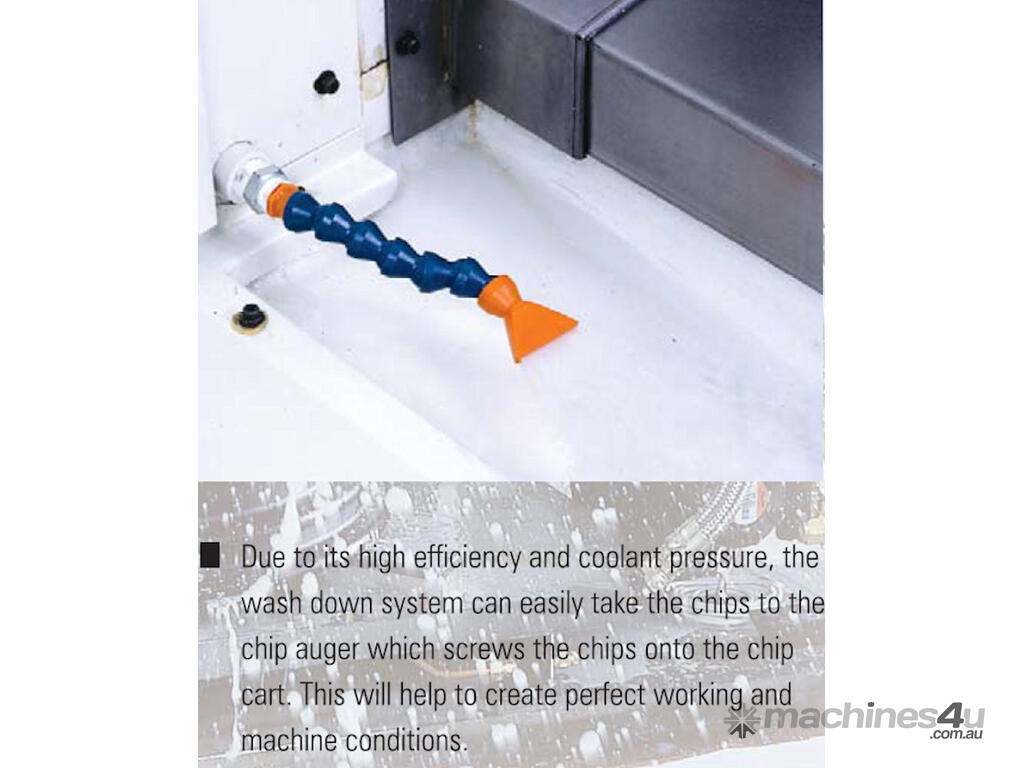

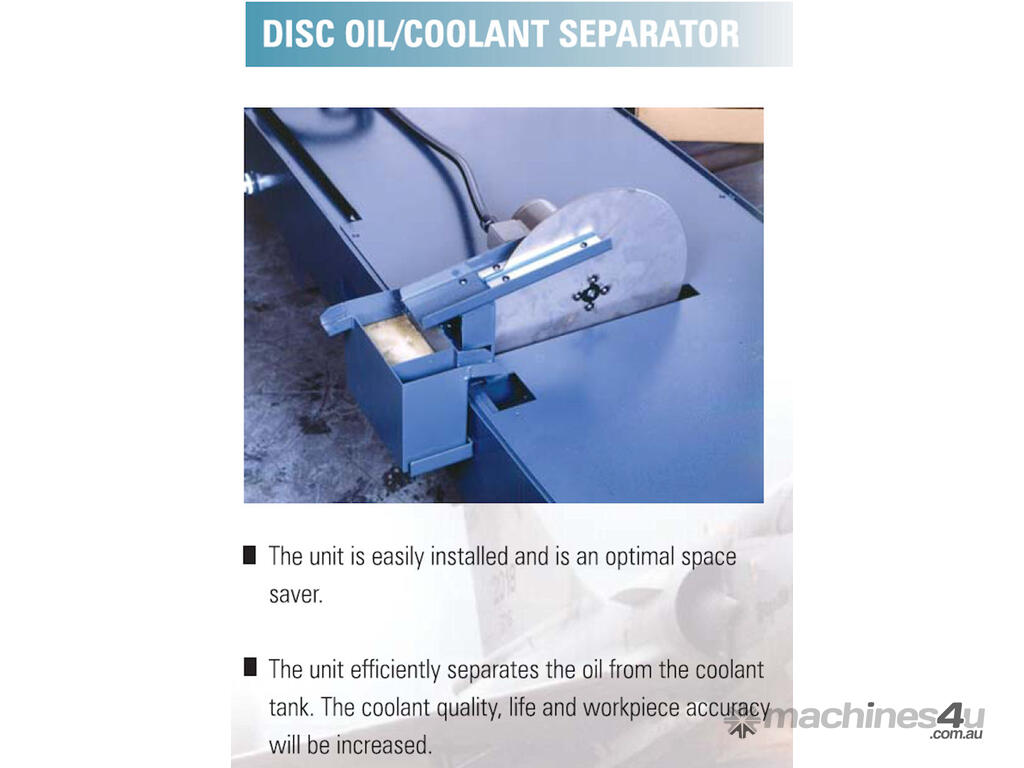

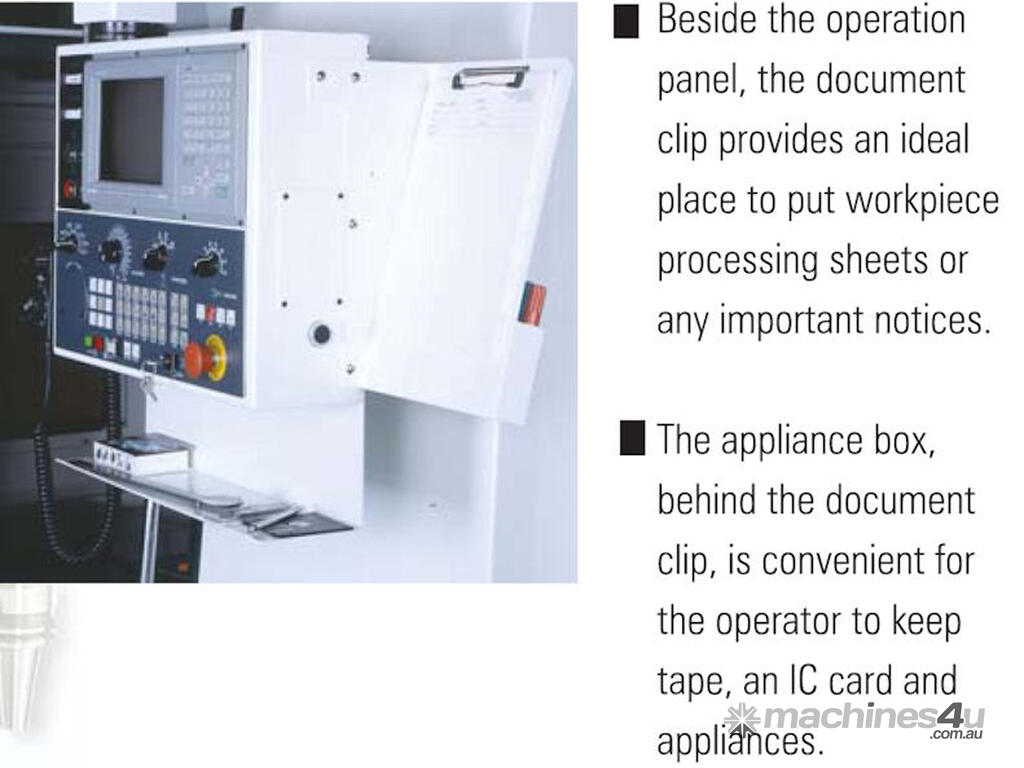

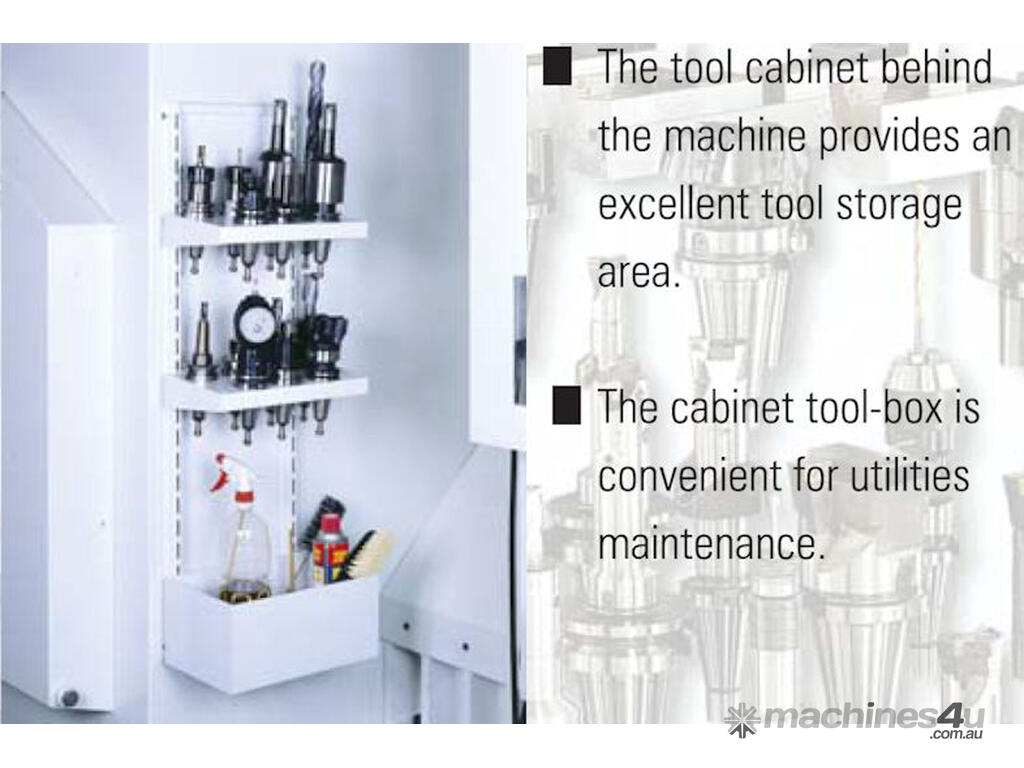

C/w: arm type ATC, coolant flood ring, preparation for CTS, preparation for 4th axis, oil skimmer, heavy duty roller type linear guide ways for all axes, integrated clipboard, tool storage rack, air line and coolant wash down gun. Many other options are available on request.
This is one of the highest quality machines currently available from Taiwan, the manufacturer says European specification & quality at affordable prices. The fact that most of our users never consider any other manufacturers machines when a second or third VMC is required speaks volumes about their performance, quality and reliability.
