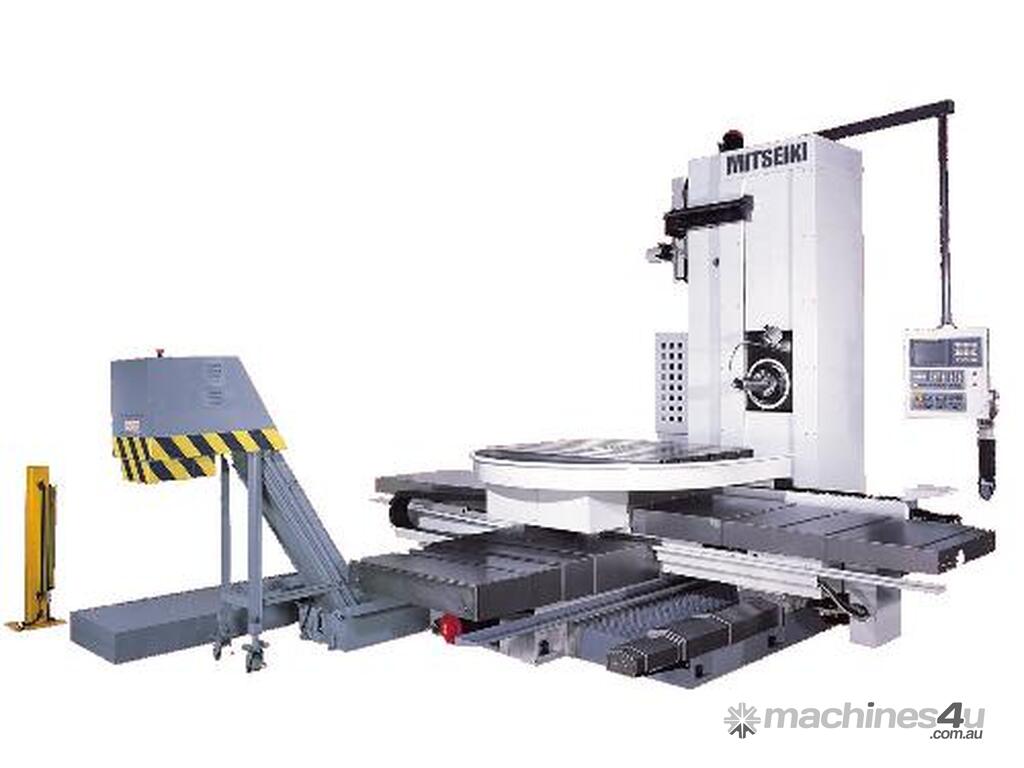

New Mitseiki HBM-4 CNC Table Type Horizontal Borer
Table size (mm): 1200 x 1500
Max table load (kg): 5000
Travels X, Y, Z, W (mm): 2200 x 1600 x 1600 x 550
Rapid traverse (m/min): 12
Spindle diameter (mm): 110
Spindle taper: BT 50
Spindle speeds (rpm): 3000
ATC (optional): 60 tools
Spindle motor (kw): 18.5 / 15
Controller: Fanuc / Siemens / Heidenhain
Machine weight (kg): 22500
C/w: 1° table indexing, chip auger and lift up conveyor, heavy duty box ways for all axes, spindle oil chiller. Many other options are available on request.
