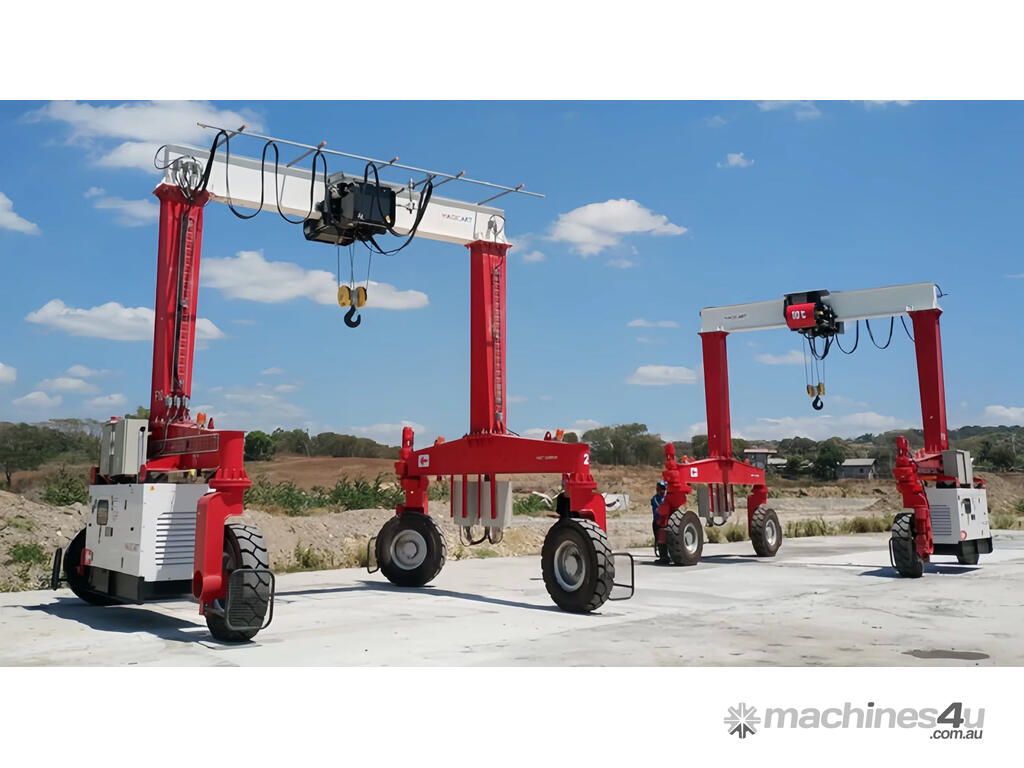

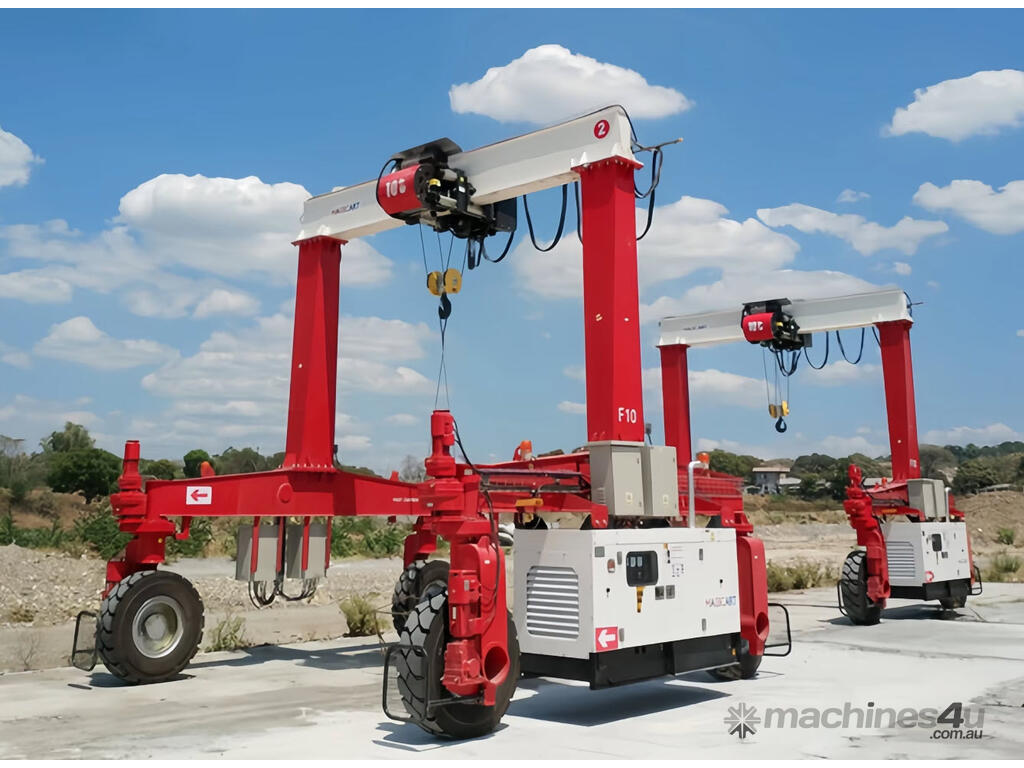

Mobile Gantry Crane, 5 ton, Height, Width, Wheel drive can be customised for your need.

Available in 5 to 100 ton, custom width & height, battery or mains power, manual push or powered drive wheels, remote control.

Can be customised to suit your particular application.

These Mobile Gantry Cranes can have powered drive wheels, motorised extended lift, remote control and quality components throughout. Highly manouverable in tight situations and easy to operate.

The single girder gantry crane, is an indoor/outdoor crane widely used in workshops warehouses, store yards, railways etc. This crane is composed of a main beam, support legs, ground beam and crane traveling mechanism.

The complete machine is simple to install. (Battery operation options available)

2. CRANE LIFTING ELECTRIC HOIST TECHNICAL DETAILS

VICON

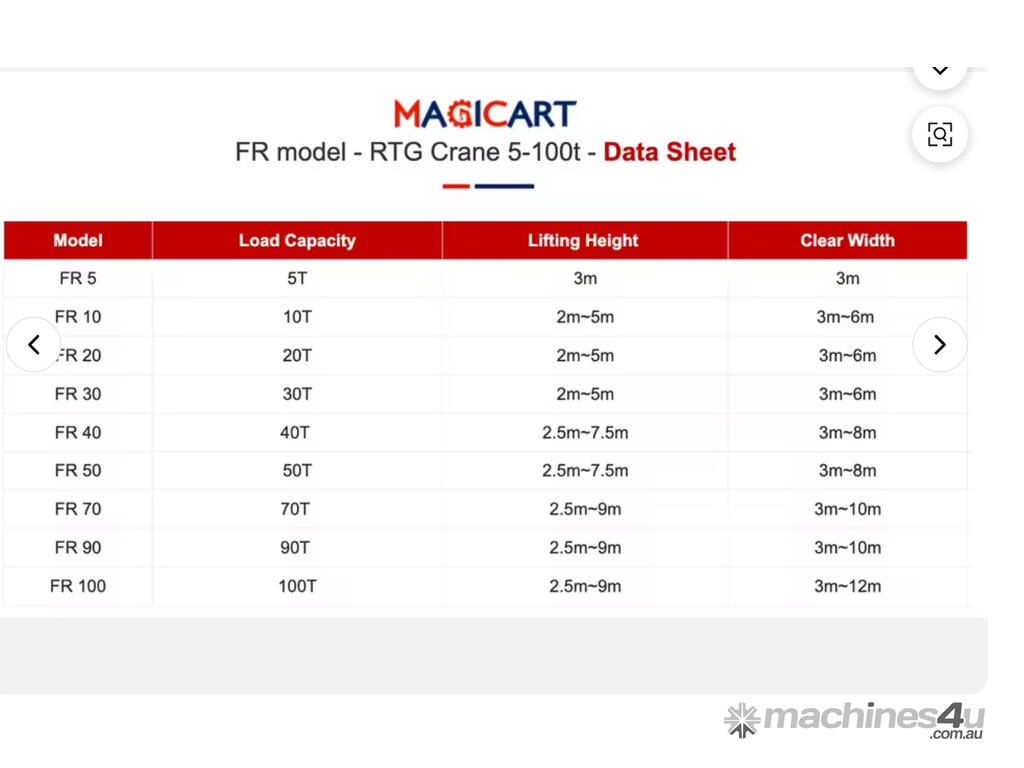

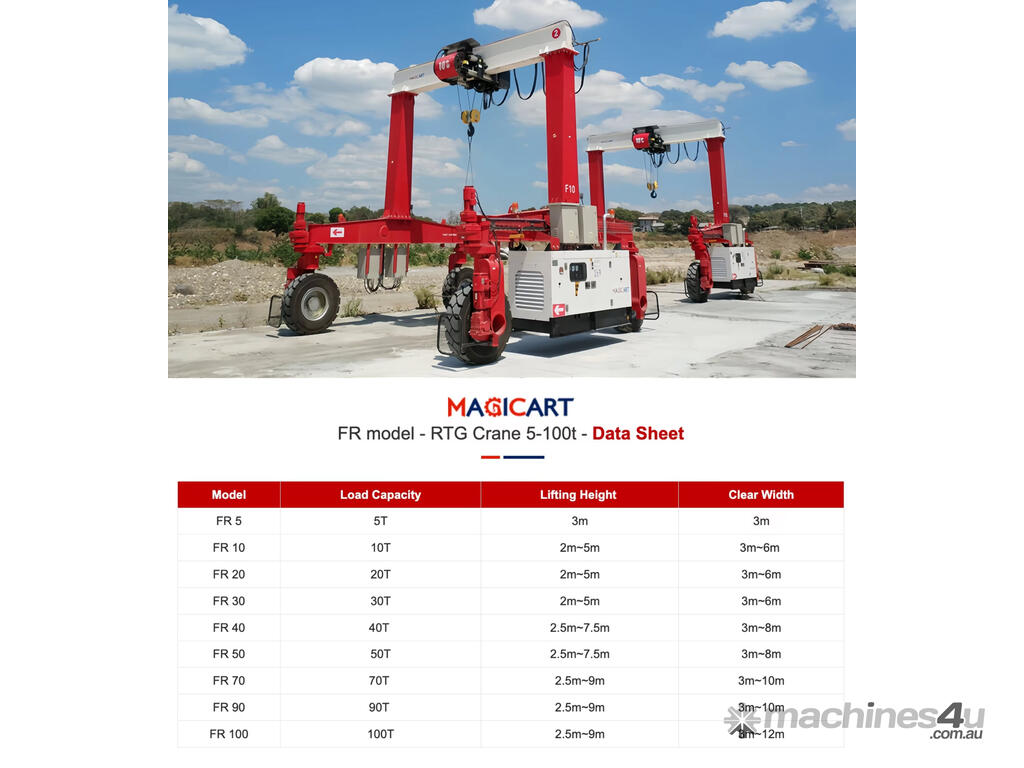

FR model - RTG Crane 5-100 ton- Data Sheet

Model Load Capacity I Lifting Height I Clear Width
FR5 5T 3m 3m
FR10 10T 2m~5m 3m~6m
FR20 20T 2m~5m 3m~6m
FR 30 30T 2m~5m 3m~6m
FR40 40T 2.5m~7.5m 3m~8m
FRS0 50T 2.5m~7.5m 3m~8m
FR 70 70T 2.5m~9m 3m~10m
FR90 90T 2.5m~9m 3m~10m
FR100 100T 2.5m~9m 3m~12m
