Motorised Swage & Jenny ETB-12, Electric Bead Bending Machine, 1.2mm Sheet Metal Beading

KANG Industrial ETB-12, Motorised Swage & Jenny

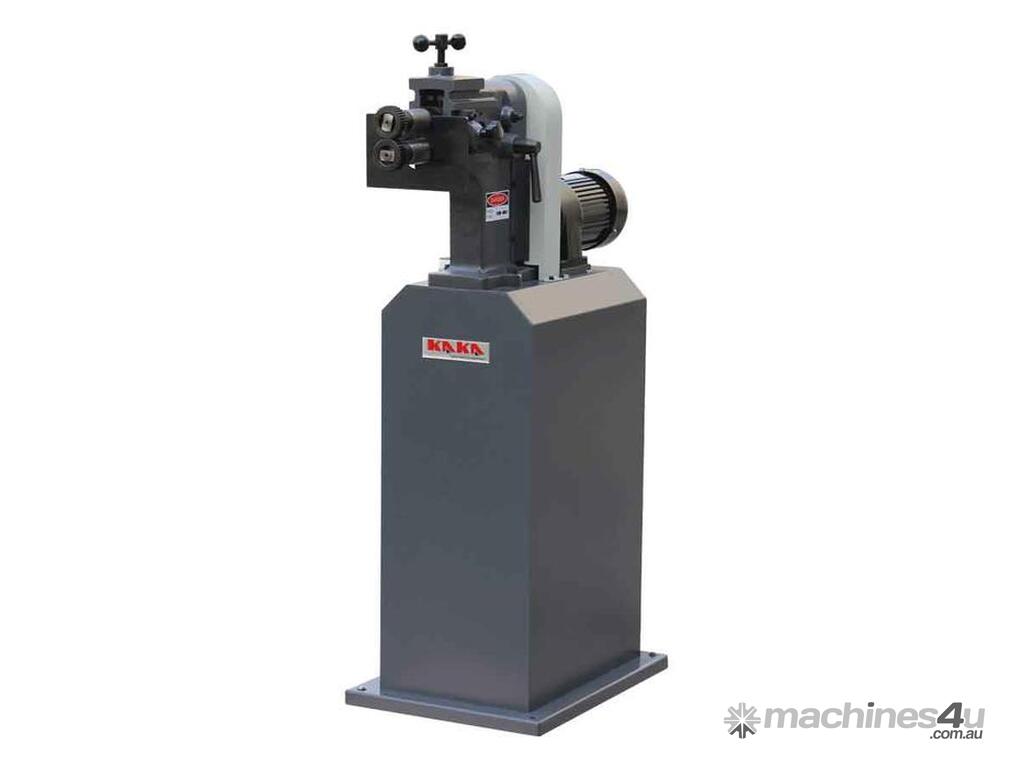

The KANG ETB-12 Motorised Jenny & Swage is a heavy-duty, industrial-grade sheet metal machine designed for high-efficiency bead rolling, swaging, and flanging. Unlike manual alternatives, this machine is motorised, making it an ideal upgrade for professional workshops, HVAC fabricators, and automotive restorers.

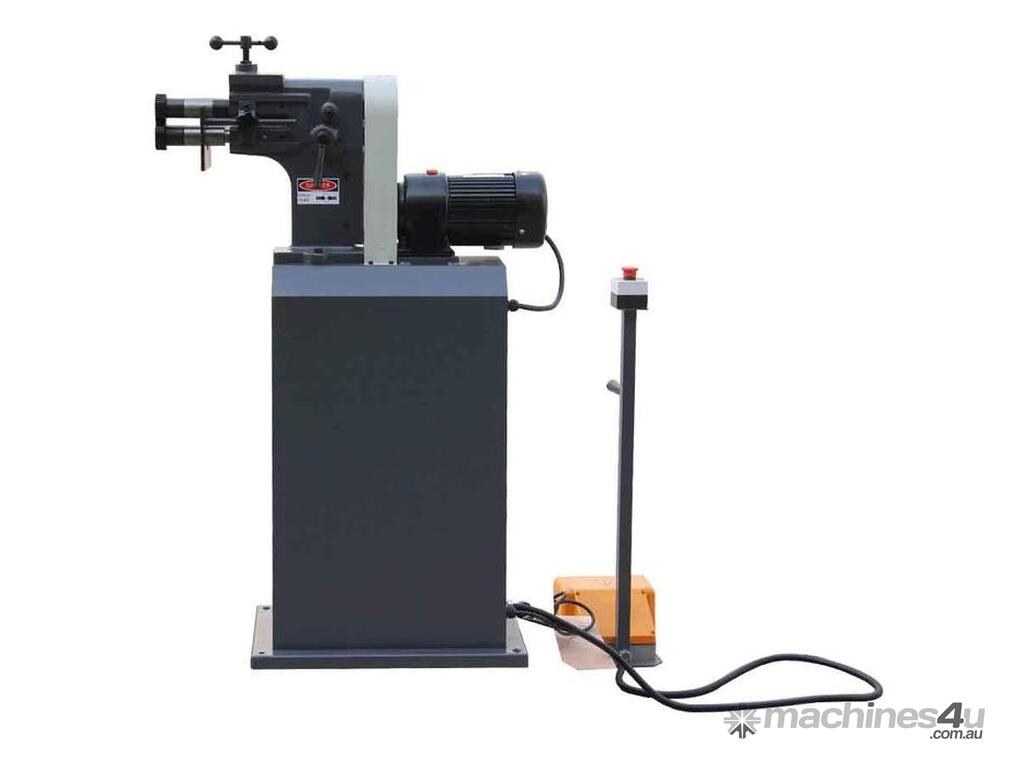

It features a powerful 0.75kW (240V) motor that allows for hands-free operation via a foot pedal, enabling the operator to use both hands to guide large or complex sheet metal panels. Constructed from heavy-duty cast iron to minimise vibration and deflection, it has a 1.2mm mild steel capacity and a 200mm throat depth. The swage & jenny comes complete with a dedicated floor stand and four sets of standard rollers, making it ready for immediate industrial use.

Effortless Motorised Operation Bead Roller. The motorised rotary beading machine allows for much faster production speeds and reduces operator fatigue. It is particularly beneficial for long runs of ducting or large automotive panels where manual cranking would be inconsistent.

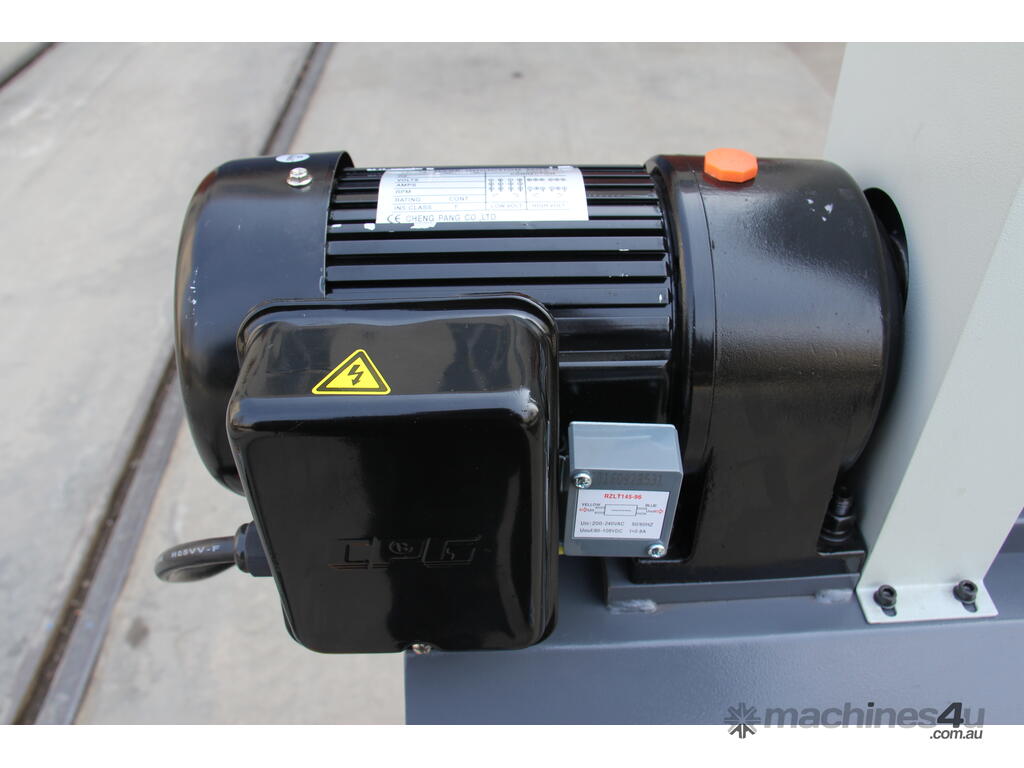

Reduction Gearbox Drive Motor Beading Machine. The brake motor stops the roller instantly when releasing the foot pedal, ensuring high precision. The reduction gearbox delivers high torque, preventing overheating and premature motor failure, ensuring the machine can handle continuous industrial use in a busy workshop.

Plug-and-Play 240V Compatibility Sheet Forming Machine. The machine runs on a standard 240V single-phase power supply. This makes it ideal for small-to-medium businesses, home garages, and rural workshops that may not have access to 3-phase industrial power.

Versatility for HVAC and Fabrication. Supplied with 4 sets of standard formers, this swage & jenny is ready for a variety of tasks, including swaging, ogee beading, crimping, and flanging. For HVAC, it is a vital tool for stiffening ductwork and creating professional joints that meet Australian building standards.

Features

1 HP motor runs on 240V power

Industrial-grade gearbox

Heavy-duty cast iron head

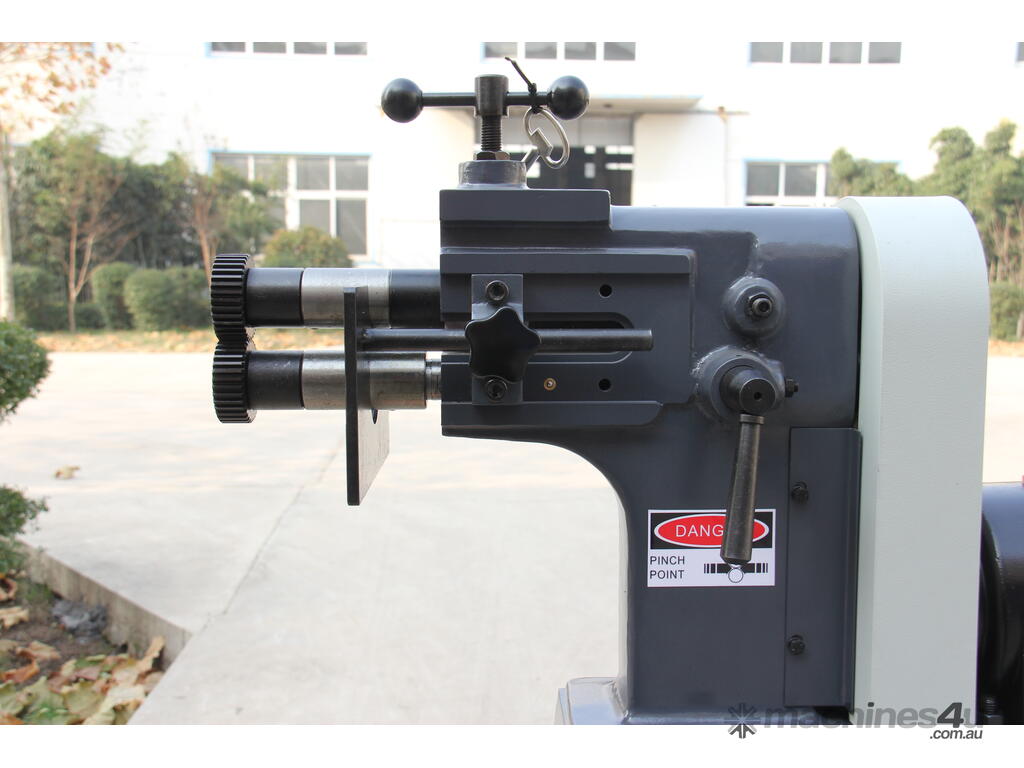

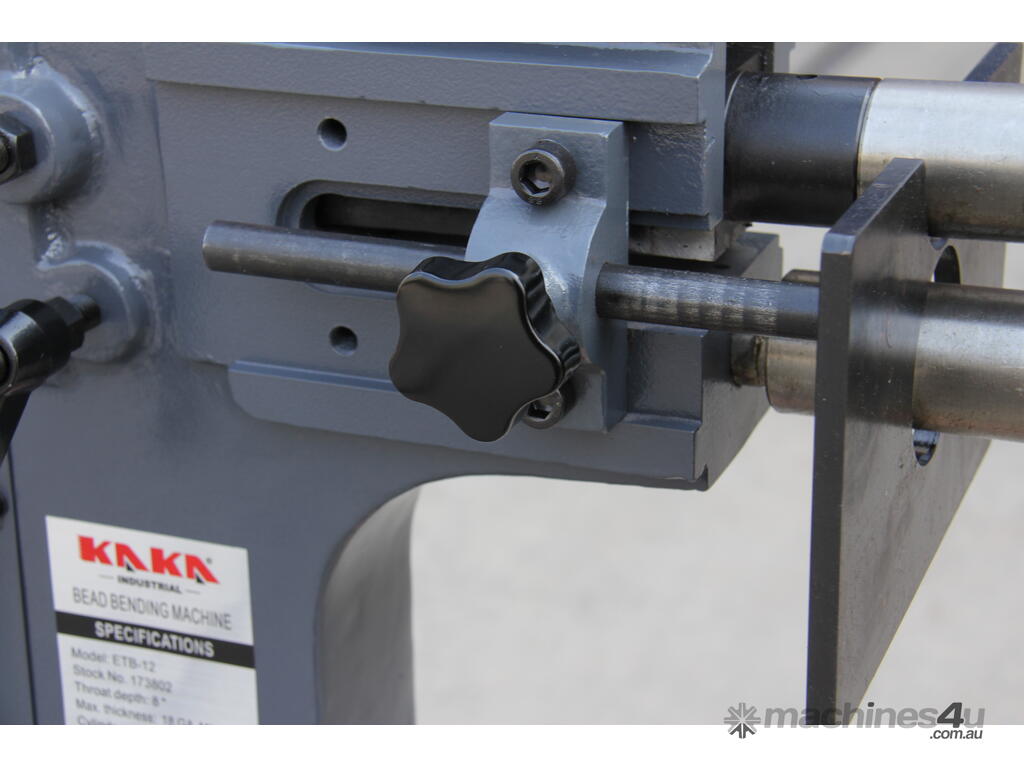

200 mm throat depth with a removable depth stop

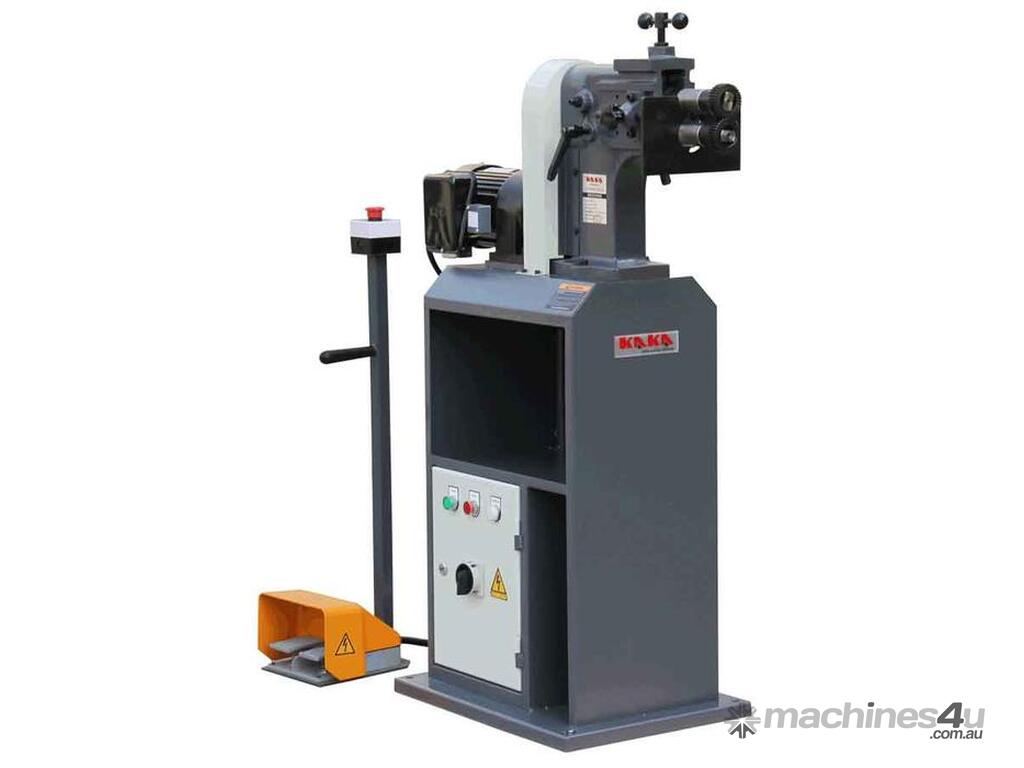

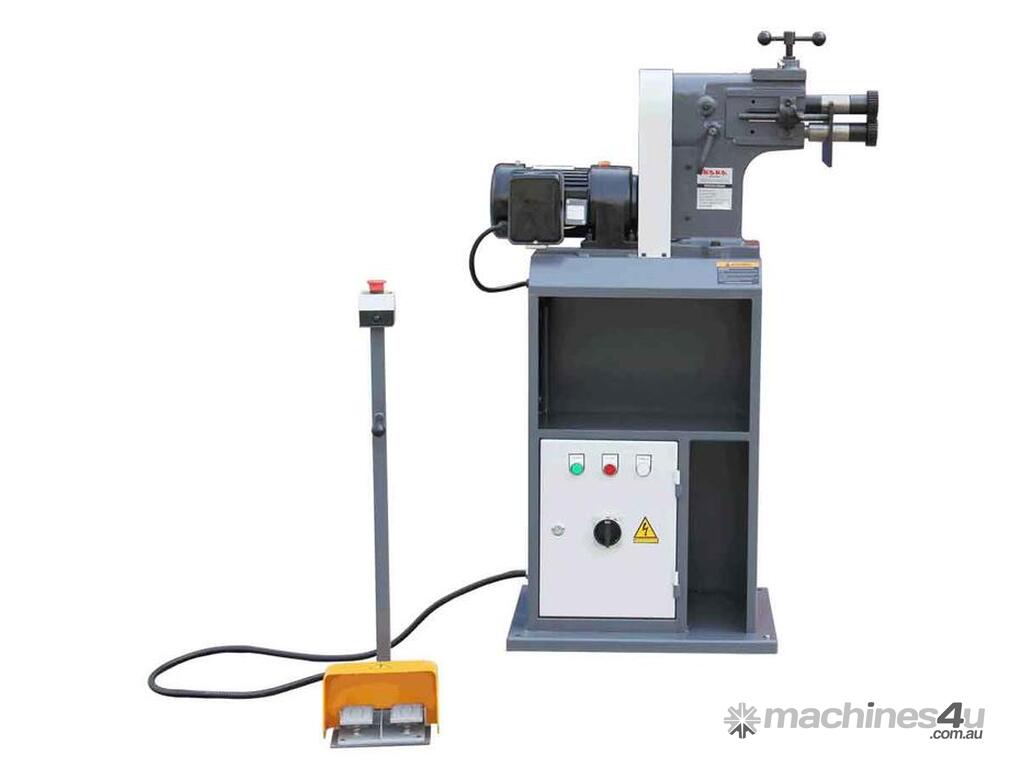

Foot pedal control leaves hands free to hold the material

Forward and reverse pedals

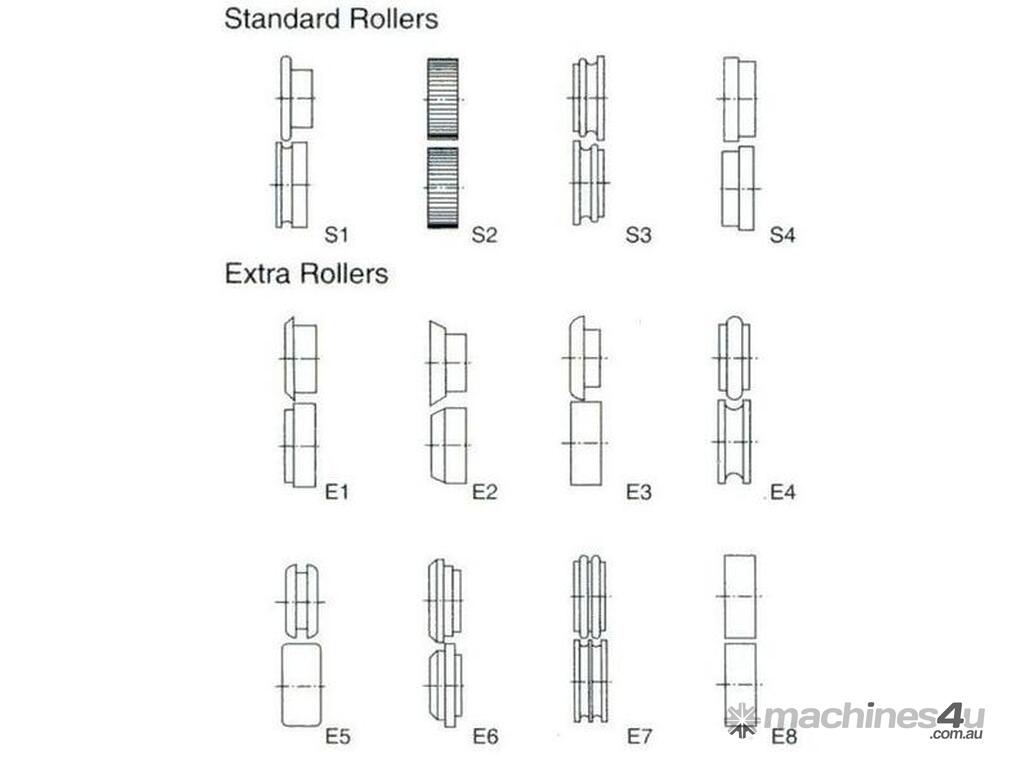

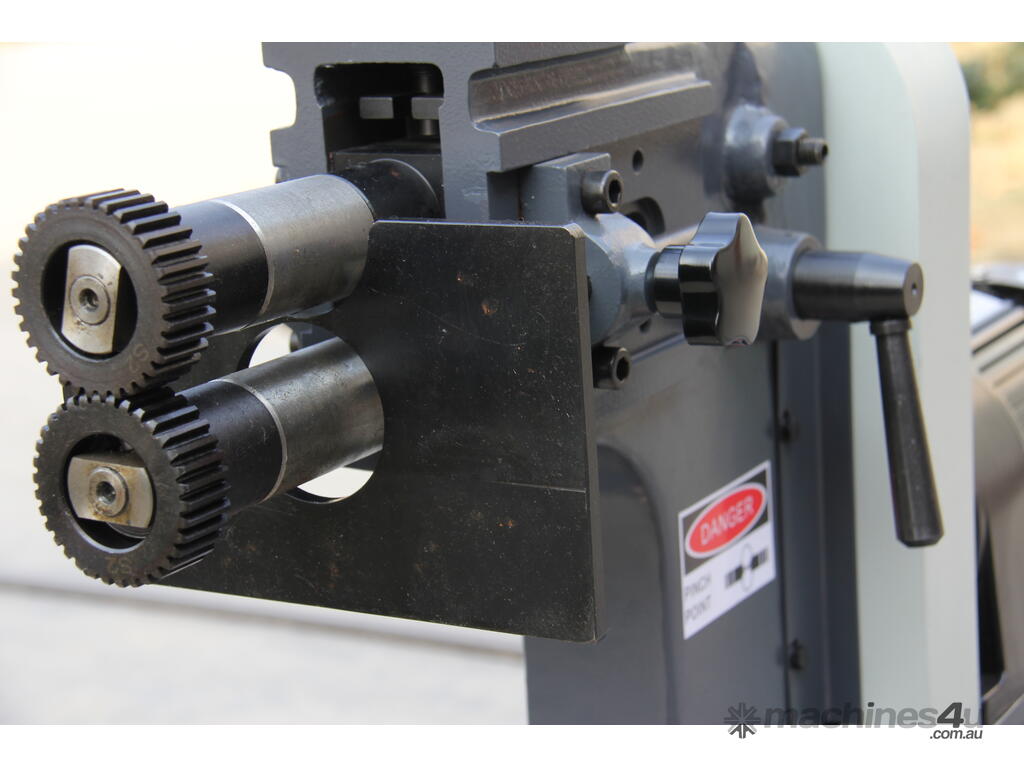

Standard with 4 sets of tooling: Beading Roll, Crimping Roll, Ogee Roll, Flanging Roll

Optional Rollers are available

Specification
SKU 173802
Model ETB-12
Max. thickness 1.2 mm
Cylinder length 140 mm
Throat depth 200 mm
Motor power 0.75 kW, 1HP
Packing size 110x48x148 cm
N.W./G.W. 130/175 kg
