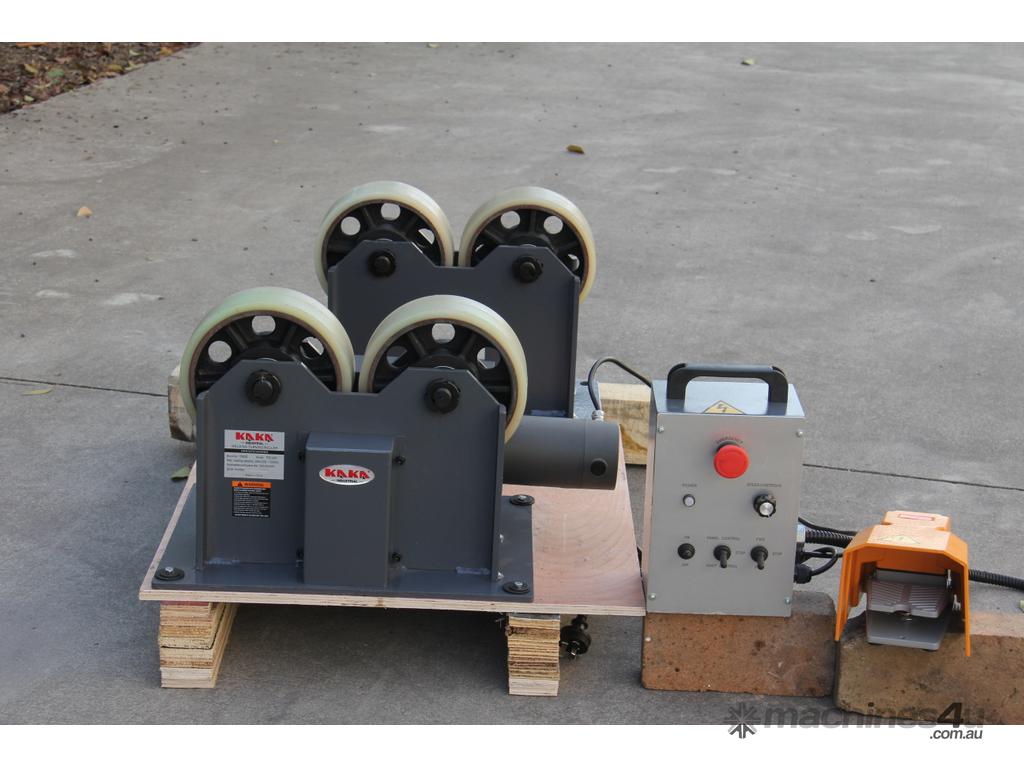

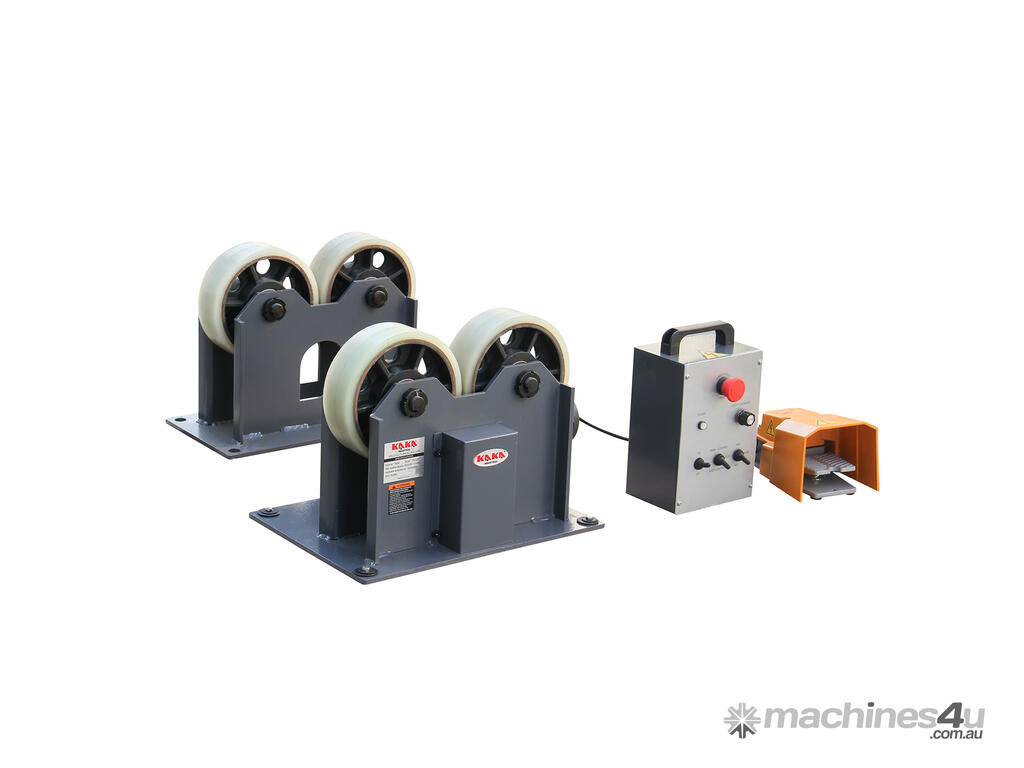

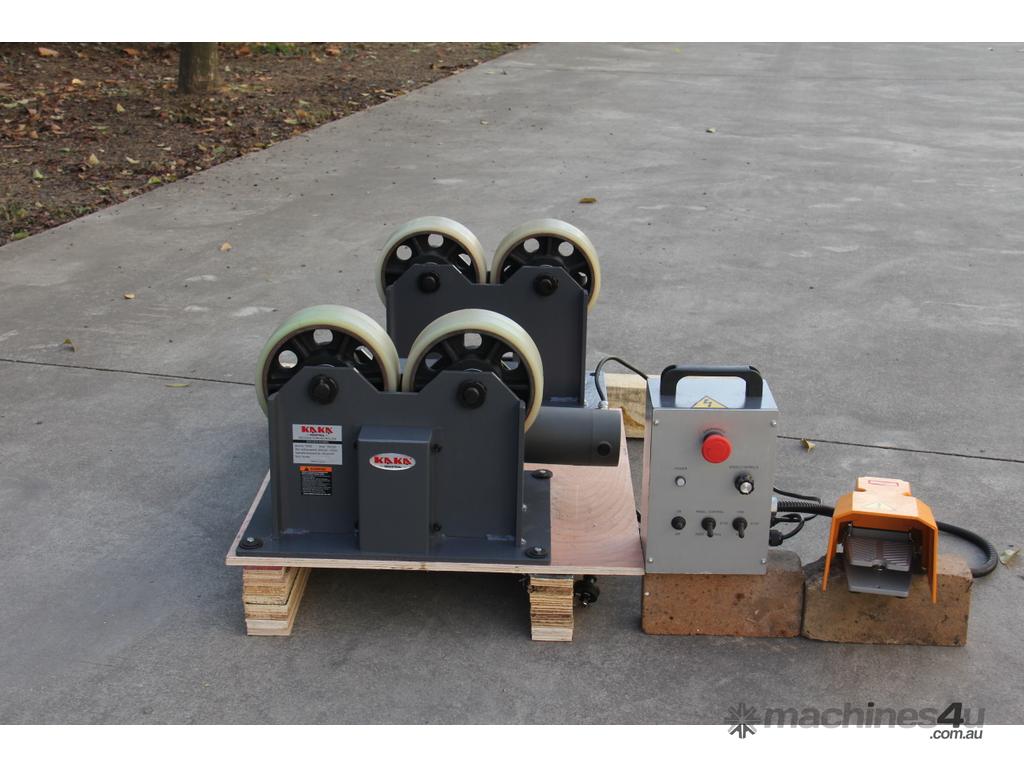

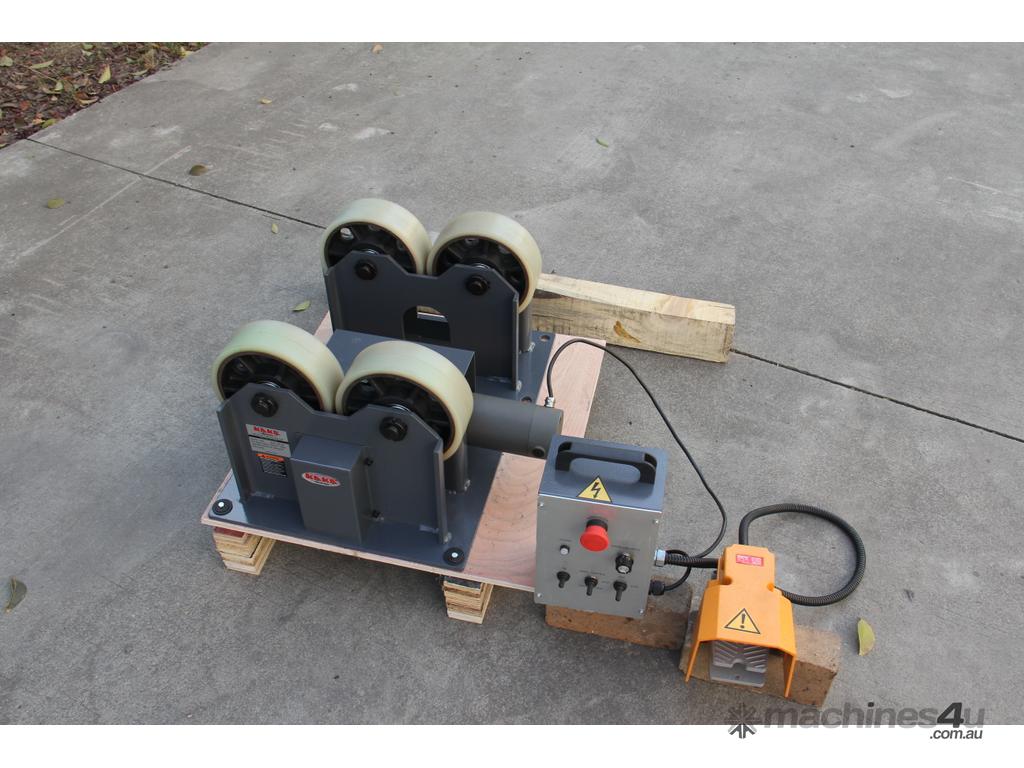

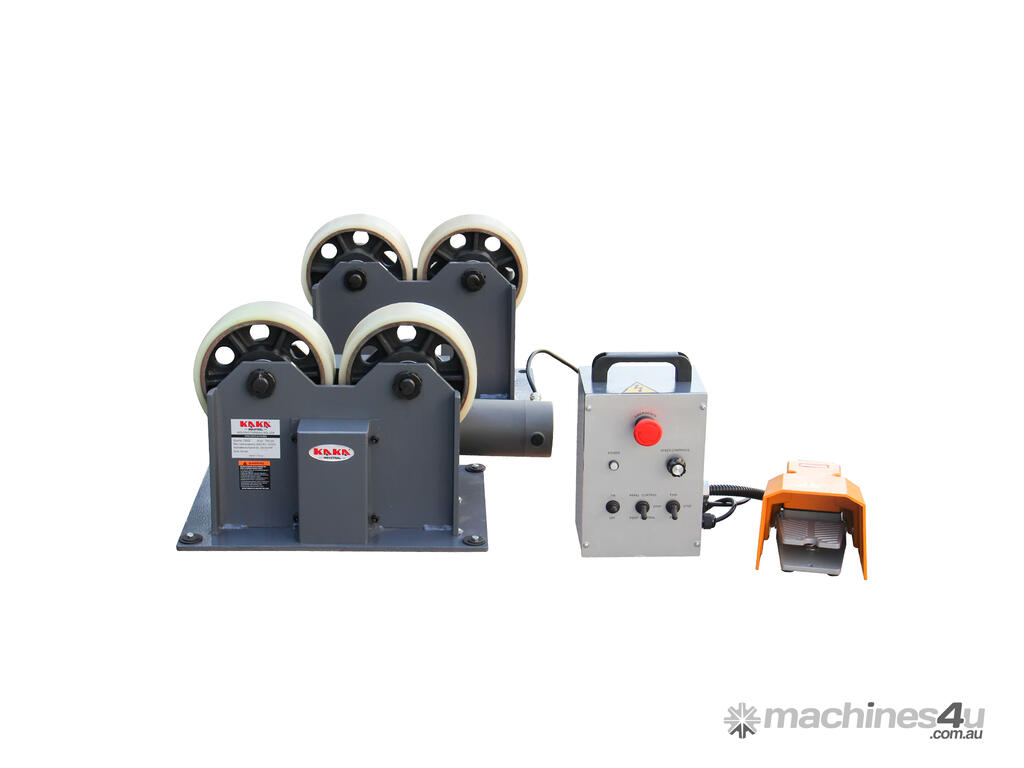

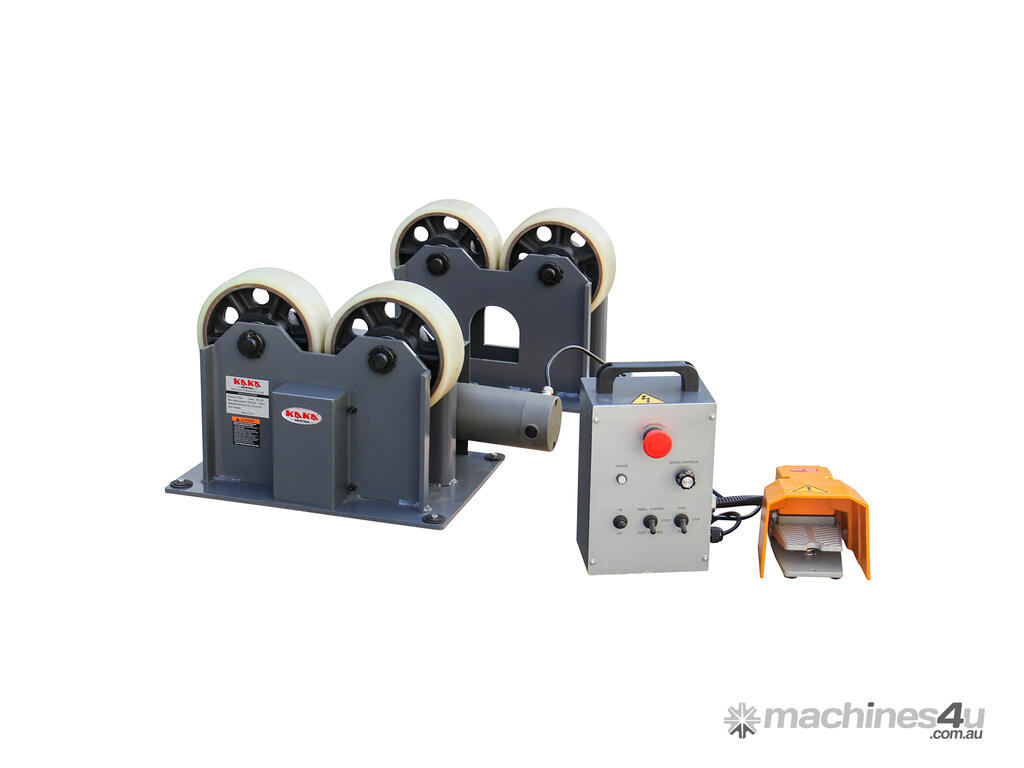

Kang Industrial TRS1200 Welding Turning Roller
The TRS-1200 Pipe Rotator is a compact, heavy-duty industrial solution designed to automate the rotation of cylindrical workpieces. By providing a steady and adjustable circumferential movement, this machine allows welders to maintain a consistent torch position, significantly improving weld quality and reducing operator fatigue. It is an essential tool for fabrication shops specializing in tanks, pressure vessels, and industrial piping.
Precision Speed Control Rotator. Equipped with a variable rotation speed of up to 1413 mm/min, allowing operators to match the rotation perfectly to the welding wire feed or TIG hand speed for flawless circumferential seams.

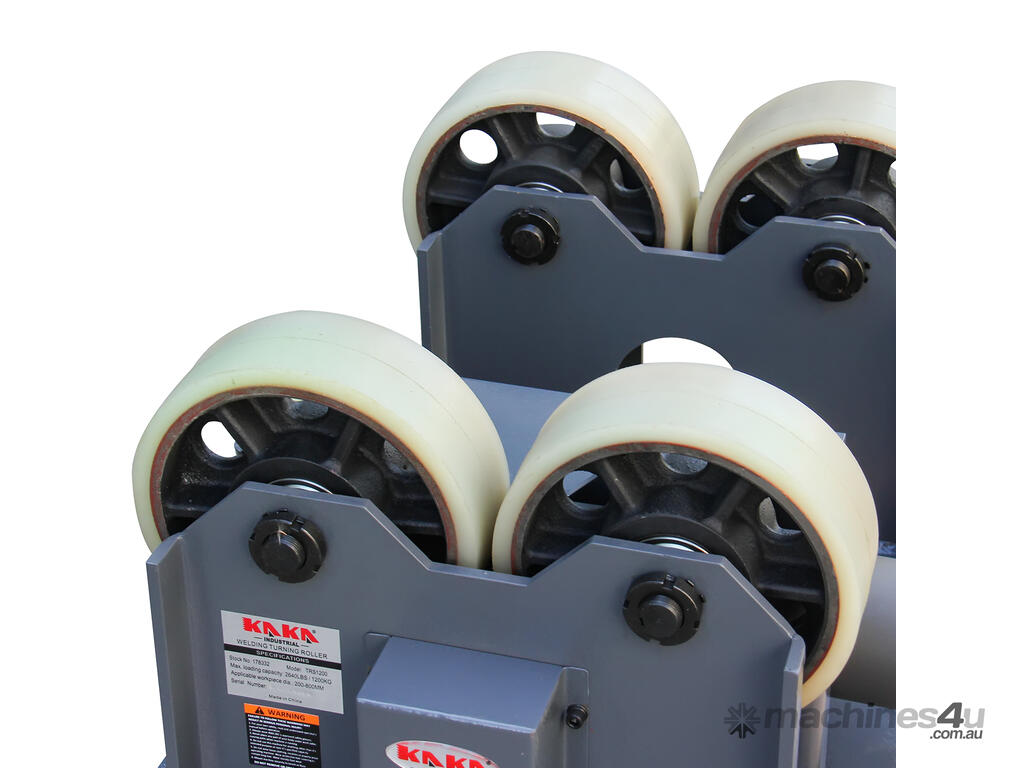

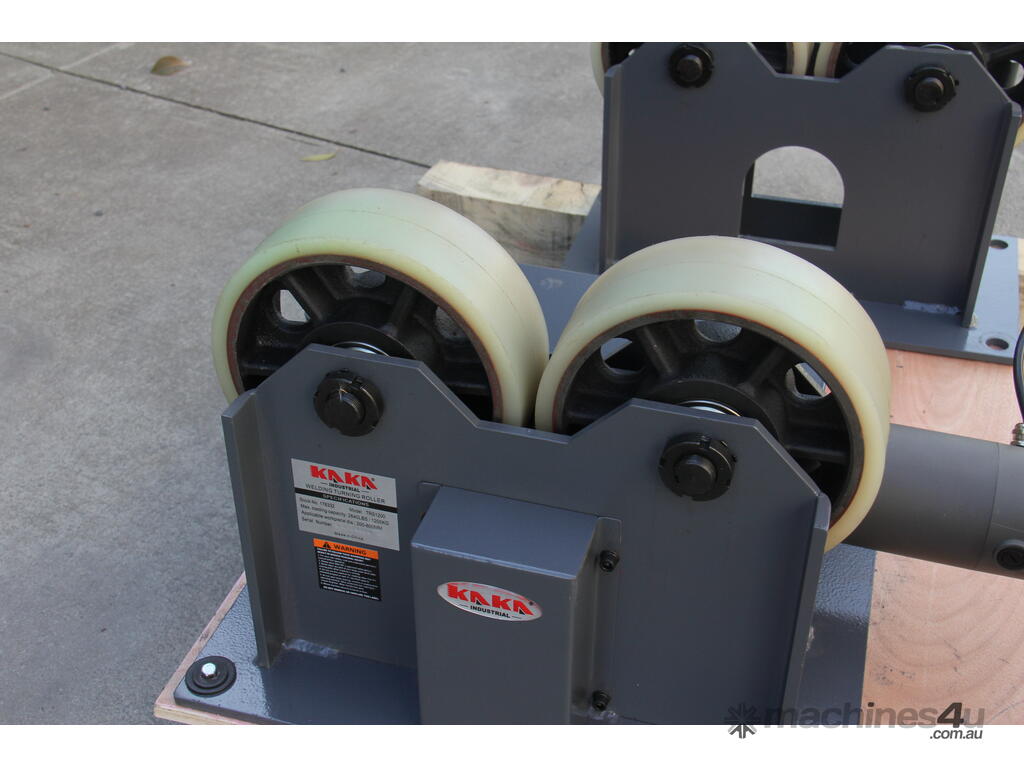

High-Traction Polyurethane Rollers. The 203mm polyurethane-bonded wheels provide superior grip and durability while protecting the surface of the workpiece from scratches or contamination, ideal for stainless steel or aluminum fabrication.
Versatile Mounting Options. With a total weight of just 86kg and a compact footprint, this unit is equally effective when mounted on a fabrication bench or used on the workshop floor for larger assemblies.

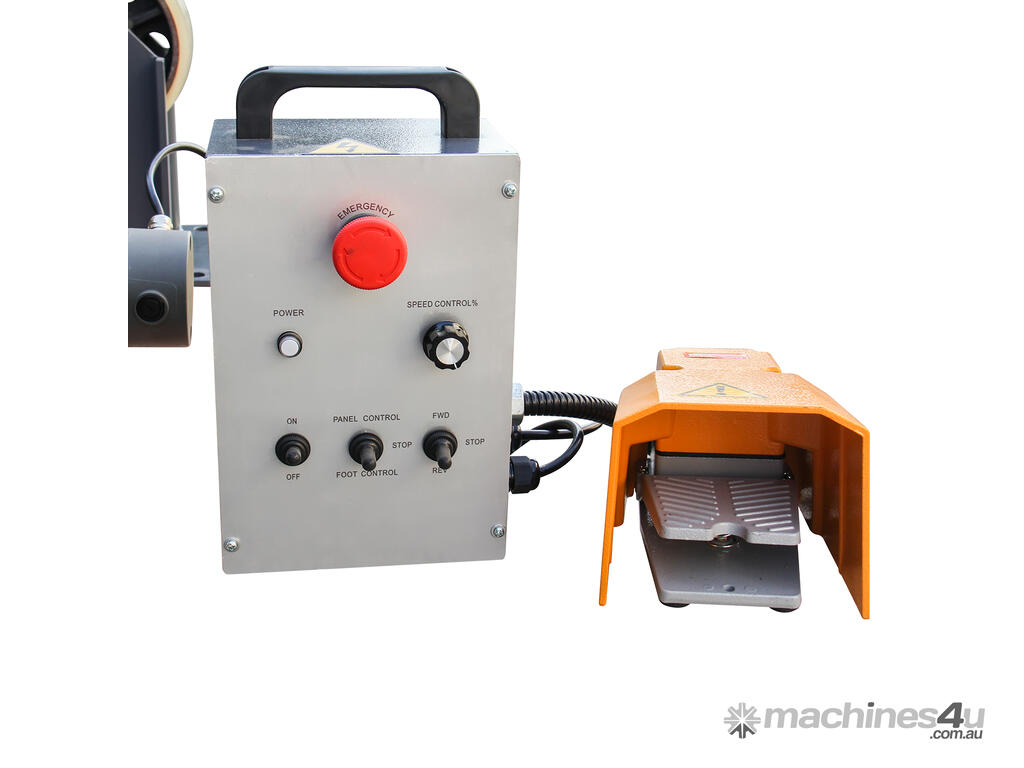

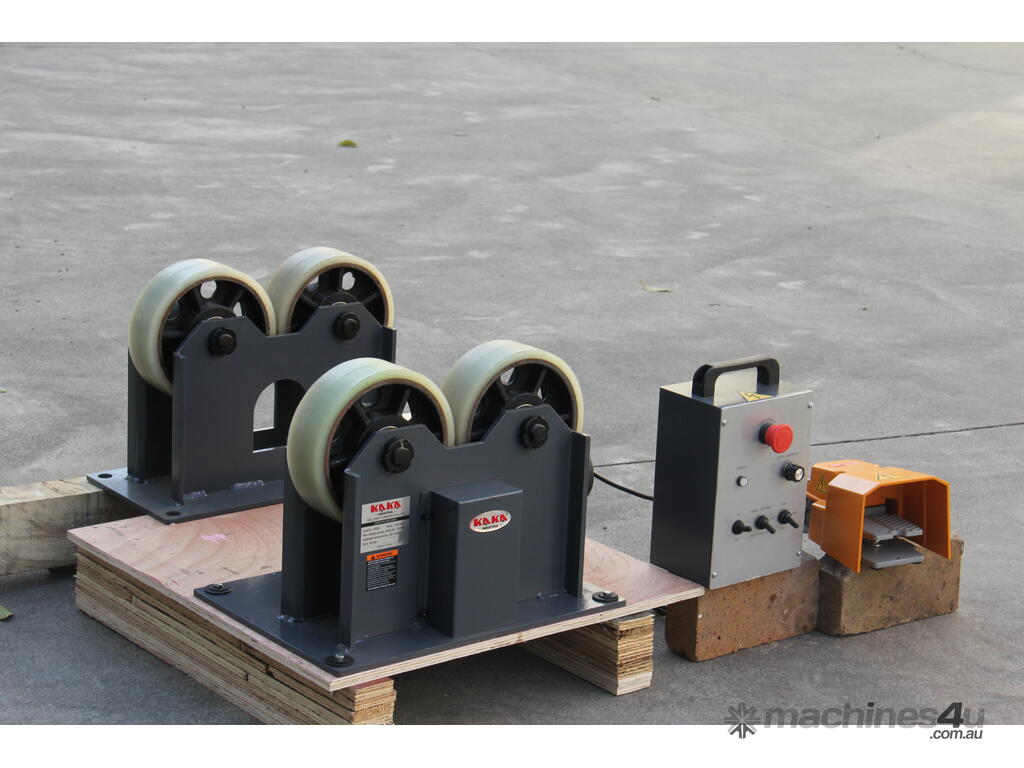

Hands-Free Operation Pipe Turn Roller. The included heavy-duty footswitch allows the operator to maintain full focus on the weld pool and torch manipulation without having to manually adjust the machine mid-weld.
Features
Suitable for pipes or vessels rotation
Metal rollers with a polyurethane cover to protect the workpiece surface
Standard foot pedal operation
Variable rotation speed

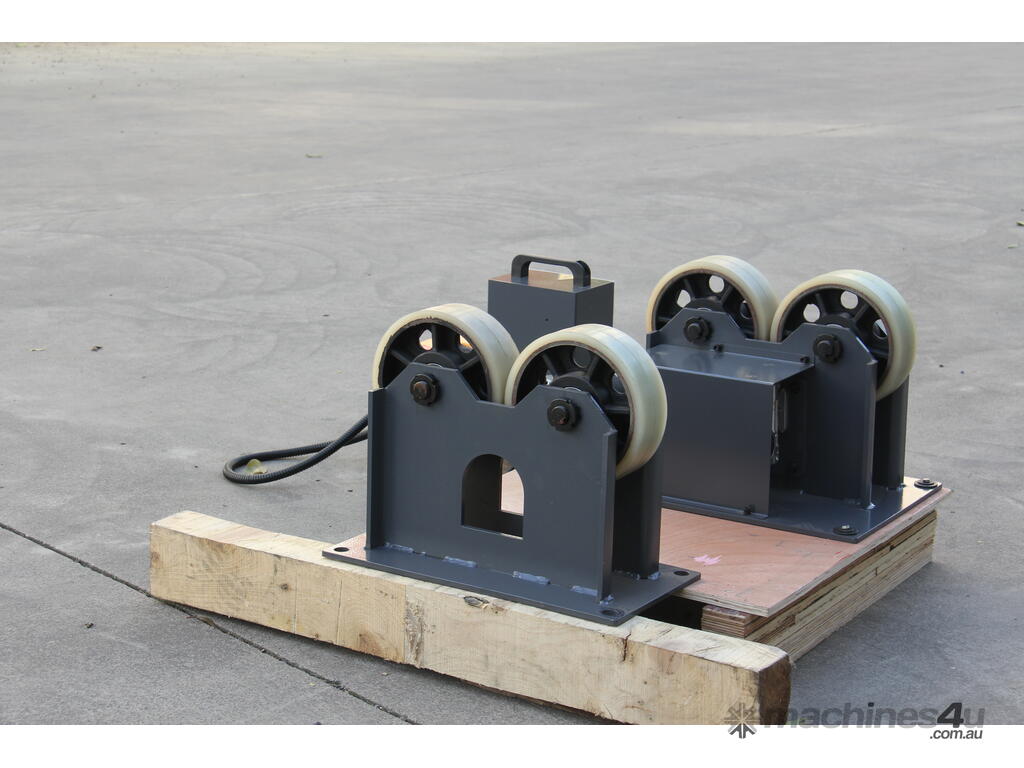

Standard one motorized drive roller, and one Idler roller
An optional Idle roll is available at extra cost
Features
SKU 178332
Model TRS1200
Max. loading capacity 1200 kg
Rotation speed 0-1413 mm/min
Applicable workpiece dia. 20-800 mm
Wheel size ø203x65 mm
Motor power 250W
Packing size 63x66x48 cm
N.W./G.W. 86/105 kg
