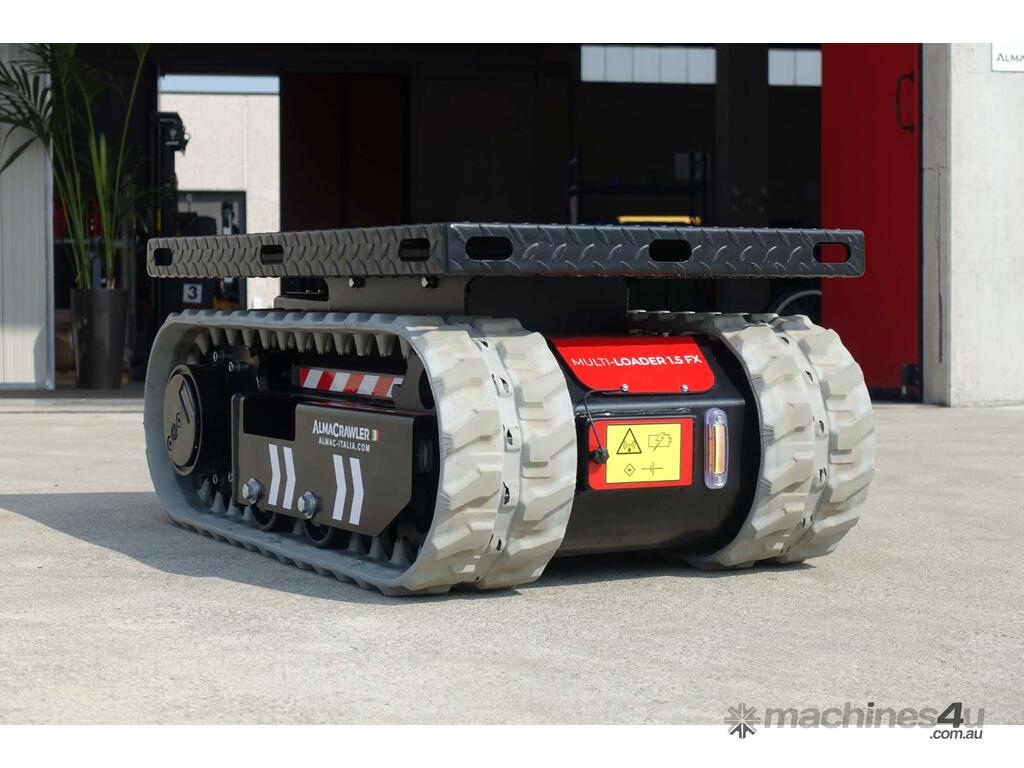

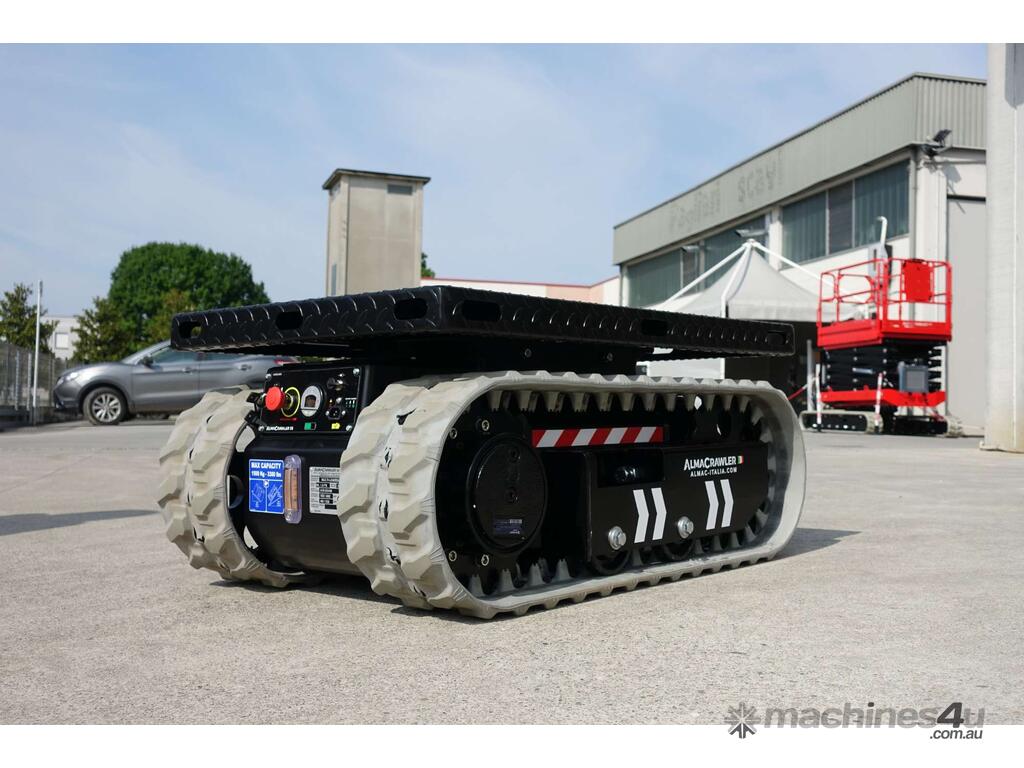

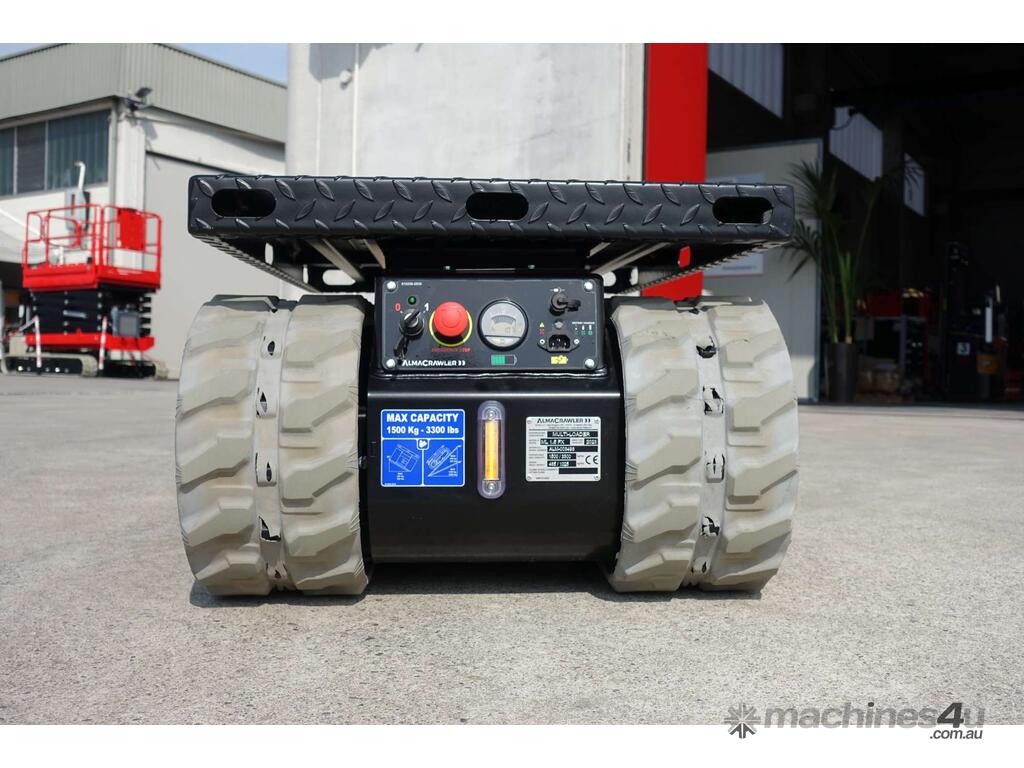

Multi-Loader 1.5 FX Electric Tracked Transporter

The Multi-Loader 1.5 FX is the most compact in the ALMACRAWLER ML Product Range. Providing a 1500kg carrying capacity with a maximum gradeability of 45 degrees. This high performer easily tracks through tough environments, or through single doorways with room to spare. Battery Electric, Electric Drive and remote control, this machine is an exceptional performer in both outdoor and indoor worksites.

Pair the machine with the OPTIONAL Dolly attachment to manage long material lengths with easy, particularly through tight access worksites.

The ML 1.5 FX is specifically tailored for crane rental companies, industrial material handling, routine and extraordinary maintenance operations, the glass and glazing sector, the list can be endless.

Equipped with two powerful electric motors generating a robust 10.6kW of power, the ML 1.5 FX ensures immediate traction and accelerates to a maximum speed of 2.8km/h. The two-speed functionality allows operators to choose between optimal speed and power, depending on the task at hand.

The electric drive system delivers exceptional performance while eliminating the need for hydraulic oil. This design feature not only makes the ML 1.5 FX IP67 rated, but also enhances operational and environmental safety.

Powered by 55Ah AGM batteries, the ML 1.5 FX boasts remarkable efficiency. With a charging time of just 6 hours, the batteries provide uninterrupted operation, eliminating the need for maintenance. Additionally, the transporter’s ground clearance of 4cm and a gradeability of 45° ensure seamless navigation across various terrains.

Its versatility makes it ideal for a range of applications, including industrial operations, maintenance work, glazing industry, and even the food and pharmaceutical sectors, thanks to its IP67 rating.

~~ OPTIONAL ATTACHMENTS AVAILABLE~~

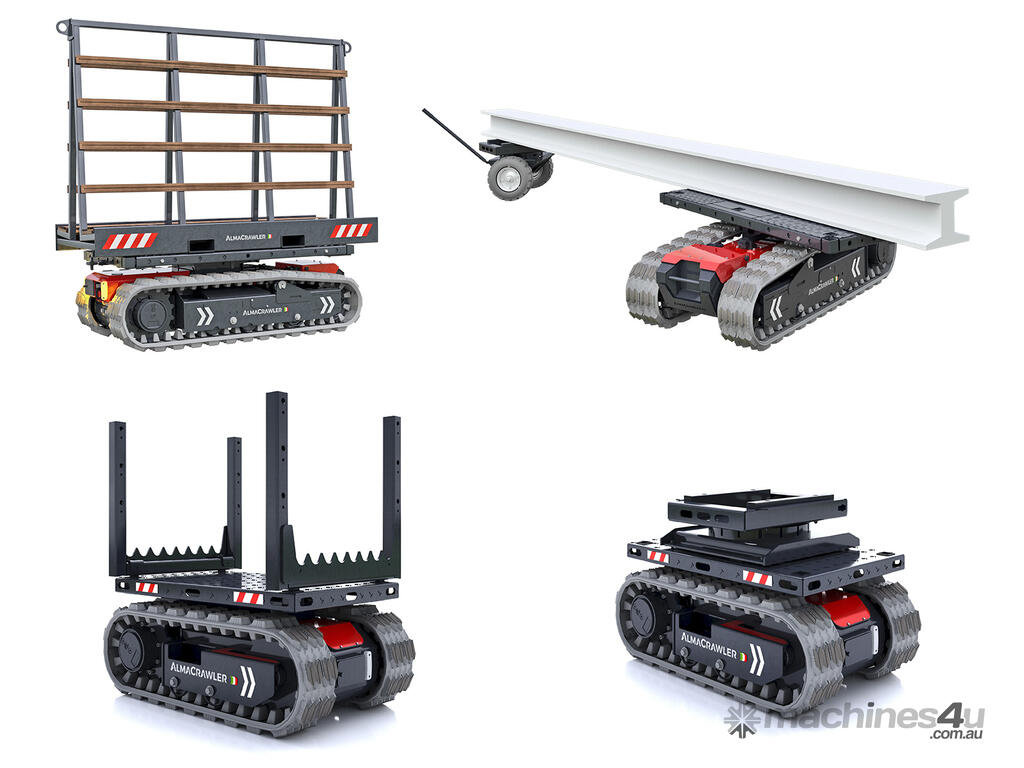

The ML 1.5 FX also has a wide range of completely independent attachments available to amplify its range of applications and allow operators to achieve more.

Dolly – Support extension, helps carry extra-long loads easily.
Multi-Frame – Double-sided a-frame rack for the safe transport and storage of windows, flat glass or insulating glass units.
Forest Kit – Forest kit for safe transport of logs.
Swivel plate – Swivel plate for ML 1.5 FX.

Technical data

Max Capacity:
1500 kg (3300 lbs)

Max Gradients:
Max Longitudinal Gradient: 45°
Max Lateral Gradient: 30°

Dimensions:
Width: 700 mm (2'-3.6")
Length: 1170 mm (3'-6.2")
Platform Ground Height: 500 mm (1'-7.7")
Track Length: 794 mm (2'-7.3")
Track Width: 200 mm (7.9")
Ground Clearance: 40 mm (1.6")

Performance:
Max Speed: 2.8 km/h (1.7 mph)
Electric Motor Power: 10.6 kW
Voltage: 48 V
Battery Capacity: 55 Ah
Battery Type: AGM
Recharge Time: 6 hours
Charge Input: 7.5 A
Controller: Remote Radio Control

Weight:
Gross Weight: 465 kg (1025 lbs)

Attachments
- Dolly
Max Capacity: 1500 kg (3310 lbs)
Weight (Empty): 125 kg (275 lbs)
- Multiframe
Max Capacity: 1300 kg (2870 lbs)
Weight (Empty): 145 kg (320 lbs)
- Forest Kit
Max Capacity: 1450 kg (3200 lbs)
Weight (Empty): 50 kg (110 lbs)
- Swivel Plate
Max Capacity: 1400 kg (3090 lbs)
Weight (Empty): 100 kg (220 lbs)
