Multi-Loader 3.0 BL Tracked transporter

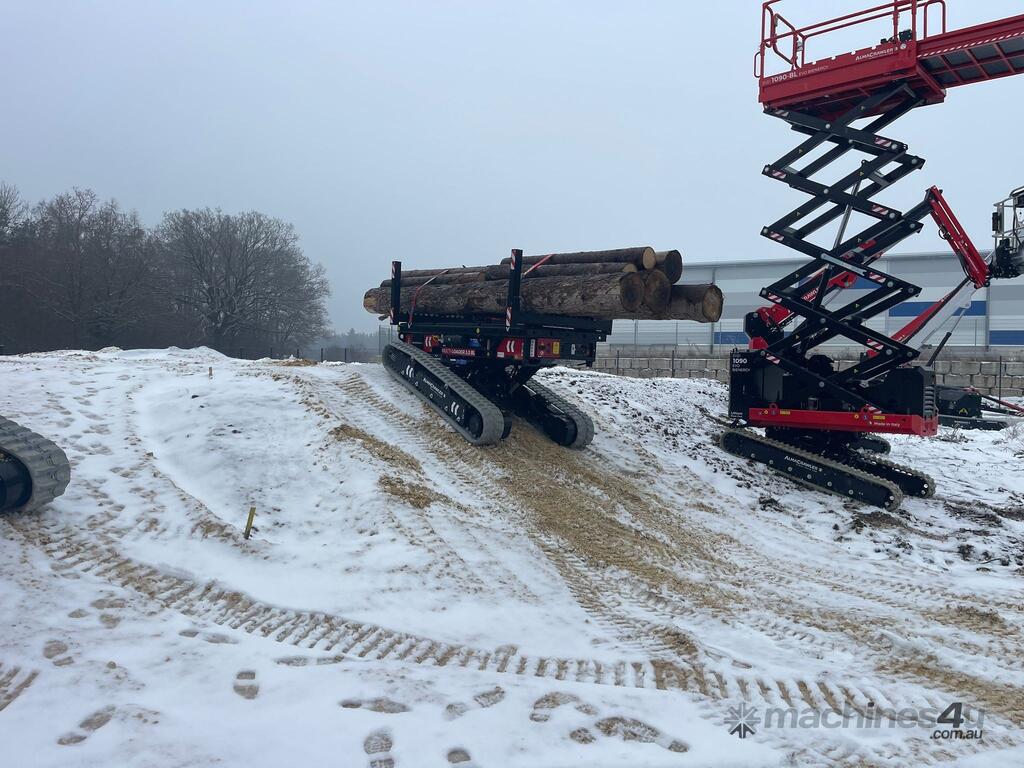

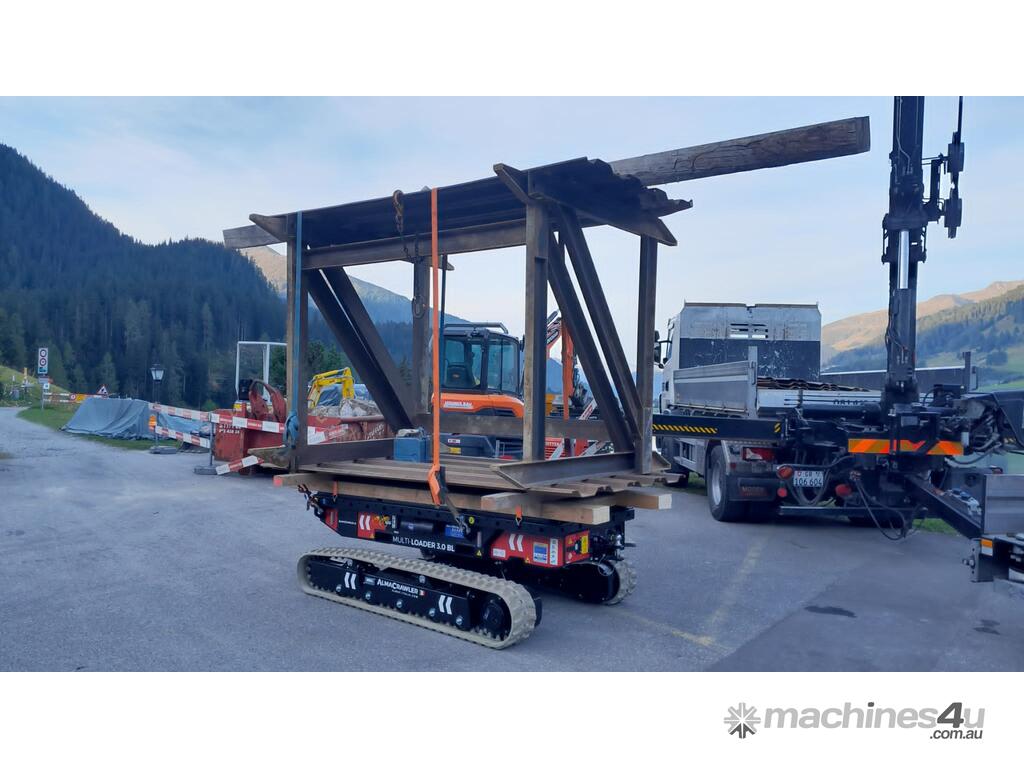

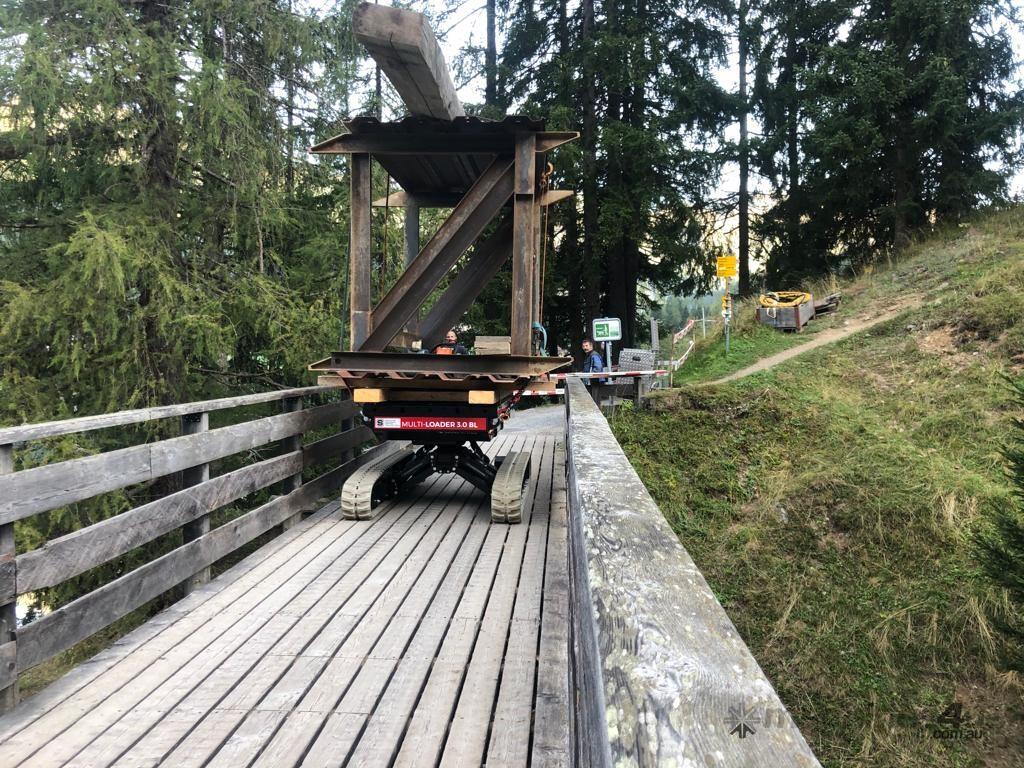

The Almacrawler Multi-Loader 3.0 BL carries loads of up to 3000kg on slopes or uneven terrain of up to a max 20°. Employing a maximum drive speed of 4.2km/h the unit is efficient at providing a materials handling solution to reduce and eliminate manual handling activities across a range of worksites.

Advantages of tracked Multi-Loader equipment
One of the biggest challenges of transporting goods and loads across uneven terrain or in urban settings is the limitations imposed by ground conditions and ground pressure. The tracks allow the Multi-Loader 3.0 BL to freely work on a range of terrains and jobsites, ensuring optimal grip while considerably lowering the ground pressure of the transporter and its load.

The self-levelling technology further insures that pressure from the load is spread across the ground-bearing points.

ATS – Automatic Tensioning System
The ATS zero maintenance track tensioning system is connected to and controlled by the main hydraulic system.

MyAlmac Control Panel
Simplify and centralize the management of all after-sales activities, spare parts purchasing and warranty procedures.

~~ OPTIONAL ATTACHMENTS ~~

Multi-Frame: Carry glass or large panel materials with this purpose designed carry frame.
Hydraulic Lifter kit KML: Attach a hydraulic lifting platform for moving materials up to height. Available in two models which over varying lift capacity and maximum reach:
– KML2.1
1,300kg Lifting capacity
Maximum Lifting Height: 4190mm
– KML3.1
600kg Lifting Capacity
Maximum Lifting Height: 5570mm


Technical data Multi-Loader 3.0 BL [ELC/LTH]

Max Capacity:
3000 kg

Dimensions:
Min Width: 1.46 m
Max Width: 1.64 m
Min Height: 0.74 m
Length: 2.40 m

Levelling:
Dynamic Levelling: Yes/Si
Longitudinal Levelling (Front): 20°
Longitudinal Levelling (Rear): 15°
Lateral Levelling: ±14°

Systems:
Hydraulic Commands: Proportional
Direction-Control System: Yes/Si
Easy-Drive System: Yes/Si
Control of Inclination: Automatic

Performance:
Gradeability: 25°
Side Slope: 25°
Max Speed: 4.2 km/h

Power:
Electric Motor Power: 2 x 5.3 kW
Voltage: 48 V
Battery Charger: 1 x 65A-48V (110/220V)
Battery Pack Options:
ELC - Lead Crystal: 180Ah 48V
LTH - Lithium: 210Ah 48V

Recharging Time:
3.5 hours (65A)

Ingress Protection:
IP Rating: IP67

Controller:
Remote Radio Control

Weight:
Total Weight (ELC): 1900 kg
Total Weight (LTH): 1750 kg
