Commercial Construction and residential jobs, car parks, highways etc
Outstanding overall roller performance , low noise levels, high vibration frequency allows smoother and faster compaction whist boasting a smoother even finish. We Deliver nation wide

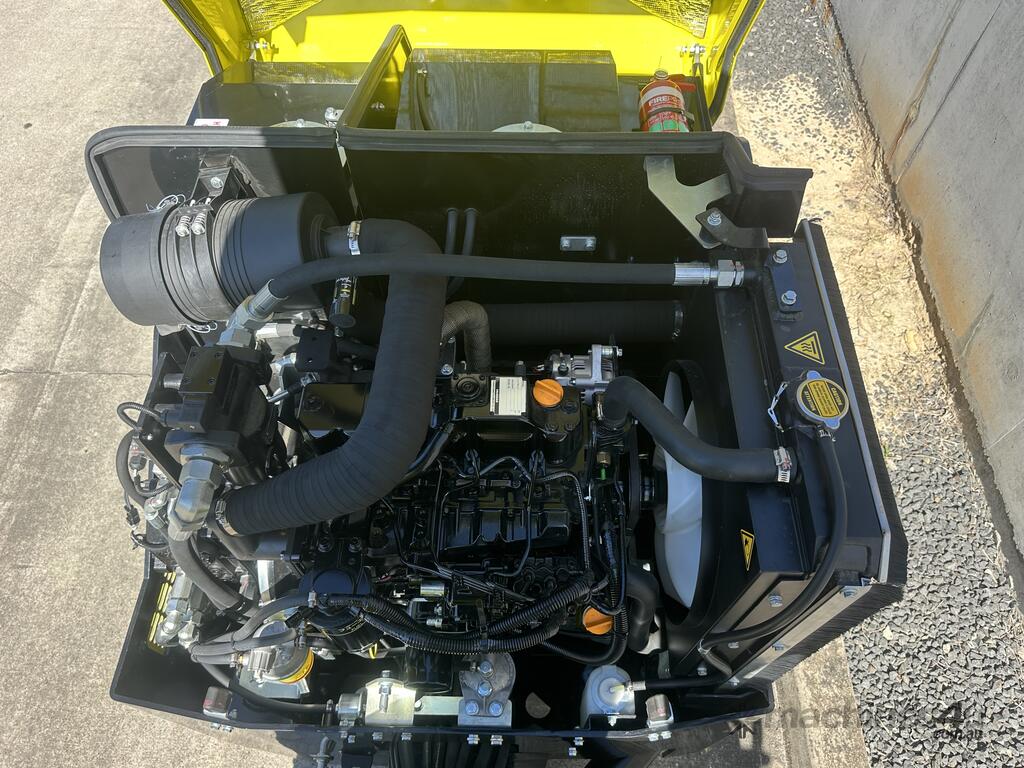

- Tier 4 Yanmar 4TNV88-BDLDW 50HP ( Made in Japan)
- Danfoss high flow Hydraulic system ( Made in Germany)
- Poclain Rear Final drive motors (Made in Germany)
- Fully Hydro Static Drive
- Operating weight 3700 - 4000 kg
- L 2955 x W 1276 x H 2775 mm
- Tyre width 230 mm
- Width over tyres 1127/1276 mm
- Maximum load per wheel 571.42/ 495.25 kg
- Travel speed Forward 16 km/h
- Travel speed Reverse 16 km/h
- Gradeability Maximum 48 %
- Turning radius Inside 2590 mm
- Water Tank 235L
- 3 Front Tyres, 4 Rear Tyres
- Foldable ROPS ISO certified
- Canopy
- Grammer Adjustable suspension Seat
- Mirrors x 2
- Emergency Stop
- Isolation Switch
- Articulated/Oscillated Steering Joint
- Pressurised Water Spraying system with dual modes
- Auxiliary Emulsion Tank for Tyre cleaning

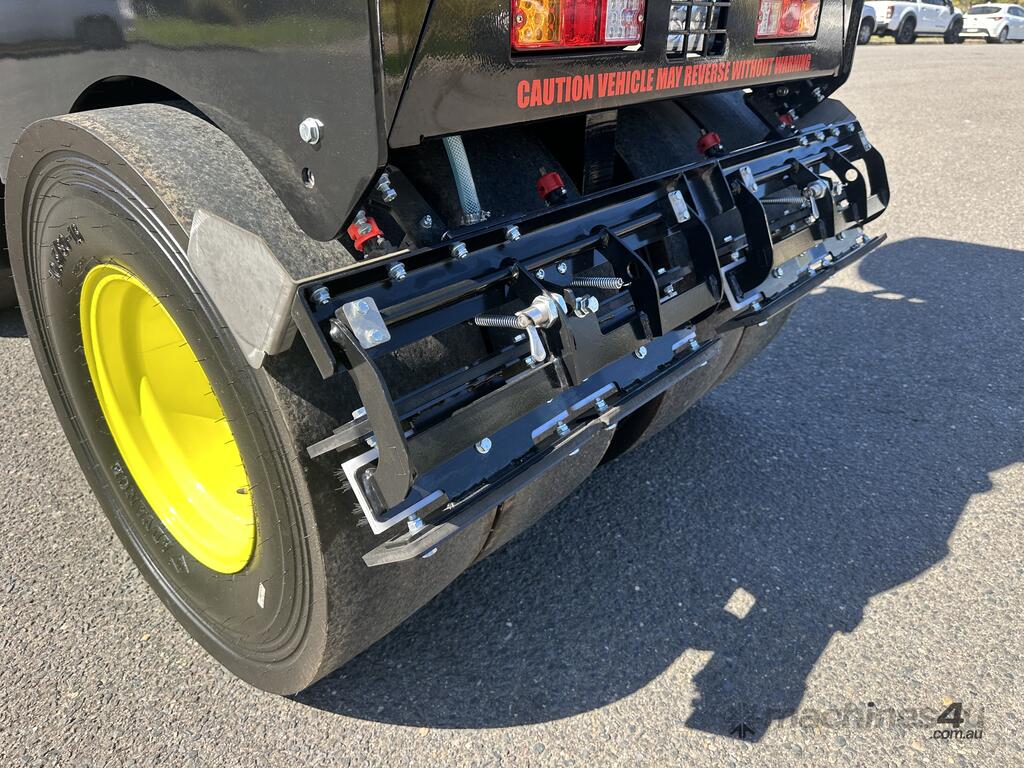

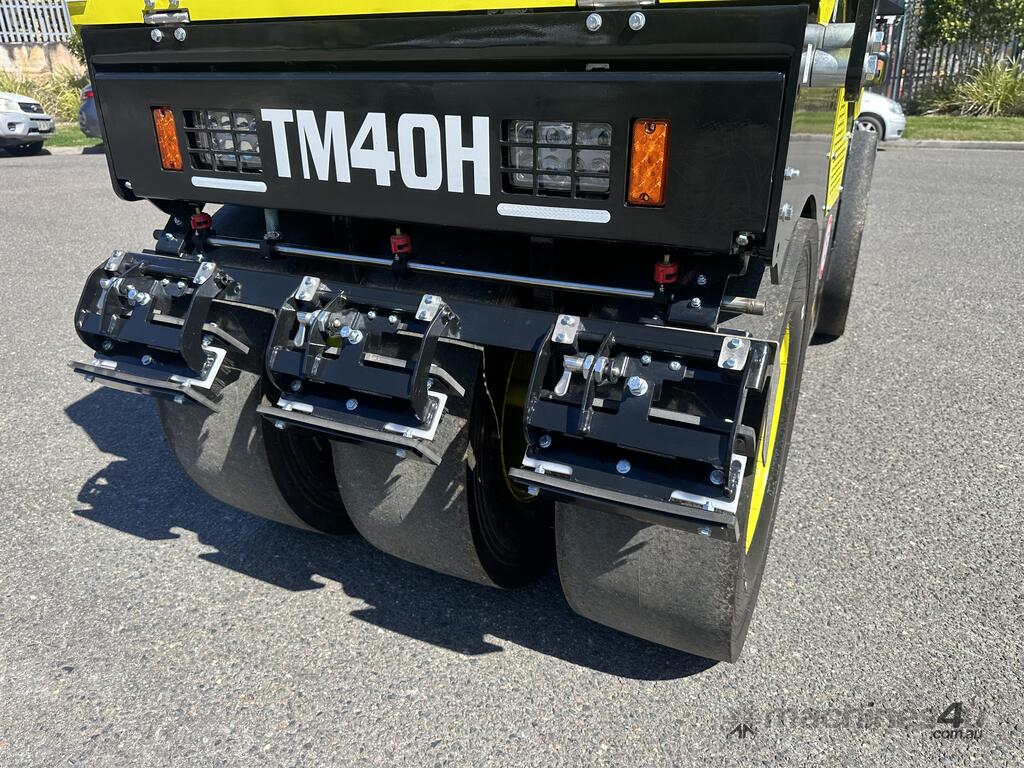

- Spring applied adjustable Tyre scrapers and Brushes
- Ergonomic Joystick controls
- Suppled at Civil , Main Roads, Vic Roads, RMS , DMR specification
Please contact GCM for all your sales enquiries for Multipac Compaction equipment We supply, deliver and Service Australia Wide.
