TECHNICAL SPECIFICATIONS
The Nesting M5 series consists of 5-axis machining centers for "nesting" operations.

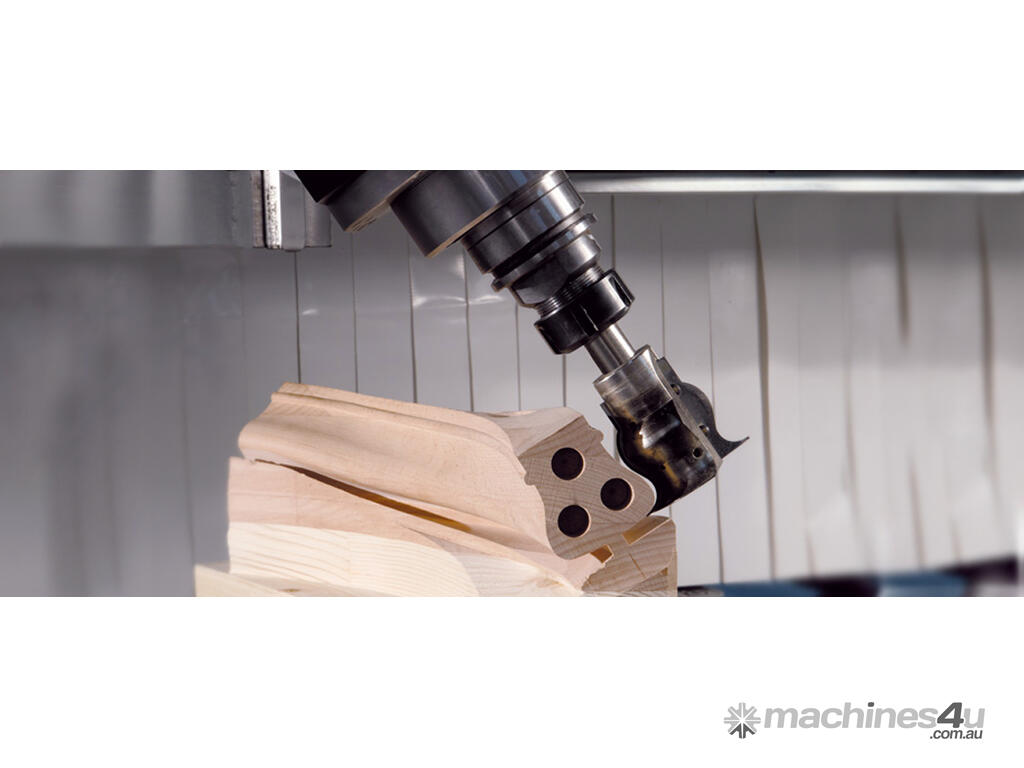

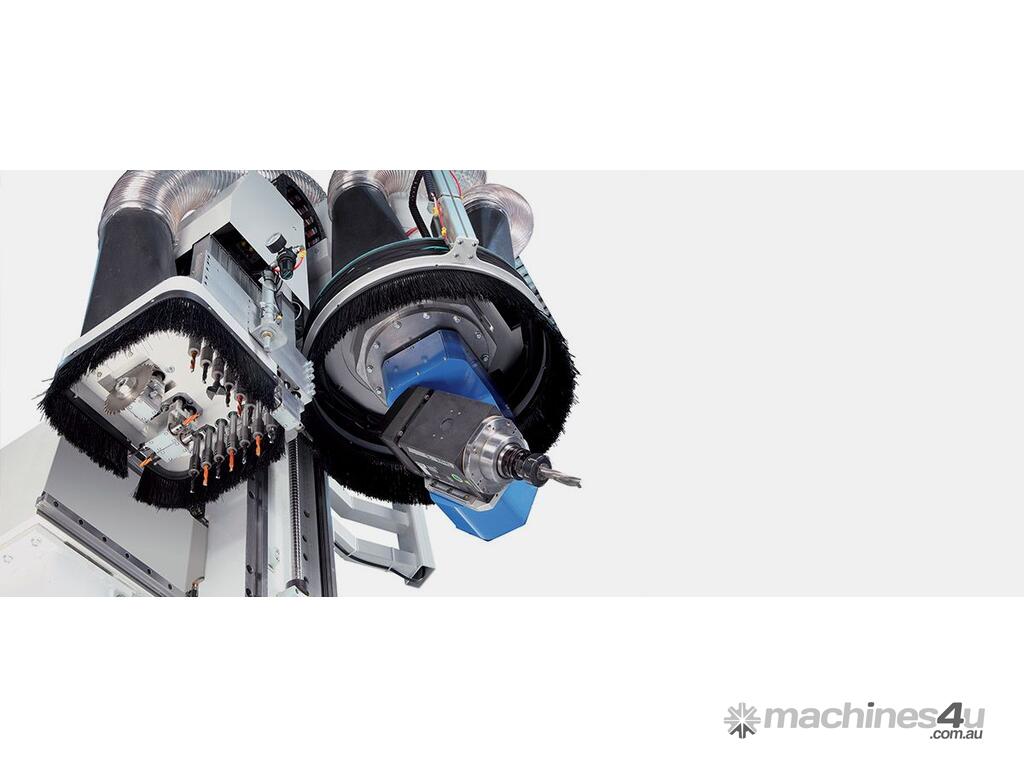

Thanks to the birotative operating unit and the wide workpiece clearance, M5 series are best suited for 3D machining, such as:
wooden materials
plastics
composites

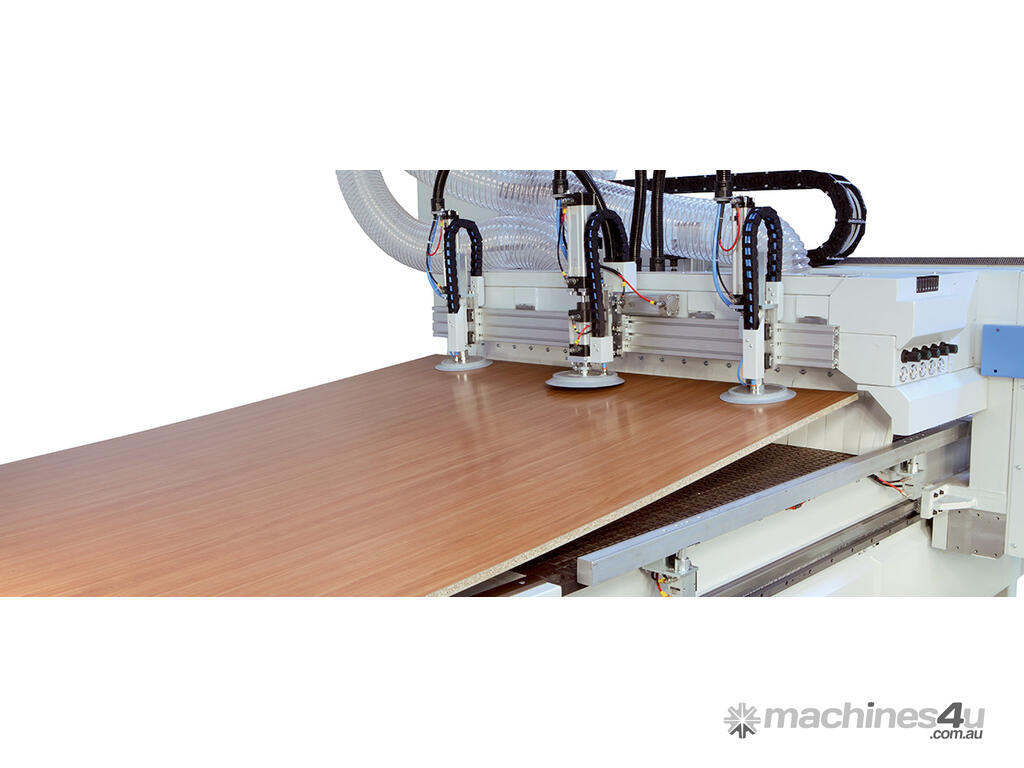

Available (optional) automatic vacuum subdivision on the working area in order to optimize the workpiece holding.
Working Area X-Y-Z (mm):
Boring head - total spindles: up to 19
HSK 63F - Electrospinde - max power (kW): up to 12
Max. tool diam. (mm): 160 - (350 sawblade)
SOFTWARE FOR NESTING “M5”:
Masterwork
The graphic programming system for all the Masterwood CNC's complies with Windows™ standards
Master 3D
Masterwood presents the new 3D CAD/CAM software developed in partnership with DDX group
MasterDOOR
An easy and powerful software for the production of any kind of doors
Masternest
Masternest is the software to automatically optimize the provision of details to be obtained in a single panel
Mastercabinet
Design, assembly, modeling, compose e create ...
are no longer a problem today with the new software dedicated to the cabinet makers!
Masterwood Australia is a supplier of highly advanced CNC machining centres for all woodworking production requirements.
Masterwood Australia also offers the Bi-matic Edgebander for all of your edgebanding requirements.
