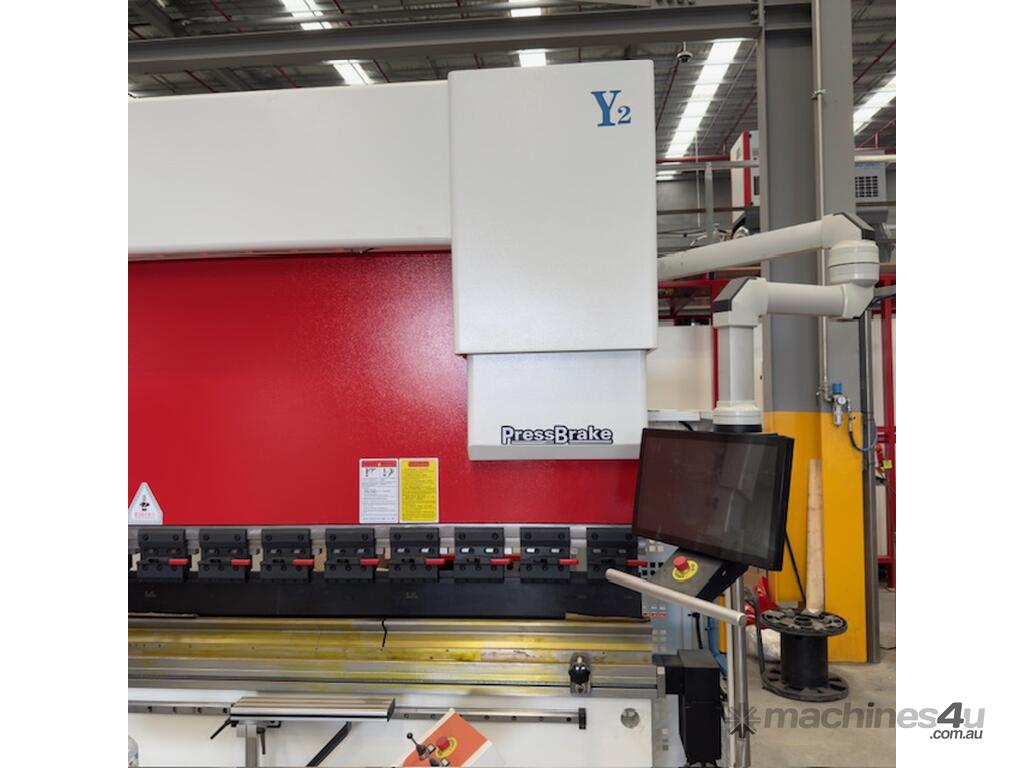

NEW CNC IMS PRESS BRAKE - 3.2X130T - Servo electro-hydraulic drive system.

High-Precision CNC Press Brake for Sheet Metal Fabrication

The IMS CNC Servo-Hydraulic Press Brake is designed to provide high accuracy, reliability and productivity for modern sheet metal fabrication workshops.

With a 3200 mm bending length and 130-ton capacity, this machine offers precise bending control through advanced servo-hydraulic technology and a powerful CNC control system.

Supplied by A&S Machinery Sales Pty Ltd, the IMS press brake combines high-quality European components with advanced CNC control for reliable and efficient production.

Machine Specifications

Model: IMS-CNC
Bending Length: 3200 mm
Press Force: 130 Ton
Axis Configuration: 5 + 2 Axis

• 5 Axis: Y1, Y2, X, R, V
• 2 Electric Axes: Z1 and Z2 back gauge fingers

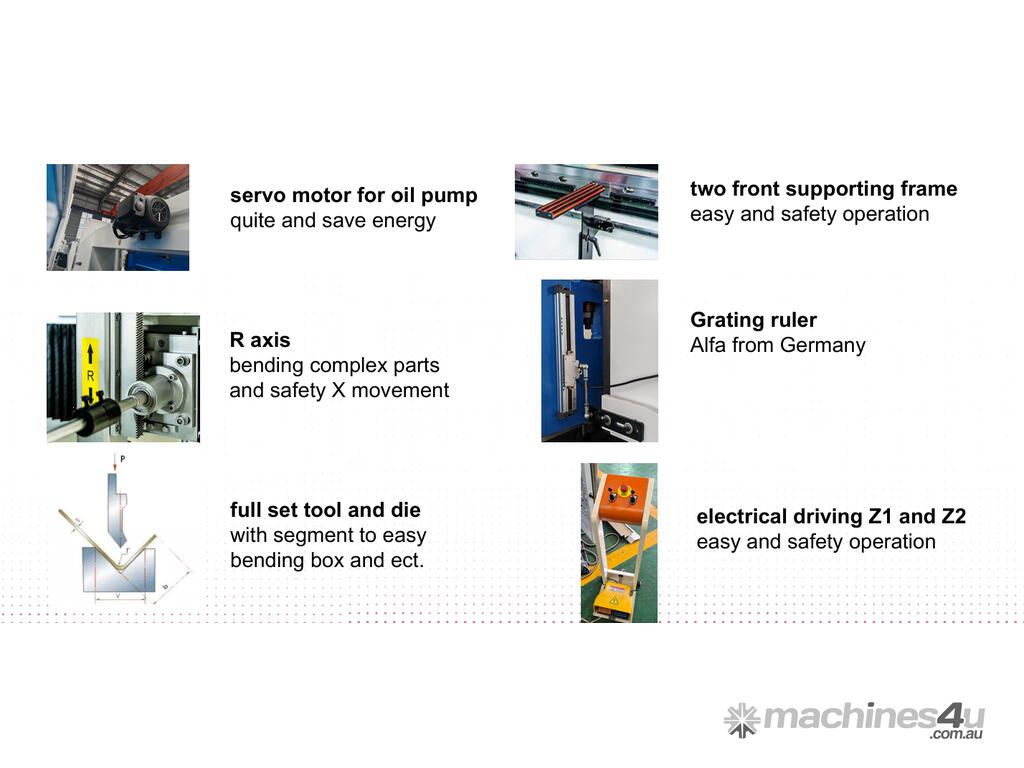

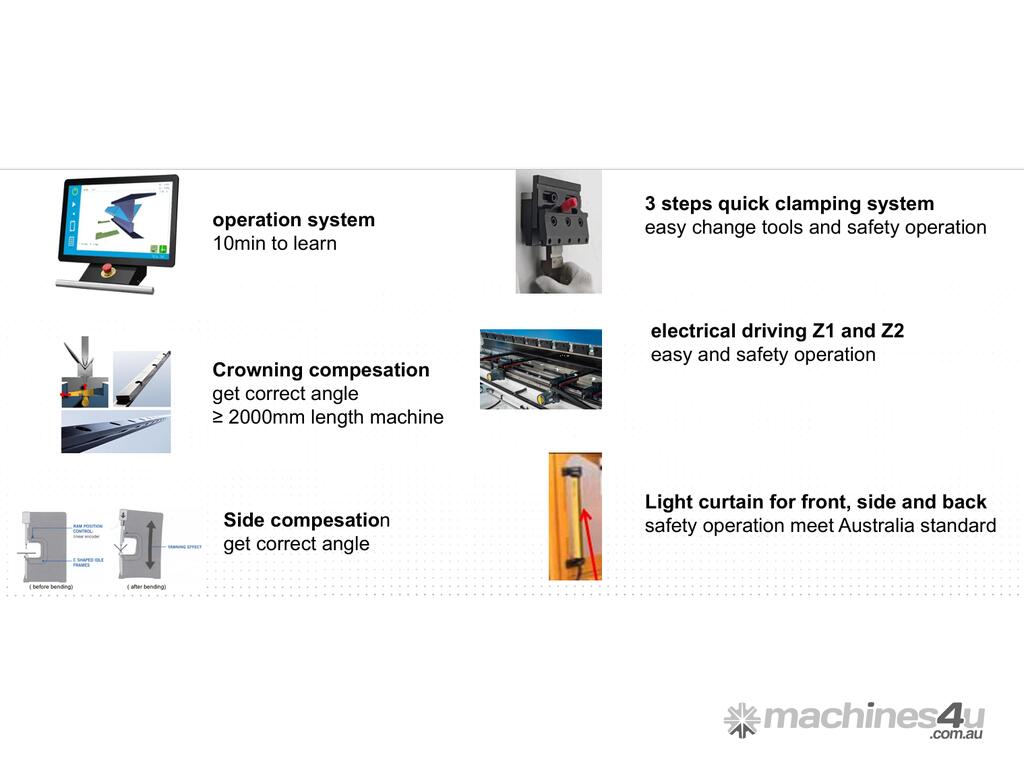

Key Features

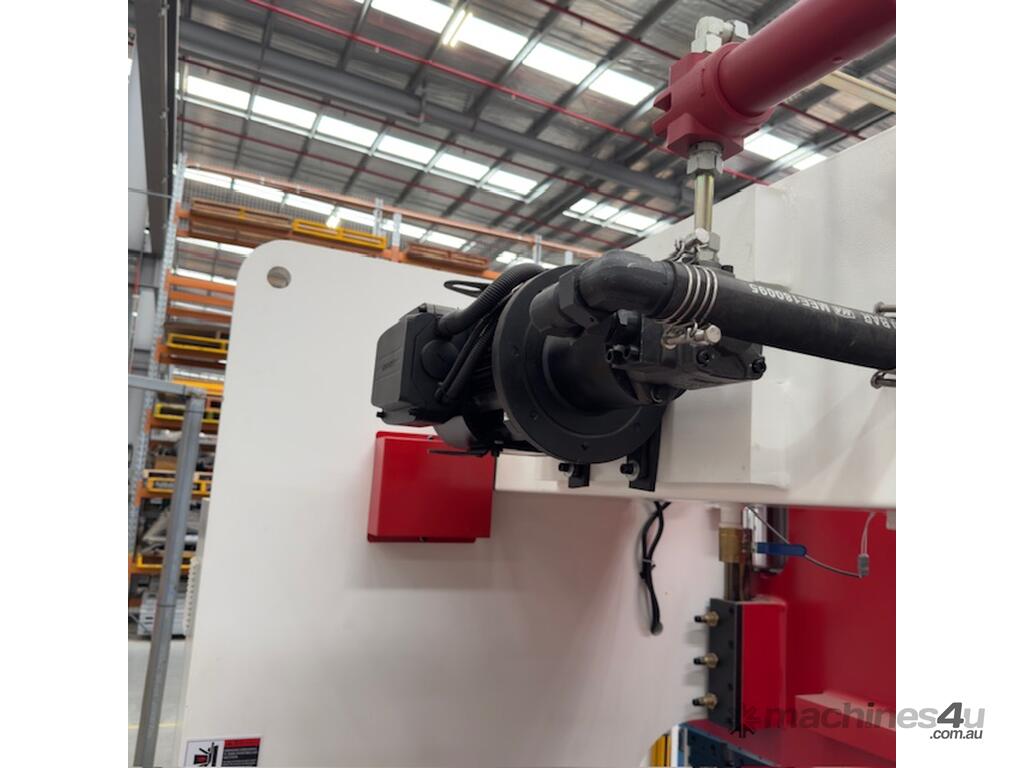

• Servo electro-hydraulic drive system
• IMS-DE18 CNC control system
• High precision bending performance

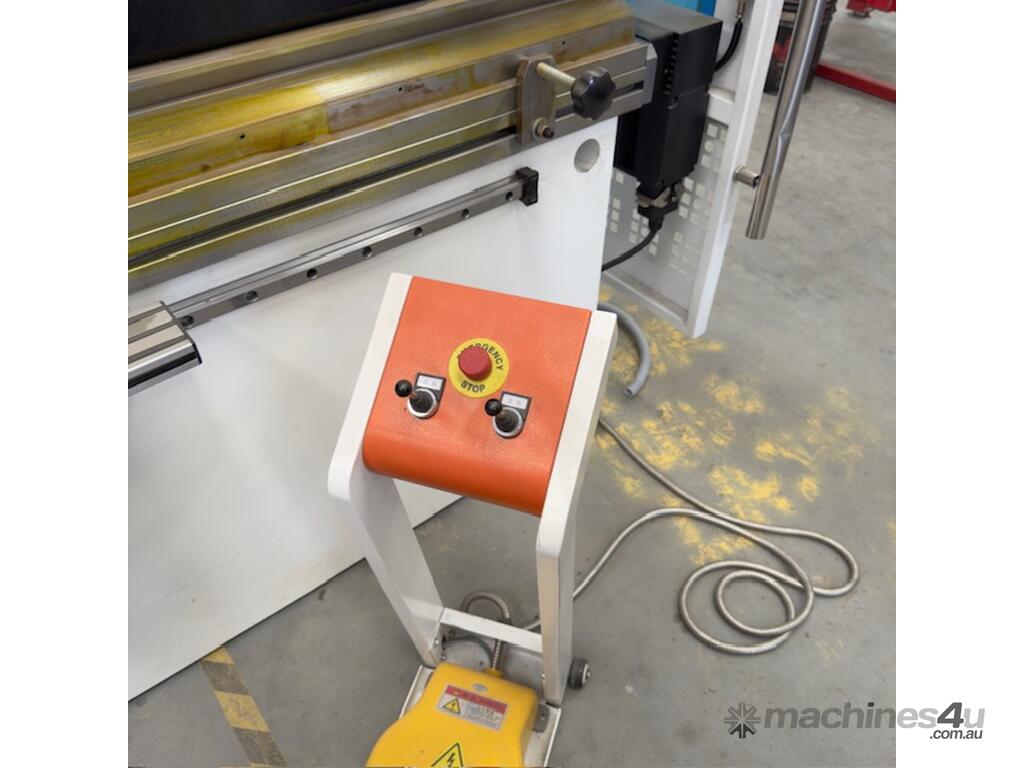

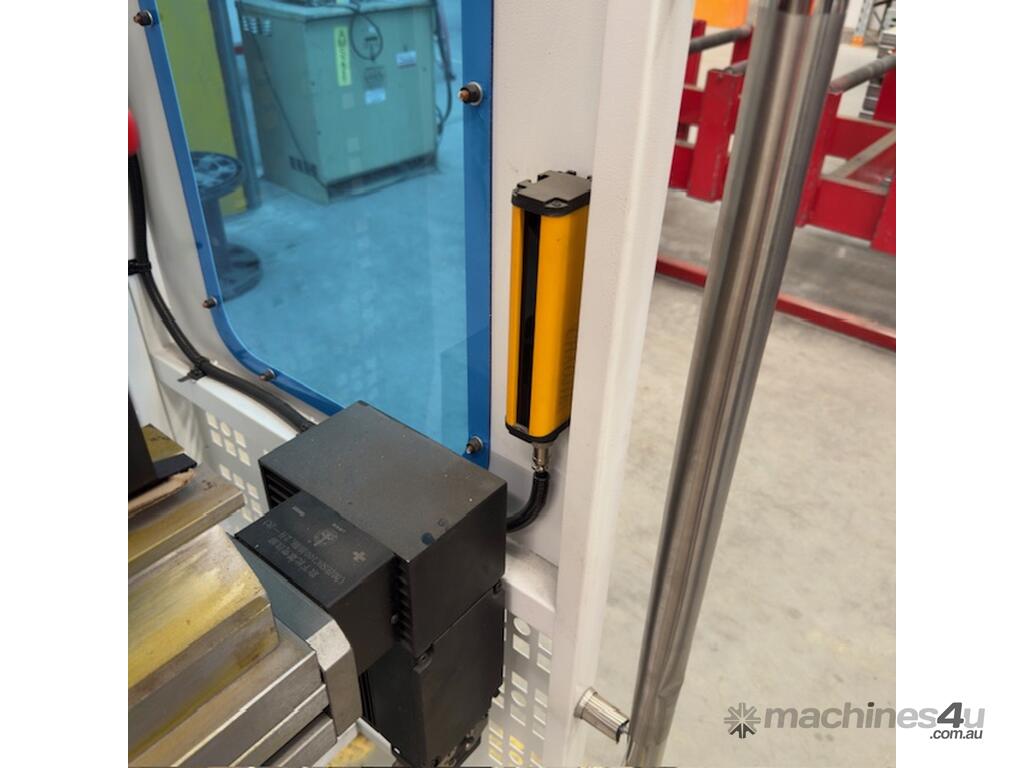

• Full safety system for operator protection
• Automatic crowning compensation
• Automatic side frame deflection compensation
• Dynamic pressure regulation
• Heavy-duty CNC back gauge system
• Electrically driven Z1 and Z2 fingers

Premium Components

The IMS press brake is equipped with high-quality components from leading international manufacturers:

• Electrical components: Schneider (France)
• Hydraulic system: BOSCH-Rexroth (Germany)
• Grating rulers: GV (Italy)
• Hydraulic pump: SYUNY (USA)
• Seal components: NOK / SKF / Parker
• Ball screws and linear guides: HiWIN

These premium components ensure reliable machine performance and long service life.

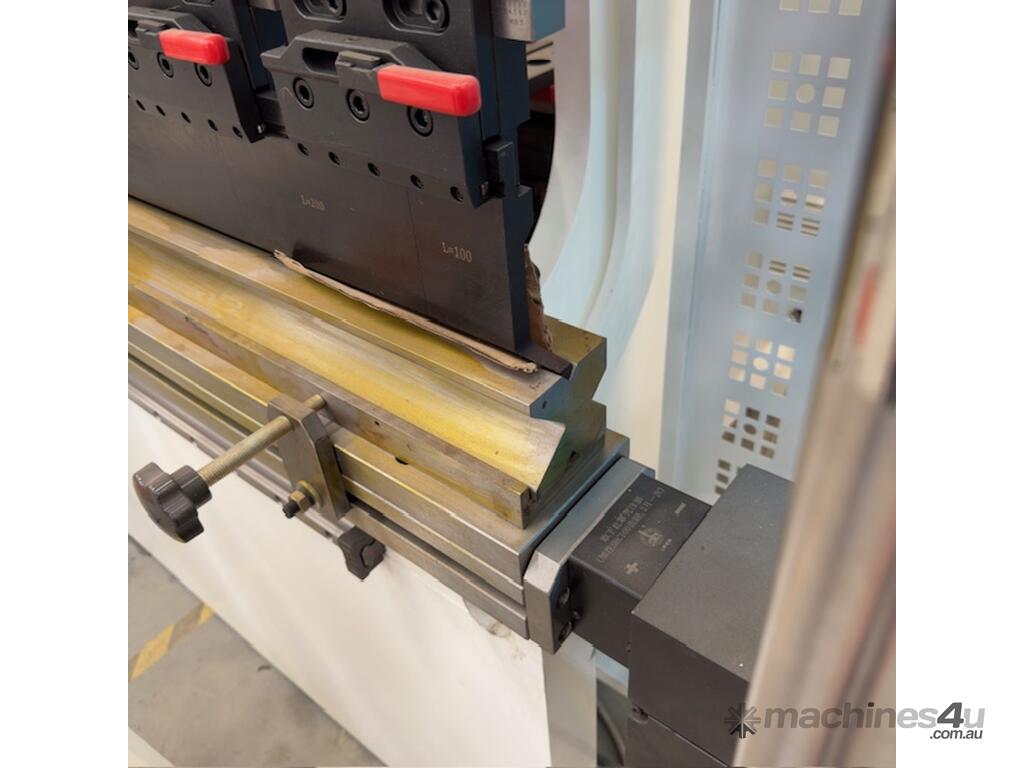

Tooling and Back Gauge

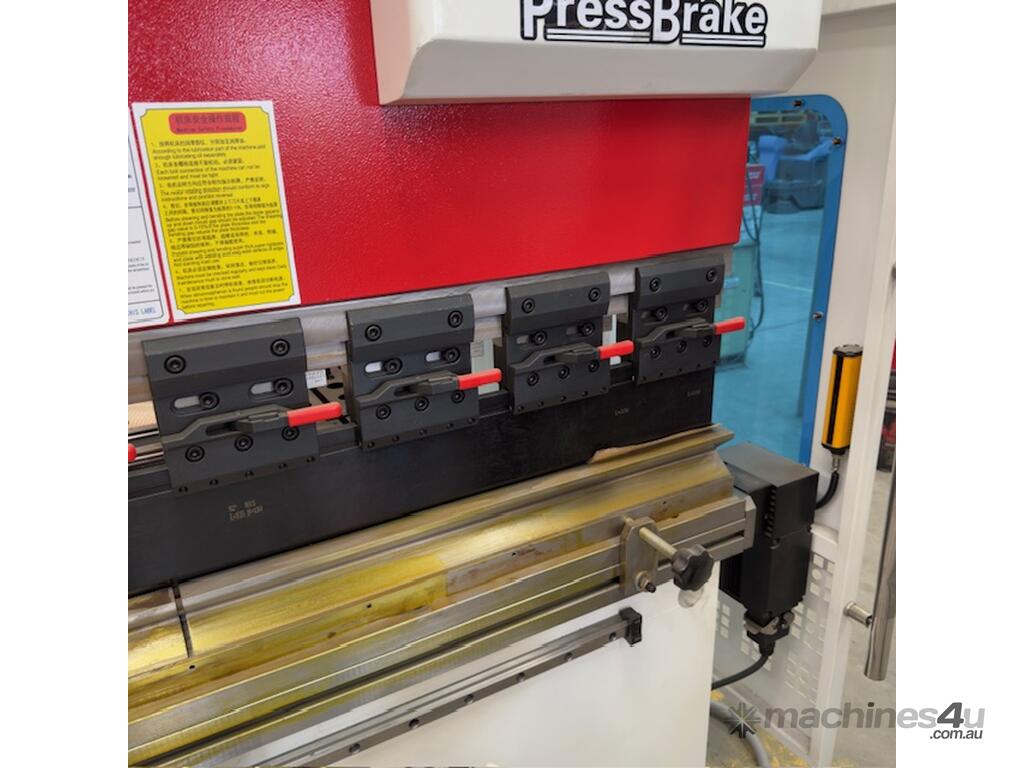

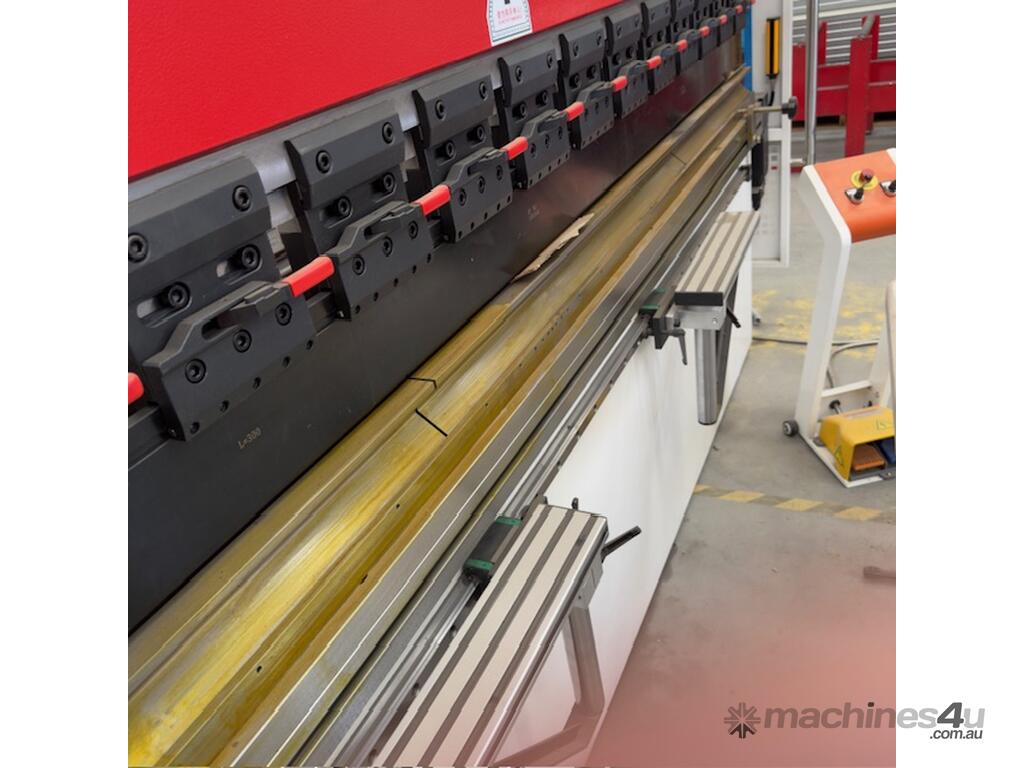

• Fast tooling clamp with tooling load protection
• Table height: 900 mm

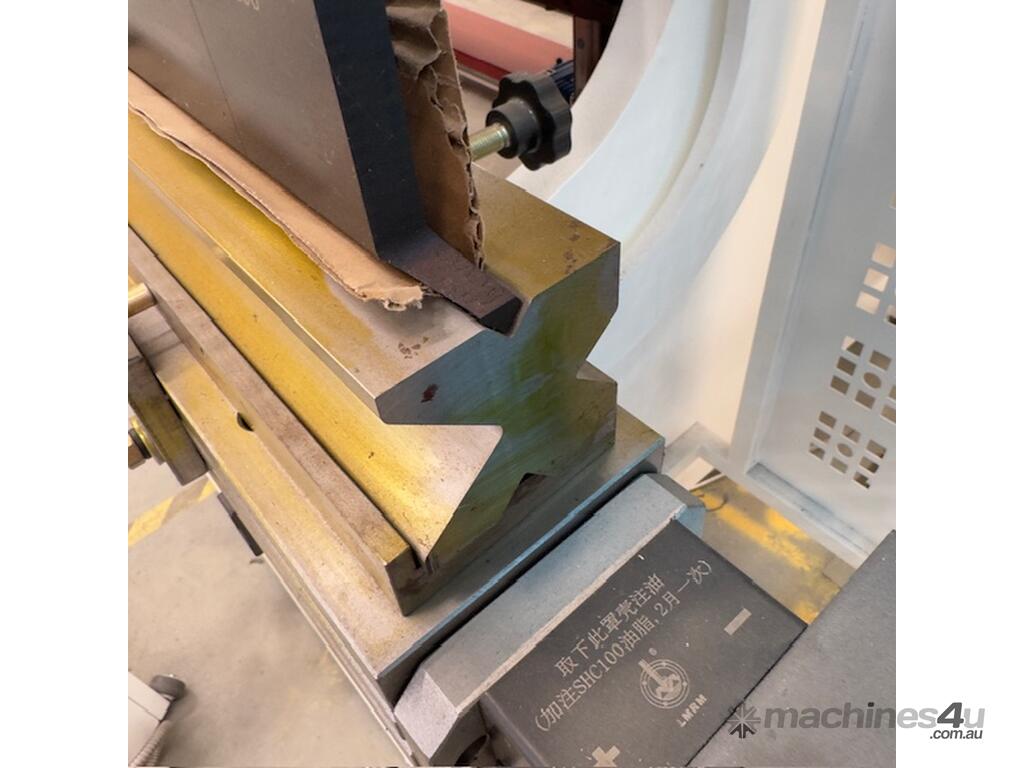

• Multi single-V die or double-V die options

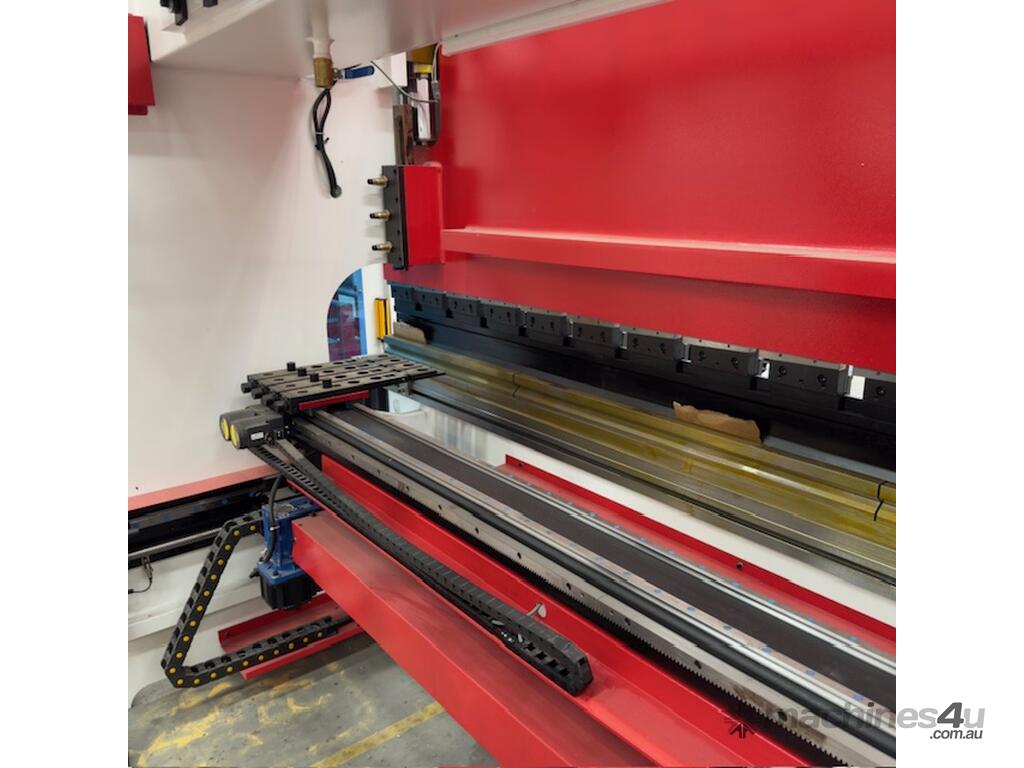

• Heavy-duty CNC back gauge system with X and R axes

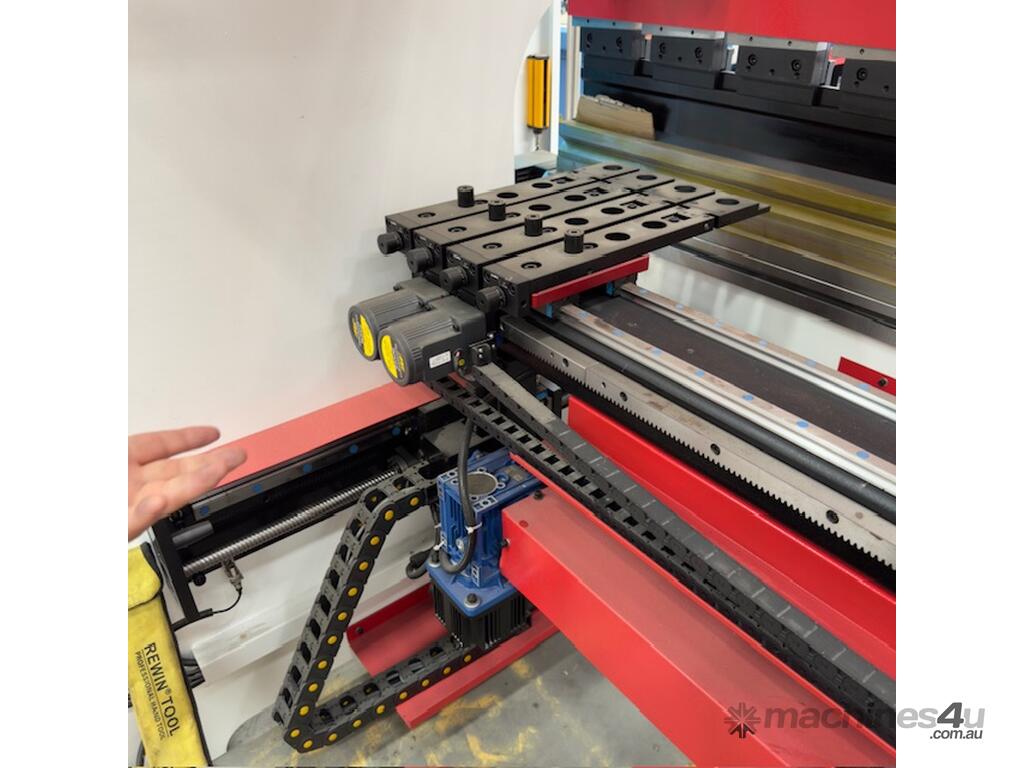

• Electrically driven Z1 and Z2 back gauge fingers

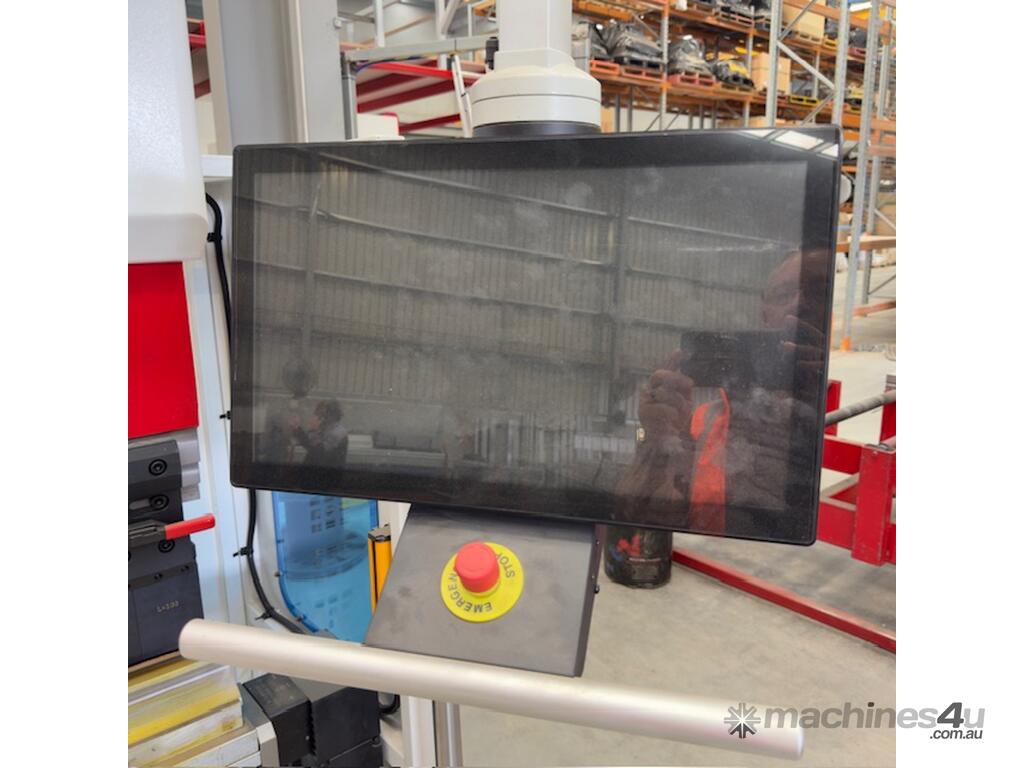

Advanced CNC Control

The IMS-DE18 CNC control system, customised by IMS Australia, allows simple programming and efficient operation.

Operators can easily program bending sequences while maintaining high accuracy and repeatability during production.

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Pricing and availability
• Other press brake sizes available
• Delivery throughout Australia and New Zealand
• Installation and operator training
