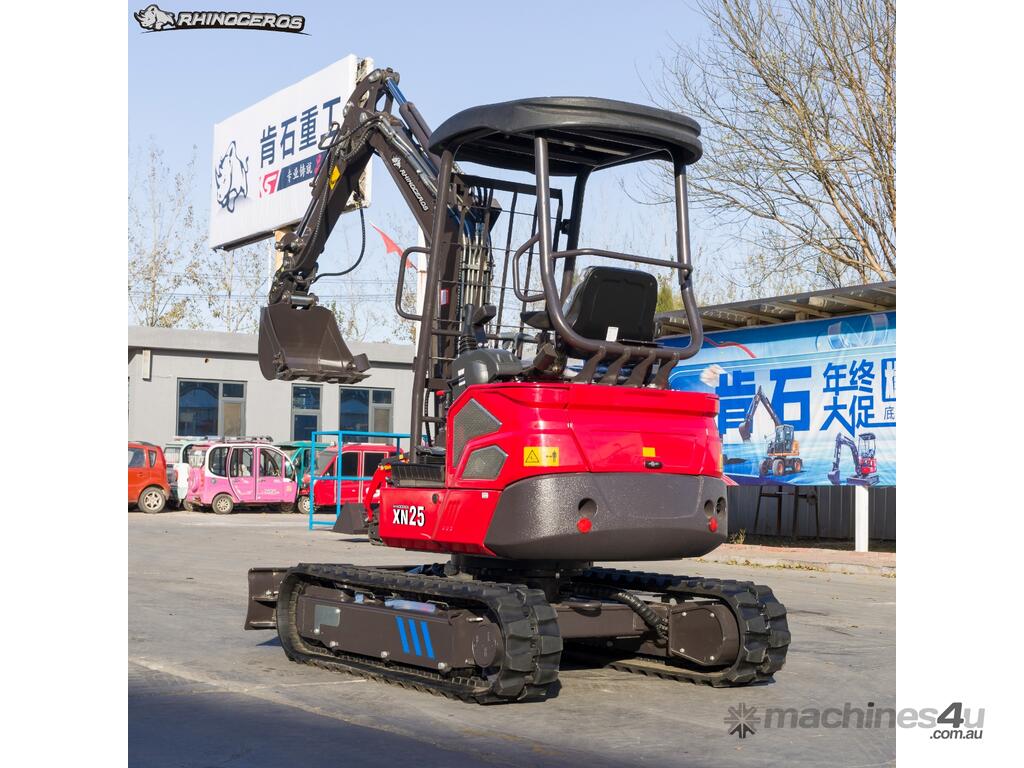

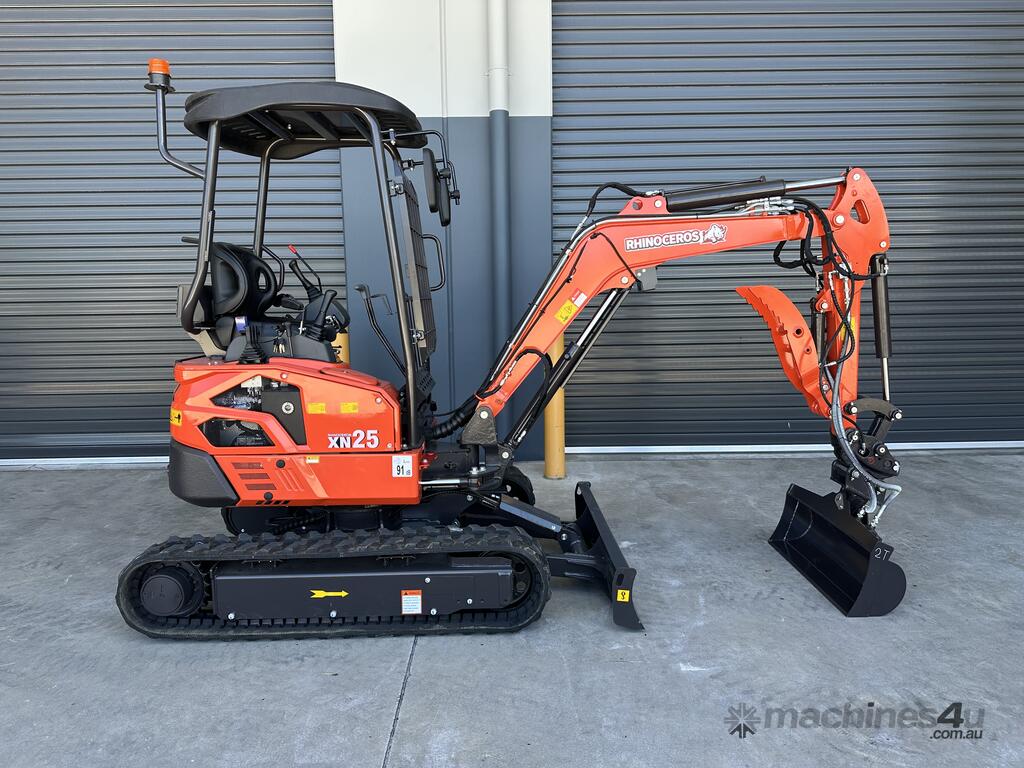

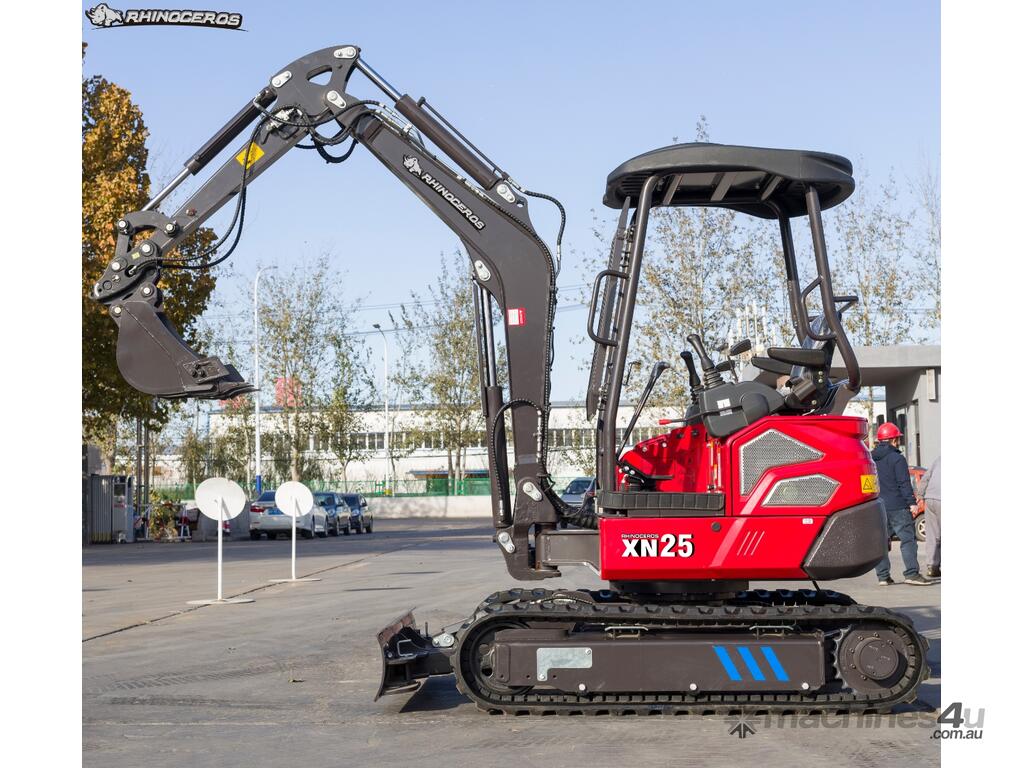

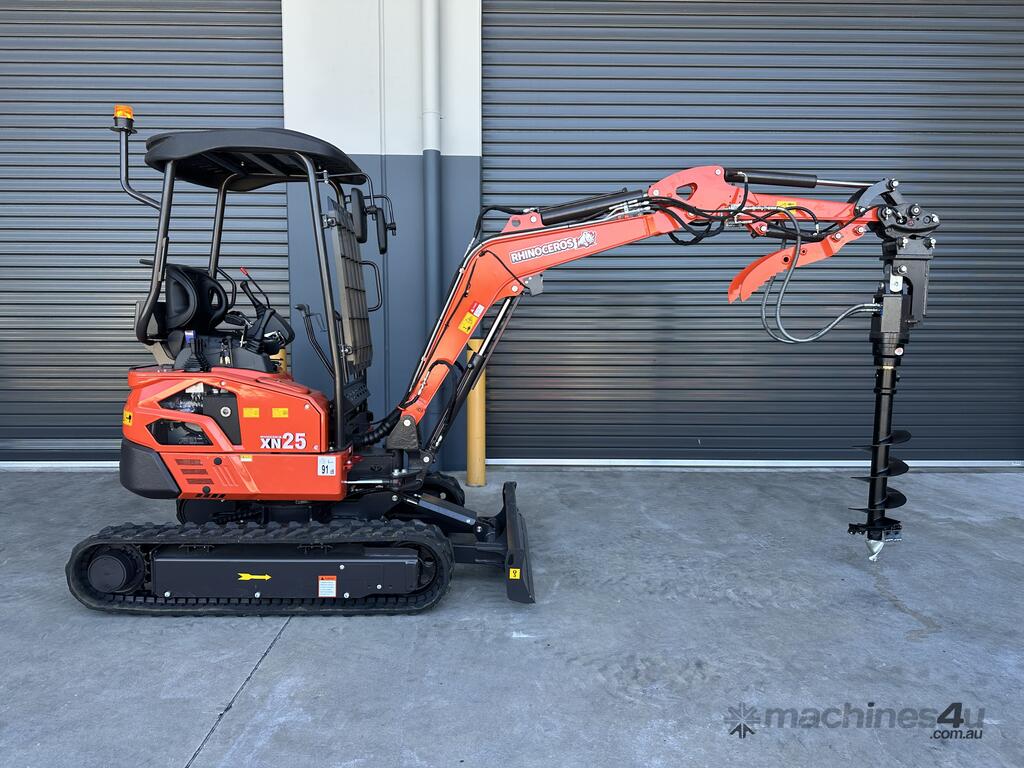

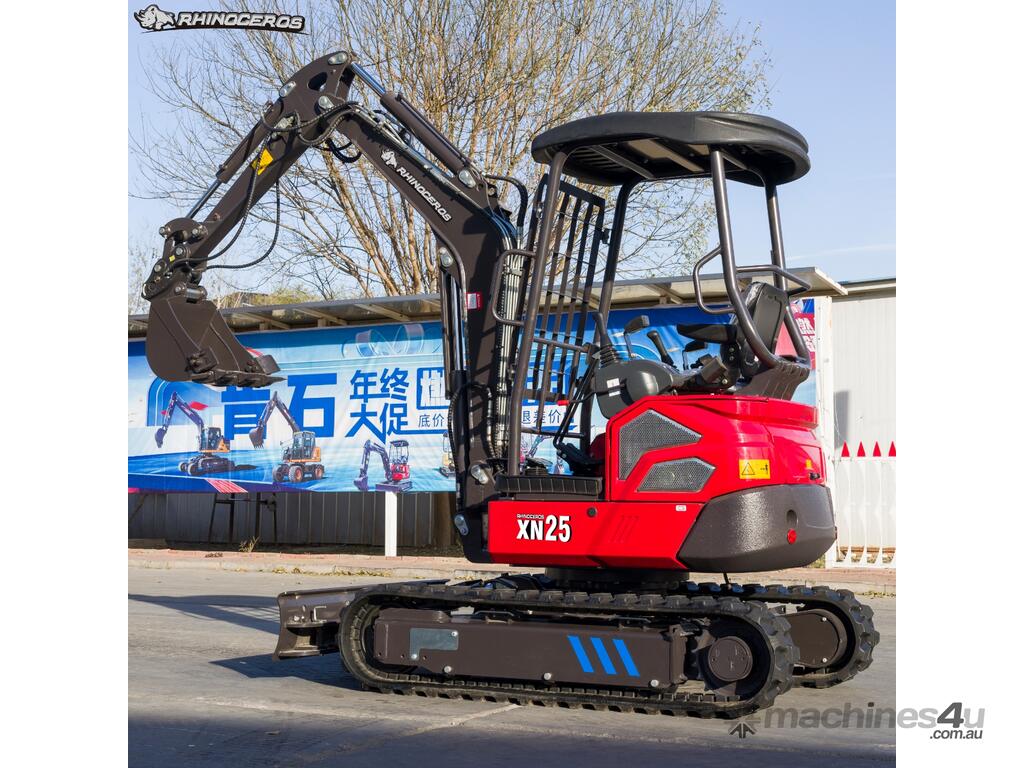

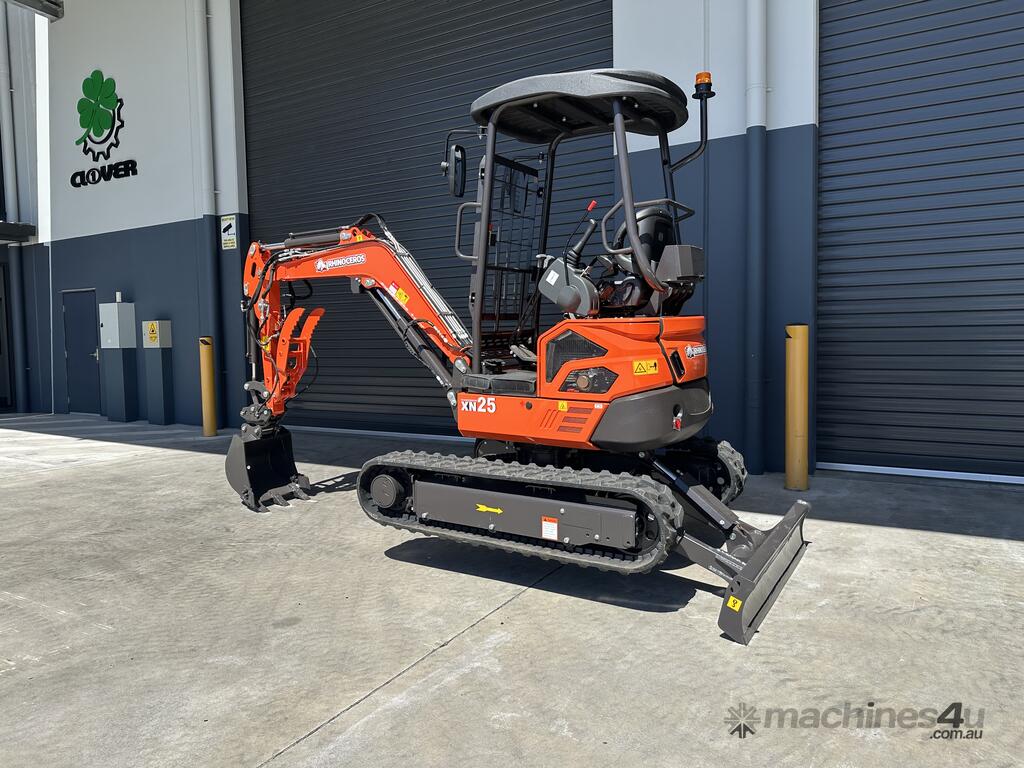

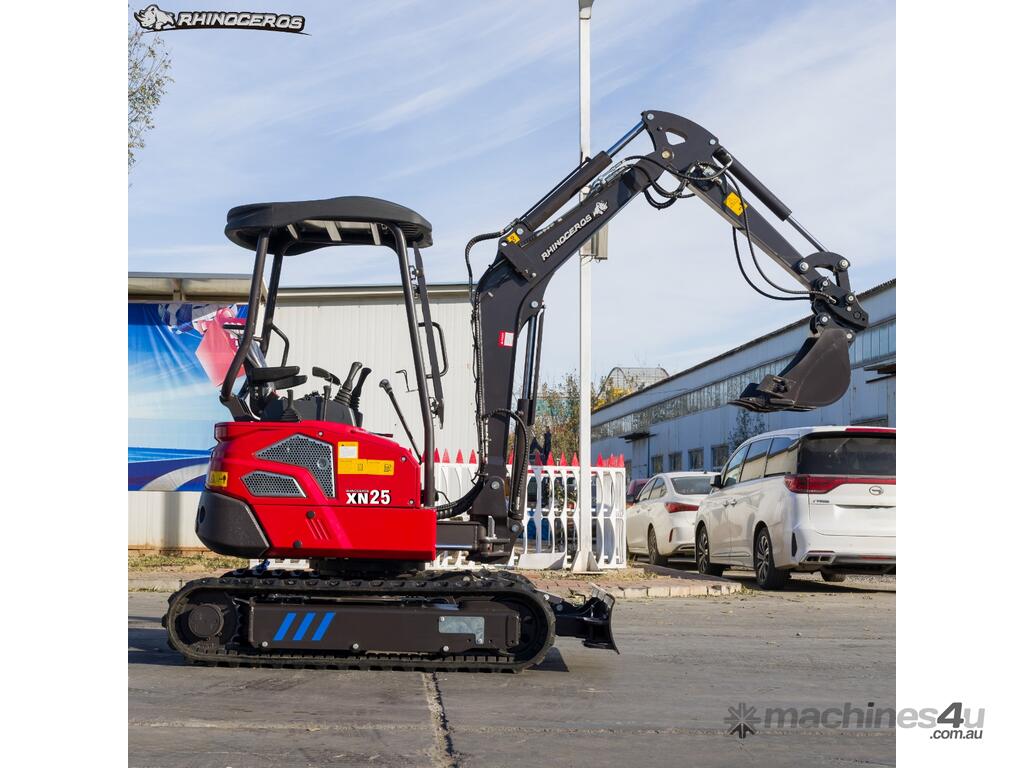

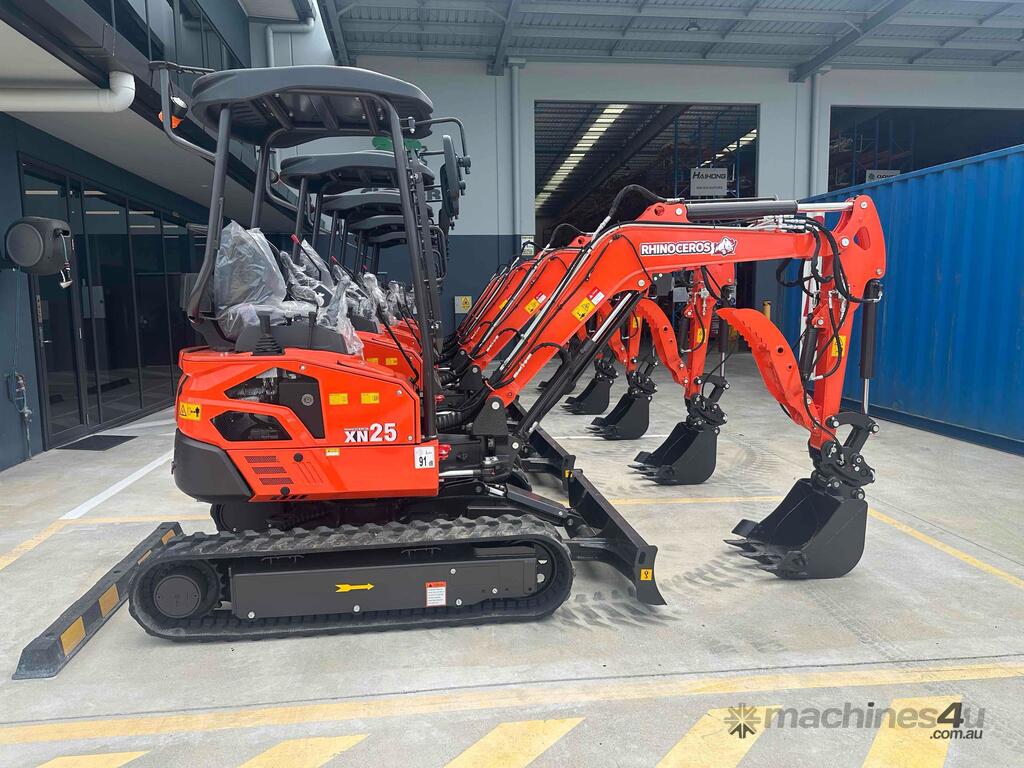

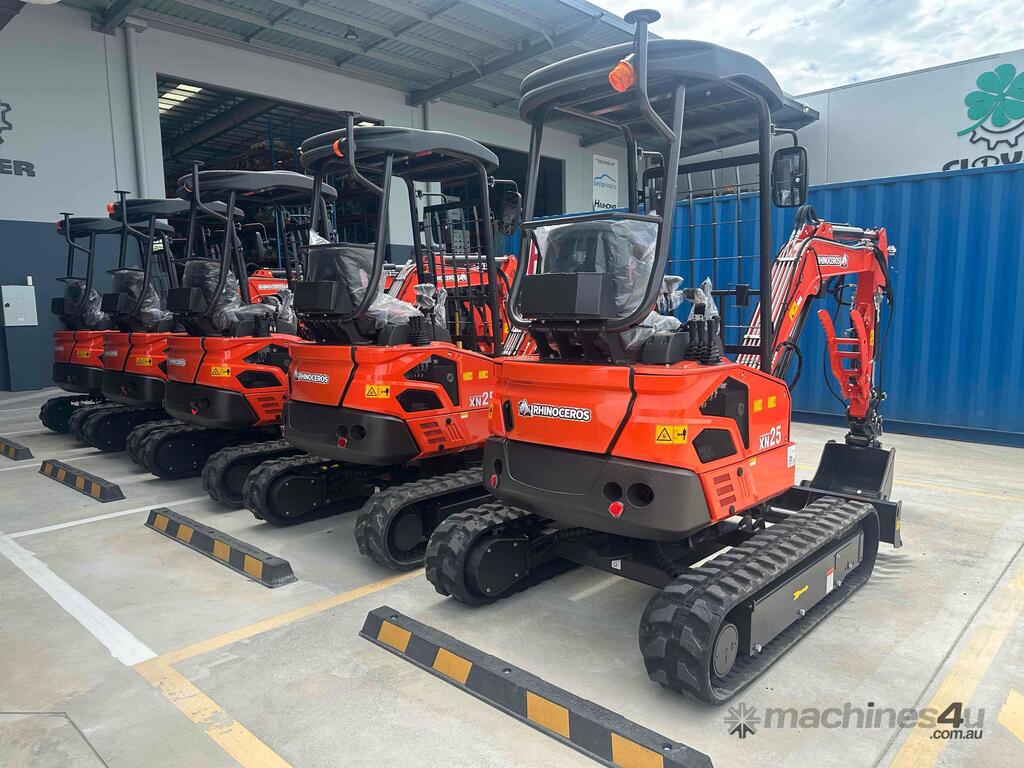

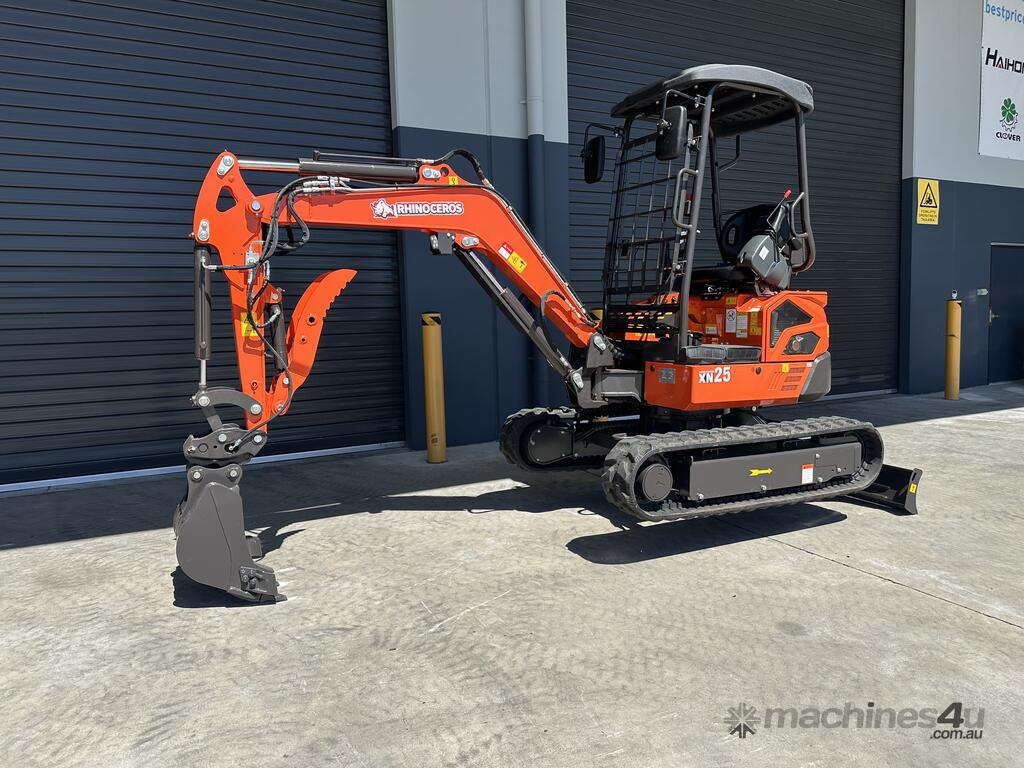

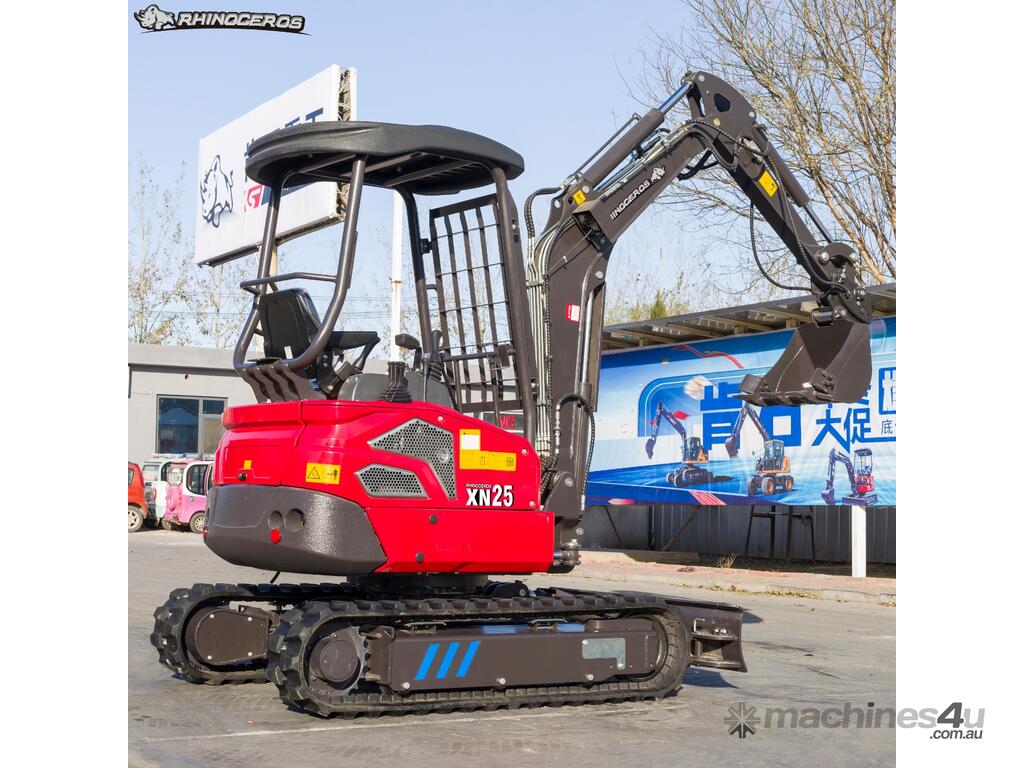

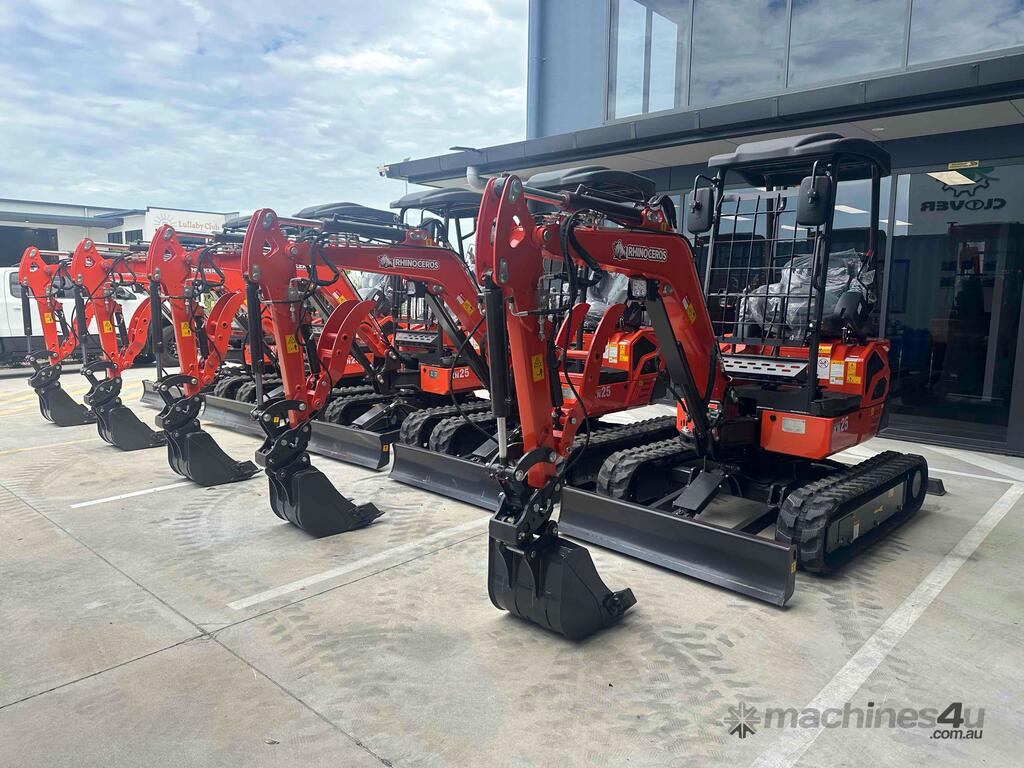

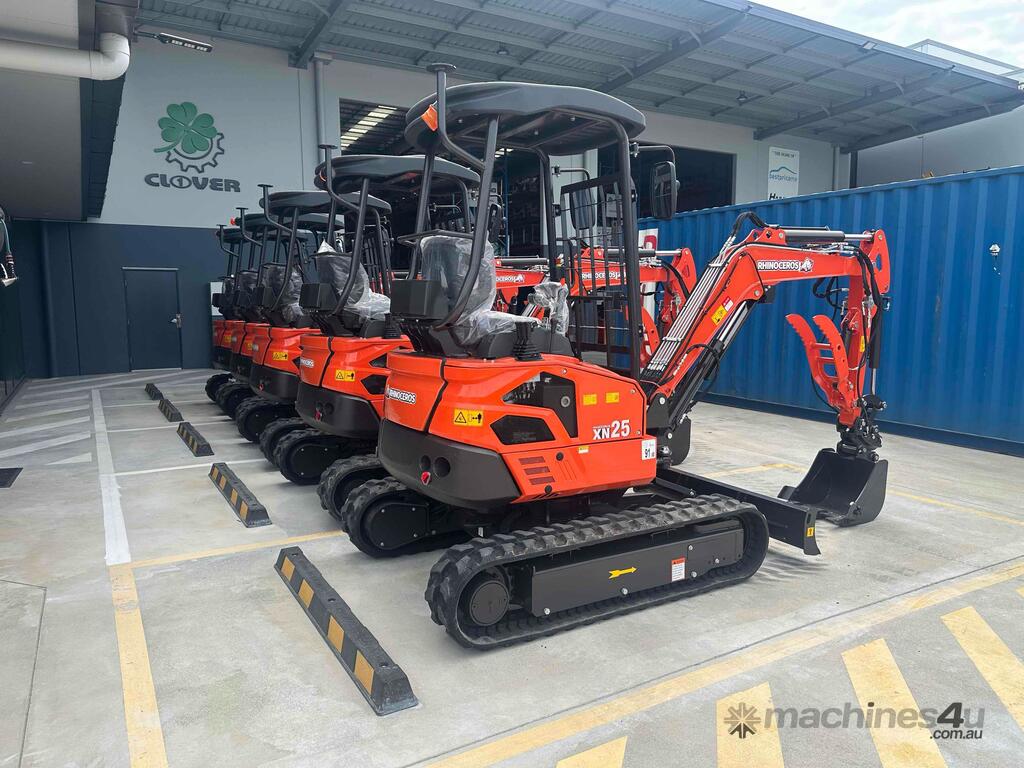

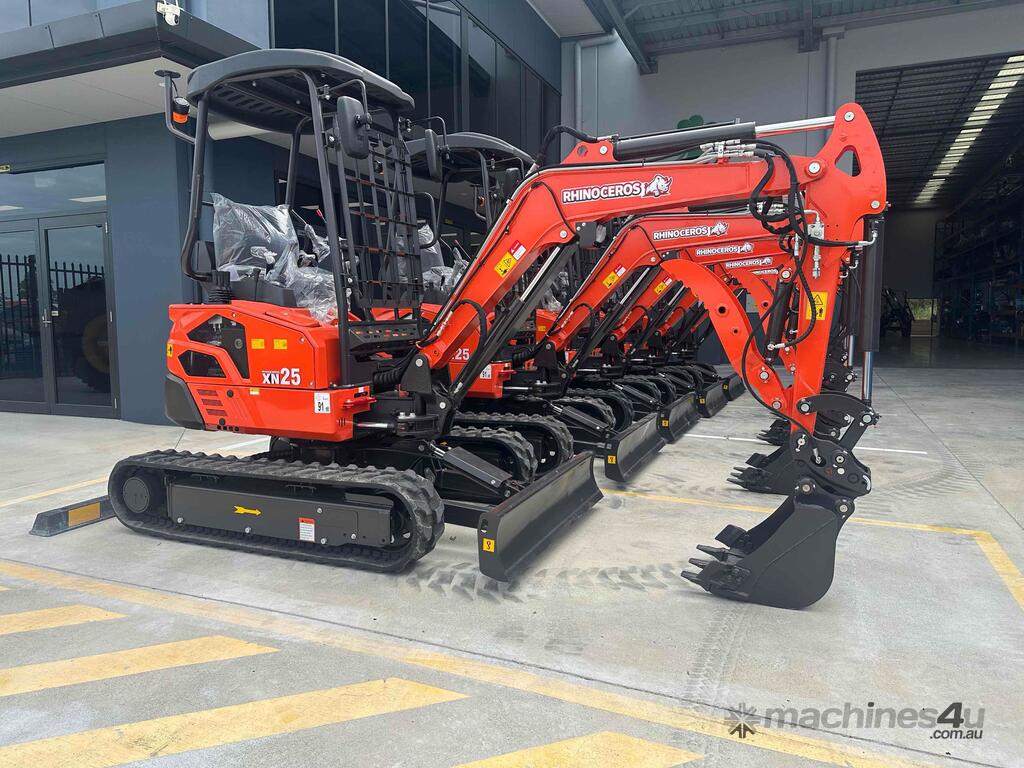

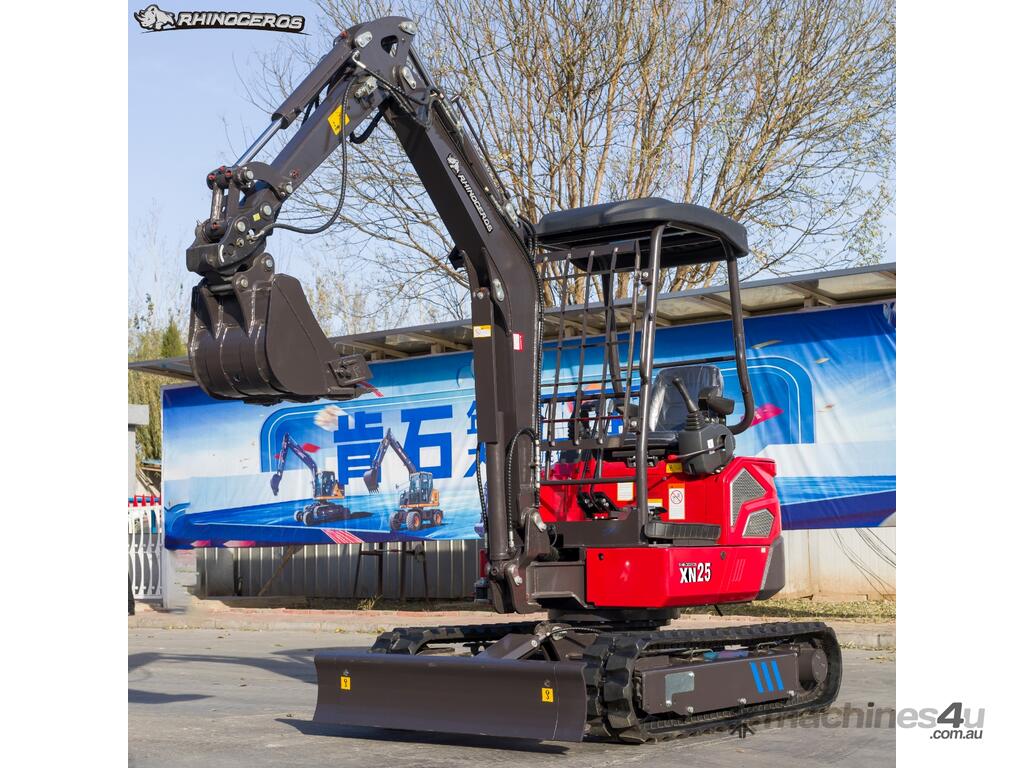

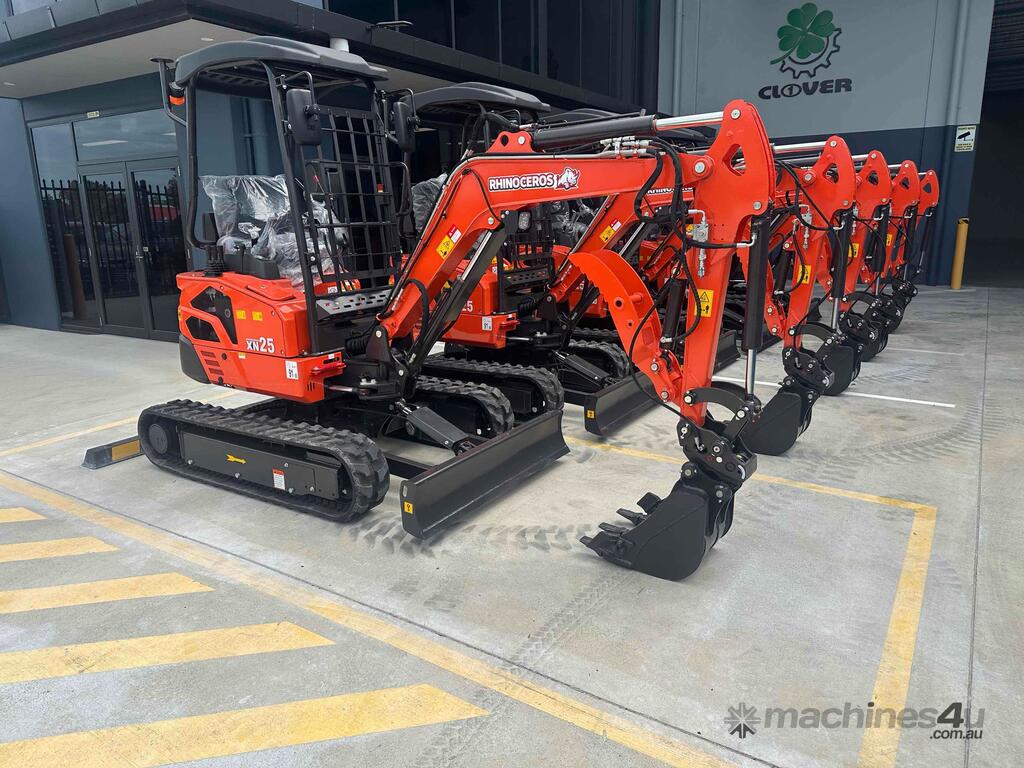

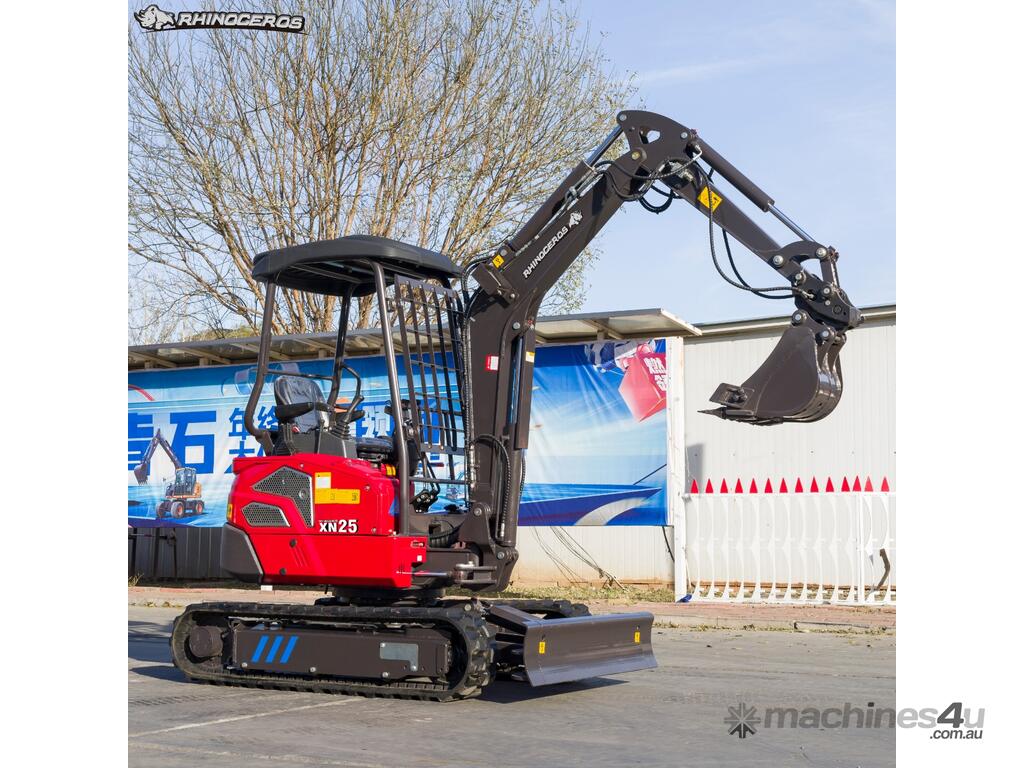

RHINOCEROS XN25 MINI EXCAVATOR
PRICE:
$30,990.00 inc gst ( includes 3 x Attachments )

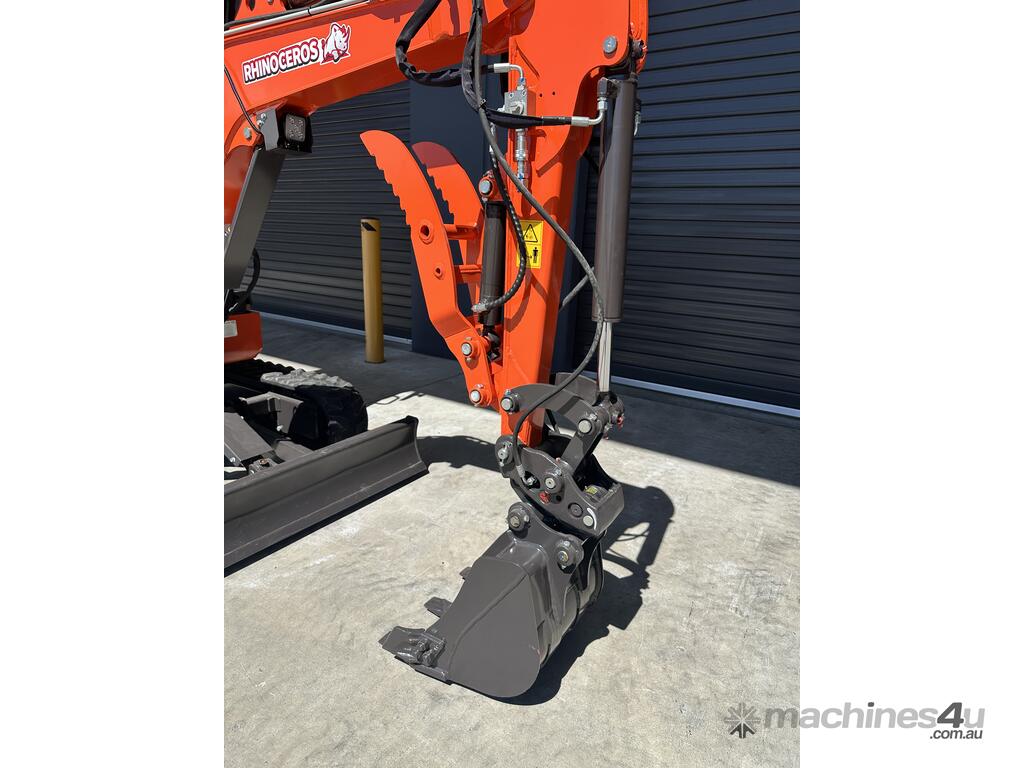

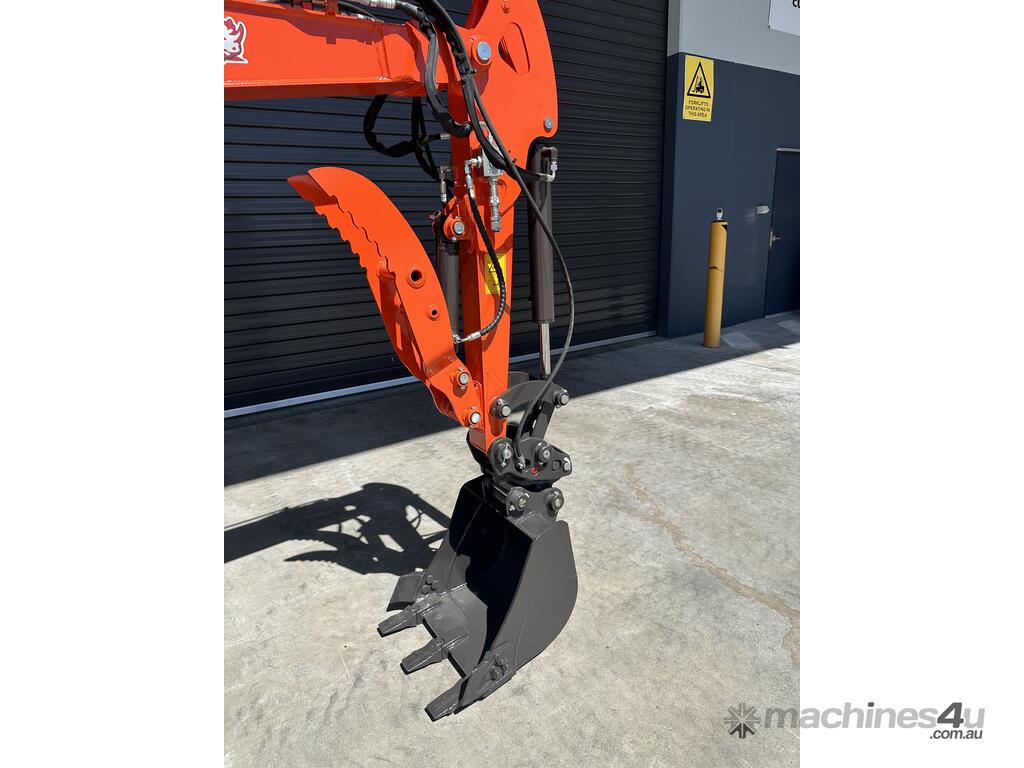

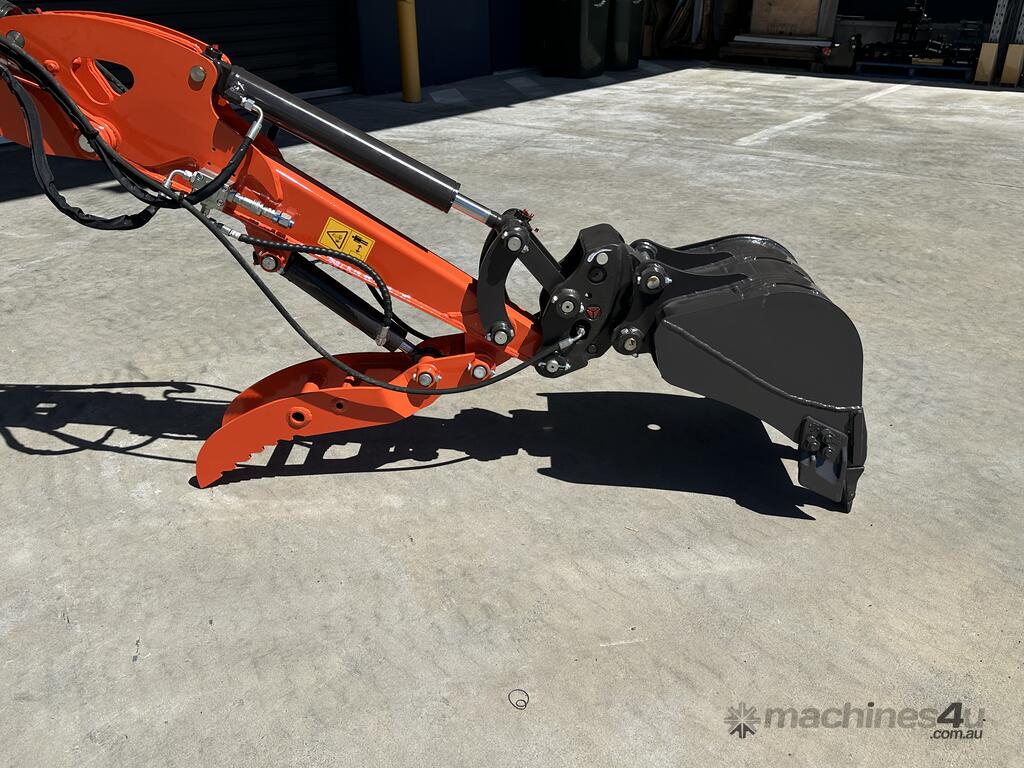

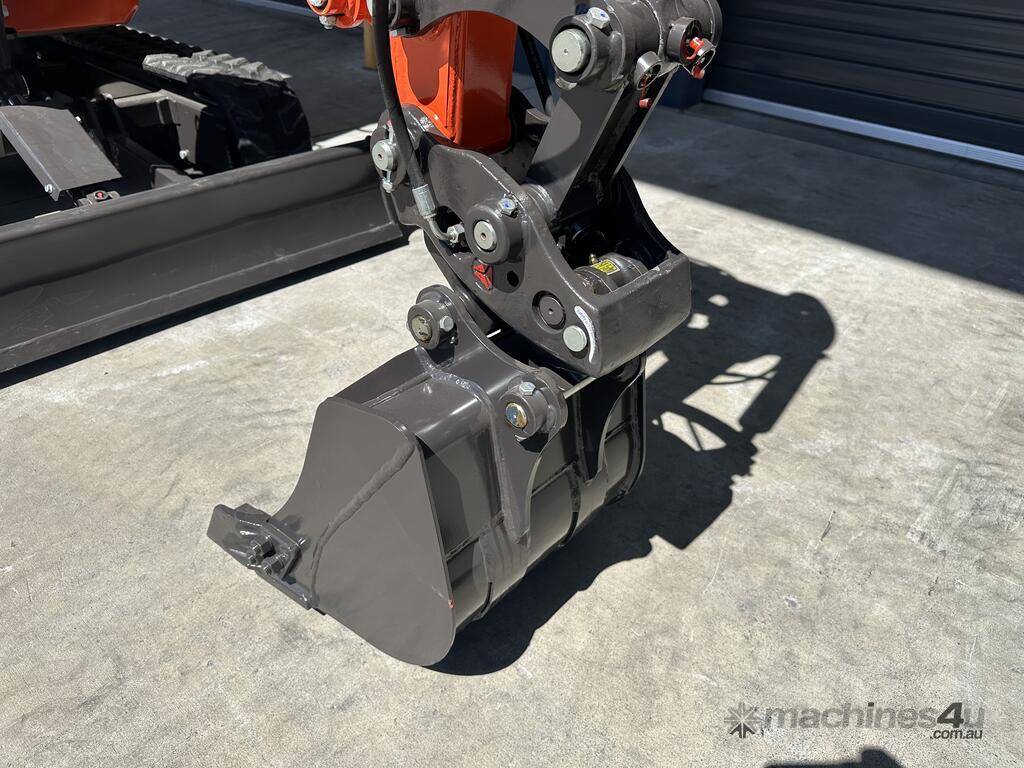

400MM BUCKET, HYDRAULIC THUMB GRAB, HYDRAULIC QUICK HITCH

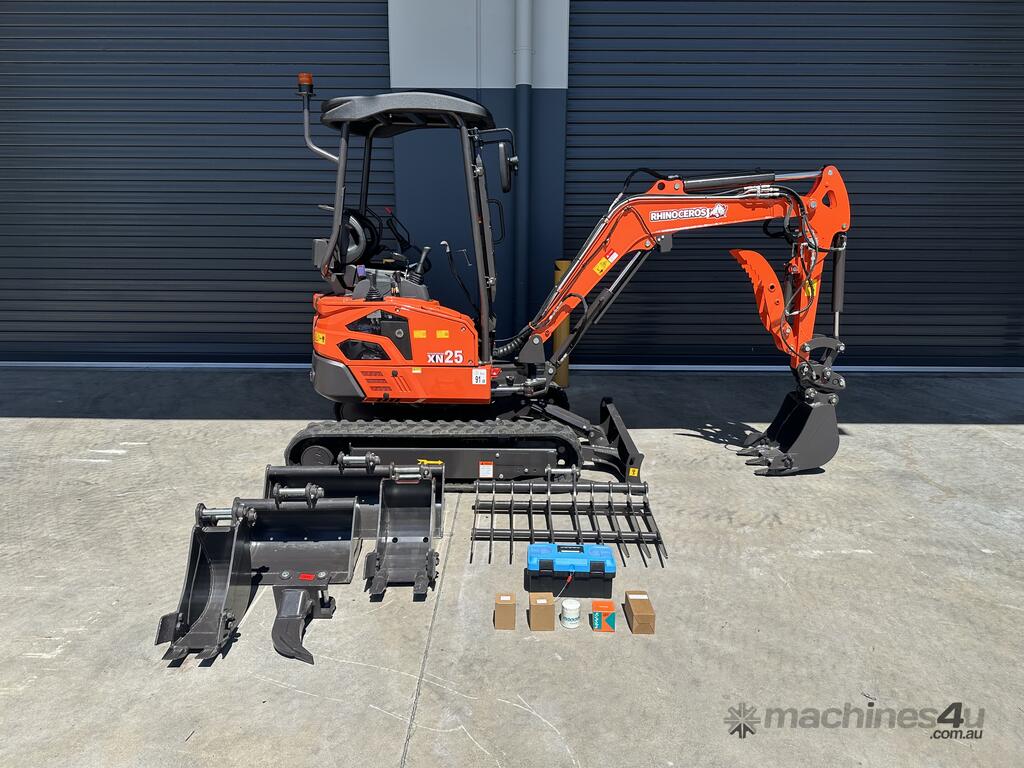

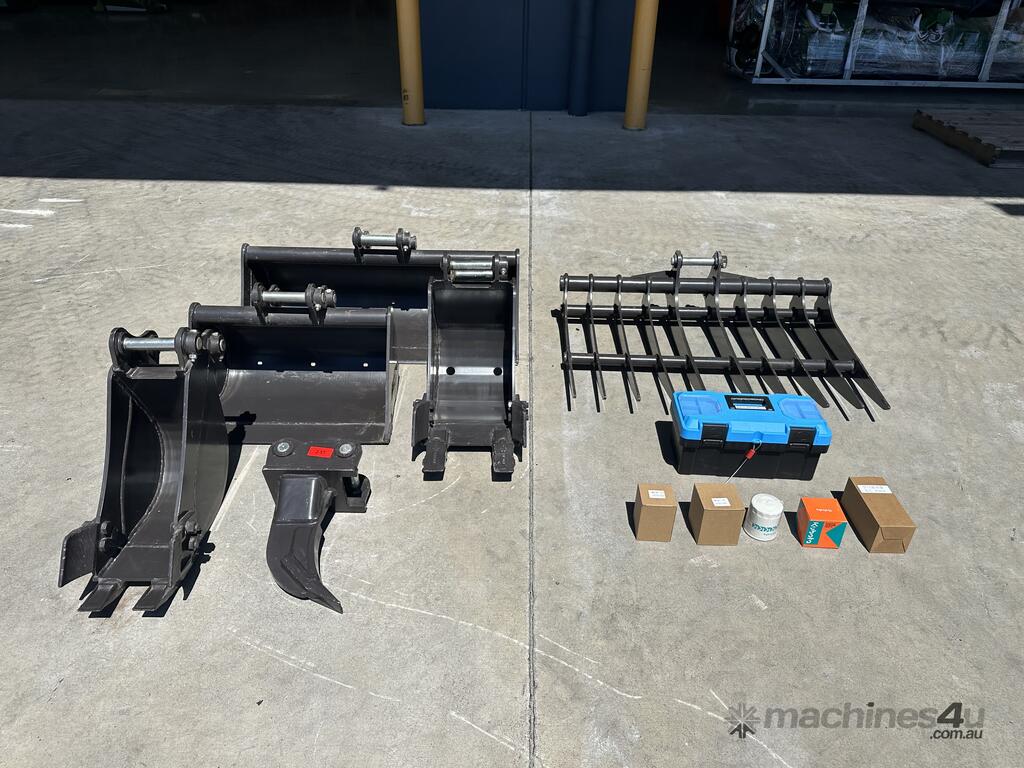

$33,990.00 inc gst Package Deal ( includes 9 x Attachments ) ----- SAVE $5210 !!!
200MM, 300MM, 400MM, 600MM & 1000MM BUCKETS, RIPPER, 1000MM STICK RAKE, HYDRAULIC THUMB GRAB, HYDRAULIC QUICK HITCH.
The Rhinoceros XN25 Mini Excavator delivers the perfect balance of power, performance and compact versatility for contractors, landscapers, builders, farmers and acreage owners.

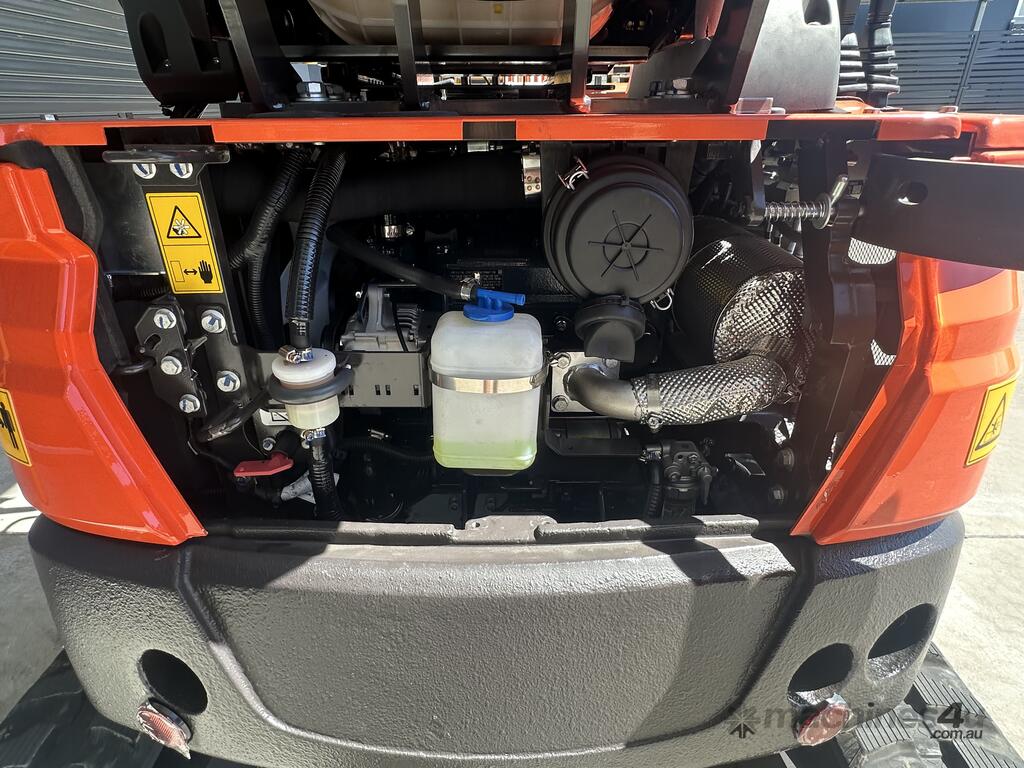

Powered by the legendary Kubota D1105 3-cylinder diesel engine, the XN25 provides outstanding digging power, fuel efficiency and reliability while remaining compact enough to access tight job sites.
Whether you're digging trenches, preparing foundations, landscaping, installing services or maintaining rural properties, the XN25 is built to perform.
Why Choose the Rhinoceros XN25?

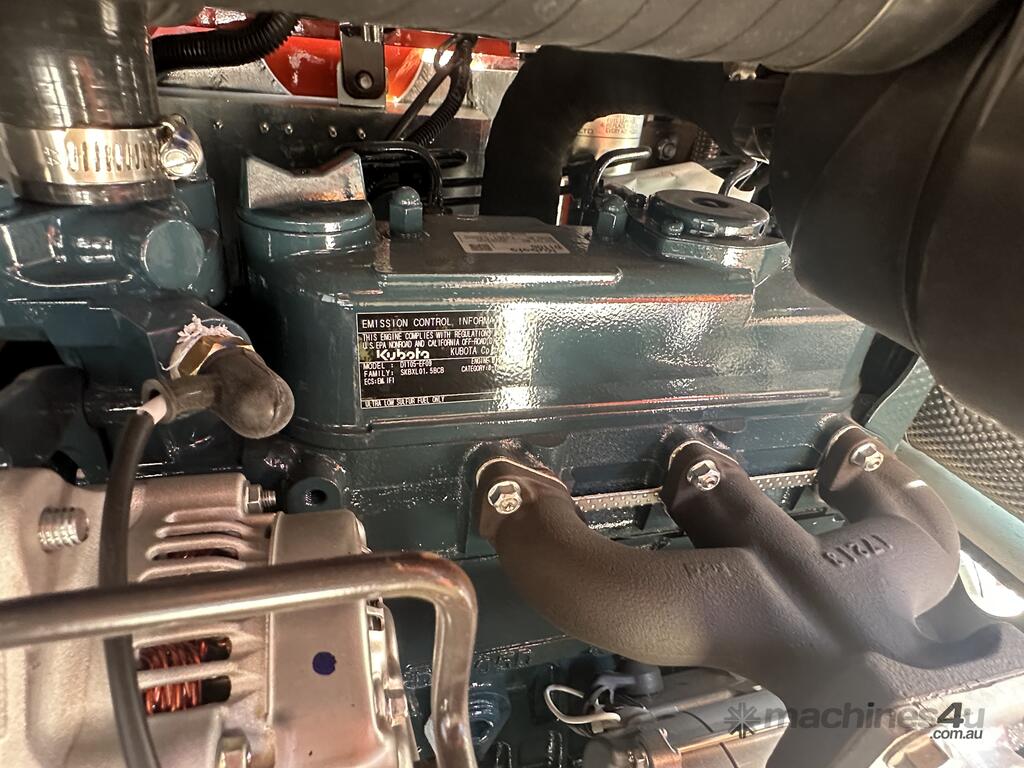

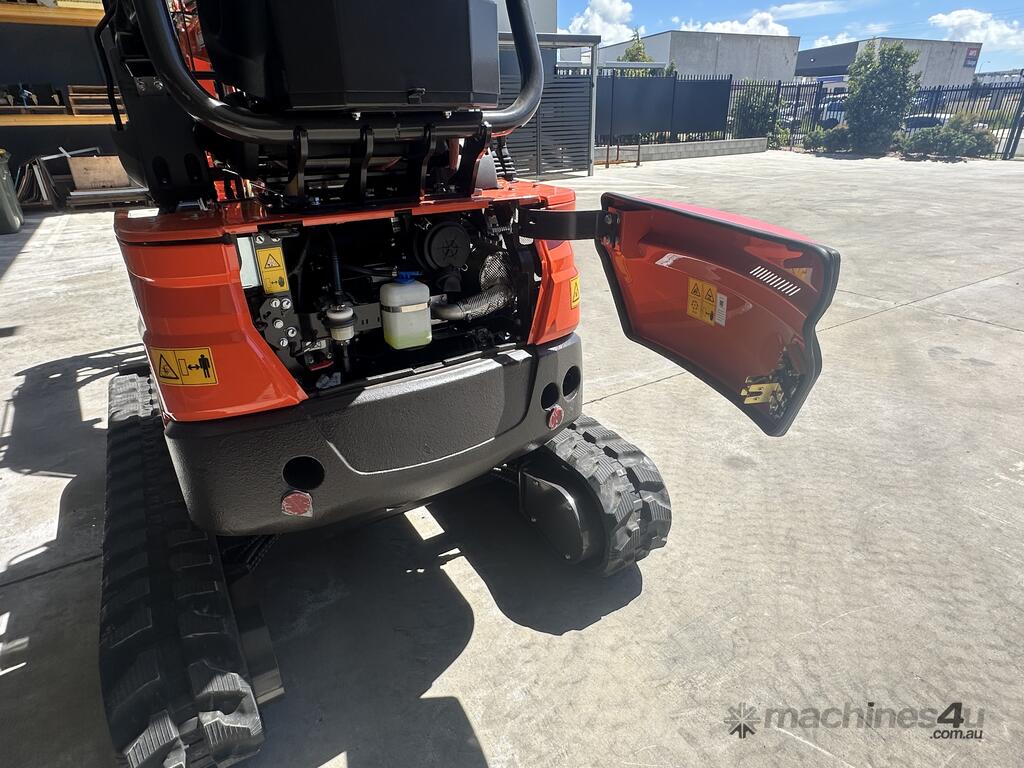

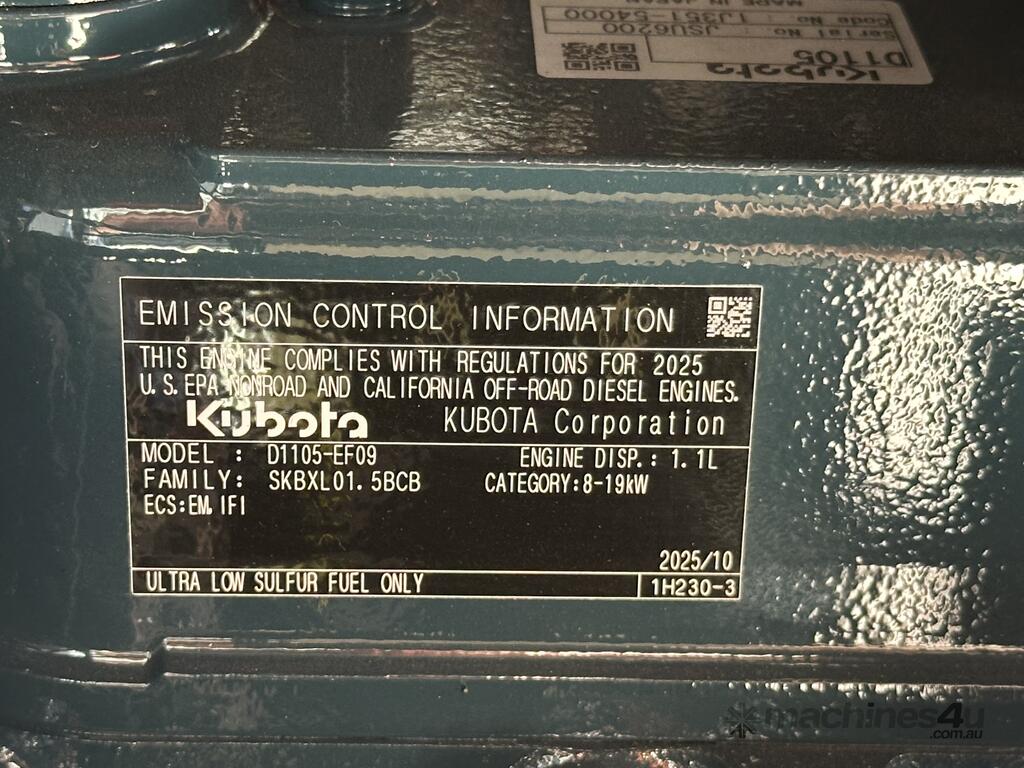

Genuine Kubota D1105 Diesel Engine
The XN25 is powered by the world-renowned Kubota D1105 engine delivering:
? 25HP Power
? Exceptional Fuel Efficiency
? Low Emissions (EPA Final Tier 4)
? Easy Servicing
? Proven Reliability
? Excellent Parts Availability

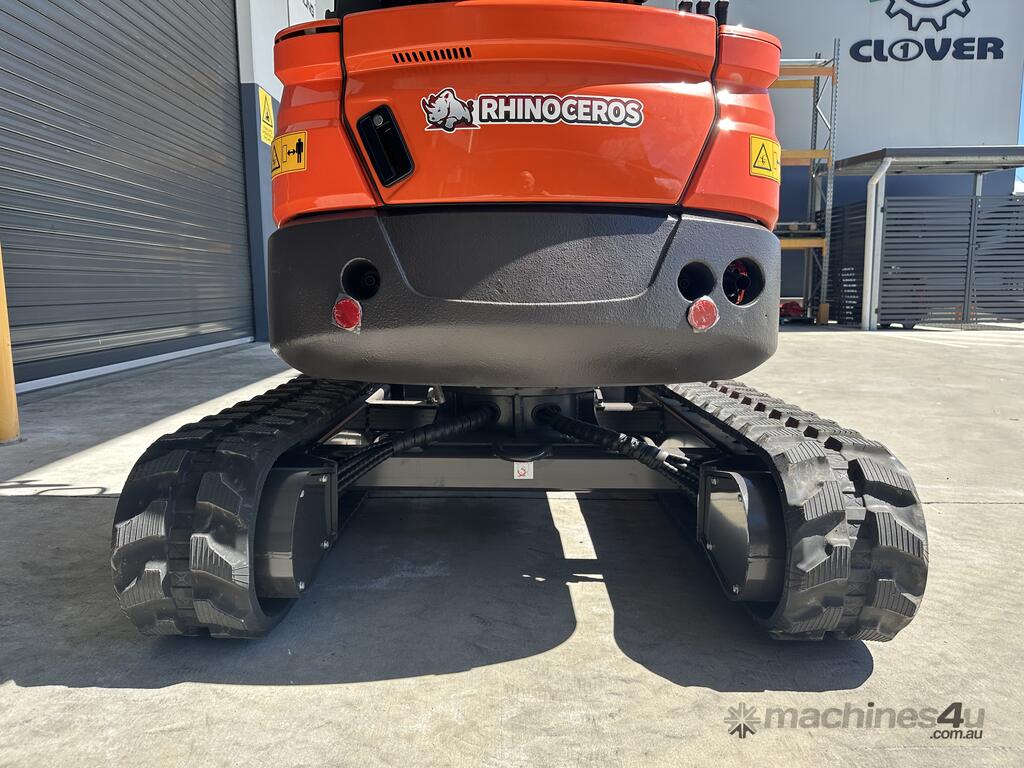

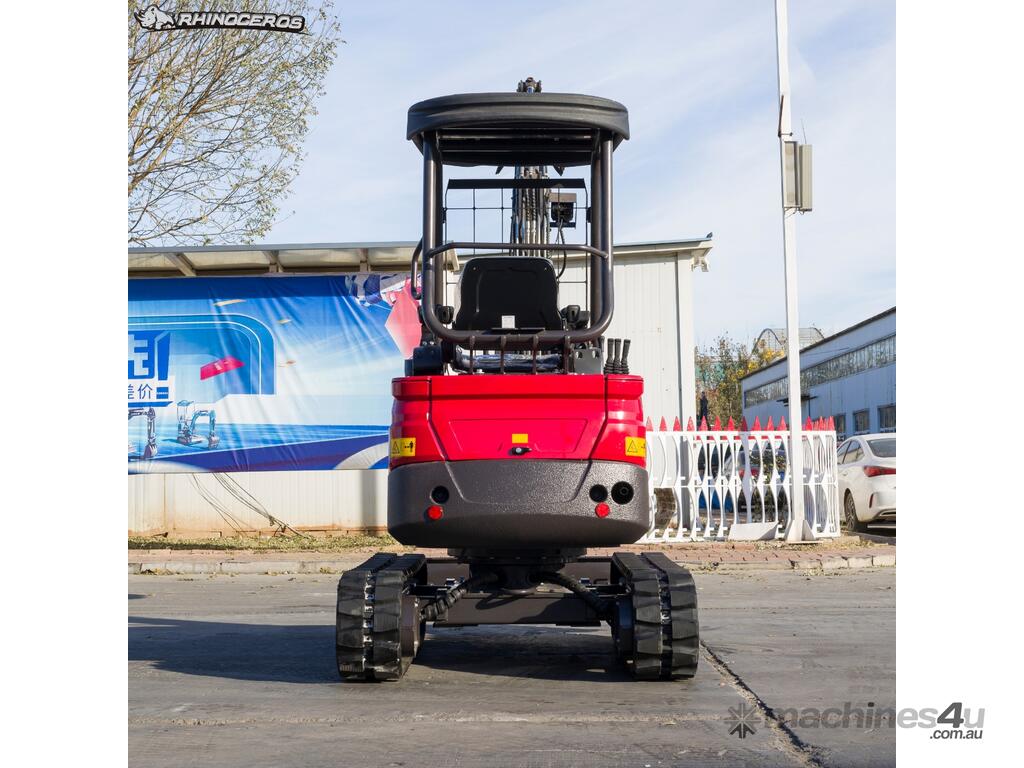

Adjustable Expanding Tracks
The Rhinoceros XN25 features hydraulically adjustable tracks, allowing the machine width to expand from 1200mm to 1450mm.
Benefits of Adjustable Tracks
? Increased Stability When Digging
? Improved Lifting Performance
? Greater Confidence on Uneven Terrain
? Easy Access Through Narrow Gates
? Improved Transport Flexibility
? Better Performance on Slopes
When working in confined areas, the tracks can be retracted to 1200mm wide for easy access through gates and narrow passages.
For excavation work, the tracks can be expanded to 1450mm, providing a wider footprint and significantly improving machine stability and operator confidence.
This feature makes the XN25 an ideal choice for:
? Residential Construction
? Landscaping
? Acreage Properties
? Farm Maintenance
? Tight Access Projects
? Sloping Terrain
Advanced Hydraulic System
The XN25 features a powerful hydraulic system providing:
? 61.6L/min Pump Flow
? 22 MPa Operating Pressure
? Smooth Operation
? Fast Cycle Times
? Precise Control
The result is outstanding productivity and operator confidence.
SPECIFICATION:
Model : XN25
Manufacturer : SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
Brand RHINOCEROS
Operating Weight : 2500kg
Engine : Kubota D1105
Emissions Regulation : EPA Final Tier 4
Max Rated power : 25hp/3000rpm
Displacement : 1.123L
Bore stroke : 78mm x 78.4mm
Working Pump flow : 61.6L/Min
Operating Pressure : 22Mpa
Max. Travel Speed : 2.2/3.3km/h
Swing Speed : 10.5rpm
Fuel tank capacity : 22L
Hydraulic oil tank capacity : 16.3L
Max. Grade Ability : 30 Degree
MAIN DIMENSIONS
Overall Height : 2585mm
Wheel Base : 1440mm
Transport Length : 3918mm
Total length of track : 1892mm
Platform ground clearance : 545mm
Platform back turning radius : 885mm
Standard rubber track width : 1130mm
Chassis width :1454mm
Adjustable Tracks: 1200mm - 1450mm
Rubber Track only width : 250mm
Track height : 455mm
Chassis ground clearance : 460mm
Platform Ground Clearance : 545mm
Platform Back Turning Radius : 885mm
OPERATING RANGE
Max. Digging depth : 2396mm
Max. Vertical digging depth : 2093mm
Max. Digging height : 4153mm
Max. Dumping height : 2909mm
Max. Digging radius on ground : 4168 mm
Min. Rotation radius : 1857mm
Max. Upgrade height of bulldozer blade : 257mm
Max. Digging depth of bulldozer blade : 413mm

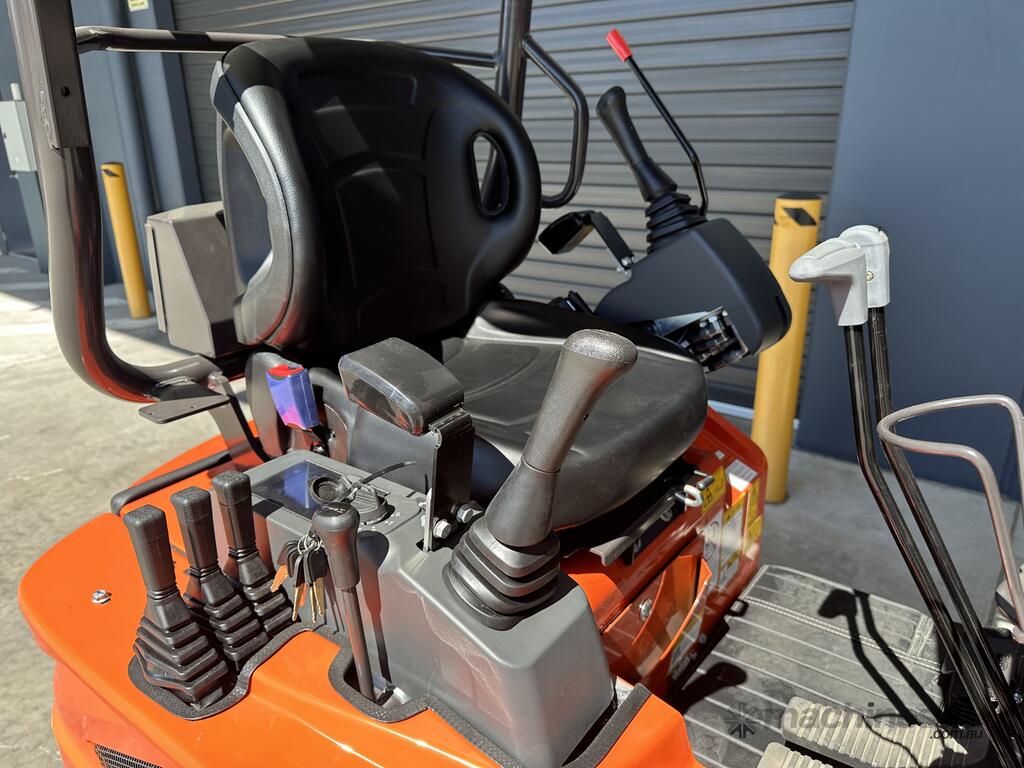

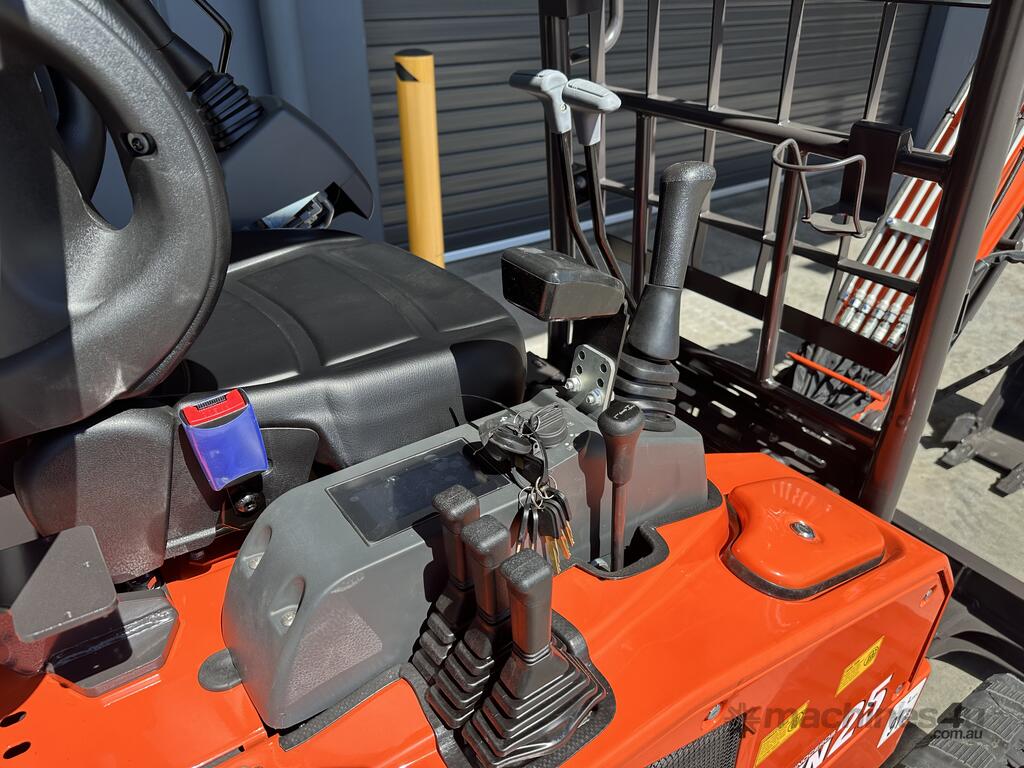

Pilot Controls Standard
Professional pilot controls provide:
? Smooth Operation
? Reduced Operator Fatigue
? Precise Machine Control
? Improved Productivity
? Greater Comfort
Ideal for both experienced operators and first-time users.
Swing Boom Advantage
The standard swing boom allows operators to work efficiently around:
? Buildings
? Fence Lines
? Foundations
? Obstacles
? Narrow Access Areas
Improving versatility while reducing machine repositioning.
Built for Operator Safety
The Rhinoceros XN25 has been designed with safety in mind.
Safety Features
? Reinforced 4-Post ROPS Canopy
? Front Protective Debris Screen
? Heavy Counterweight for Improved Stability

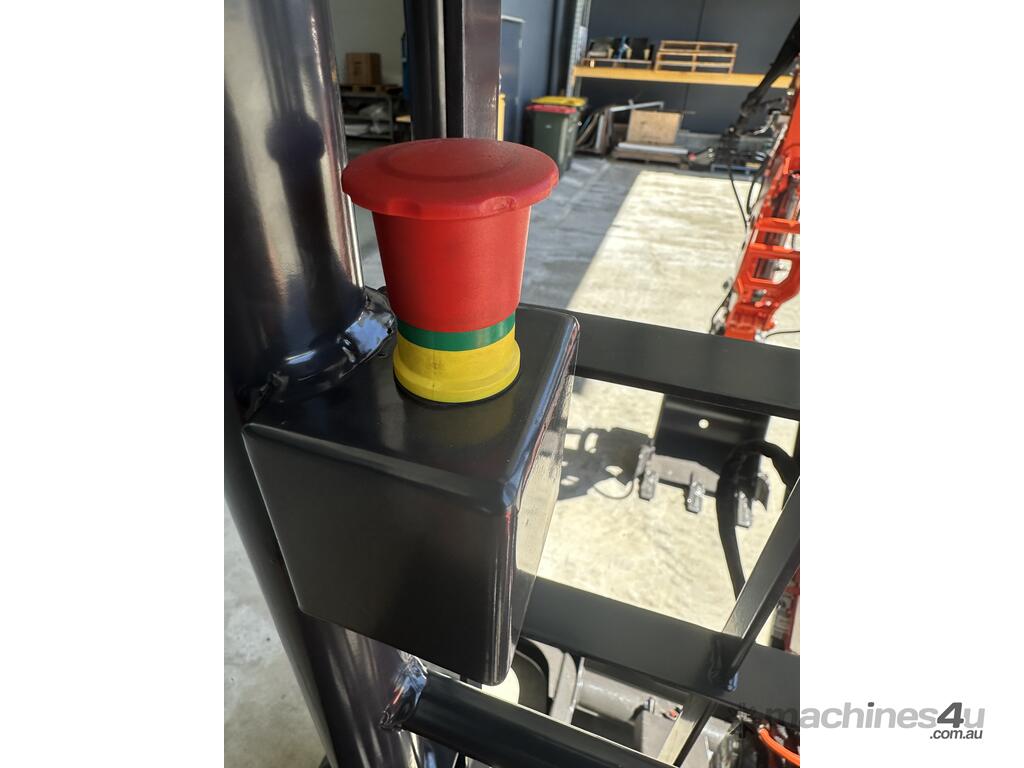

? Safety Lock System
? Secure Hydraulic Controls
? CE Certified
? EPA Certified
The heavy-duty ROPS canopy provides crucial operator protection while the front guard helps shield against flying debris.

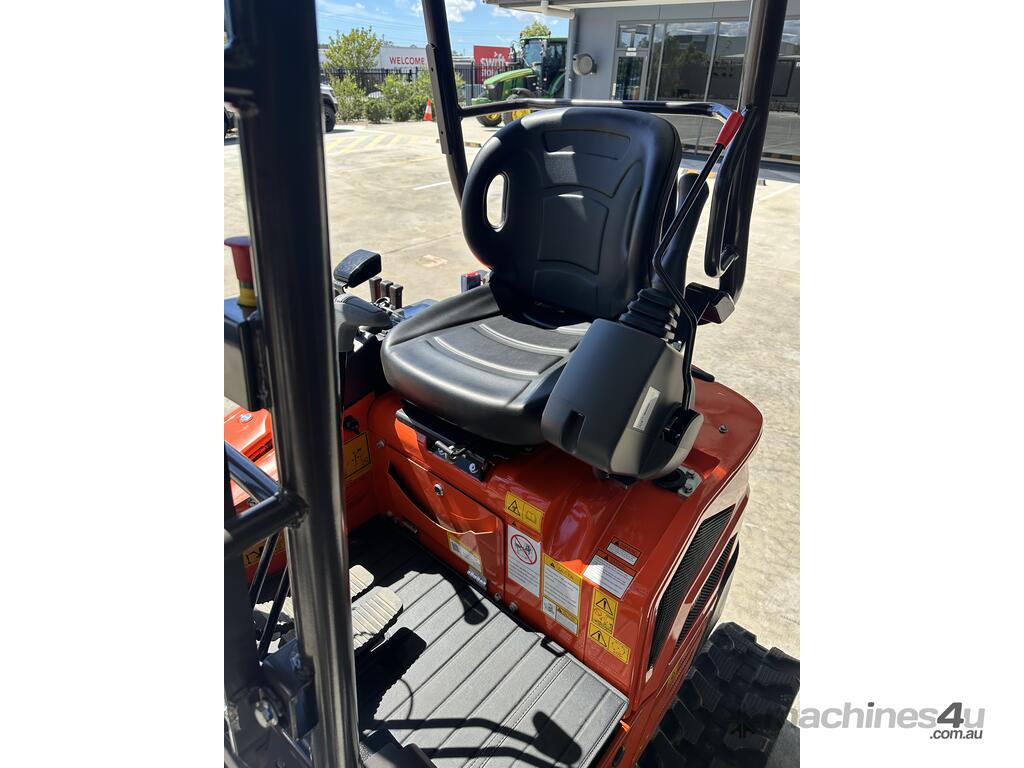

Operator Comfort Matters
The XN25 is designed for all-day operation.

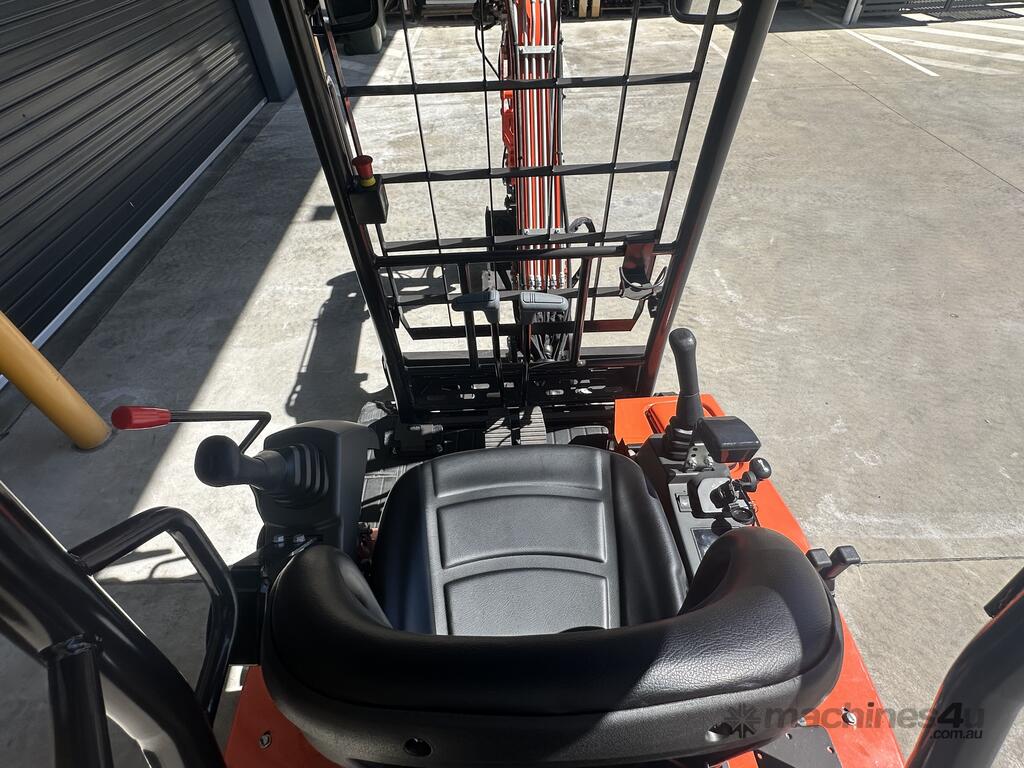

Comfort Features

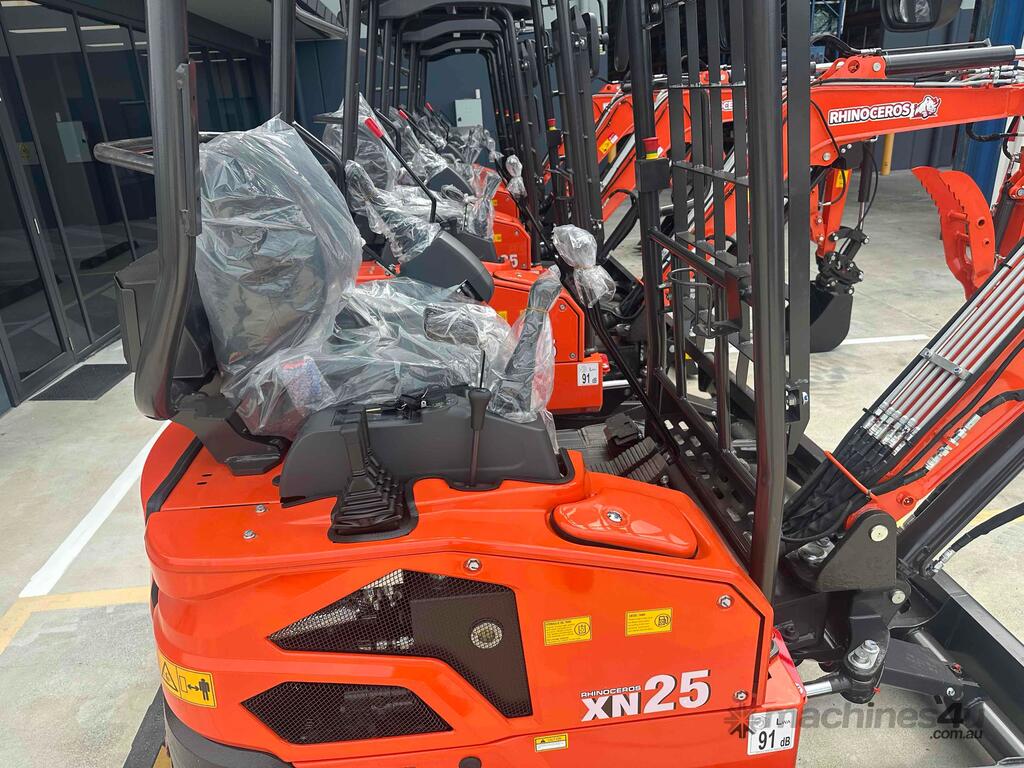

? Ergonomic Suspension Seat
? Adjustable Seating Position
? Spacious Operator Platform
? Low Vibration Design
? Reduced Noise Levels
? Easy Access Controls
? Excellent Visibility
The result is less fatigue and improved productivity throughout the workday.
Compact Yet Powerful
Transport Dimensions
SpecificationMeasurementTransport Length3918mmOverall Height2585mmChassis Width1454mmTrack Width250mmWheelbase1440mm
Compact enough for easy transport while offering the performance of a much larger machine.

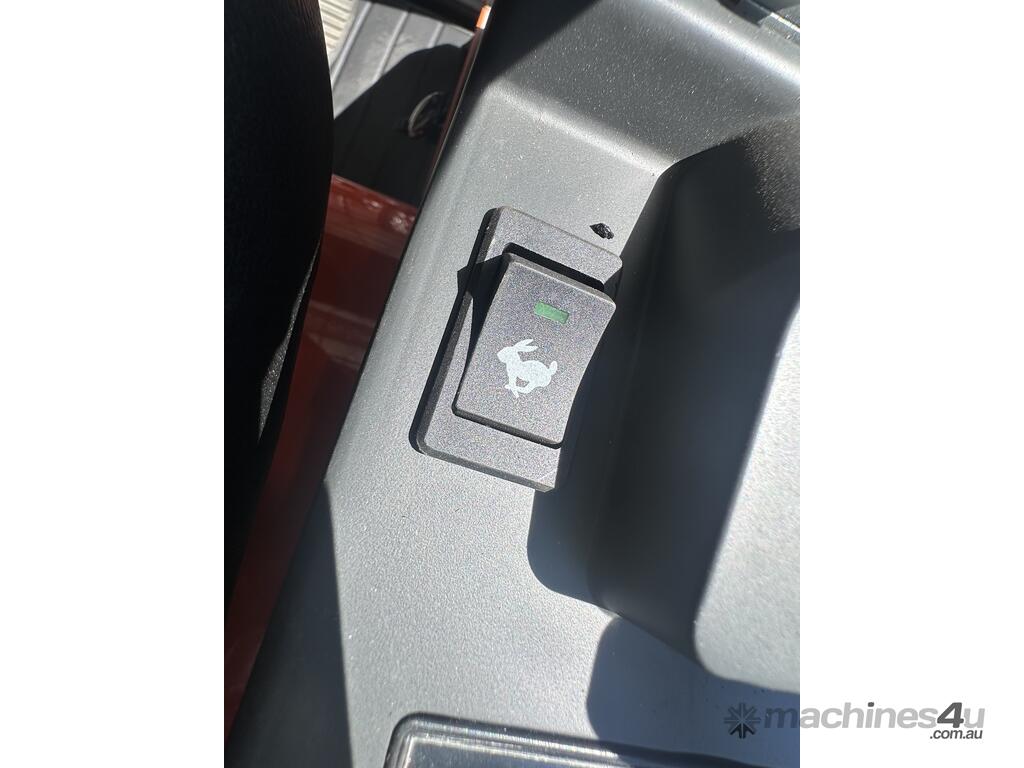

Travel Performance
? Dual Speed Travel
? 2.2km/h Low Range
? 3.3km/h High Range
? Excellent Stability
Perfect for challenging terrain and rural applications.
Standard Features
? Kubota D1105 Diesel Engine
? Pilot Controls
? Swing Boom

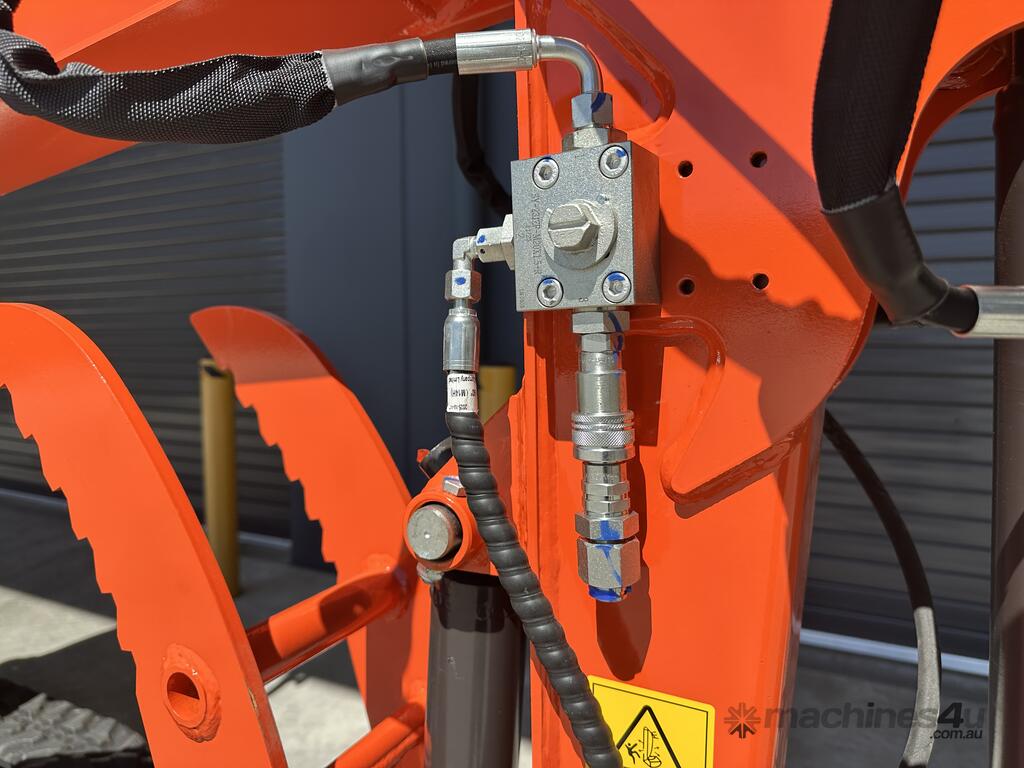

? Auxiliary Hydraulics
? Dozer Blade
? Rubber Tracks

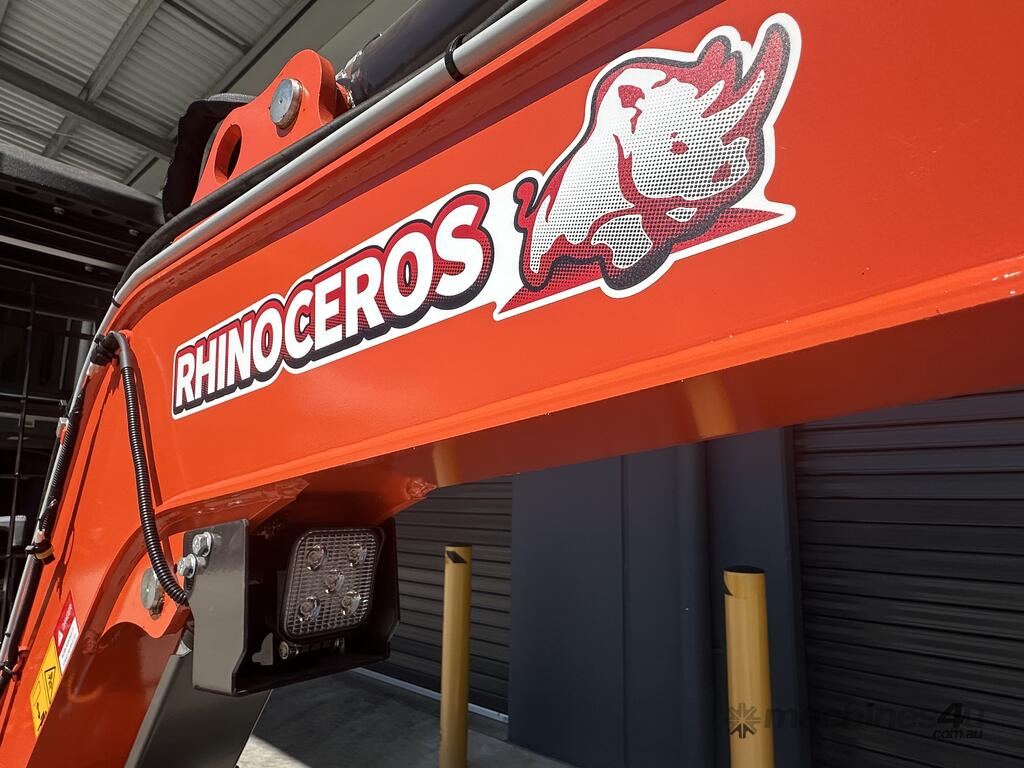

? Work Lights
? Safety Lock System
? Adjustable Seat
? Heavy Counterweight
? ROPS Canopy
Why Buy a Rhinoceros XN25?
The XN25 delivers premium features and performance at a fraction of the cost of many well-known brands.
Save Thousands Without Compromise
Why pay significantly more for a major brand when you can get:
? Genuine Kubota Power
? Pilot Controls
? Swing Boom
? Excellent Digging Performance
? Proven Reliability
? Australian Parts Support
? Outstanding Value for Money
Why Buy From Bestpriceme?
Bestpriceme has supplied machinery throughout Australia for over 8 years.
When you purchase from us, you receive:
? Australian Spare Parts Support
? Technical Assistance
? Australia-Wide Delivery
? Finance Available
? Genuine After-Sales Support
? Competitive Pricing
