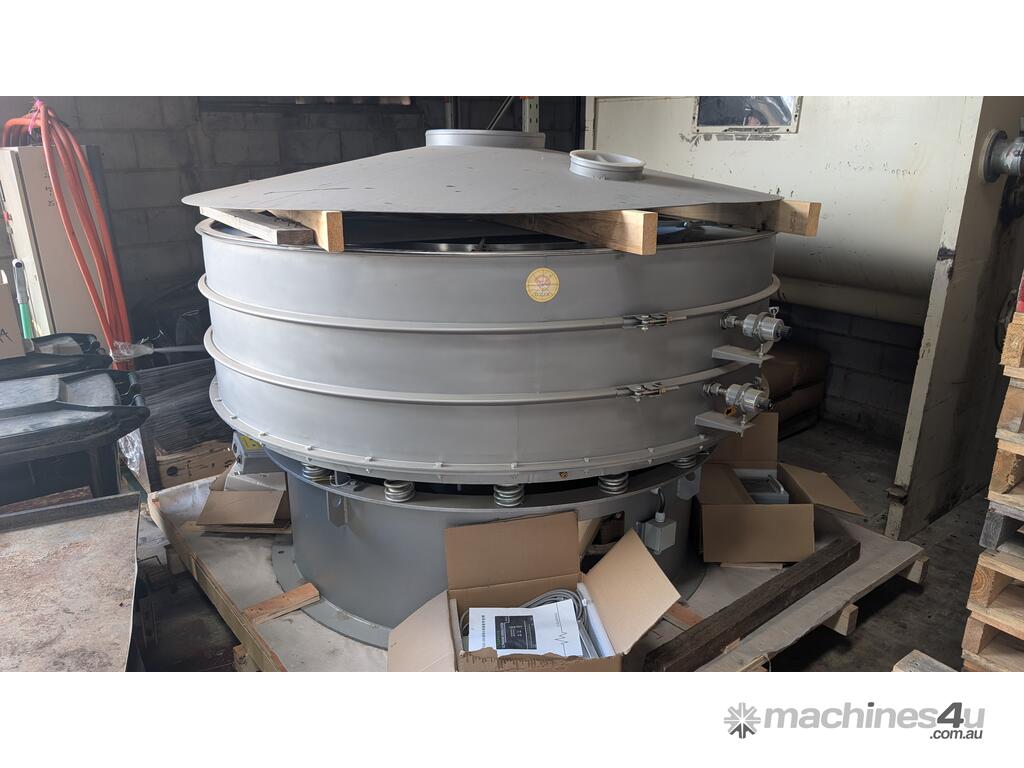

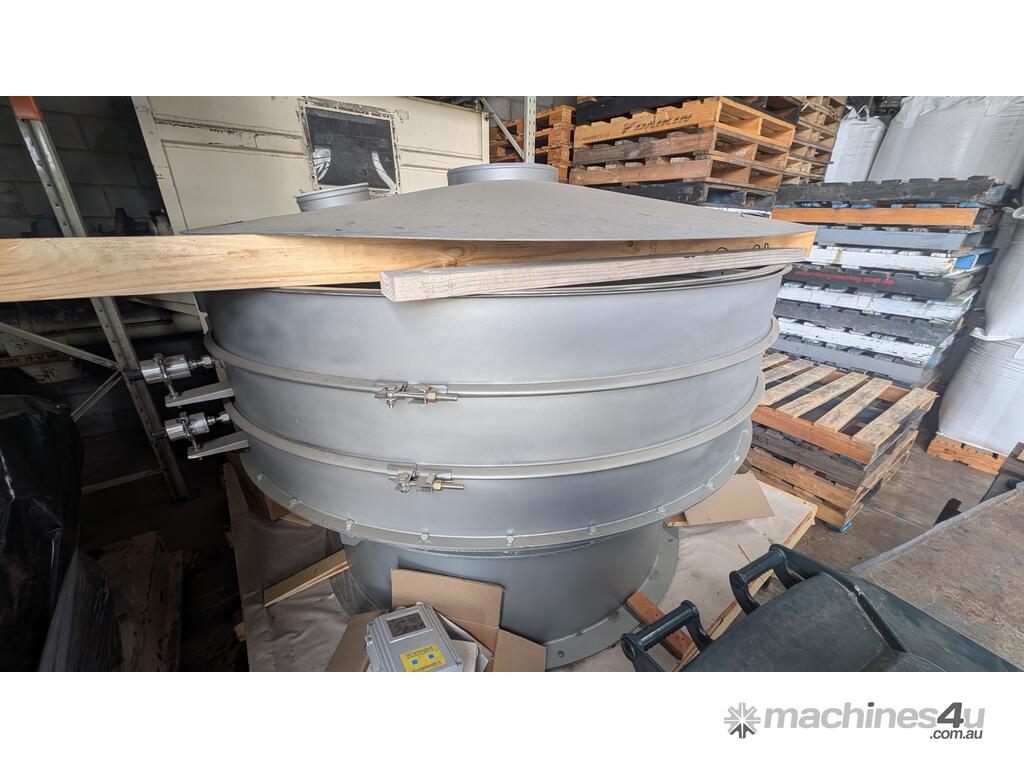

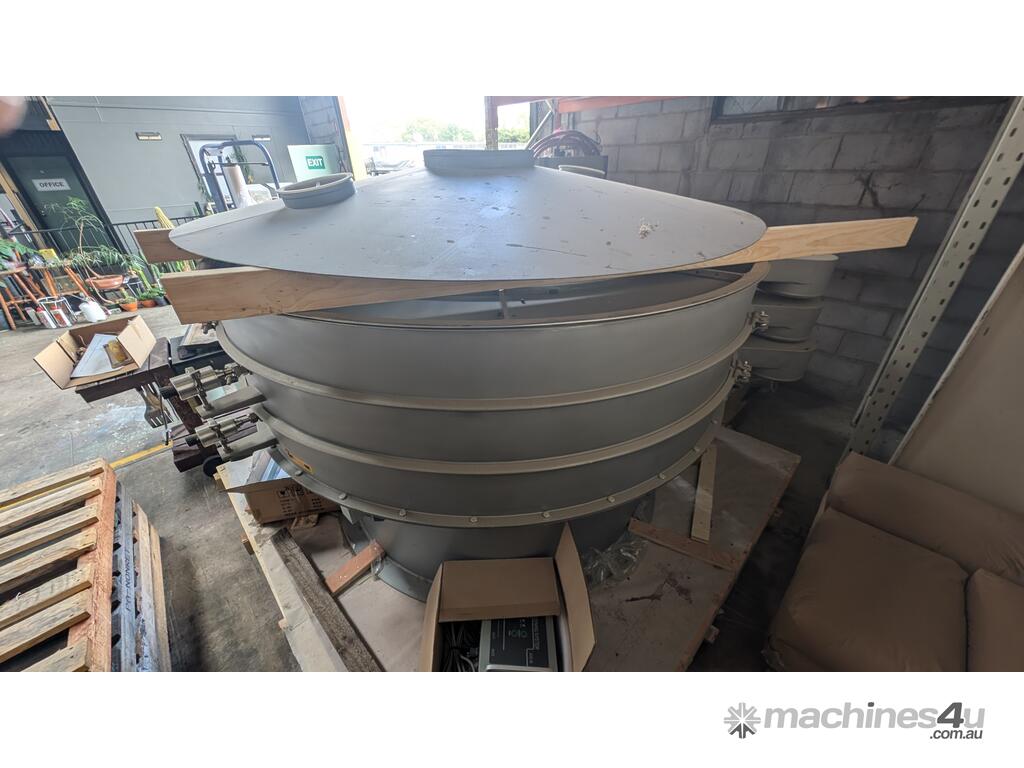

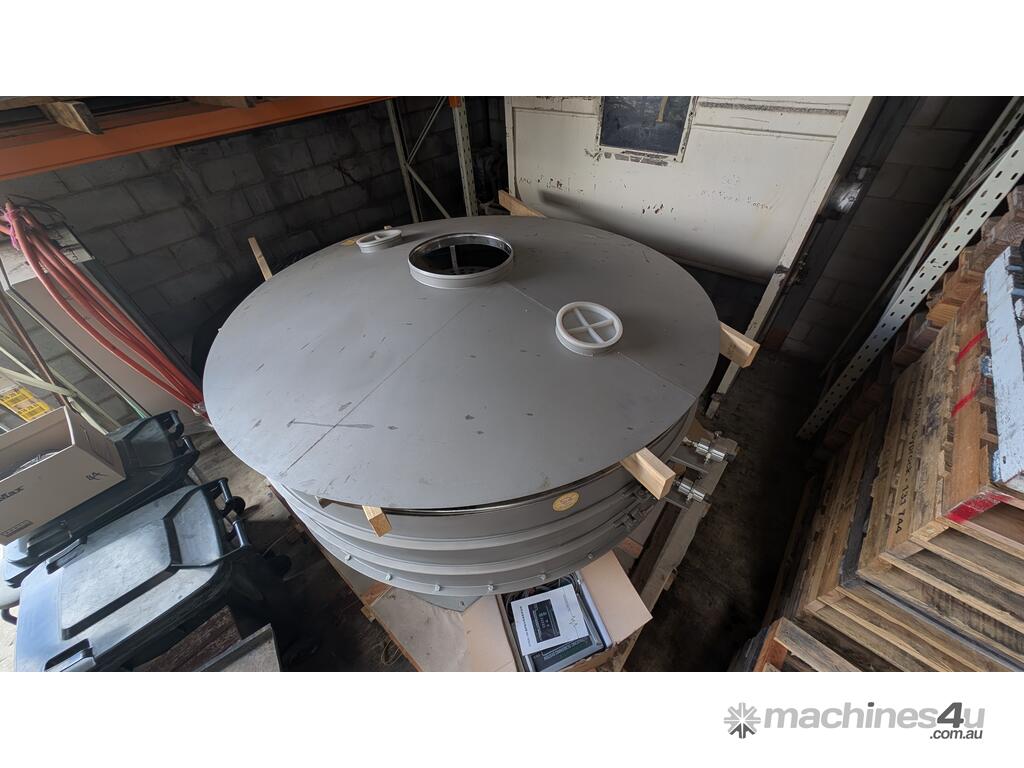

Brand new, 2m diameter Ultrasonic Vibrating Screen (DZJX S4920-B) complete with GTS30 ultrasonic screening system.
This unit has never been commissioned and is available immediately in Australia - no import delays or additional costs.
Designed for high-efficiency fine screening and classification, particularly where conventional vibrating screens struggle with mesh blinding.
Applications:
- Mineral processing (fine classification / desliming)
- Gold and base metal concentrates
- Laboratory and pilot plant work
- Fine powders (chemical / industrial materials)
- Powder handling and separation
Key Features:
- Ultrasonic anti-blinding system (GTS30 generator)
- Multi-deck circular vibrating screen
- Suitable for ultrafine materials
- Improved screening efficiency and accuracy
- Heavy-duty industrial design
- Stainless steel contact components

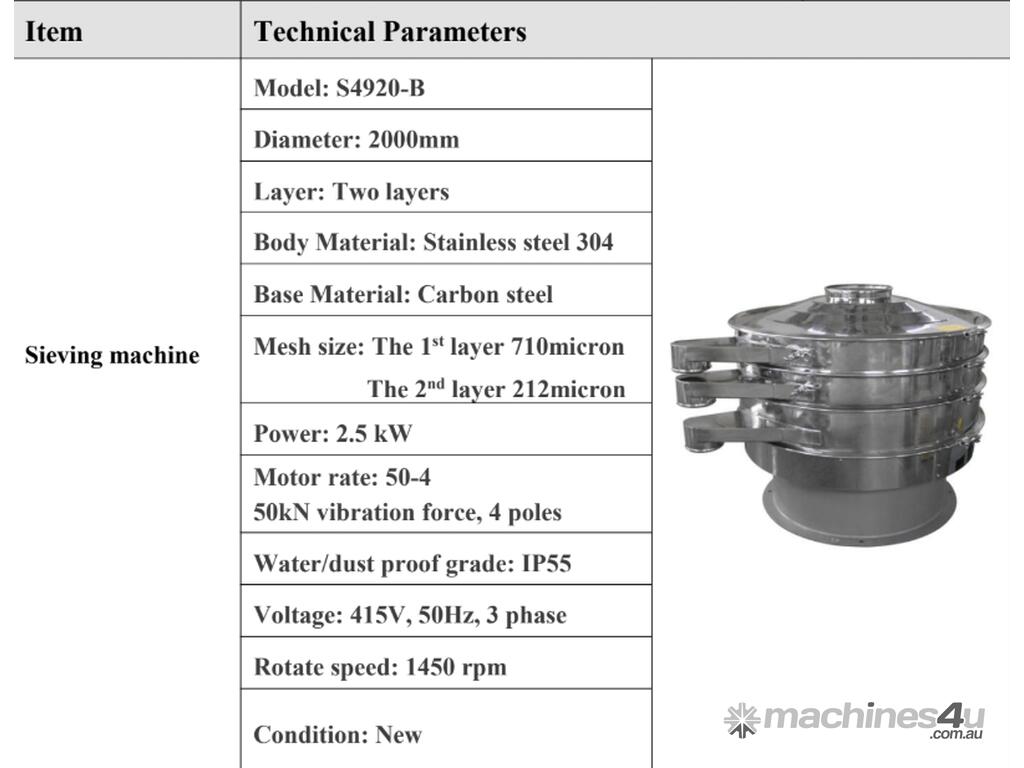

- 50kN vibration force, 4 poles
- Power: 2.5kW
- Motor voltage: 415V, 50Hz, 3 phase
- Rotation speed: 1450 rpm
Included:
- Complete S4920-B vibrating screen unit

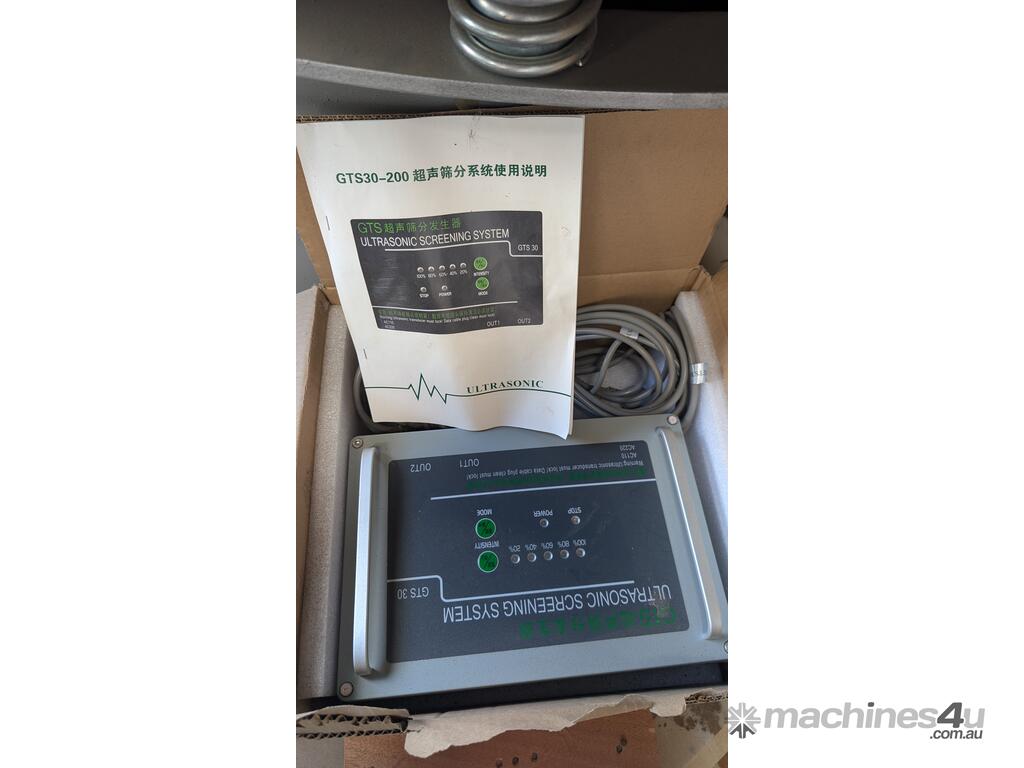

- Ultrasonic generator/control unit (GTS30)
- 190 micron screen
- 212 micron screen
- 710 micron screen

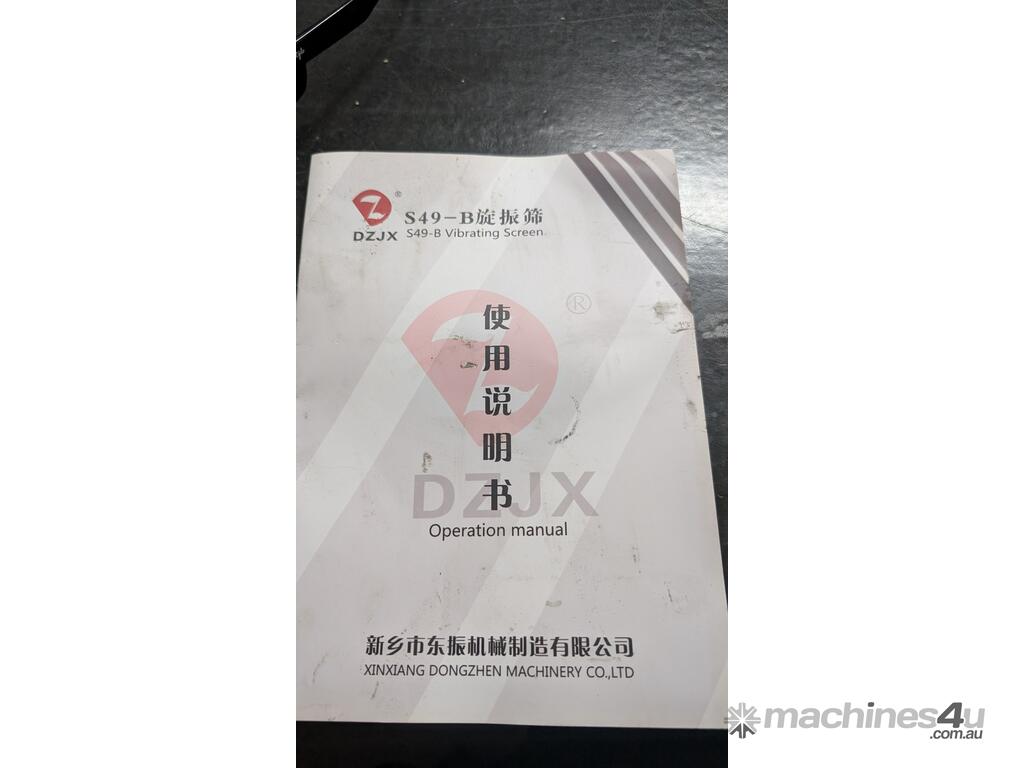

- Original operation manuals
Condition Details:
- Never used
- Stored indoors since delivery
- No wear on decks or internal components
Location:
Goulburn, NSW
Freight / Handling:
- Forklift available onsite
- Can palletise for transport
- Buyer to arrange freight (assistance available)
Inspection:
Inspection available by appointment
Additional Notes:
Immediate availability – no 6–10 week import lead time, will need time to palletise.
Ideal for pilot plants, small processing operations, or lab-scale screening.
Contact:
Message via Machines4U to discuss or arrange inspection
