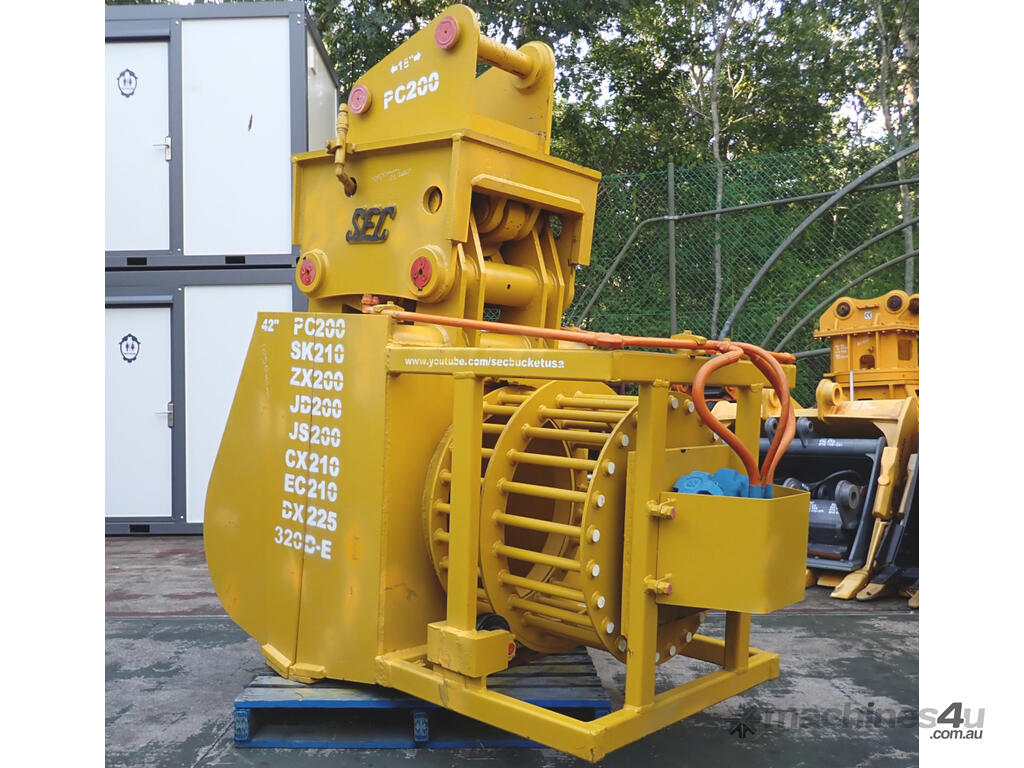

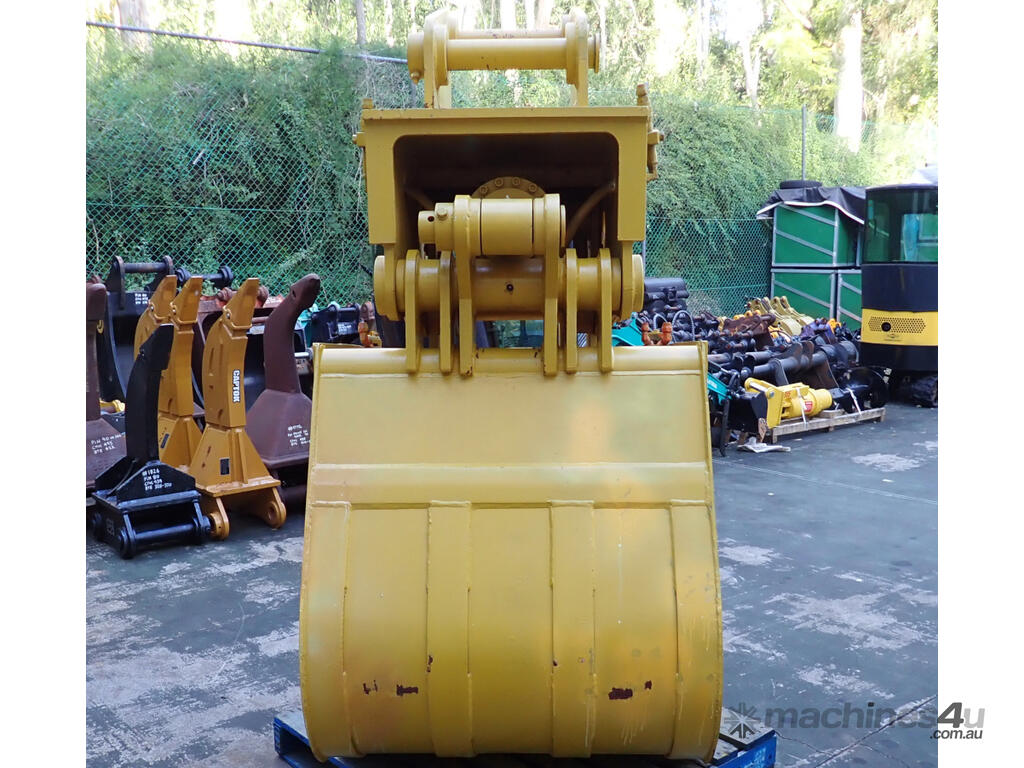

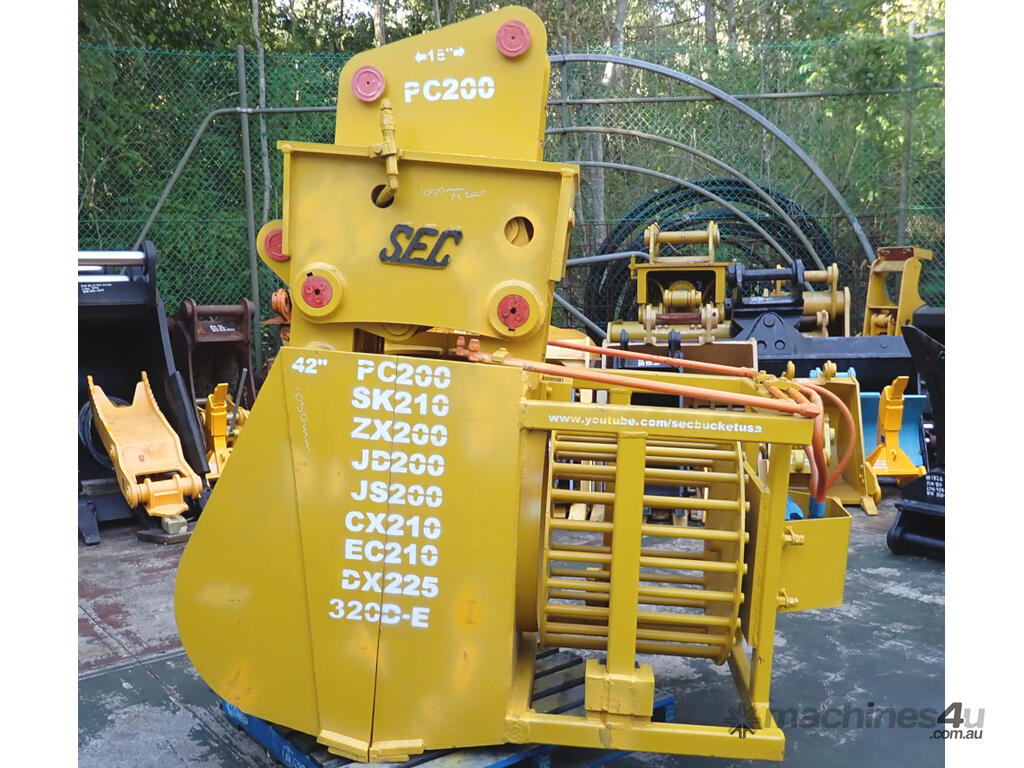

New 15-32 ton (80mm pin) Excavator Hydraulic Rotary Screen Clamshell Grapple Bucket

New 15-32 ton (80mm pin) Excavator Hydraulic Rotary Screen Clamshell Skeleton Sieve Sorting Bucket.

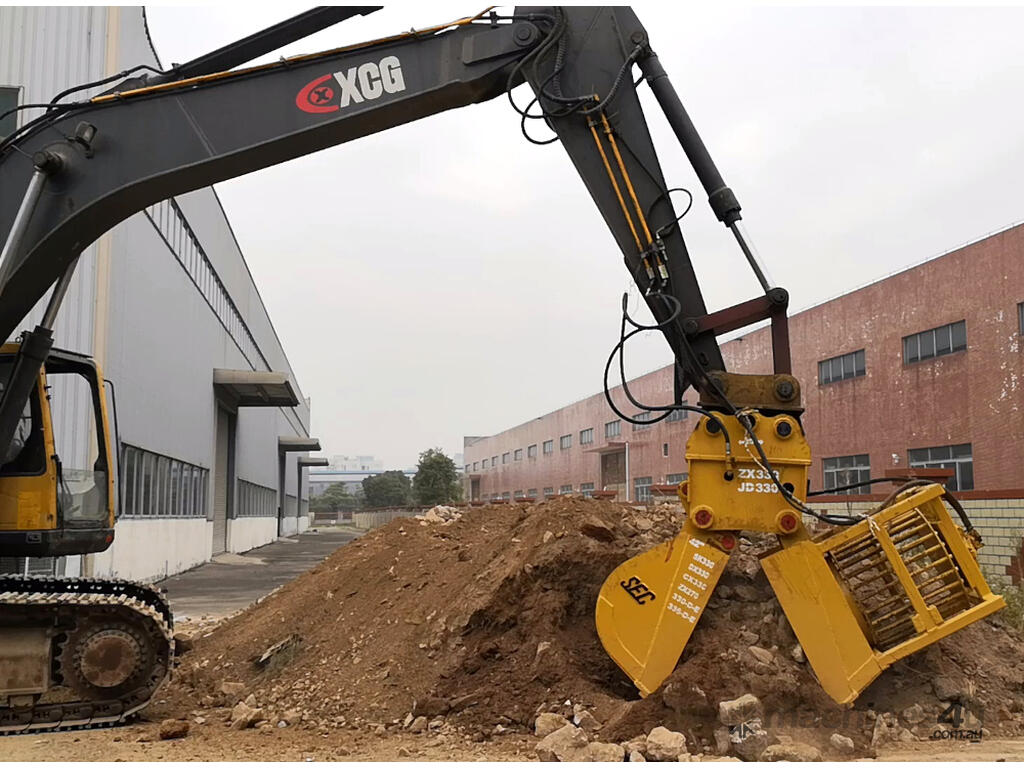

The Rotation Screening Clamshell Bucket is a great multi-functional tool for transporting material & sorting stones and aggregate in one application.

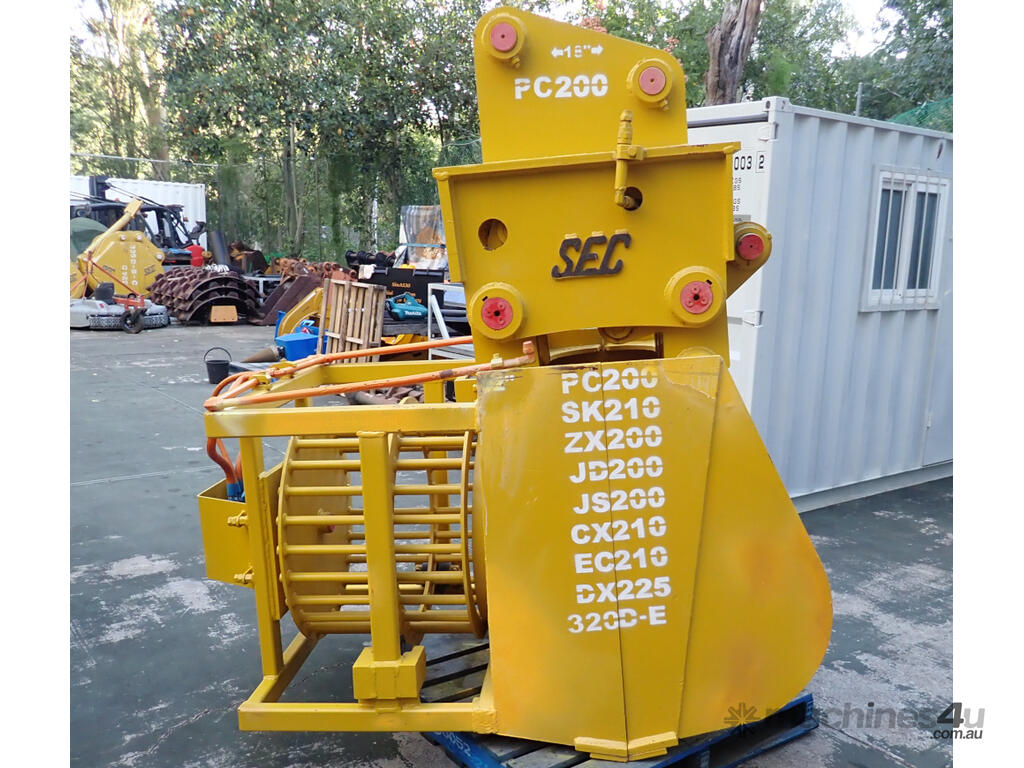

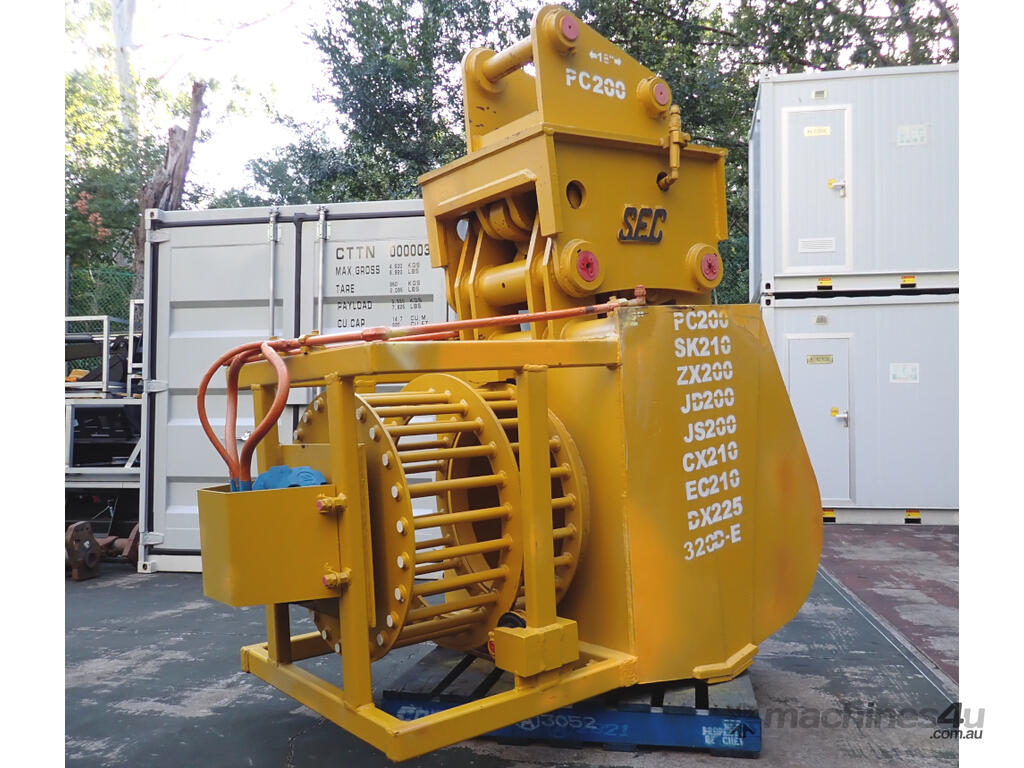

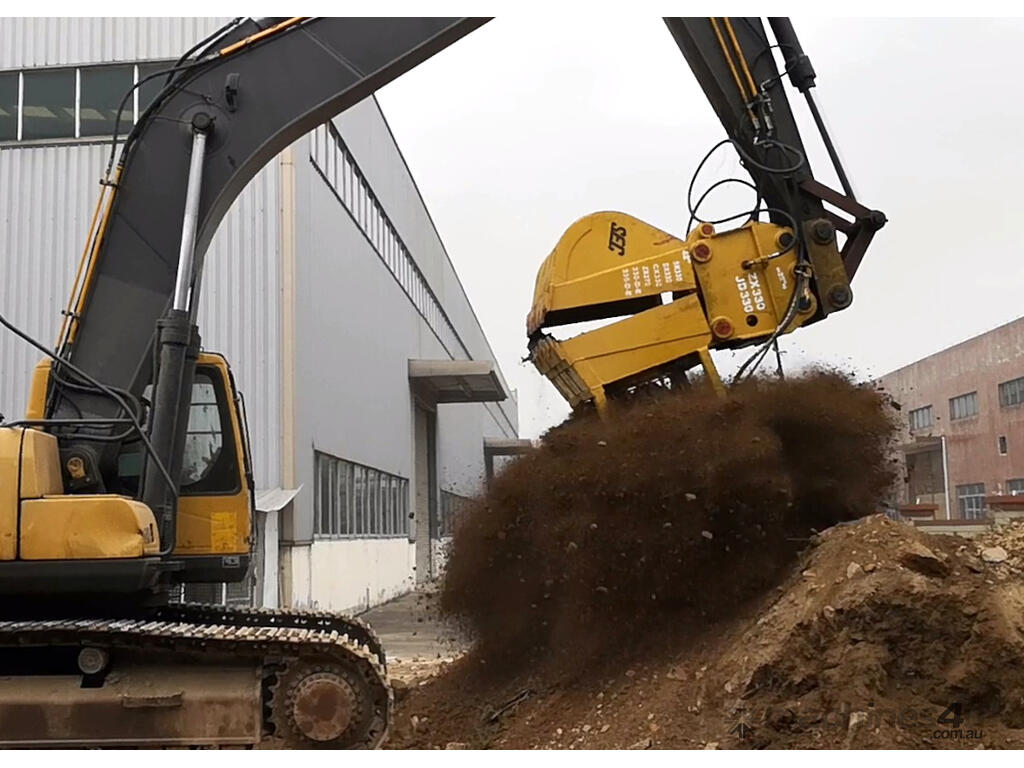

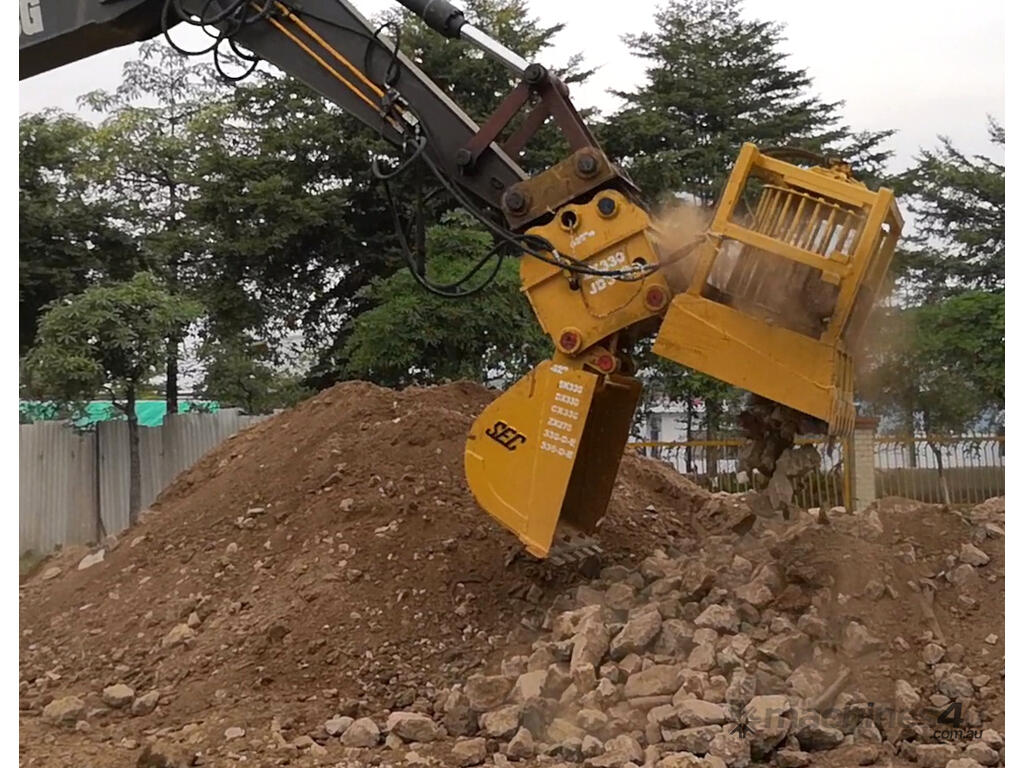

?The rotation screening function sifts out soil from rocks and debris, by spinning the screening drum to make sifting easier, faster and more efficient (see pics# 2-4).

* The Screening Drum is made of 30mm thick solid steel round bar tines.
* The Gap between the round bars is 65mm.
* The length of the 65mm gap is 230mm in the section closest to the bucket, and 330mm long in the section furthest from the bucket.

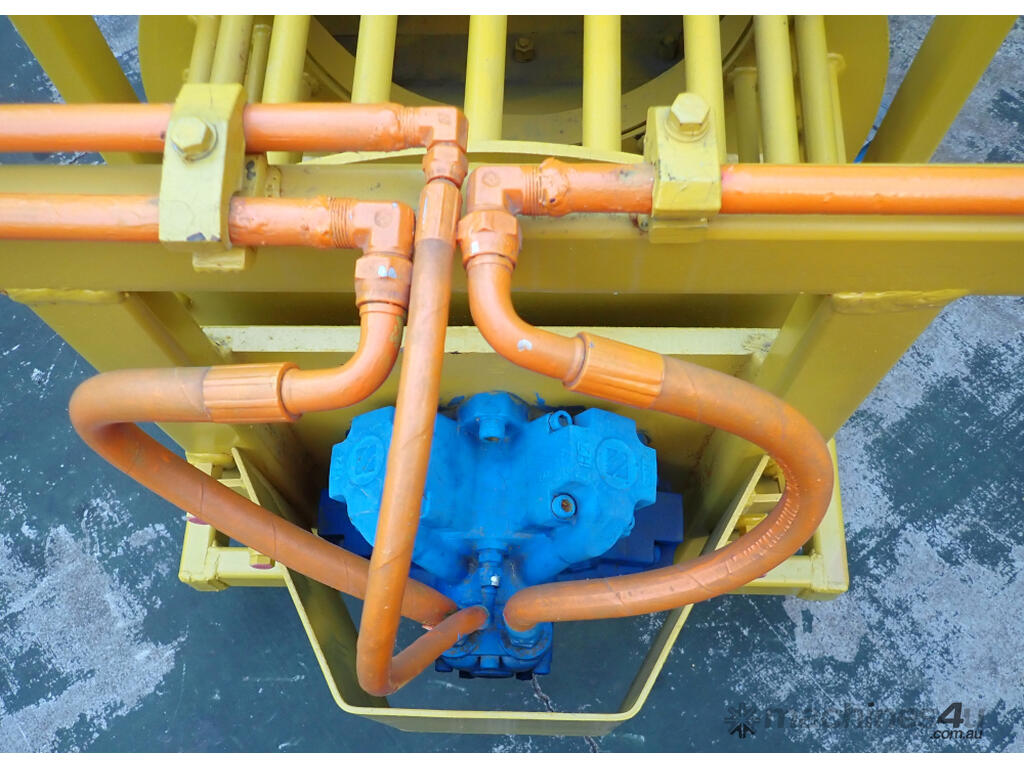

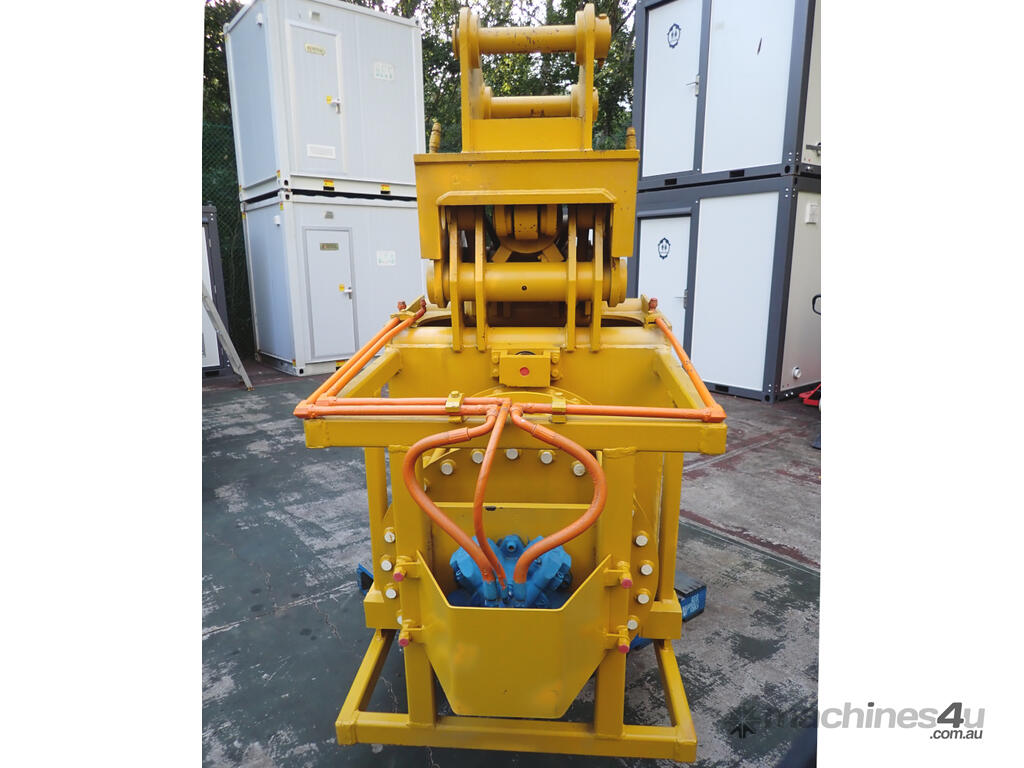

* The Hydraulic Motor that drives the rotating drum has a 3rd Hydraulic Hose for a Case Drain.

A well built & engineered attachment made by the Californian Company: SEC Bucket.
Manufacturer's : (see links in 'View Brochure' above...)

Manufacturer's Page for this Bucket:
(see links in 'View Brochure' above...)

Demo Video of Screening in action:
(see links in 'View Brochure' above...)


*** Current Headstock configuration:
* Pins: 80mm
* Pin Center to Pin Center (CtoC): 458mm
* Between the Ears (BTE): 325mm Between the inside Ear Bosses (which can be shaved back up to 385mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9021, CX210, CX210B, CX225SR, Daewoo Solar 170LC-V, Solar 170W-3, Solar 175LC-V, Solar 200W-3, Solar 200W-V, Solar 220LC-V, Solar 225LC-V, Solar 225NLC-V, Solar 225SLR, Solar 250LC-V, Solar 255LC-V, Doosan DX180LC, DX180LC-3, DX180W-3, DX190W, DX210W, DX225, DX225LC-3, S175LC-V, S180W-V, S210W-V, S225LC-V, S255LC-V, S470LC-V, Halla HE280, Hitachi EX200, FH200, EX215, FH215, Zaxis 200, Zaxis 200 & LC, Zaxis 210, Zaxis 225US LC, Hyundai R210LC-7, JCB JS200, JS200LC, JS210, JS220, JS220LC, JS235, John Deere 200C LC, 200D LC, Komatsu PC200, PC200 Mighty, PC200-3, PC200-5, PC200-6, PC200-7, PC200LC-8, PC210, PC210-6, PC240, PW210, Link-Belt 210LX, Samsung SE210 Early Series, SE210-3, SE210LC-2, SE210LC-3, Sumitomo SH200, SH200-3, SH200LC-3, SH210-5, SH225X-3, Terex TXC 175LC, TXC 180LC, TXC 225LC, TXC 255LC, Volvo EC210, EC210B, EC210C, ECR235C, EW230C, MX225LS, SE210LC-3.
*
* Maybe fit: Case CX160, Caterpillar 318B L, 320, 320B w/ B Link, 320B w/ C Link, 320C w/ C Link, 320D w/ B Link, 321, 321 w/ Mass Linkage, 322B w/ B Link, 322C w/ B Link, 322C w/ Reach Linkage, 324D w/ Reach Linkage, 325B w/ C Link, 325C w/ C Link, 325C w/ Reach Linkage, 330C, 330D w/ Long Linkage, E300 Series, B Family Linkage, C Family Linkage, Doosan DX255, DX255LC-3, Hitachi Zaxis 225USR, JCB JS150LC, JS160, JS160LC, JS180, John Deere 225C LC RTS, Kobelco 200SRLC, SK200, SK210, SK210LC, SK210LC-VI, SK235SR, Komatsu PC220-3, PC220-5, PC220LC-6, PC220LC-7, PC220LC-8, PC250-6, PC270, PC270LC-6, PC270LC-7, PC280, Link-Belt 160LX, 160X2, 225SA, 2700 QUANTUM, 2800 QUANTUM, LiuGong 922, 925, New Holland EH215LC, Sumitomo SH150, SH160, SH200-2, SH200LC, SH215U-1, SH215X-1 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Overall Dimensions: 2100mm Long, 1120mm Wide, 2250mm High. 2256kg.


Call if you would like to discuss or to come inspect it.

We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
