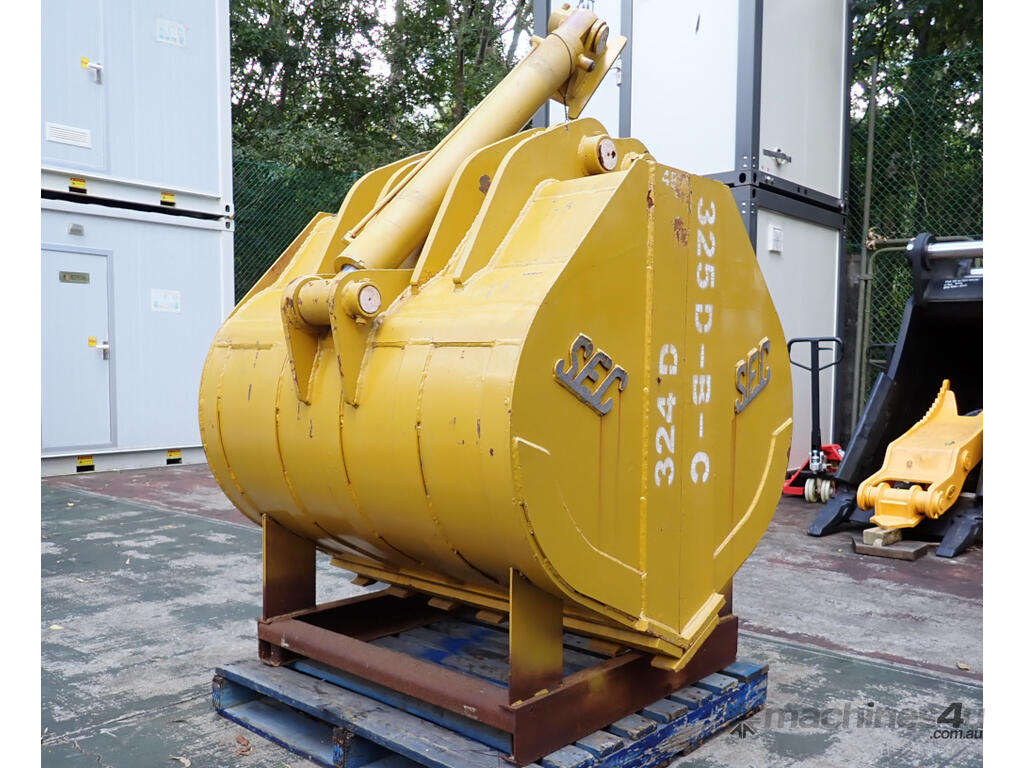

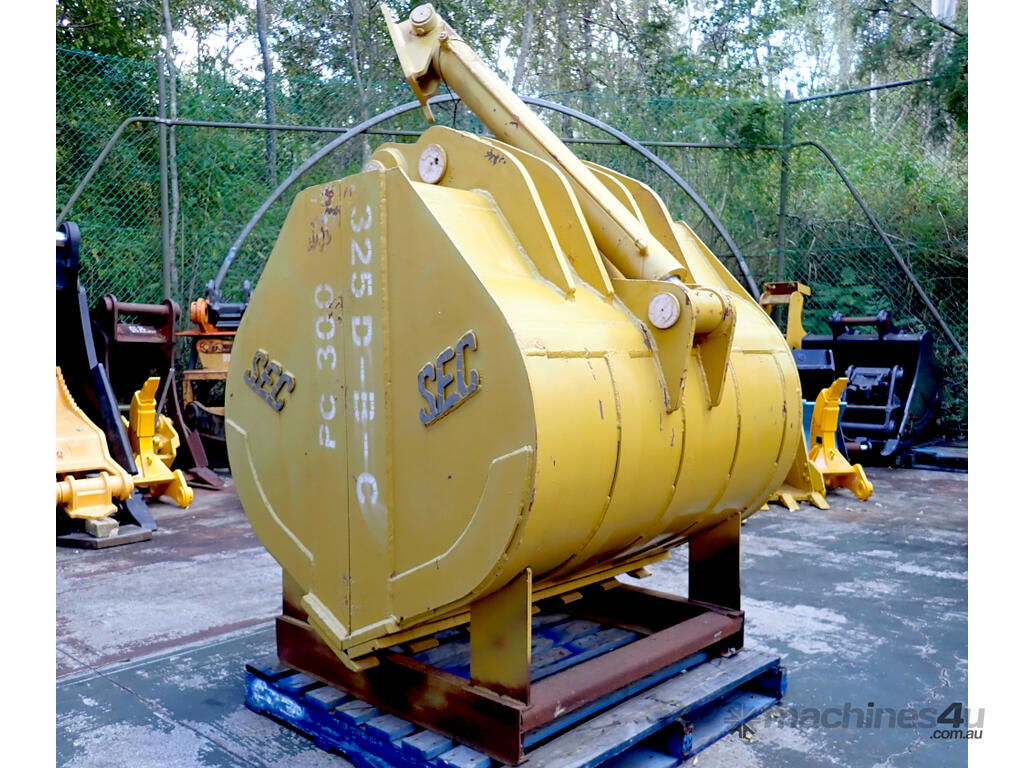

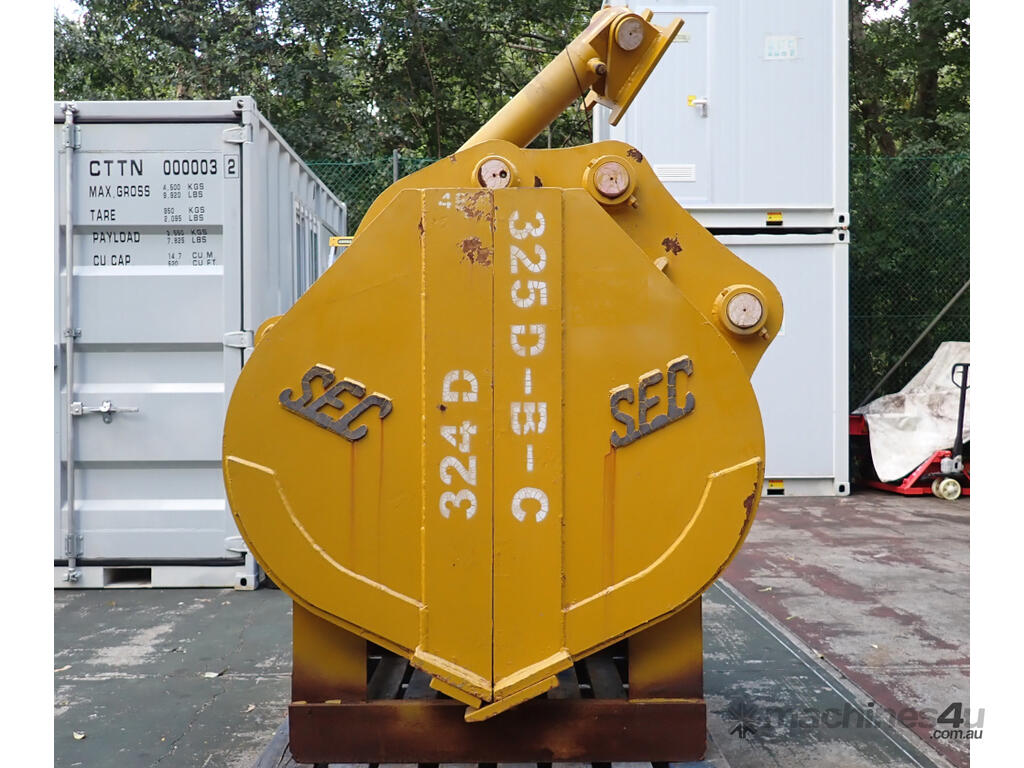

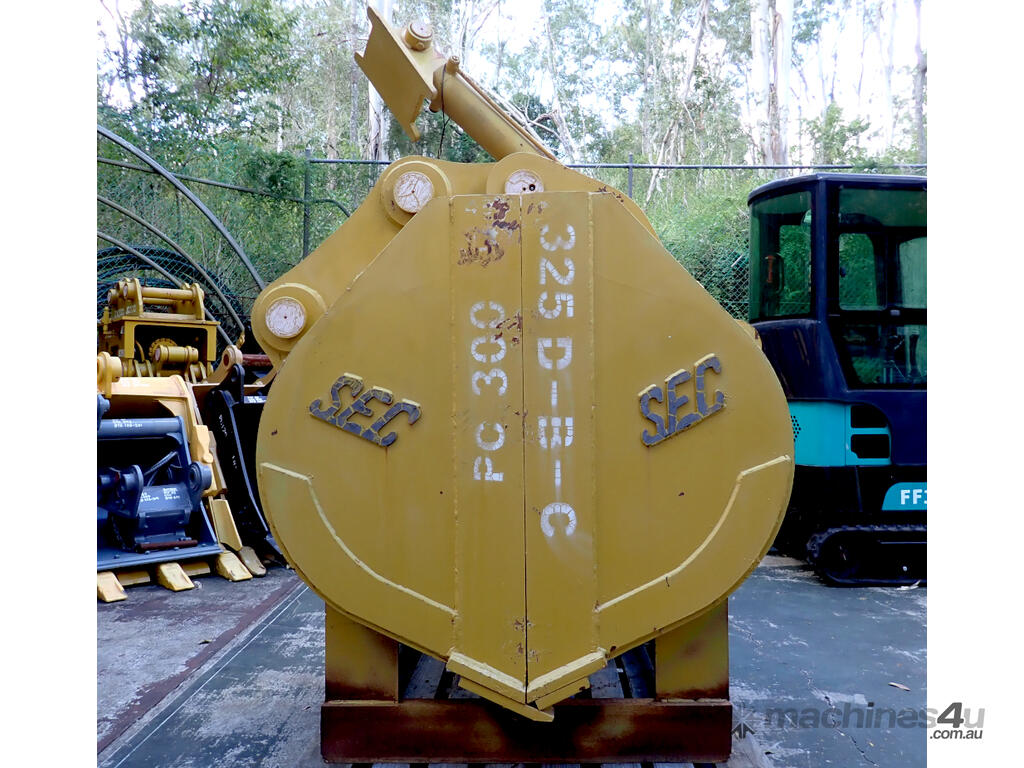

New 20-39 ton (90mm pin) Excavator Hydraulic Clamshell Grapple Bucket

New 20-39 ton (90mm pin) 1200mm wide Excavator Hydraulic Clamshell Grapple Bucket Grab.

The Clamshell Bucket can be used for material loading and dumping, cleaning up dirt, sand & aggregate and even use as a grapple to handle scrap & refuse. The wide jaw of the clamshell bucket opens up to 180 degrees and a thick cutting edge closes it tightly. It is a great tool to have during site clearing, dam dredging and general material clean up etc.

* It has a large capacity and is much faster at moving a large quantity of loose material than using a standard bucket.

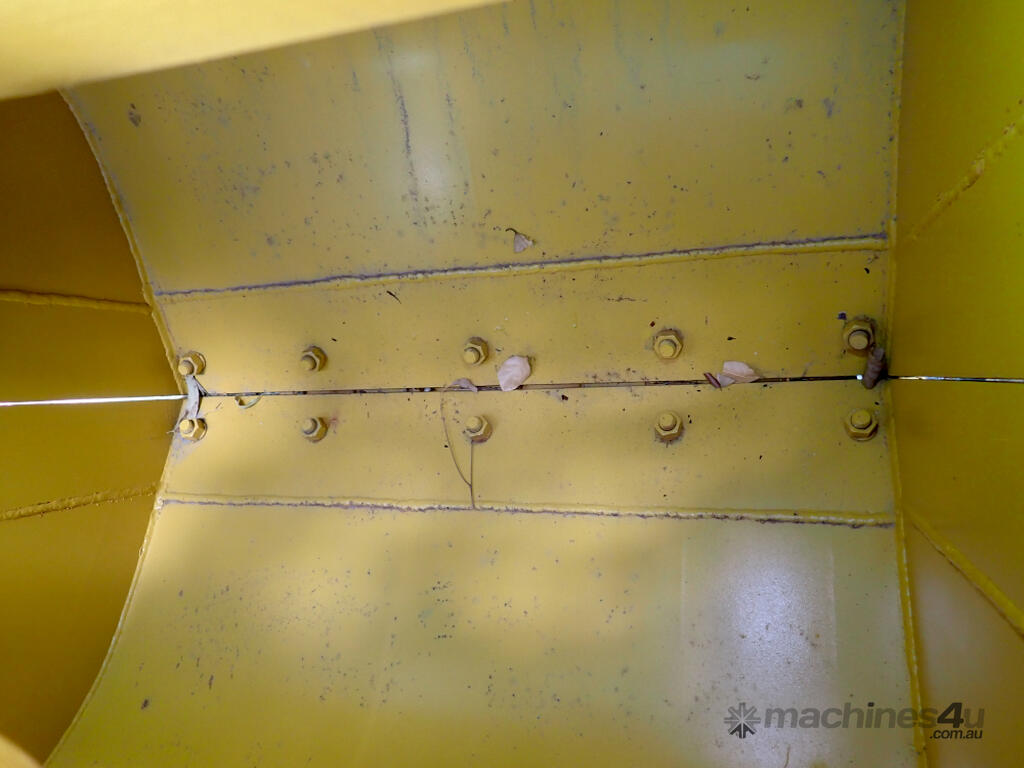

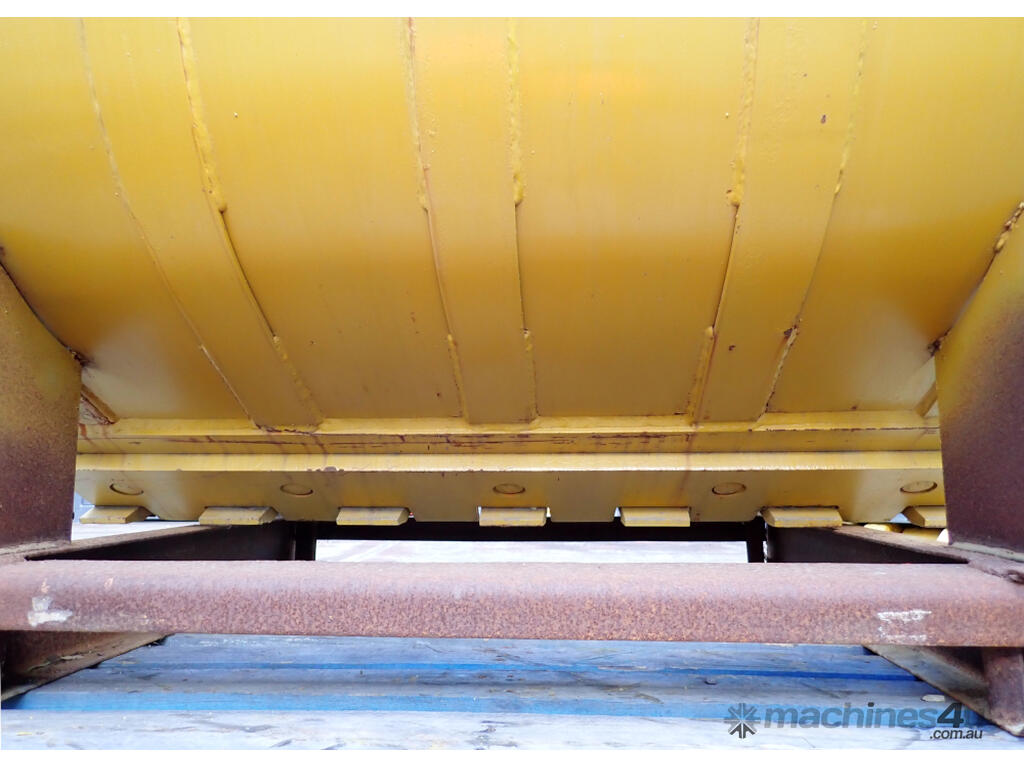

* The cutting edges are bolted on (not welded) so can easily be removed for replacement if they get worn.

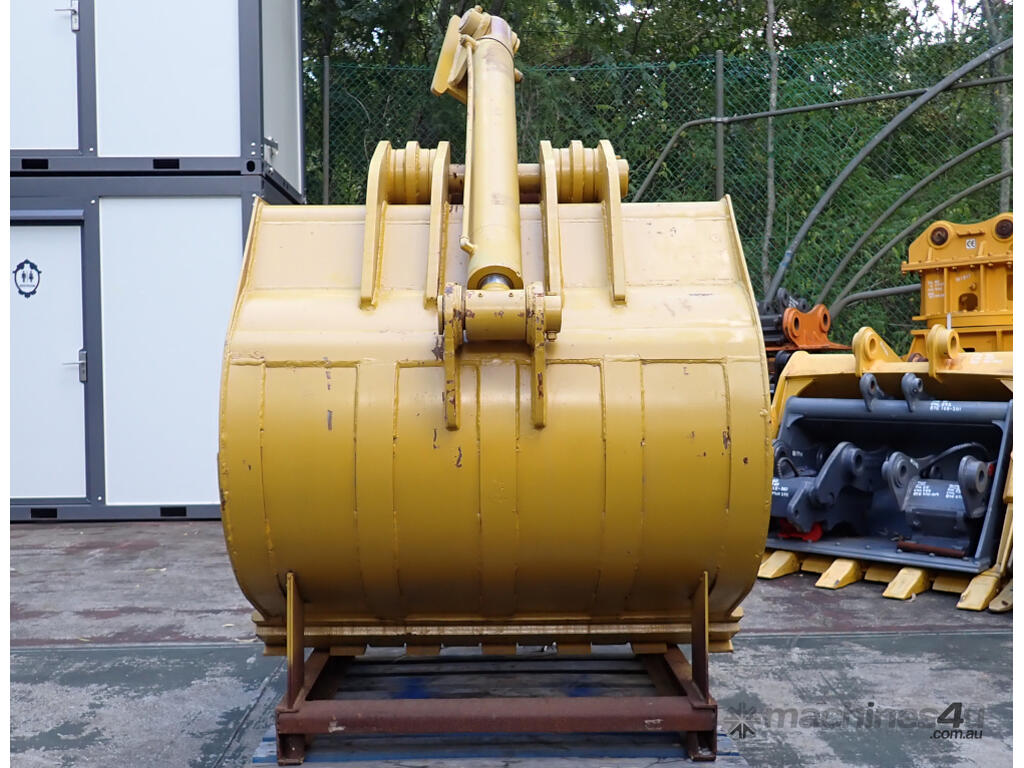

Please note! The steel plate mounted to the top end of the hydraulic cylinder needs to be welded to the back of your machine's dipper arm. Then, to remove the clamshell bucket when you want to put on another attachment, you need to remove the pin connecting the welded steel plate to the cylinder, to free it from the machine.

Steel Mounting Plate Dimensions:
* Width: 210mm
* Height (full): 348mm
* Height (excluding cutout): 269mm

A well built & engineered attachment made by the Californian Company: SEC Bucket.
(see links in 'View Brochure' above...)

Manufacturer's Page for this Bucket:
(see links in 'View Brochure' above...)

Demo Video of similar SEC Clamshell in action:
(see links in 'View Brochure' above...)

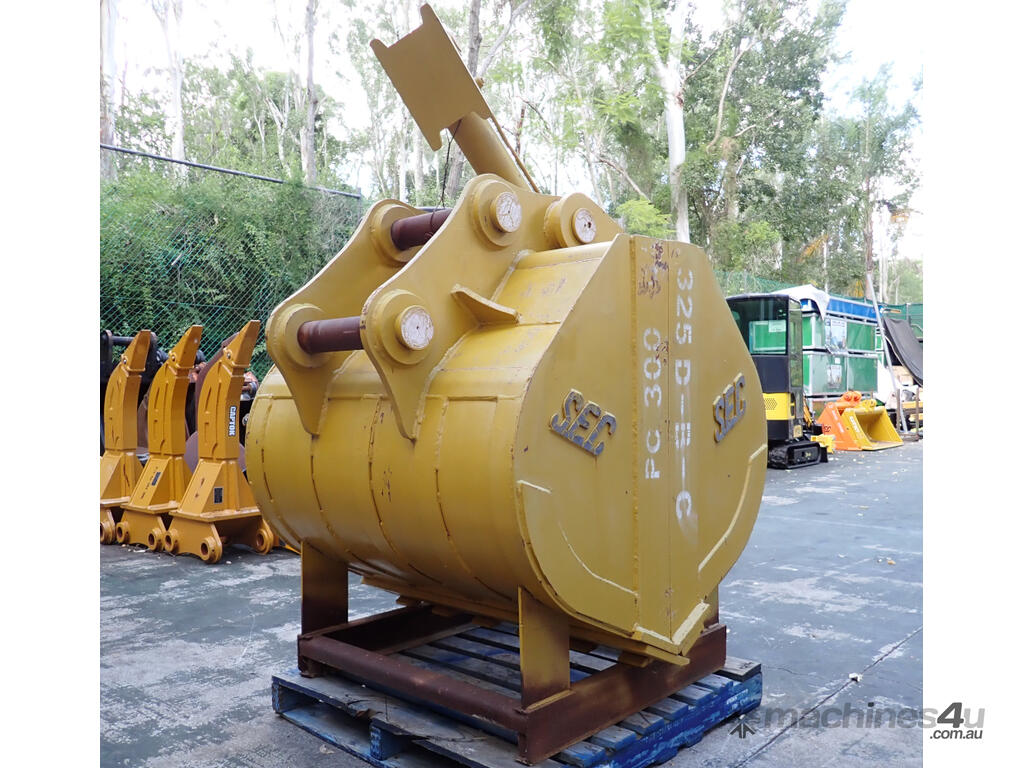

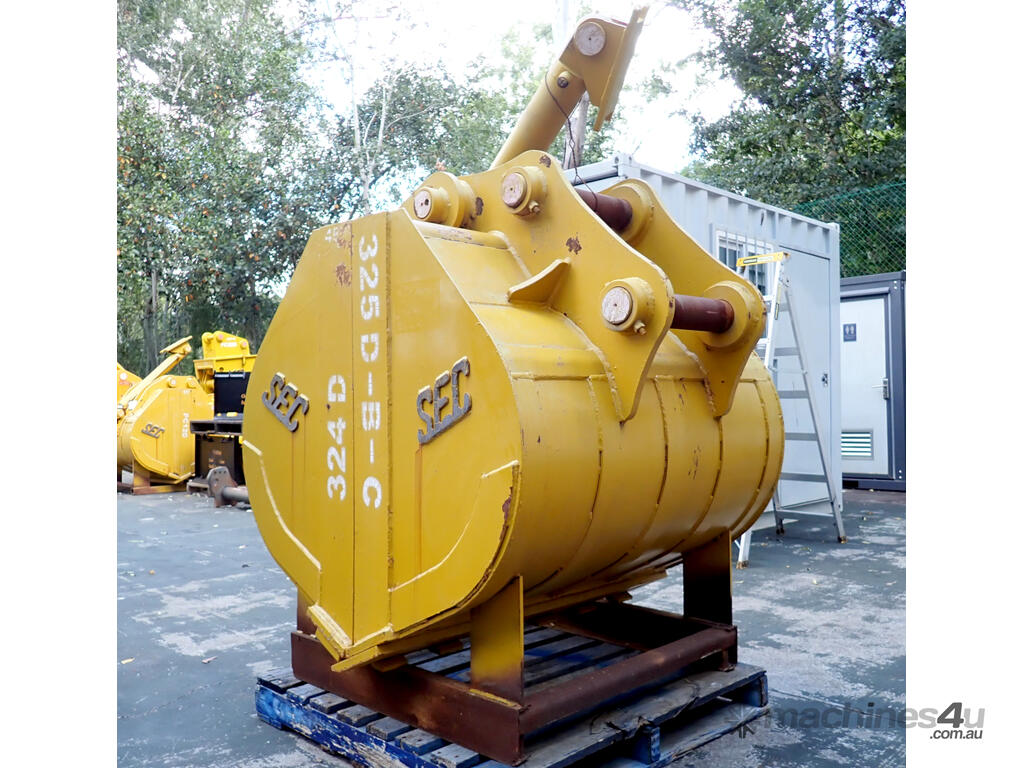

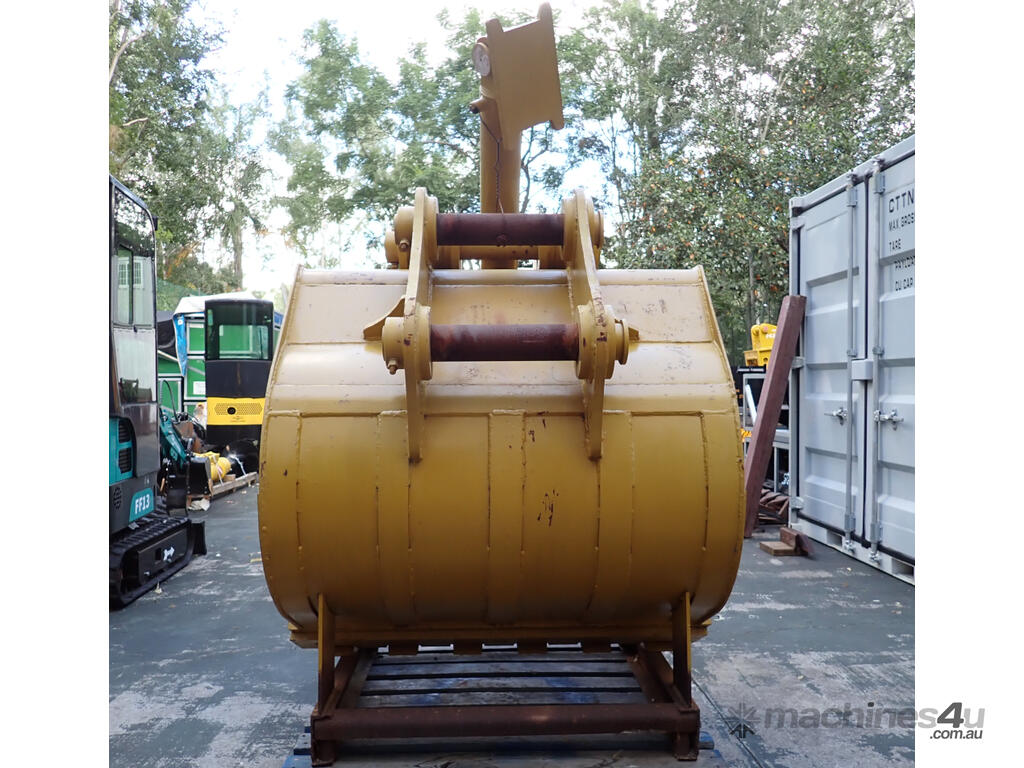

*** Current Headstock configuration:
* Pins: 90mm
* Pin Center to Pin Center (CtoC): 482mm
* Between the Ears (BTE): 354mm Between the inside Ear Bosses (which can be shaved back up to 416mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case CX240 / CX290, Caterpillar 322 / 325B w/D Link / 325C w/D Link / 325C w/Mass Linkage / 330B w/D Link / 330C w/D Link / 330C w/Reach Linkage / 330D w/D Link / 330D w/DB Link / D Family Linkage, Daewoo Solar 280LC-2 / 280LC-3, Hitachi EX220 / EX255 / EX270 / FH220 / FH285, Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270 / 270LC, John Deere 240D LC / 270D LC, Samsung SE240LC / SE240-3 / SE280-3, Volvo EC240 / EC290 / EC290B / EC290C / EC300D / ECR305C / MX255LS / MX295LS / SE240LC-3 / SE280LC-3.
*
* Maybe fit: Daewoo DX300 LC, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-7 / R290LC-7, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8 / SK290LC / SK300 / SK310 / SK320 / SK330, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 240LX / 290LX / 3400 QUANTUM / 3900 QUANTUM, Samsung SE280LC, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-5, Volvo EC240B / EC240C / EC250D and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Shipping Dimensions (including steel skid): 1270mm Wide, 1430mm Deep, 2024mm High. 1260kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
