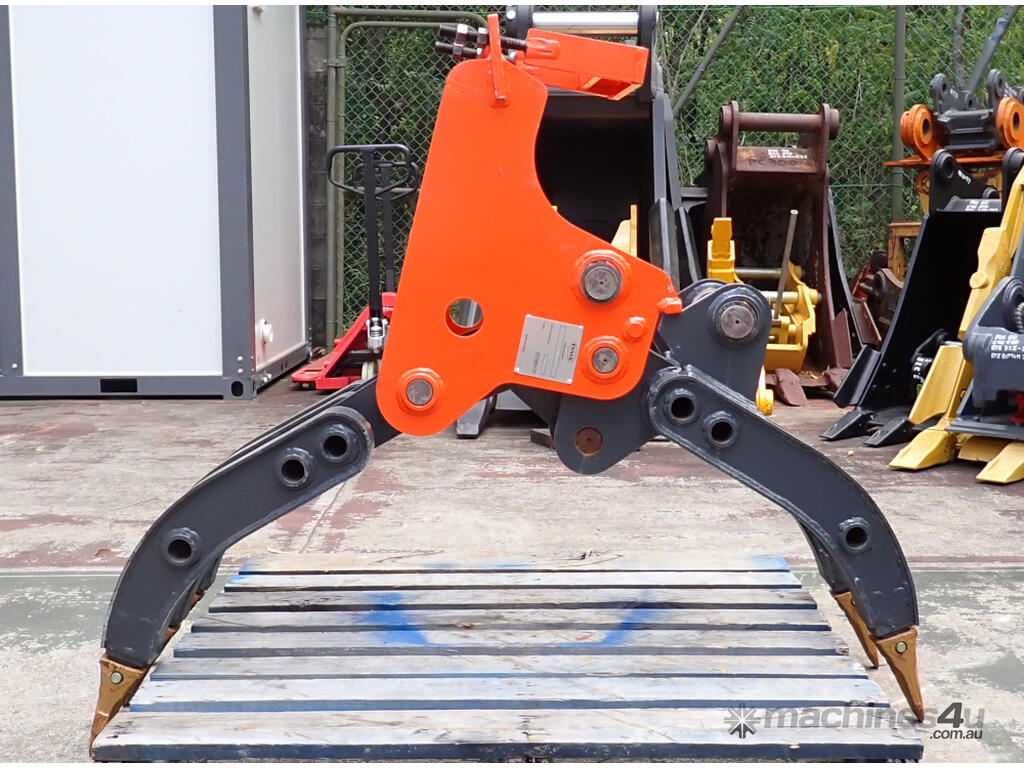

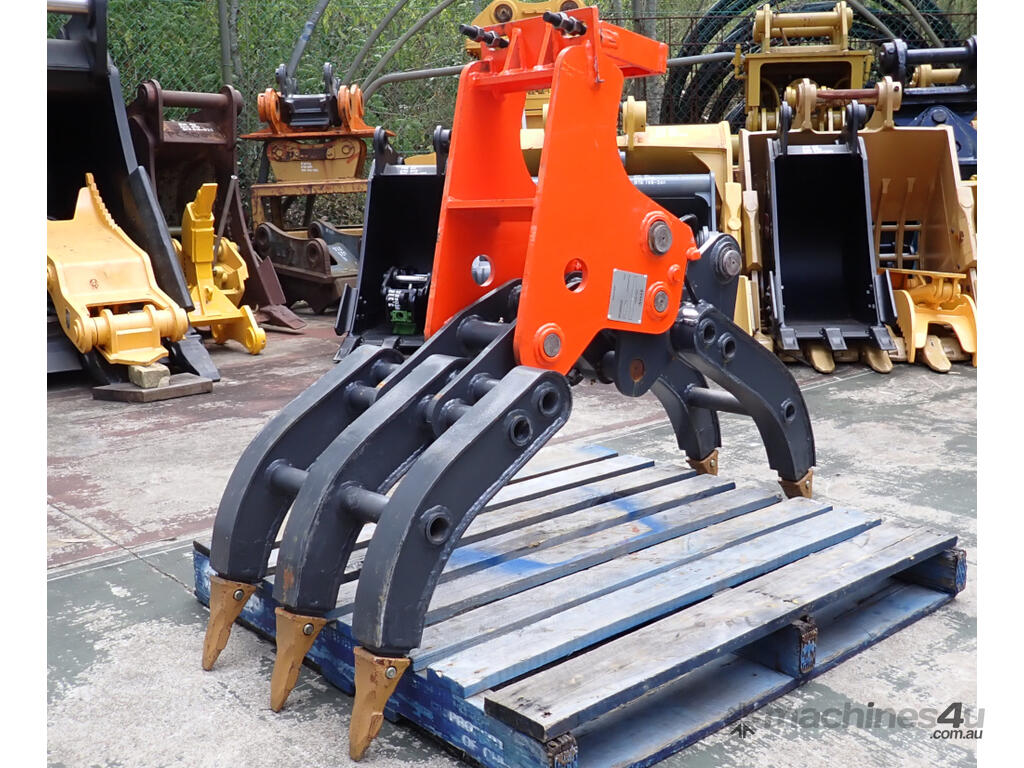

New 4-10 ton (50mm Pin) Excavator Mechanical 5 Finger Grapple Grab

New 50mm Pin Excavator 5 Finger Mechanical Grapple Grab suit 4-10 Ton machine.

Full range of motion and opening (both grab sides move together) without needing any Hydraulic lines.

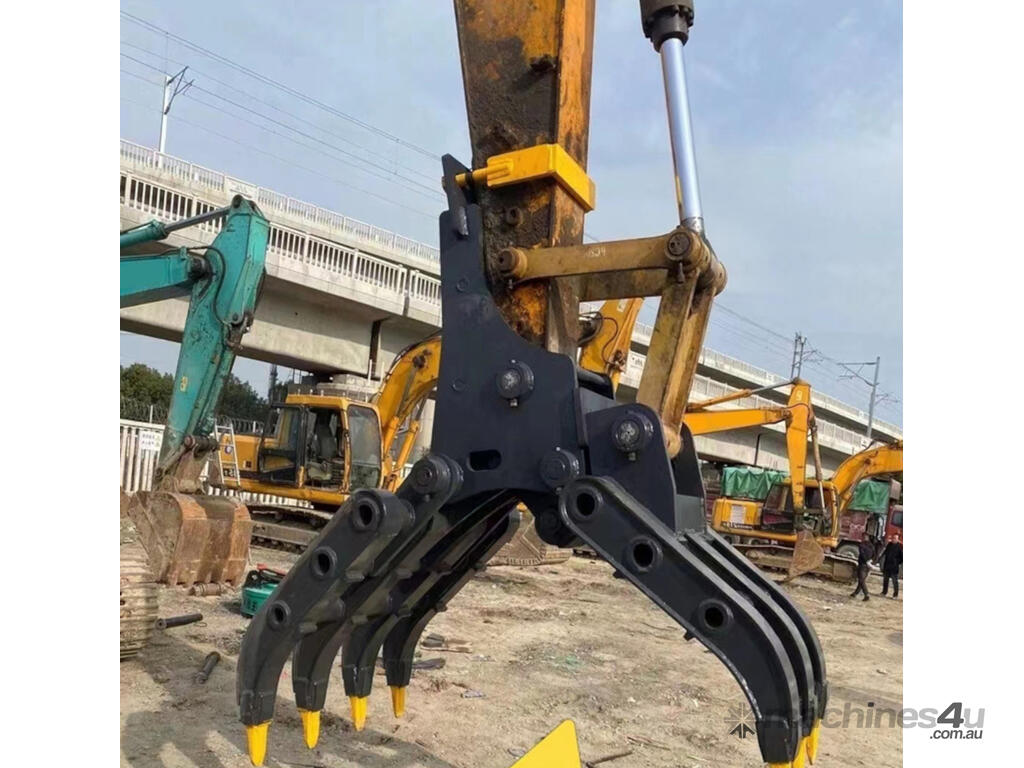

The top bracket of the Grab mounts around your Excavator's Dipper Arm (see pic# 10) and you simply use your hand control that would normally Curl your bucket to open and close the Grab.

Ideally designed for Rock, Log & Trash work, but can also be used for light-medium duty Demolition and general material handling, picking things up, moving them around and other careful placement tasks.
Great for landscapers to position rocks and sandstone blocks when building retaining walls etc. and moving logs around in forestry.

Video of Grab in Action:
(see links in 'View Brochure' above...)

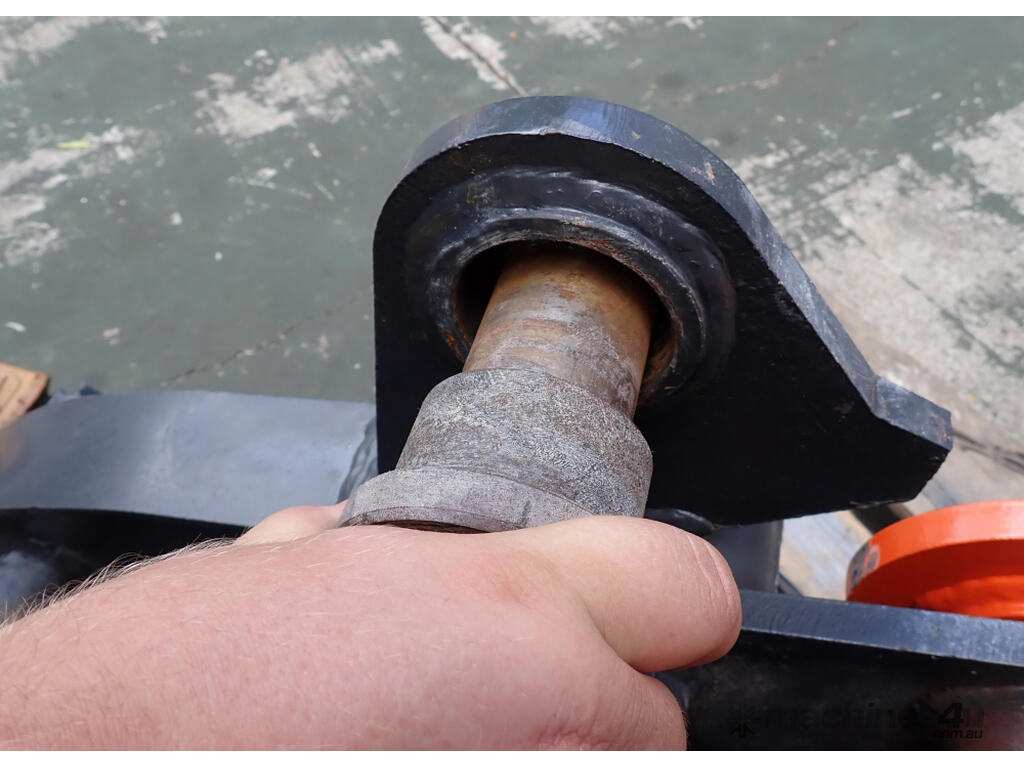

The Hitch Headstock currently has 50mm Pins fitted into collar bosses that fit into 65mm diameter Pin holes (see pic# 9), so pins up to 65mm diameter can be fitted without needing to bore out the holes in the headstock.

* Fully Open Width: 1428mm.

* Width of 2 Tynes: 364mm.
* Width of 3 Tynes: 557mm.

The distance between the collar bosses is 212mm. Removing the collar bosses (see pic# 9), the distance between the headstock bosses is 241mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 256mm (the distance Between the Ear Plates), if you need more inside width for your dipper arm or linkages to fit into.

The CtoC (Pin Center to Pin Center) distance varies from 238mm (when fully open) to 355mm (when fully closed).
However your machine's CtoC distance is not important as your dipper arm's bucket linkage moves to accommodate this.

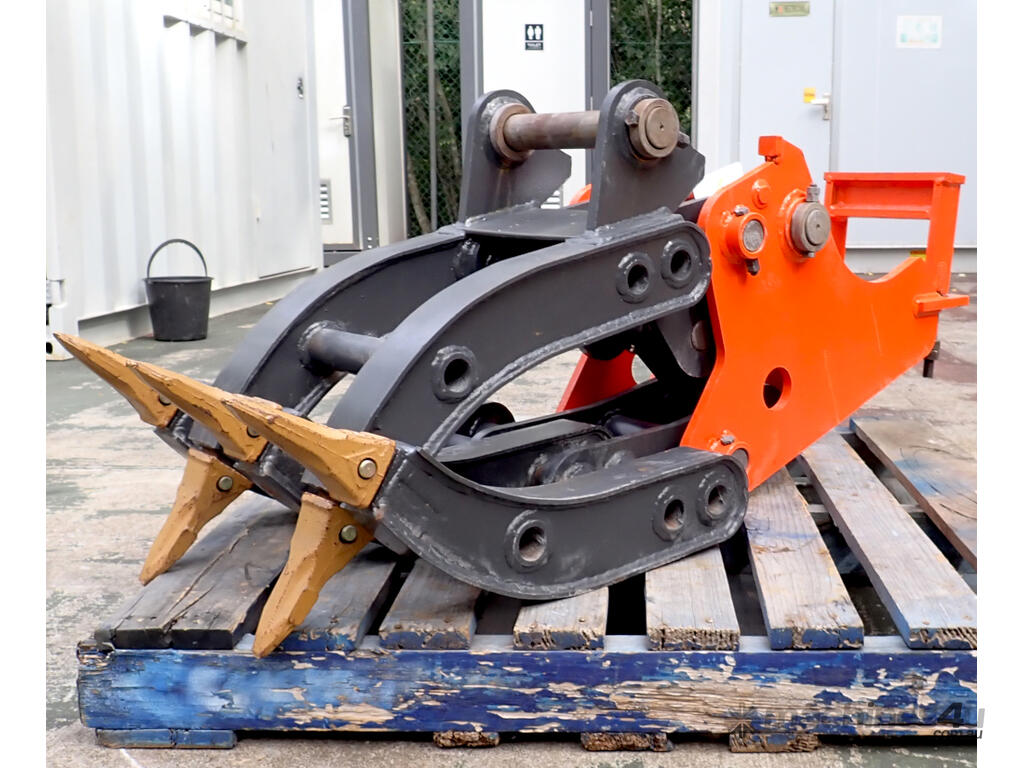

Dimensions (collapsed as in pic# 8): 557mm Wide, 1378mm Long, 597mm High. Weight: 222kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
