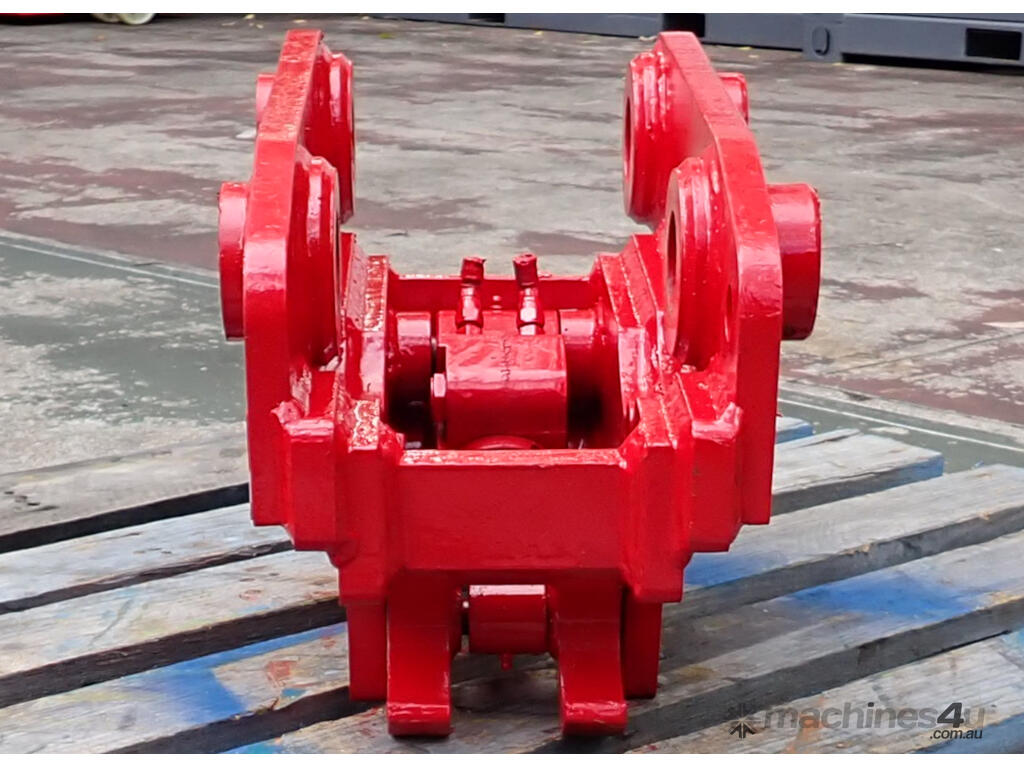

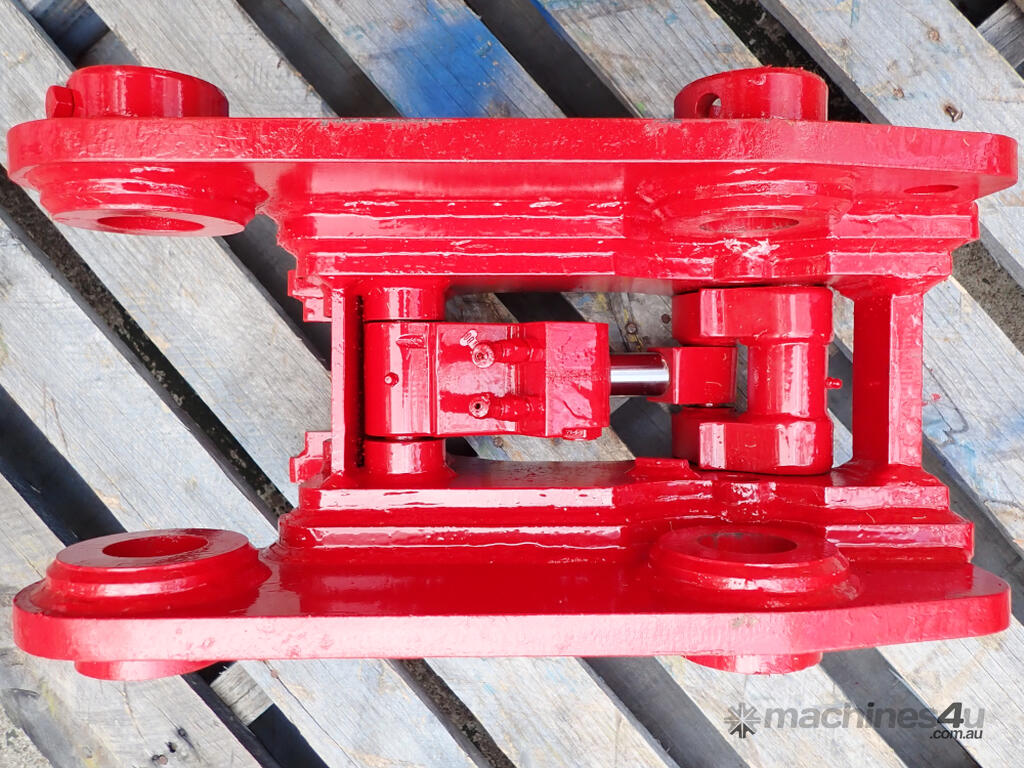

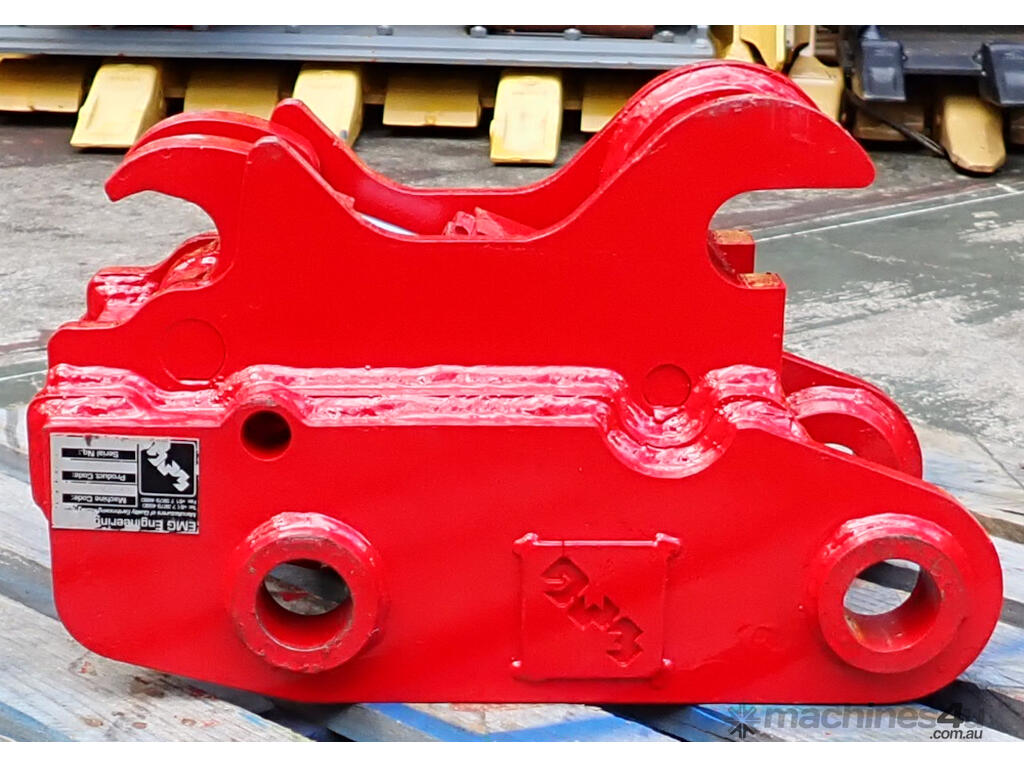

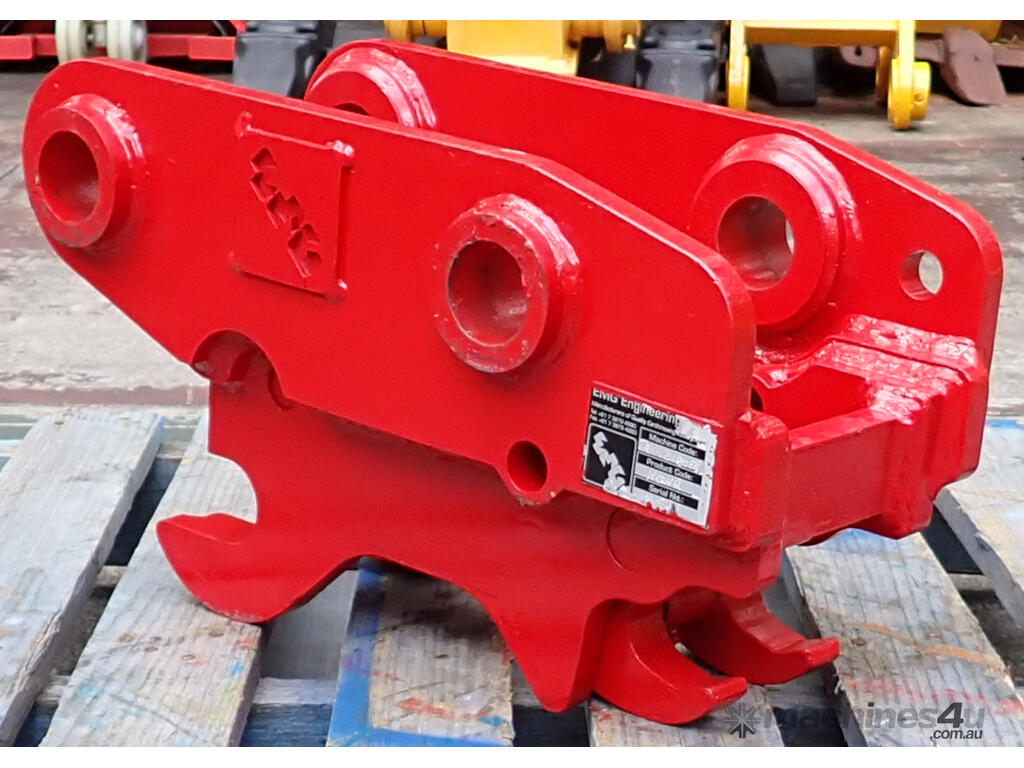

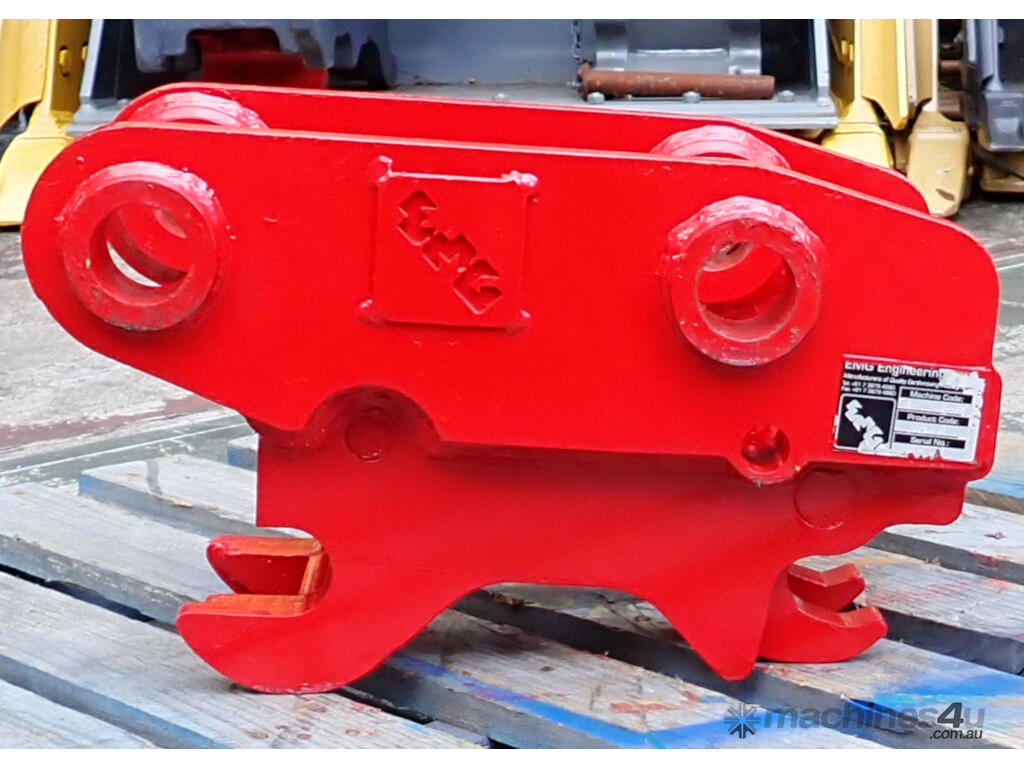

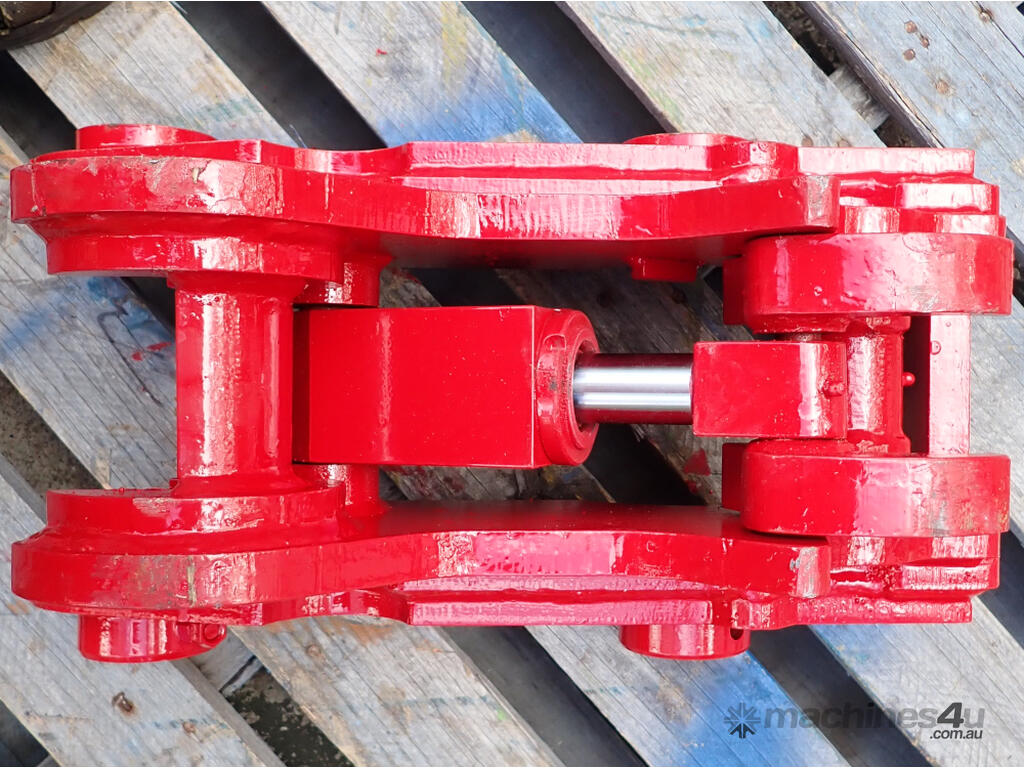

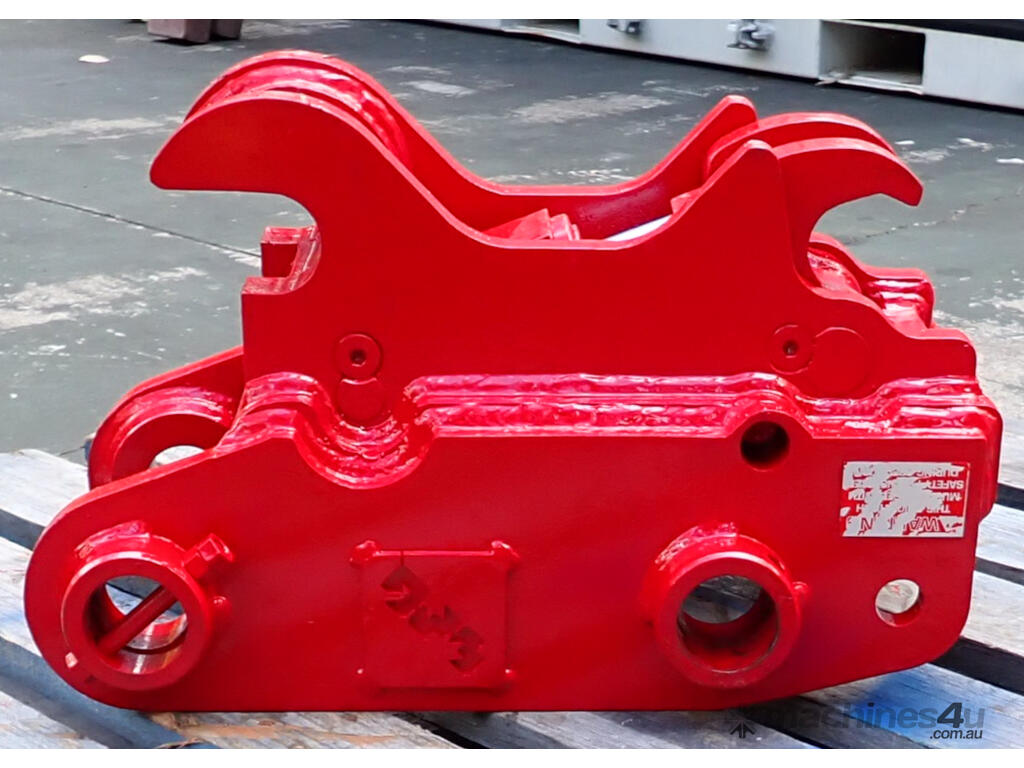

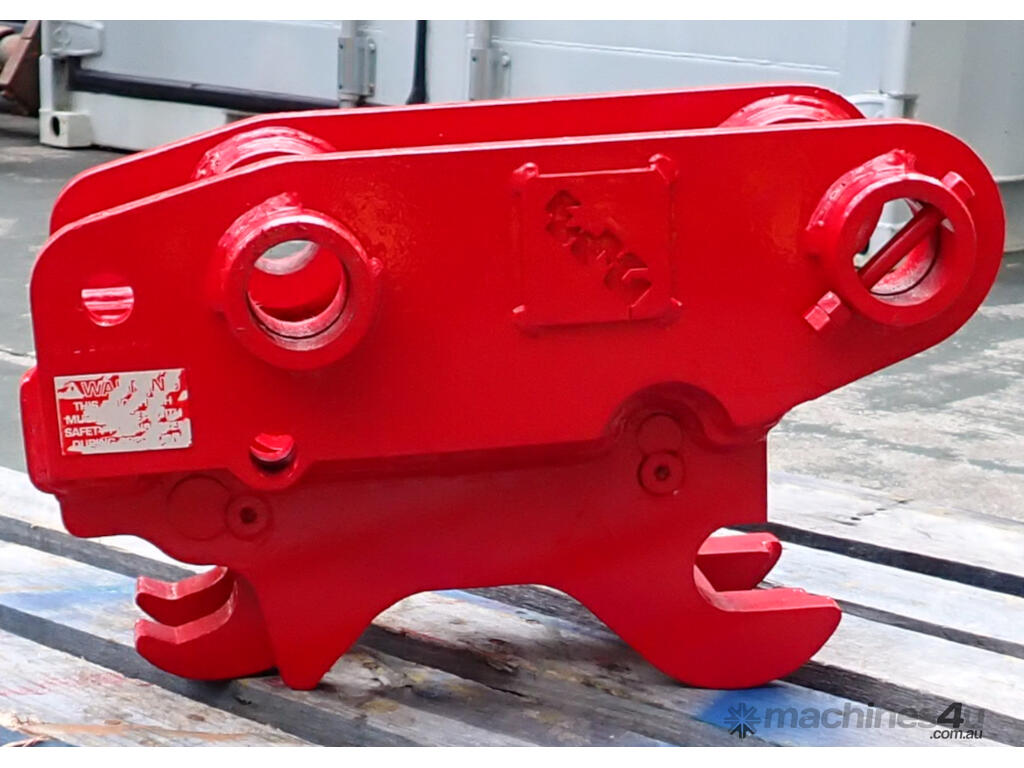

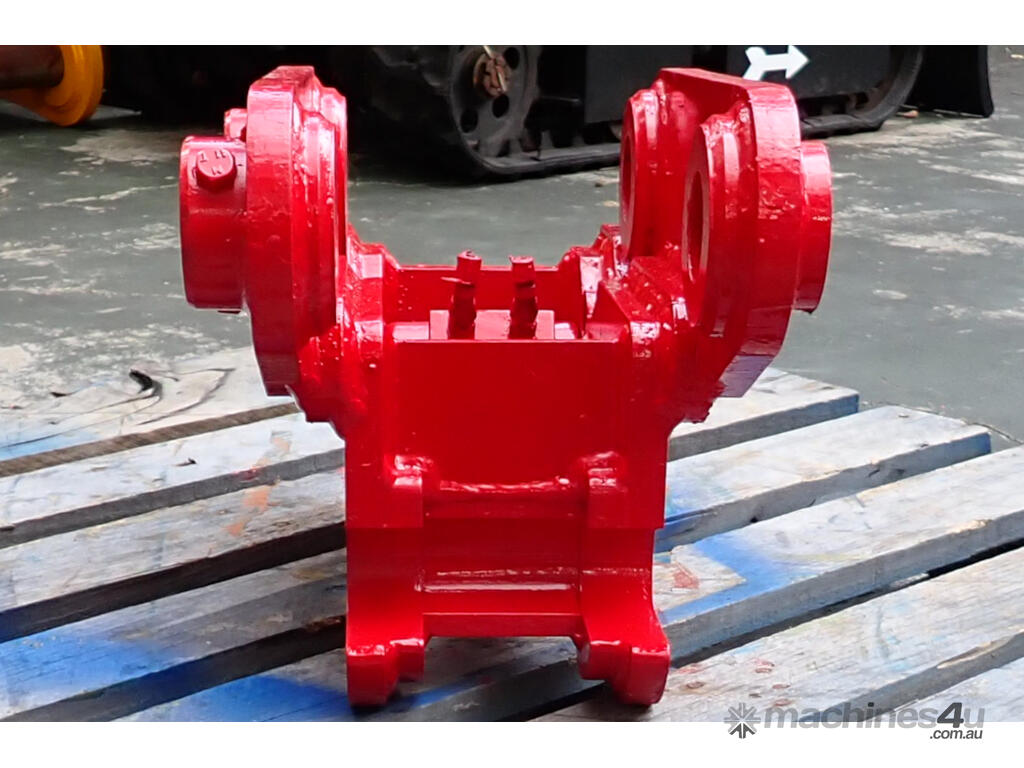

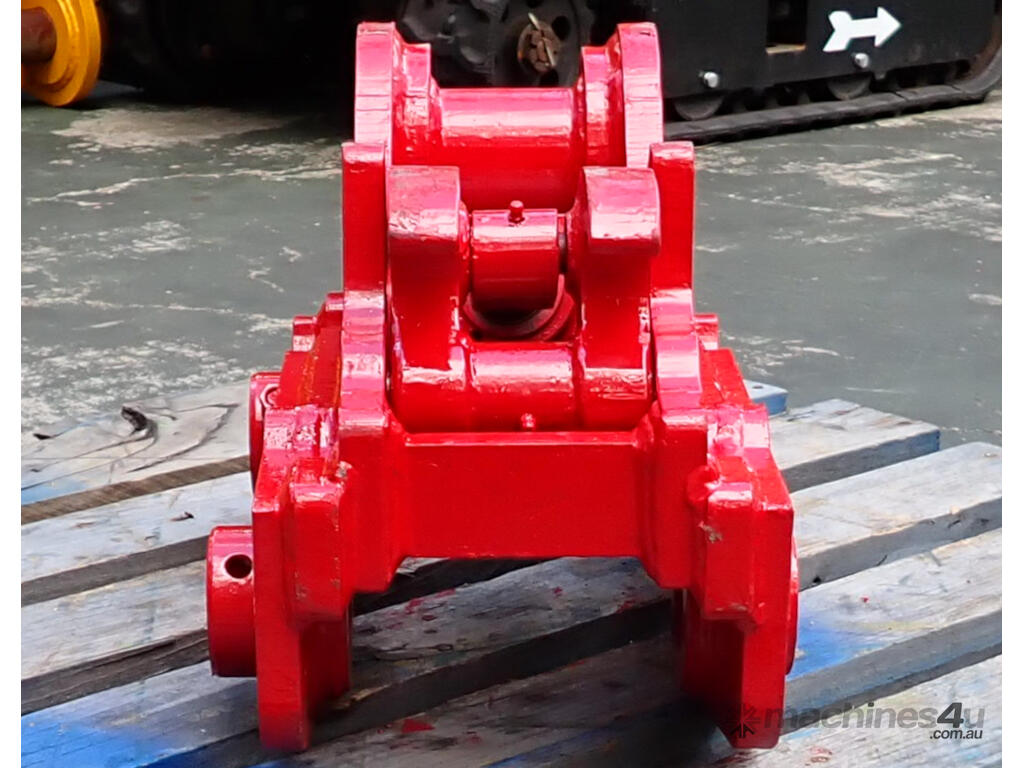

New 5-10 ton (50mm pin) EMG Hydraulic Excavator Quick Hitch Coupler

New 50mm pin EMG Hydraulic Excavator Quick Hitch Coupling to suit 5-10 Ton machines.

Strong and well engineered. Made in Australia by EMG Engineering.

The hitch is New & Unused but has sat in a warehouse for a few years.

Designed for Takeuchi TB 180FR but will fit other machines (see below list of machines we have found so far..)


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 50mm.
* Pin Center to Pin Center (CtoC): 307mm.
* Between The Ears (BTE): 166mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 201mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 50mm.
* Between The Ears (BTE): 163mm width (your buckets/attachments need to have at least this much width or more gap between the ears).
*
* Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, Caterpillar 308D, Hitachi EX60-5 / EX75-5, JCB JS 70 / JZ 70, Kato 180G, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Yanmar B 7 SIGMA / VIO70 / VIO75.
*
* Maybe fit: Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, New Holland EH 70 / EH 80 CS, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175 / TB 180FR and possibly other machines with similar pin spacings.


Hitch dimensions: 515mm long, 291mm wide, 311mm high. Weight: 66kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
