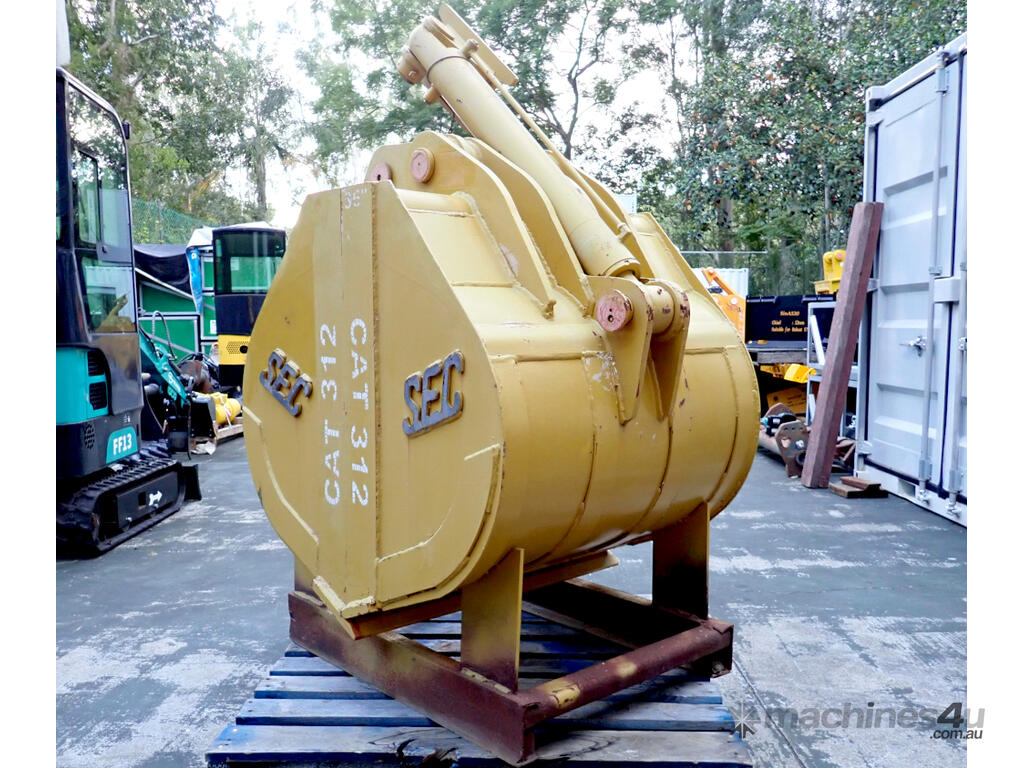

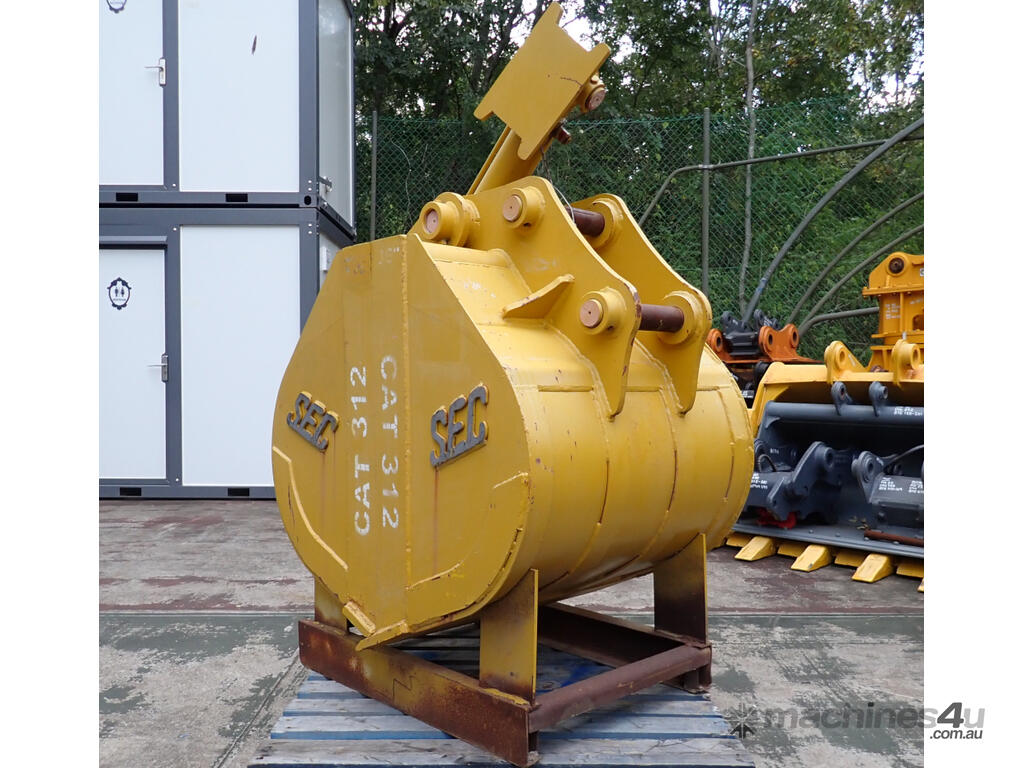

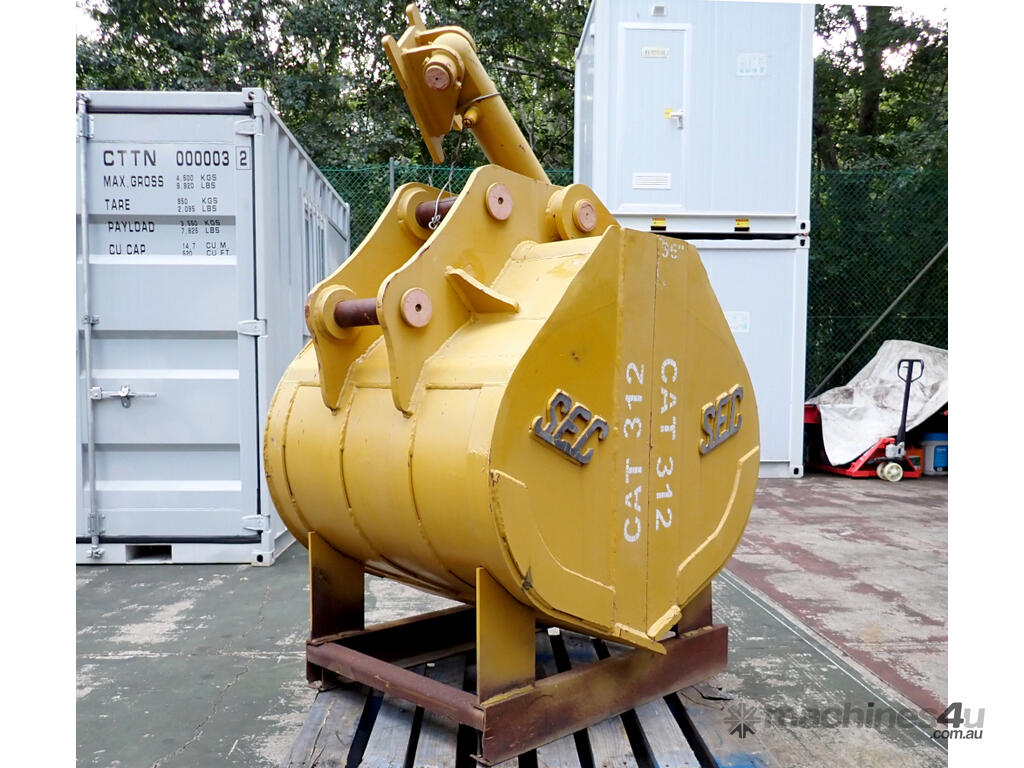

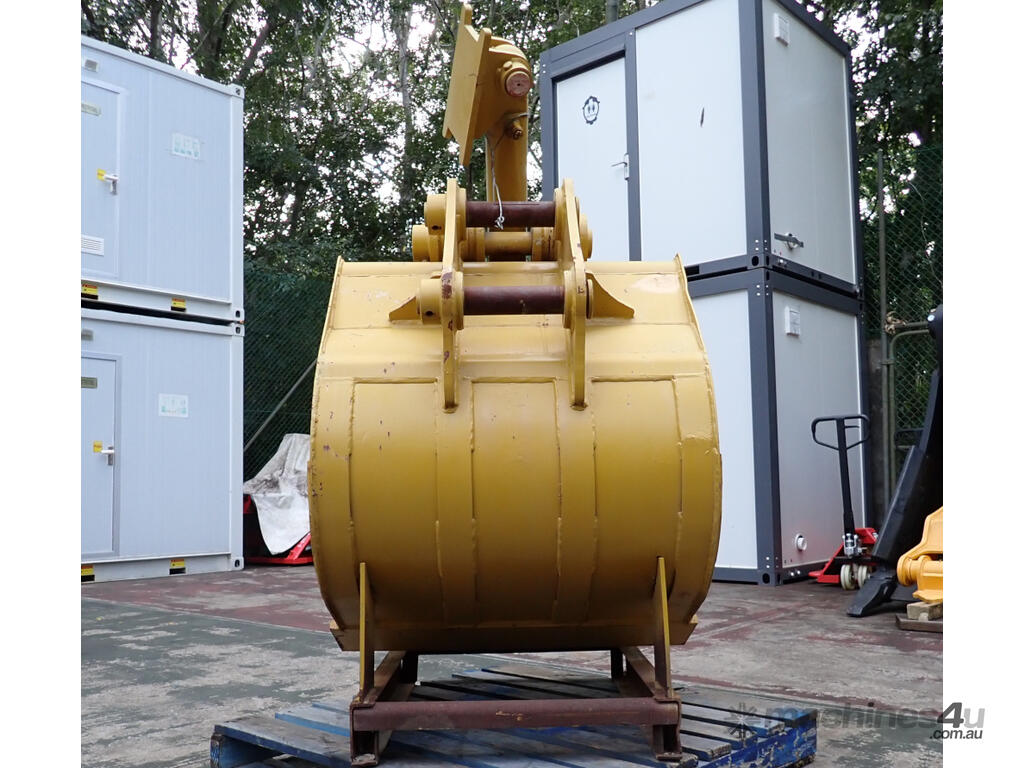

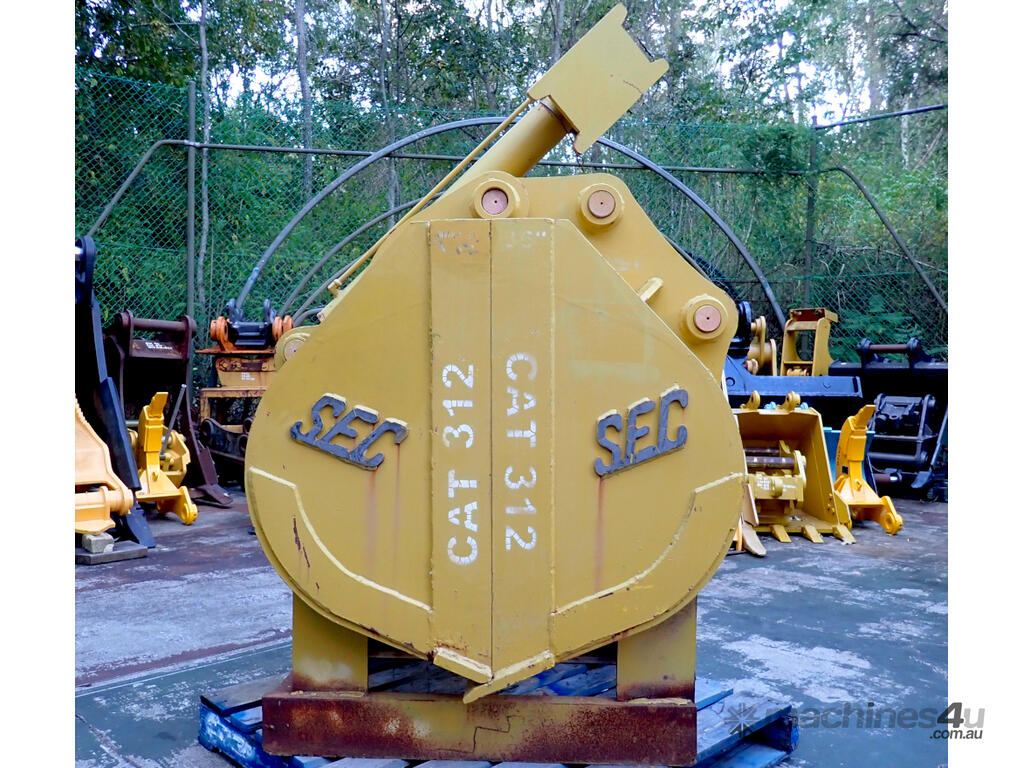

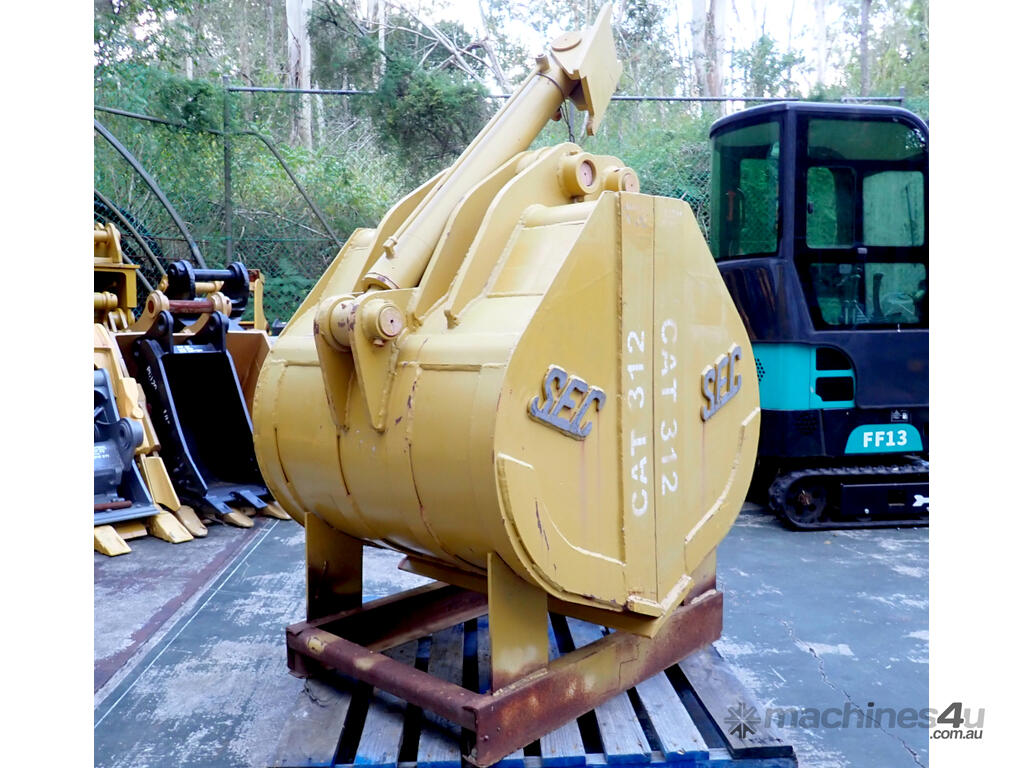

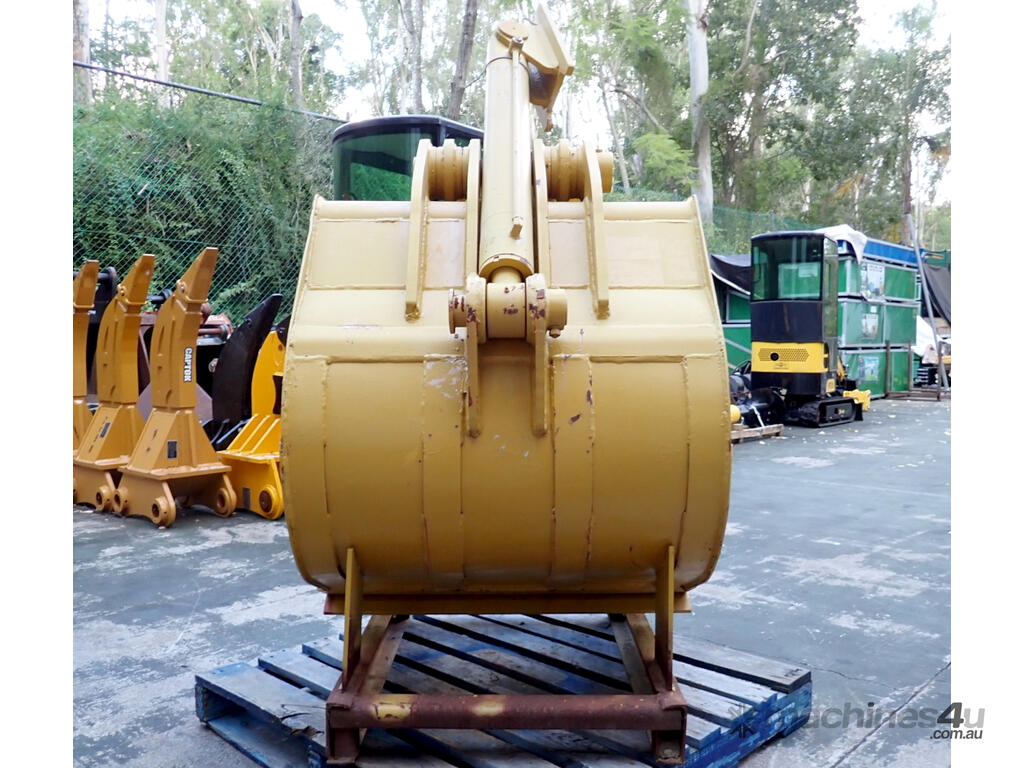

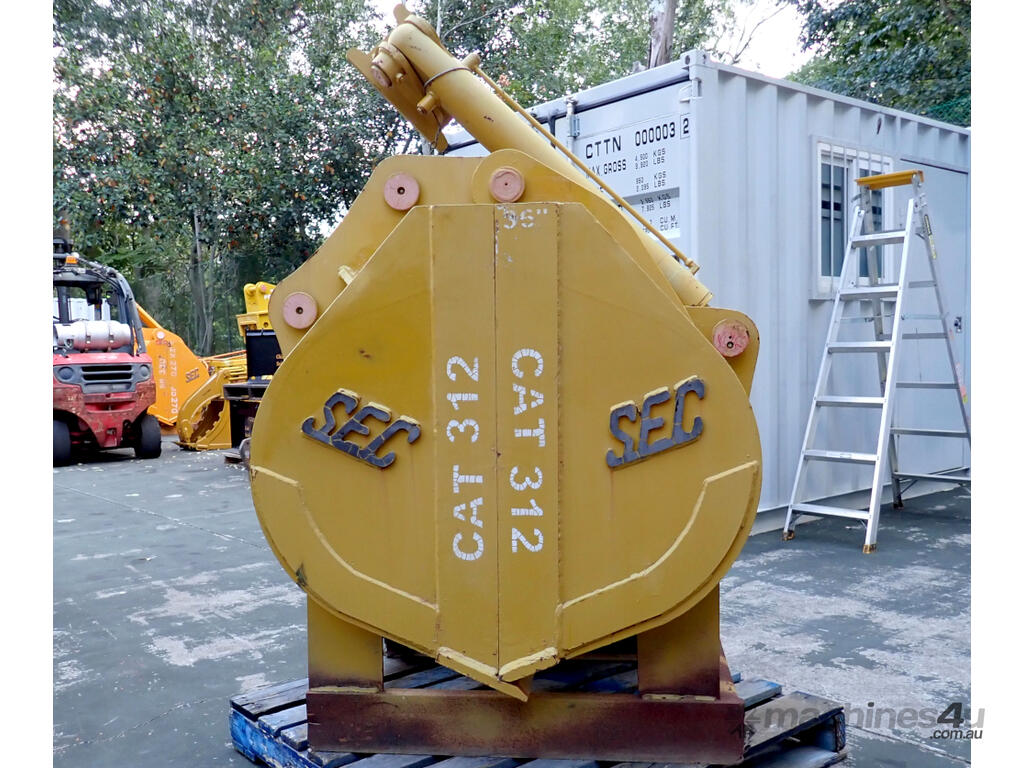

New 9-20 ton (65mm pin) Excavator Hydraulic Clamshell Grapple Bucket

New 9-20 ton (65mm pin) 900mm wide Excavator Hydraulic Clamshell Grapple Bucket Grab.

The Clamshell Bucket can be used for material loading and dumping, cleaning up dirt, sand & aggregate and even use as a grapple to handle scrap & refuse. The wide jaw of the clamshell bucket opens up to 180 degrees and a thick cutting edge closes it tightly. It is a great tool to have during site clearing, dam dredging and general material clean up etc.

* It has a large capacity and is much faster at moving a large quantity of loose material than using a standard bucket.

Please note! The steel plate mounted to the top end of the hydraulic cylinder needs to be welded to the back of your machine's dipper arm. Then, to remove the clamshell bucket when you want to put on another attachment, you need to remove the pin connecting the welded steel plate to the cylinder, to free it from the machine.

Steel Mounting Plate Dimensions:
* Width: 210mm
* Height (full): 348mm
* Height (excluding cutout): 268mm

A well built & engineered attachment made by the Californian Company: SEC Bucket.
(see links in 'View Brochure' above...)

Manufacturer's Page for this Bucket:
(see links in 'View Brochure' above...)

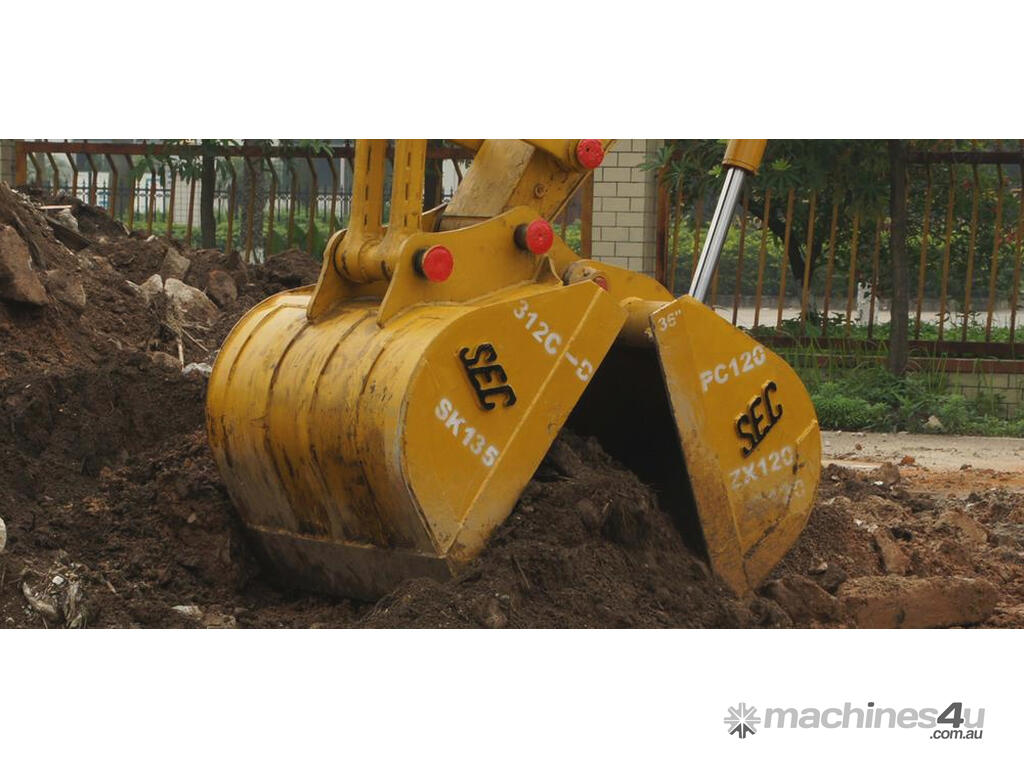

Demo Video of similar SEC Clamshell in action:
(see links in 'View Brochure' above...)

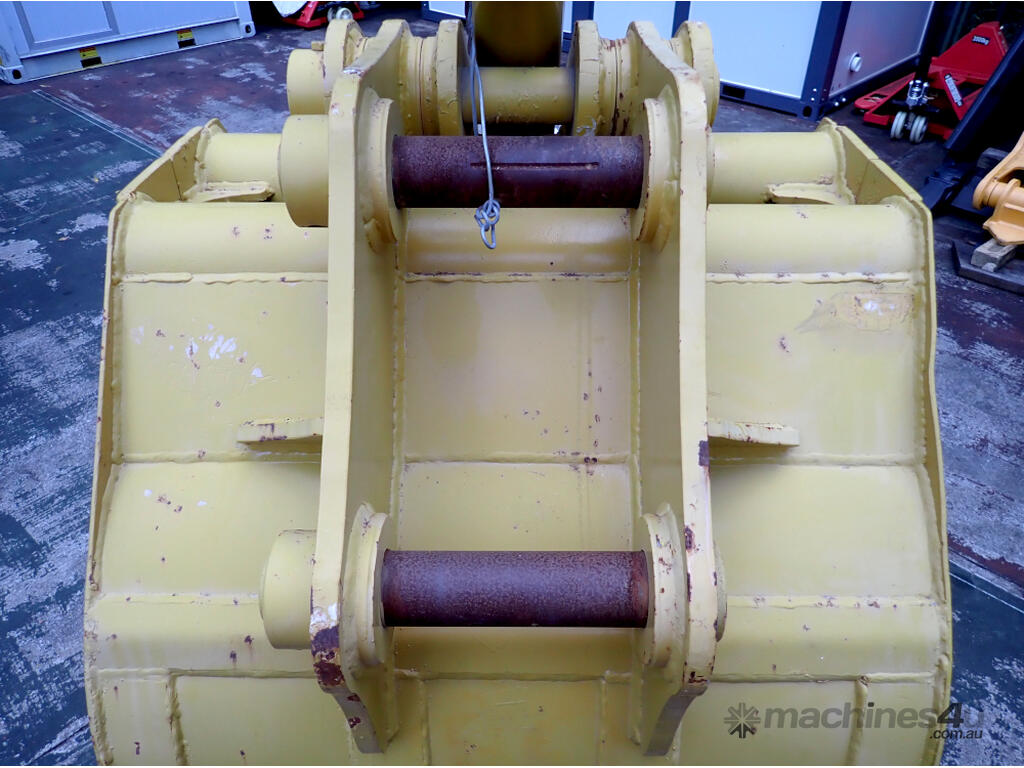

*** Current Headstock configuration:
* Pins: 65mm
* Pin Center to Pin Center (CtoC): 381mm
* Between the Ears (BTE): 224mm Between the inside Ear Bosses (which can be shaved back up to 268mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, JCB JS110 / JS130 / JZ140, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Yuchai YC135-7.
*
* Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130 / HE130W, Hitachi EX110-5 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX130 / EX135 / EX135UR, Hitachi Zaxis 135US, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB 805B / 814S, John Deere 135C RTS, Kato HD 512, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB 1140 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Shipping Dimensions (including steel skid): 953mm Wide, 1196mm Deep, 1839mm High. 724kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
