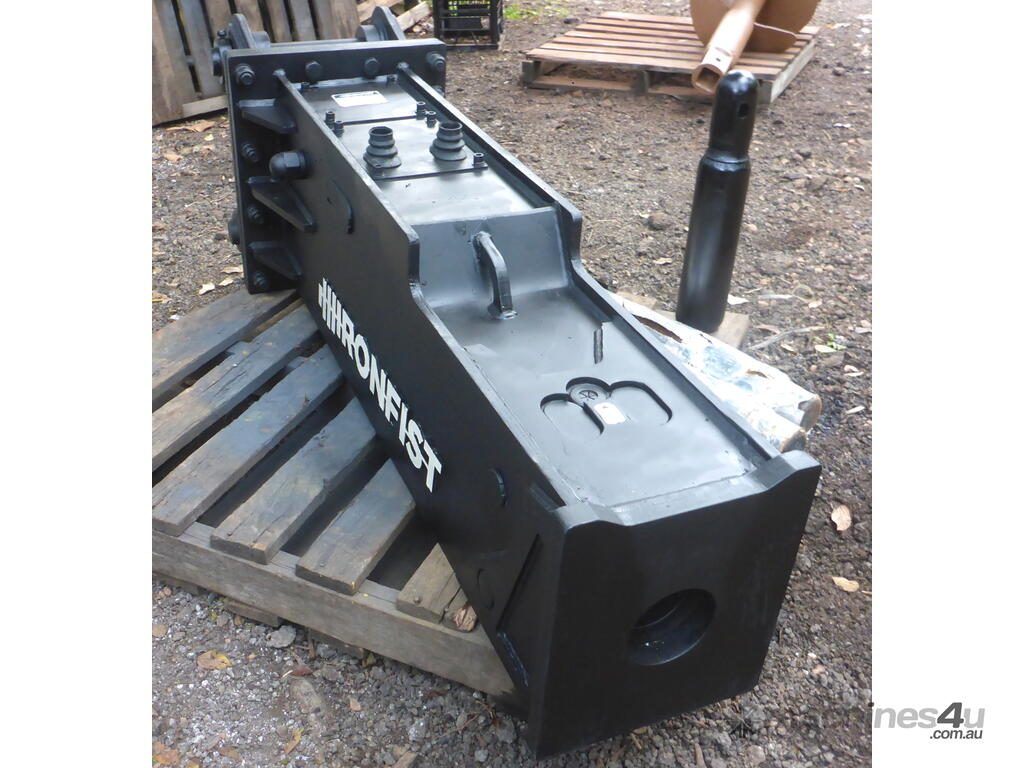

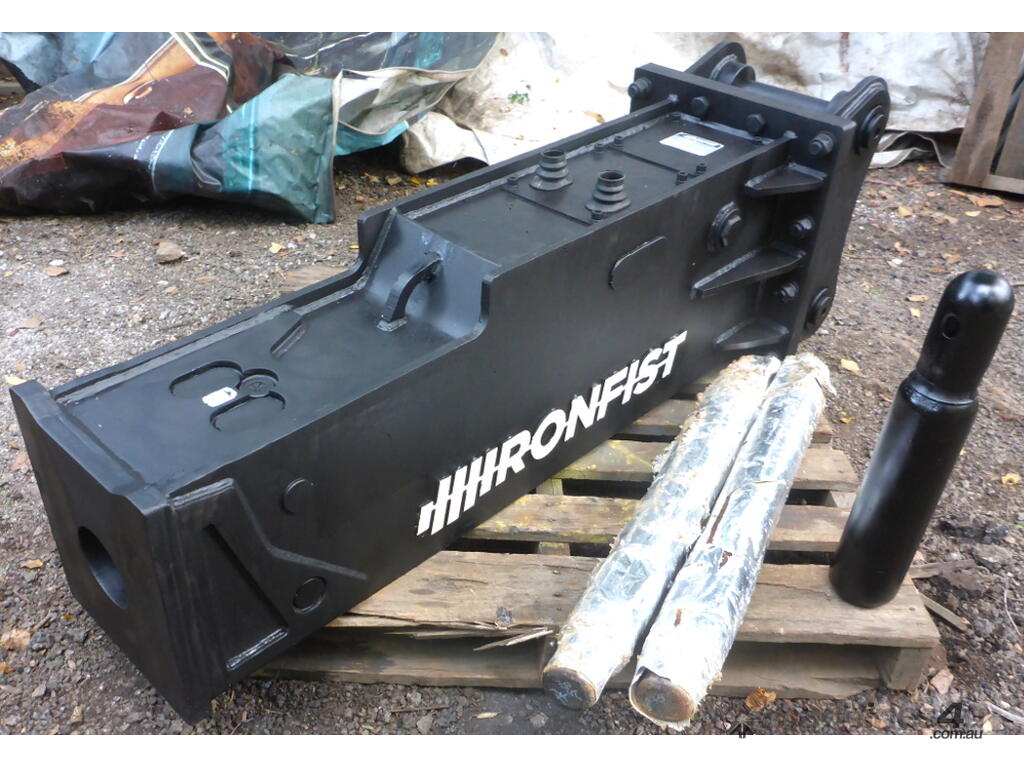

New Ironfist I-10 Excavator Hydraulic Silenced Hammer Rock Breaker to suit: 9-20 ton machine.
Great for loosening and breaking up rock, rocky ground, concrete, tarmac, paved areas, demolition etc.

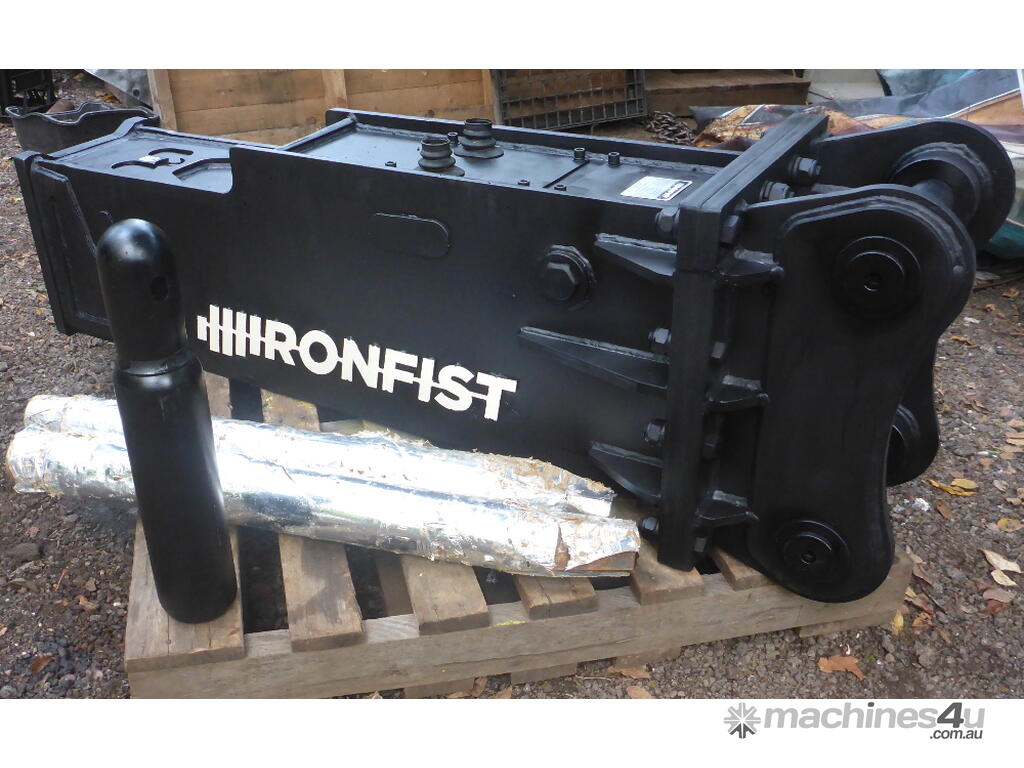

The Breaker is New & Unused. Comes with 2x 97mm Point Moils and a Nitrogen refilling Bottle.

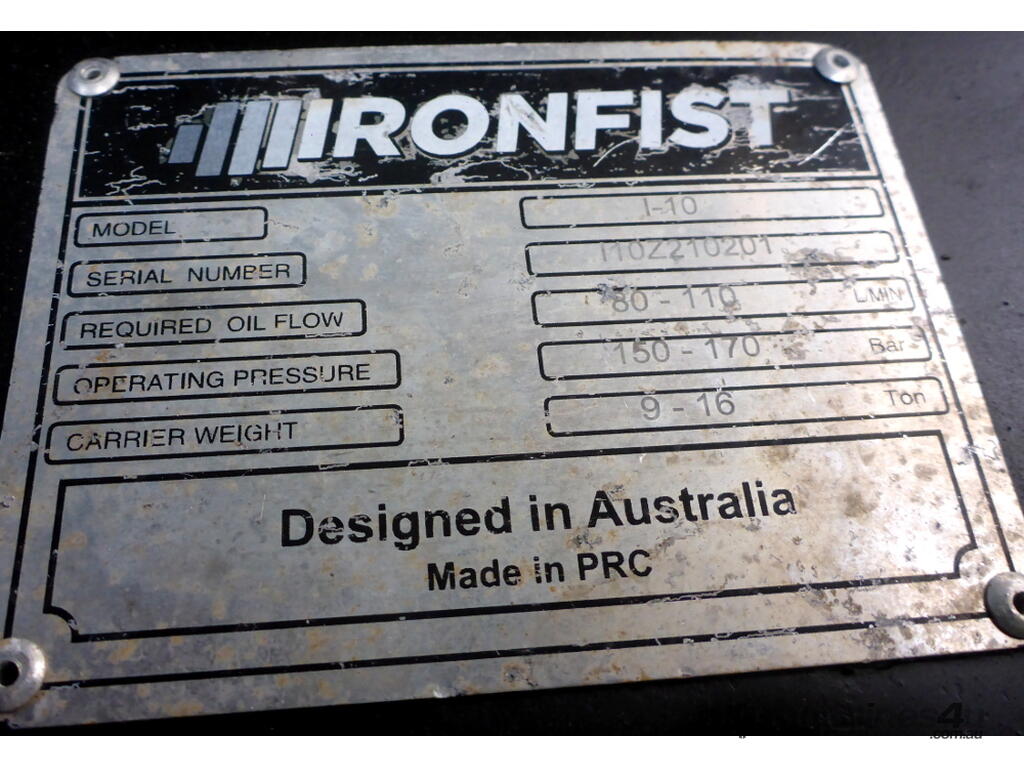

Required Oil Flow: 80-110 L/min.
Required Pressure: 150-170 bar (2175 to 2465 psi).
Current Headstock Dimensions:

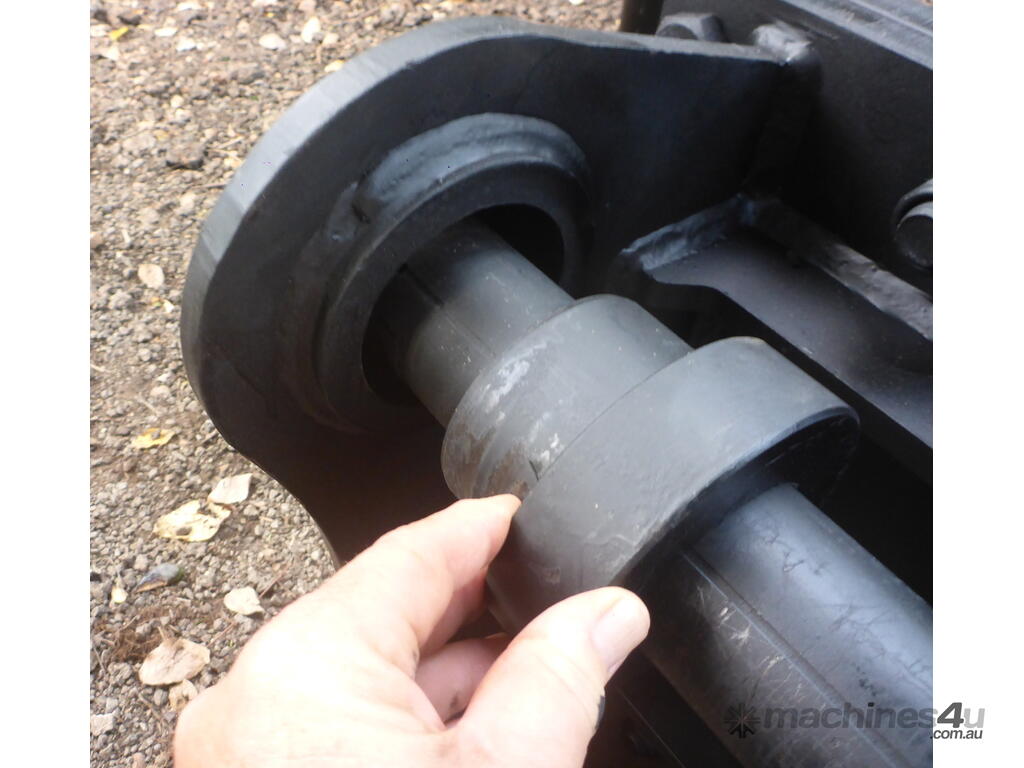

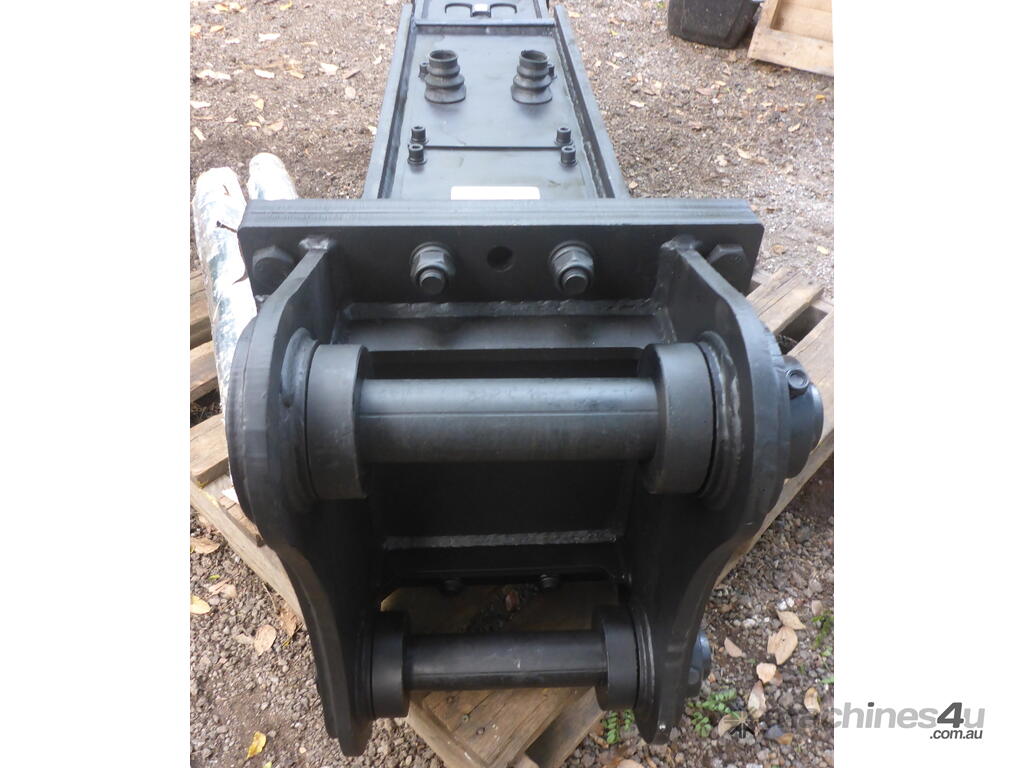

This Breaker comes with 65mm Pins, but the Pins are fitted into collar bosses that fit into 90mm diameter Pin holes (see pics# 3 & 9), so pins up to 90mm diameter can be fitted without needing to bore out the holes in the headstock.
The Pin Center to Pin Center is 405mm.
The distance between the collar bosses is 222mm. Removing the collar bosses, the distance between the headstock bosses is 293mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 321mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.
Should fit: Ackerman EC200, H7, Caterpillar 225, 225D, 229D, 311, 311C, 311D, 312, 312B, 312D, 313, 314C LCR, 314D, 320D, Doosan DX140LC-3, DX140W, DX140W-3, DX170W-3, DX300LC-3 SLR, Halla HE130W, Hitachi EX150-5, EX160, Zaxis 160, Hyundai R130LC, R160LC-3, R170W, R180LC-3, JCB 805B, 814S, Kato HD 512, Kobelco ED180, SK160LC, SK170-6E, Komatsu PC150, PC150-5, PC150-6, PC160, PC160-6, PC160LC-7, PC180, New Holland EH160LC.
Maybe fit: Case 9013, 9021, CX130, CX135, CX135SR, CX160, CX210, CX225SR, Caterpillar 318B L, 320, 320B w/ B Link, 320D w/ B Link, 321, 322B w/ B Link, 322C w/ B Link, 324D w/ Reach Linkage, 330C, 330D w/ Long Linkage, B Family Linkage, Daewoo Solar 130-2, 130-3, 130LC-V, 130W-2, 130W-3, 130W-V, 140LC-V, Doosan S130LC-V, S140LC-V, S140W-V, S255SLR, S300SLR, Fuchs 331, Halla HE130, Hitachi EX100, EX110-5, EX120, EX120-1, EX120-2, EX120-3, EX120-4, EX120-5, EX130, EX135UR, EX150, EX150-1, EX150-2, EX150-3, EX150-4, EX165, FH120, FH130, FH165, UHO 62, UHO 63, Zaxis 135US, Hyundai R120, R130W, R130LC-3, R140LC-7, JCB JS110, JS130, JS150LC, JS160, JS160LC, JS180, JS200, JS200LC, JS210, JS220, JS220LC, JS235, JZ140, John Deere 135C RTS, 160C LC, Kobelco 115SRDZ, 135SRLC, ED190, K905, SK120, SK130, SK130LC, SK135, SK135SR, Liebherr 902 LITRONIC, 912, 912 LITRONIC, 922 LITRONIC, R904 LITRONIC, Link-Belt 130LX, 135SA, 160LX, 160X2, 225SA, 2650 QUANTUM, 2700 QUANTUM, 2800 QUANTUM, Mitsubishi MS 180, New Holland EH130LC, Samsung MX175W, SE130 & 150, SE130-1, SE130-2, SE130-3, SE130LC-3, SE130W, SE130W-3, SE170, SE170W, Sumitomo SH100, SH100-2, SH100CT-2, SH120, SH120-2, SH120CT-2, SH135U-2, SH135X-2, SH145U, SH150, SH160, SH200, SH200-2, SH200LC, SH200LC-3LR, SH215U-1, SH215X-1, Takeuchi TB1140, Terex TXC 140LC-1, Volvo EC130-3, EC140, EC140B, EC140C, EC150, EC160, EC160B, EC160C, EC180C, EC210C LR, EC240C LR, EC290C LR, ECR145C, EW130, EW140C, EW160B, EW160C, EW170, EW180, EW180B, EW180C, EW210C, MX135WS/LS, MX175WS, SE130W-3/LC-3, SE170W-3, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

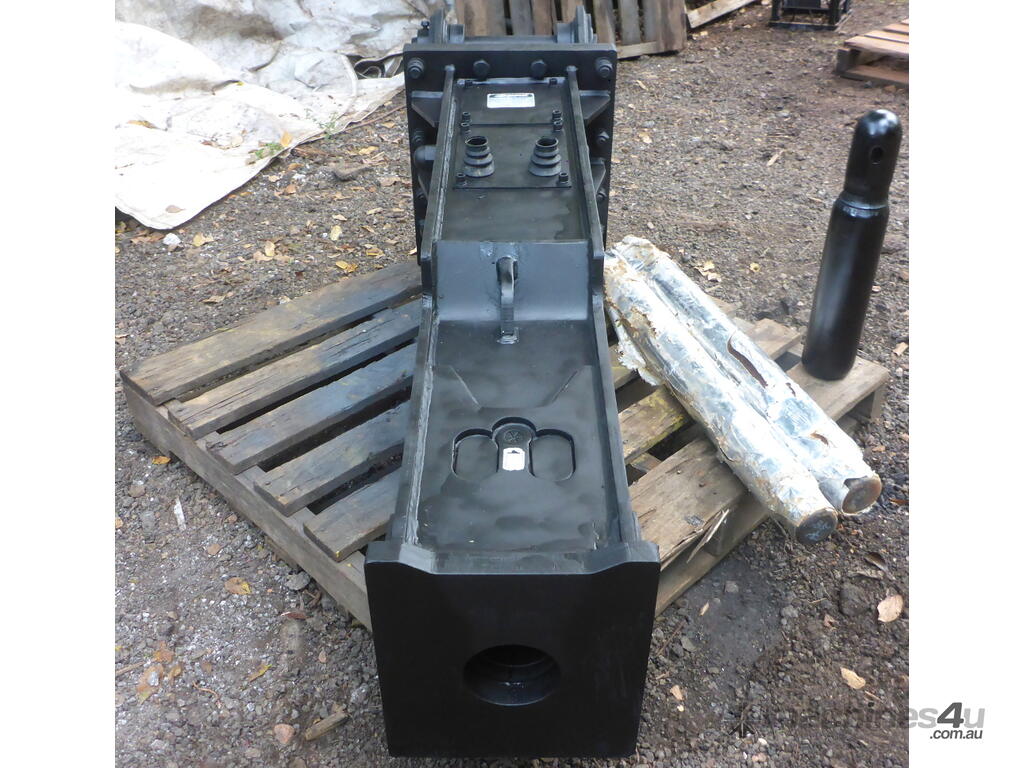

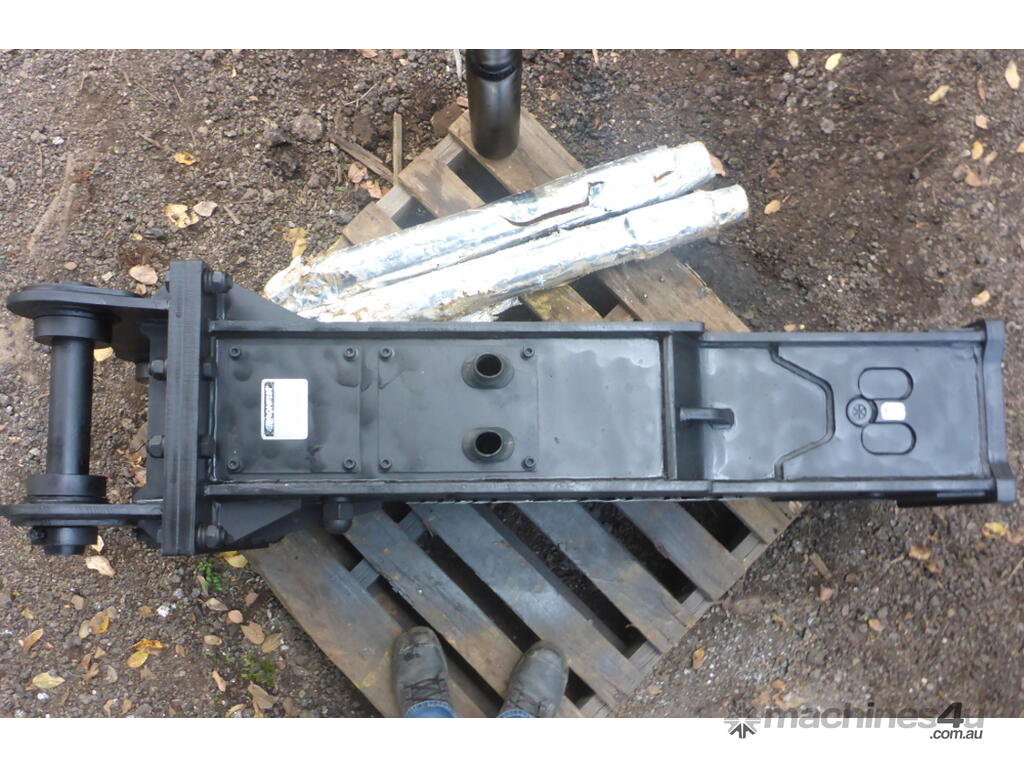

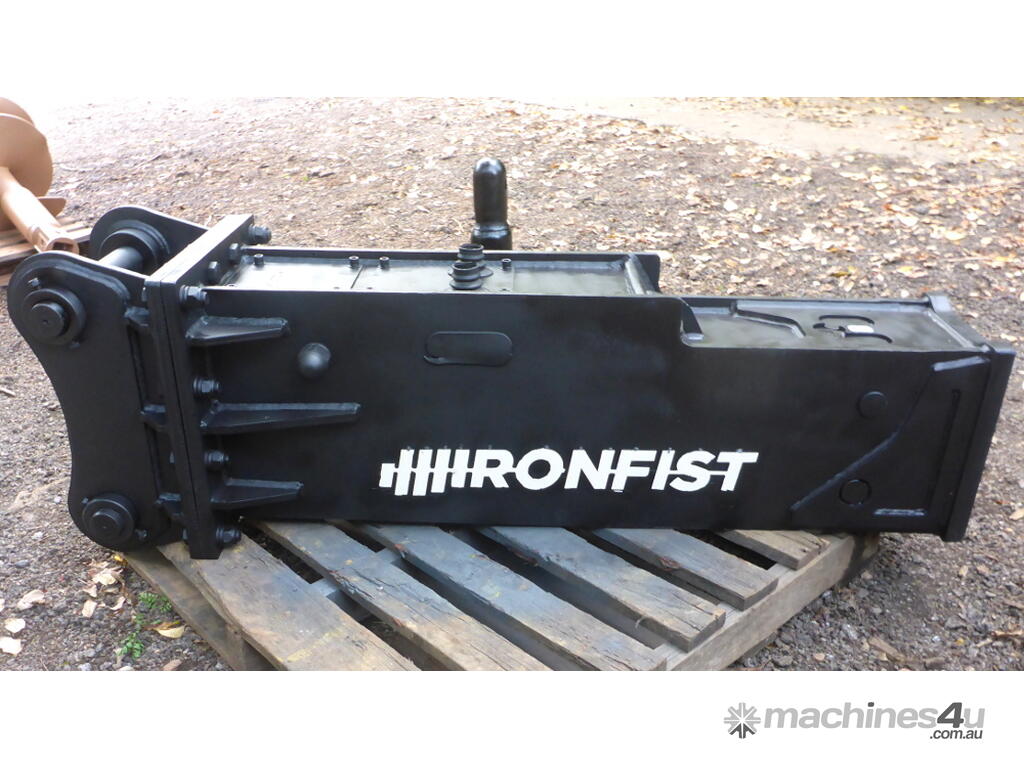

Breaker Dimensions (without moil, as seen in pics): 1740mm(L) x 480mm(W) x 550mm(H), Weight: 942kgs.
Each Moil (x2): 996mm Long, 97mm Diameter, Weight: 52kg.
Nitrogen Bottle Weight: 6.2kg.
Total Combined Shipping Weight: 1052kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
