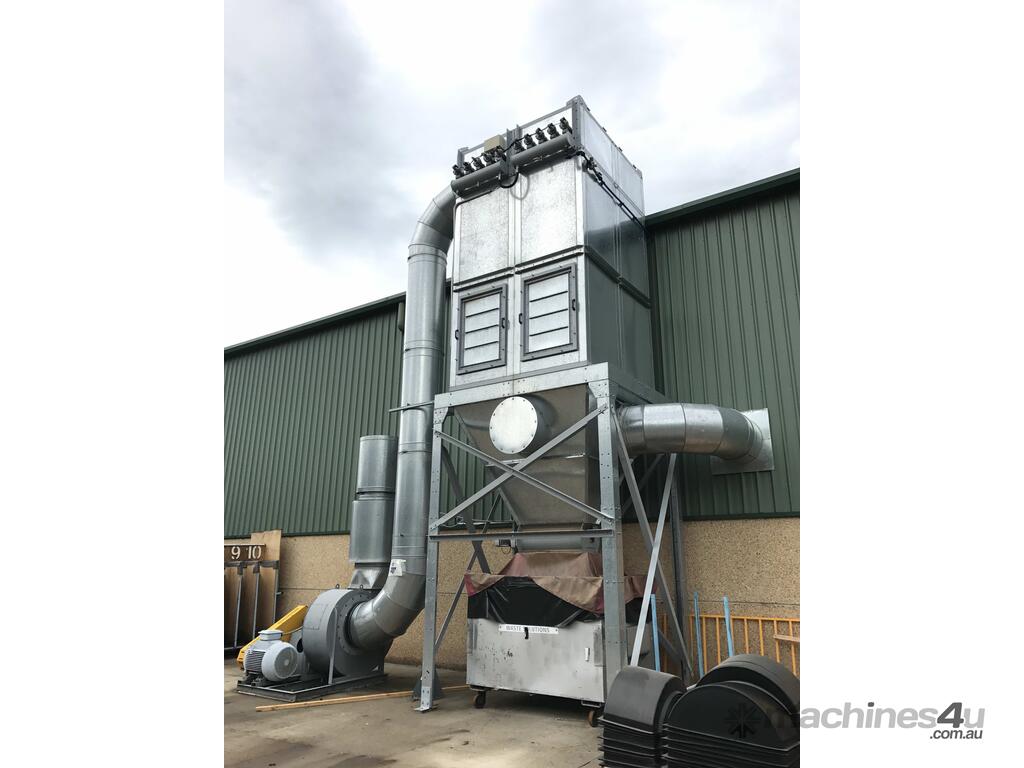

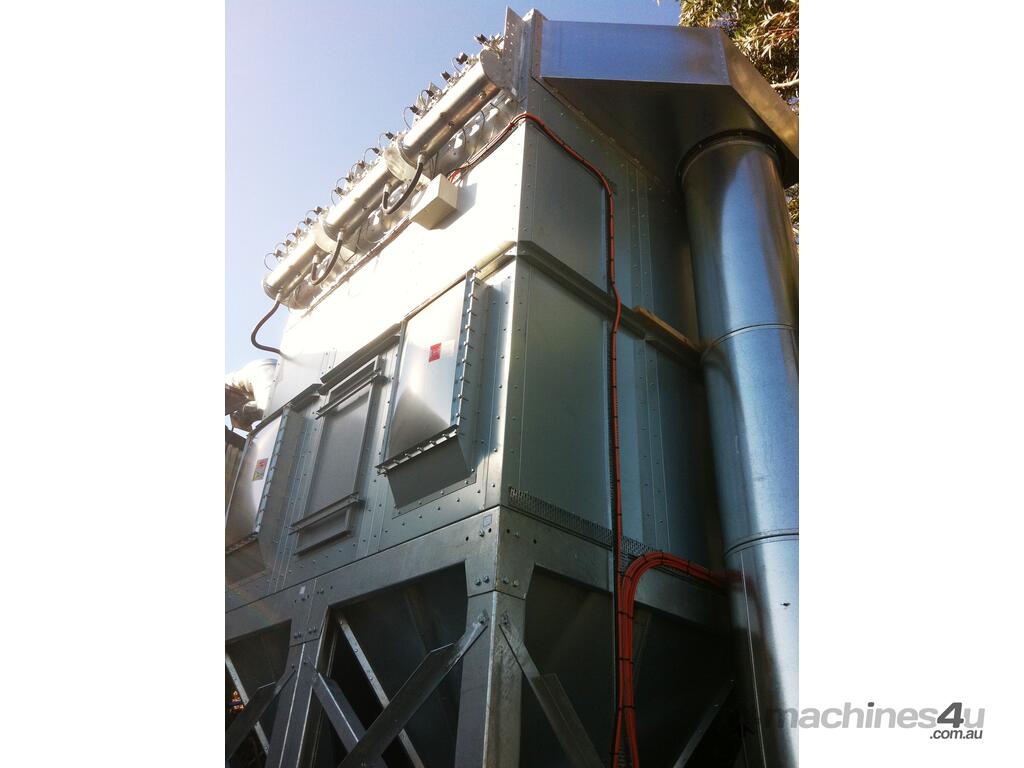

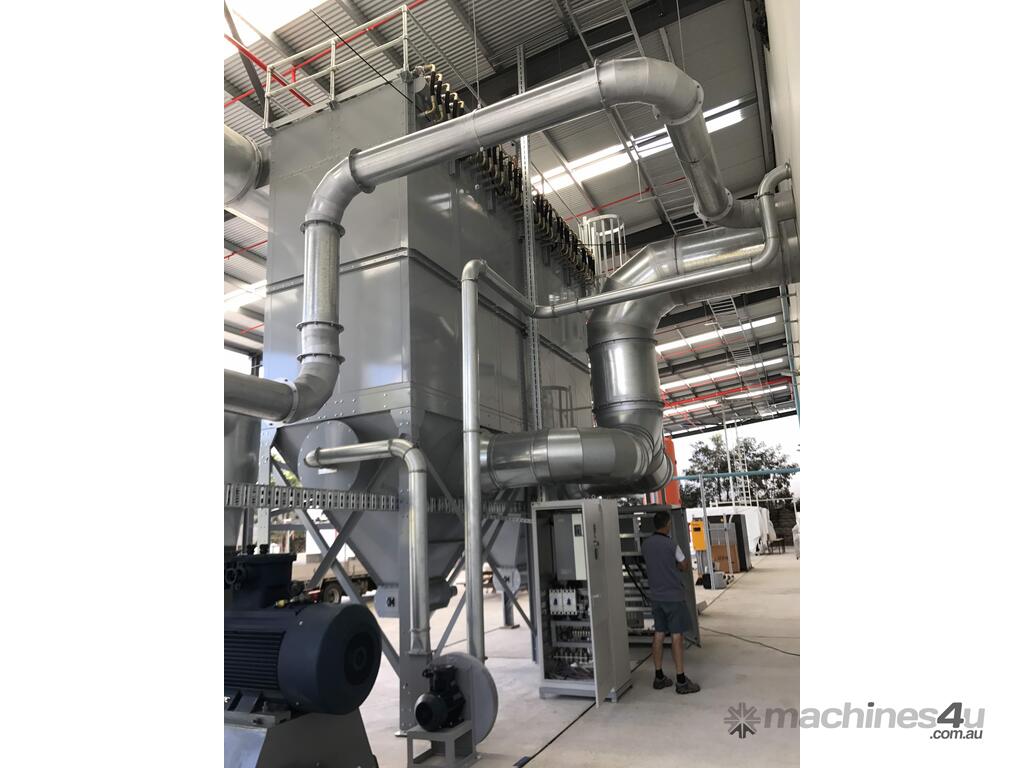

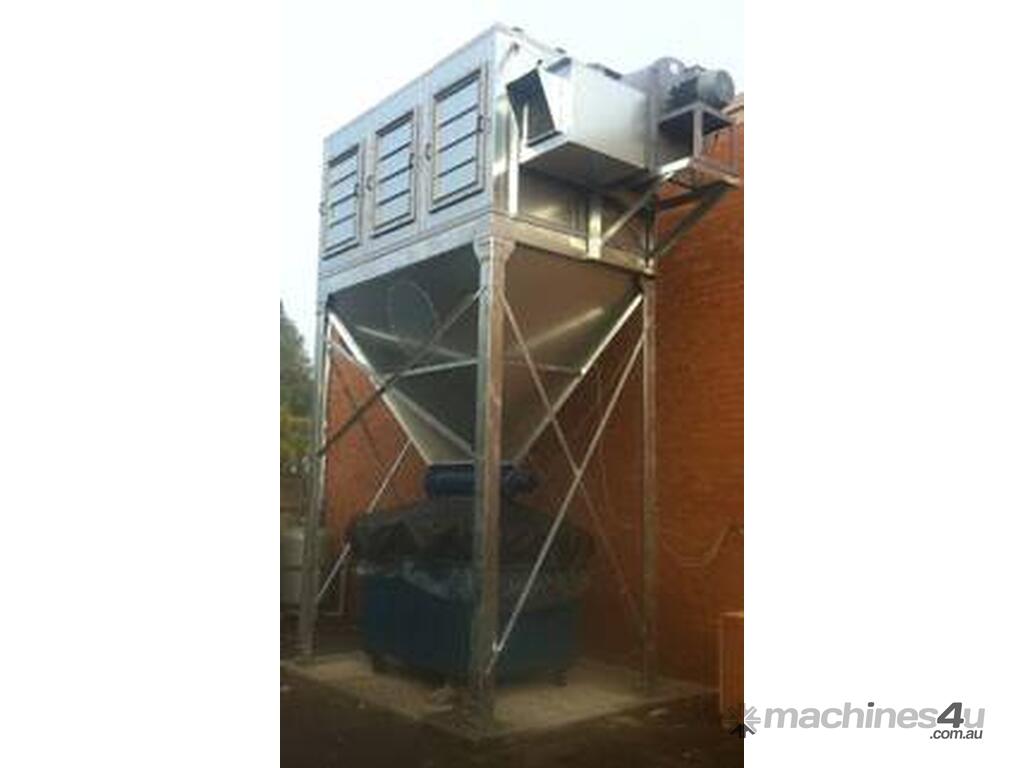

Nordfab MDC Dust Collector- The Smart Choice for The Large Factory

At Nordfab, we design and manufacture the MDC Modular Dust Collector Range to support compliance with Australian WHS/OHS legislation, EPA emissions requirements, and industrial air quality standards. The MDC series is engineered as a high-efficiency particulate extraction system suitable for continuous-duty industrial ventilation, dust capture, and process air filtration across a wide range of manufacturing and processing environments.
Modular Filtration Architecture & Operating Principle
Each MDC unit utilises a modular, compartmentalised filtration design incorporating high-efficiency filter media (bag or cartridge-based depending on configuration). Filtration is achieved via negative pressure airflow, with particulate loading managed through automated regeneration systems:


Shaker (Vibration) Cleaning System – mechanically actuated filter cleaning cycle initiated during system shutdown, dislodging accumulated particulate from filter media via controlled oscillation.


Compressed Air Reverse Pulse Jet Cleaning System – high-pressure compressed air pulses directed into filter elements during operation, maintaining differential pressure stability and continuous filtration efficiency.


These systems optimise pressure drop control, filtration efficiency, and filter media lifecycle, reducing total cost of ownership (TCO).
Energy Optimisation & System Control Integration
All MDC systems are supplied with PLC-based control architecture enabling fully automated filtration cycle management, including differential pressure monitoring and timed or demand-based cleaning sequences.
Optional integration of a Variable Speed Drive (VSD) allows dynamic fan motor control based on real-time system demand. Using duct-mounted pressure transducers, airflow is modulated in response to extraction load, significantly reducing kW consumption during partial load or idle machine conditions while maintaining capture velocity compliance.
Continuous Operation & Material Handling Efficiency
Each MDC system is equipped with a rotary airlock discharge valve, enabling continuous dust discharge into collection bins or screw conveyors without system shutdown. This maintains uninterrupted process operation and prevents loss of extraction performance during waste removal cycles.
Model Variants


MDC-S – Shaker-cleaned filter bag system (batch cleaning during shutdown)


MDC-P – Pulse jet-cleaned filter bag system (continuous online cleaning)


MDC-PC – Pulse jet-cleaned cartridge filtration system (high-efficiency fine particulate capture, continuous cleaning)


Performance Range
System capacities span from 4,000 m³/h to 250,000 m³/h, allowing application scalability from single-machine extraction to large multi-zone industrial ventilation networks.
Mechanical Design & Construction Features


Heavy-duty galvanised steel modular construction for corrosion resistance and structural durability


High-efficiency centrifugal fan assemblies designed for optimised static pressure performance and reduced specific energy consumption (kW/m³/s)


Negative pressure system architecture ensuring particulate containment within ducting and filtration housing, preventing downstream contamination and fan erosion


Expandable modular configuration allowing incremental capacity increases through additional filter sections without full system replacement


Optional Engineering Configurations


Stainless steel construction for corrosive or food/pharmaceutical environments


Custom industrial coatings for environmental protection and branding integration


ATEX/Explosion protection configurations for combustible dust applications (e.g. aluminium, grain, biomass, fine organic dusts)


Applicable Industry Sectors
The MDC range is engineered for high-dust-load industrial environments including:


Woodworking and timber manufacturing


Metal fabrication, welding, and grinding operations


Recycling and resource recovery facilities (including e-waste and plastics processing)


Pharmaceutical and chemical processing environments (where applicable filtration grades are specified)


Food and agricultural processing plants (grain, flour, sugar, and bulk solids handling)


Foundries and heavy industrial manufacturing


Composite material and fibreglass production


Spray booth and surface finishing operations (with appropriate pre-separation stages)


Engineering Support & Local Manufacturing Capability
Nordfab MDC systems are designed and supported by Australian engineers, with manufacturing and technical support located in Sydney, Melbourne, and Brisbane. This ensures compliance with local regulatory frameworks, rapid technical response, and application-specific system design support.

Note: Supply-only basis. Freight, installation, electrical integration, and commissioning services are excluded unless specified.
For system selection, airflow calculations, or application-specific engineering design, contact Nordfab for technical consultation and quotation support.
