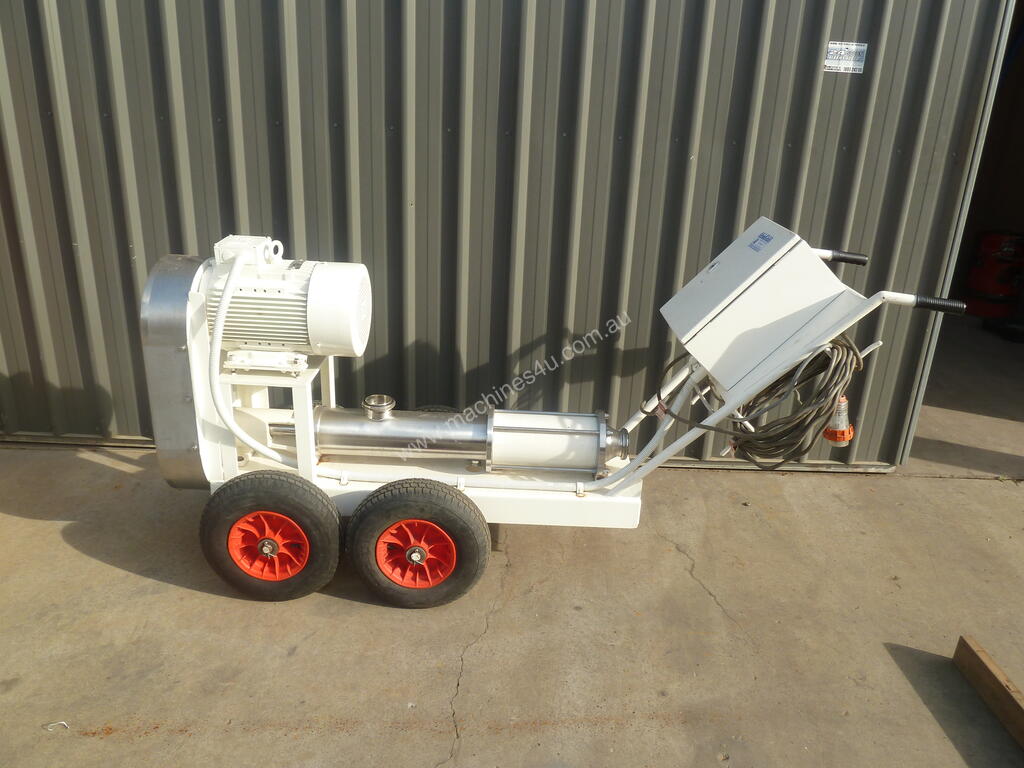

Nova Rotor STO60 Winery Helical Rotor Trolley Pump – 5.5kW Variable Speed

BUILT FOR WINERIES, JUICE AND LOW-SHEAR BEVERAGE TRANSFER

The Nova Rotor STO60 is a portable helical rotor trolley pump designed for wineries, juice transfer, beverage production, and other low-shear liquid handling applications. Fitted with a 5.5kW variable-speed motor and wired remote pendant control, it provides precise flow adjustment and safe operation from a distance, making it ideal for tank-top work and controlled product transfer.

Its stainless progressive cavity design allows smooth pumping of must, juice, wine, and other sensitive liquids where consistent flow and product integrity are critical.

Key Benefits
- Variable speed drive for precise flow control
- Portable trolley-mounted design for flexible movement
- Wired remote pendant for safe tank-side operation
- Gentle progressive cavity pumping action
- Ideal for must, juice and finished beverage transfer

Key Specifications
- Pump type: Helical rotor / progressive cavity
- Model: STO60
- Motor: 5.5kW variable speed electric
- Control: Wired remote pendant
- Connections: 3” BSM sanitary fittings
- Max flow: 20 m³/h (approx. 20 tonnes/hr)
- Nominal duty: 19 m³/h 3 bar
- Max pressure: 6 bar / 600 kPa
- Condition: Excellent
- Reference: J759
- Original RRP: $7,900

Typical Applications
- Winery must transfer
- Juice and finished wine transfer
- Beverage production
- Food and processing liquids
- Gentle low-shear liquid movement
- Tank transfer and vessel emptying

Why Nova Rotor?
Nova Rotor progressive cavity pumps are trusted across wineries and beverage plants for smooth, low-shear pumping that helps protect product quality while delivering dependable flow control.

Enquire today for pricing, availability, or to arrange an inspection.
