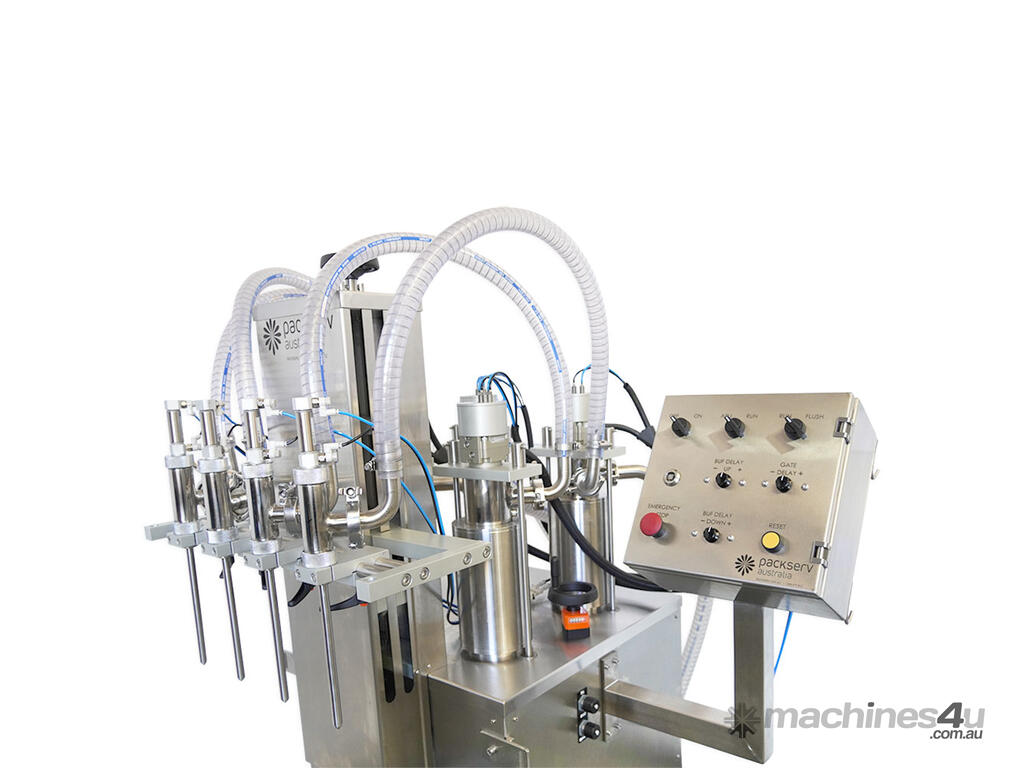

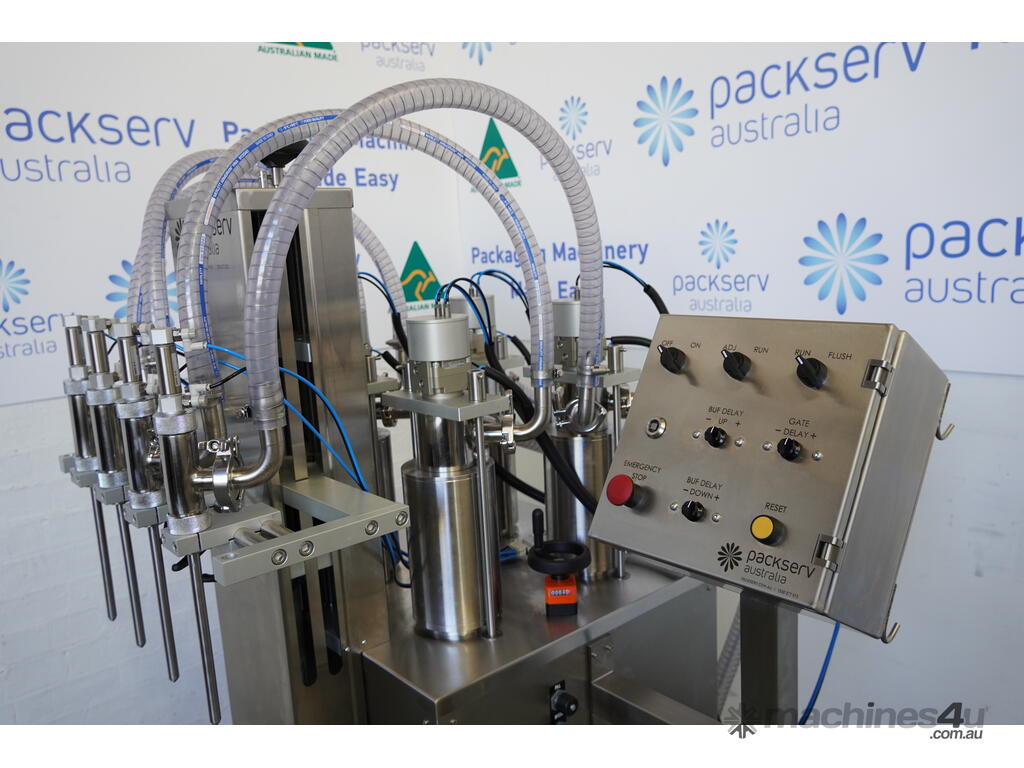

PACKSERV Four Head Auto Filler * up to 60 units / minute *

The Packserv PFM-4C Four Head Auto Filler is an automatic liquid and lotion filling machine that is both user friendly and versatile featuring 4 separate filling nozzles each capable of depositing up to 2L in volume per stroke.

It has been designed for use as a heavy duty, all pneumatic automatic inline bottom up filling machine which offers reliability and ease of use with tool-free cleaning and parts change-over.

The heavy duty, all pneumatic design of the PFM-4C is compact, reliable and easy to clean.

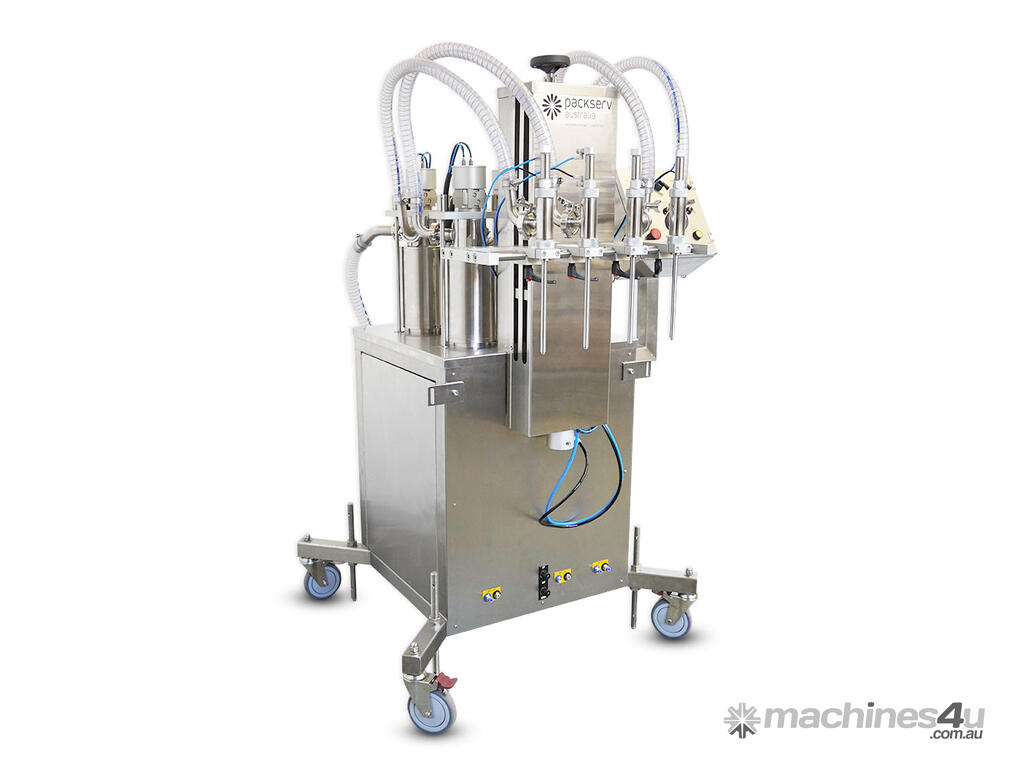

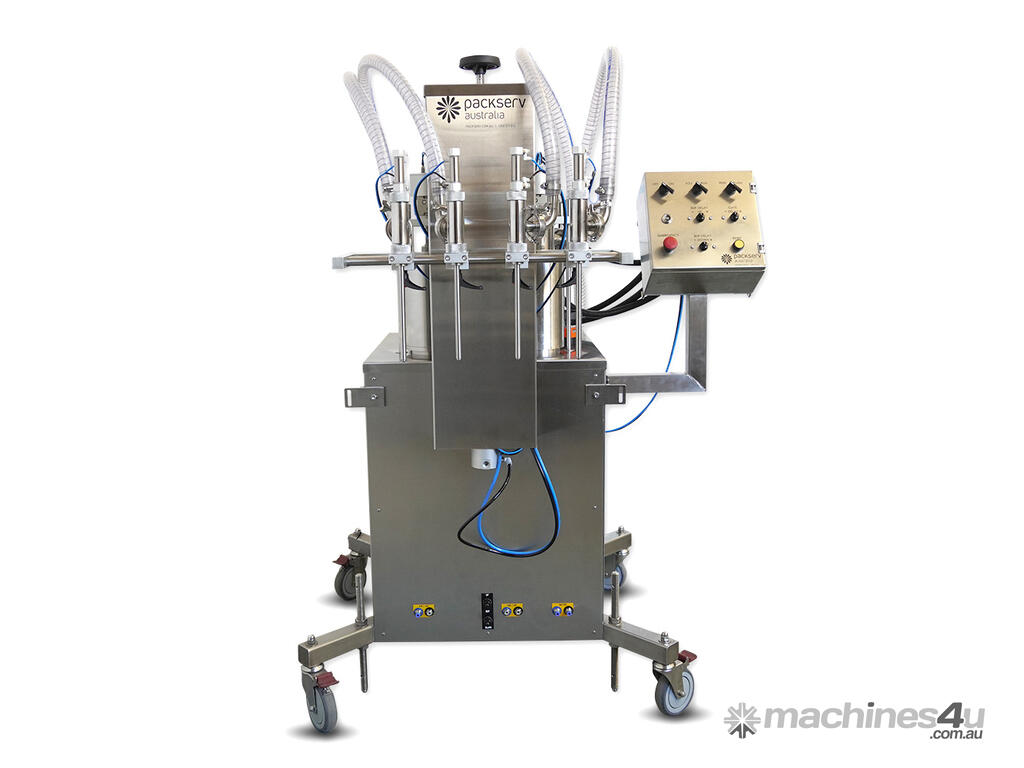

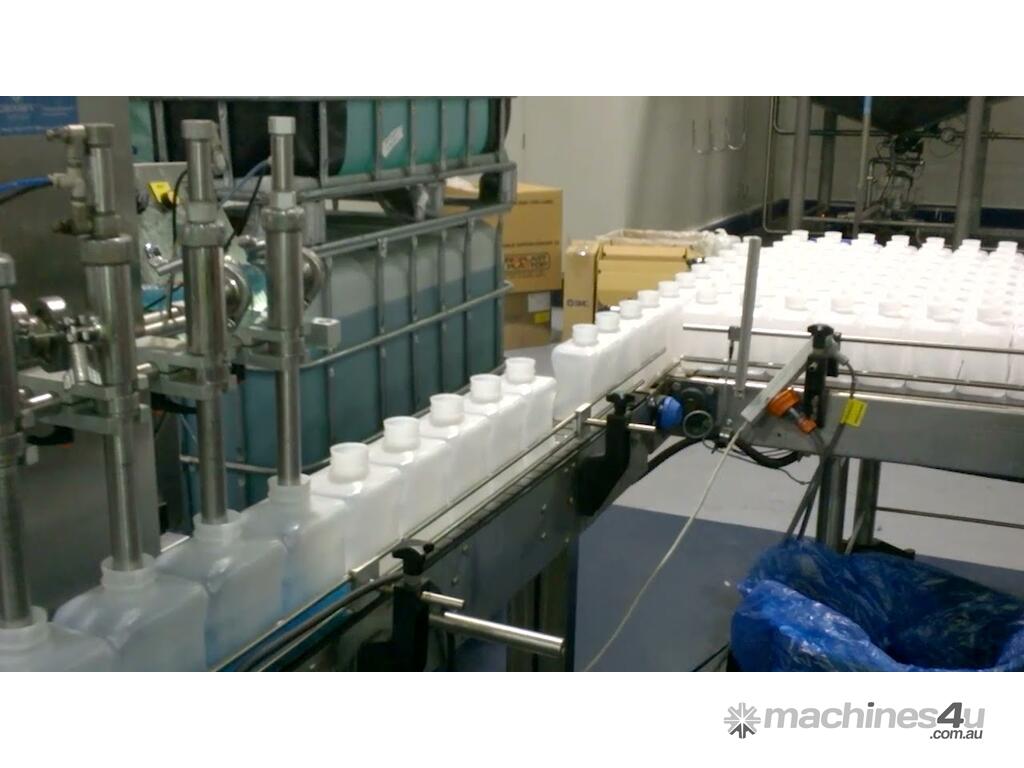

This machine is designed for completely automatic function and use in a full-scale production line. The PFM-4C features a welded and polished frame with lockable castors allowing connection to a continuously running slat conveyor. The PFM-4C also comes complete with “no bottle no fill” safety device and container gating system.

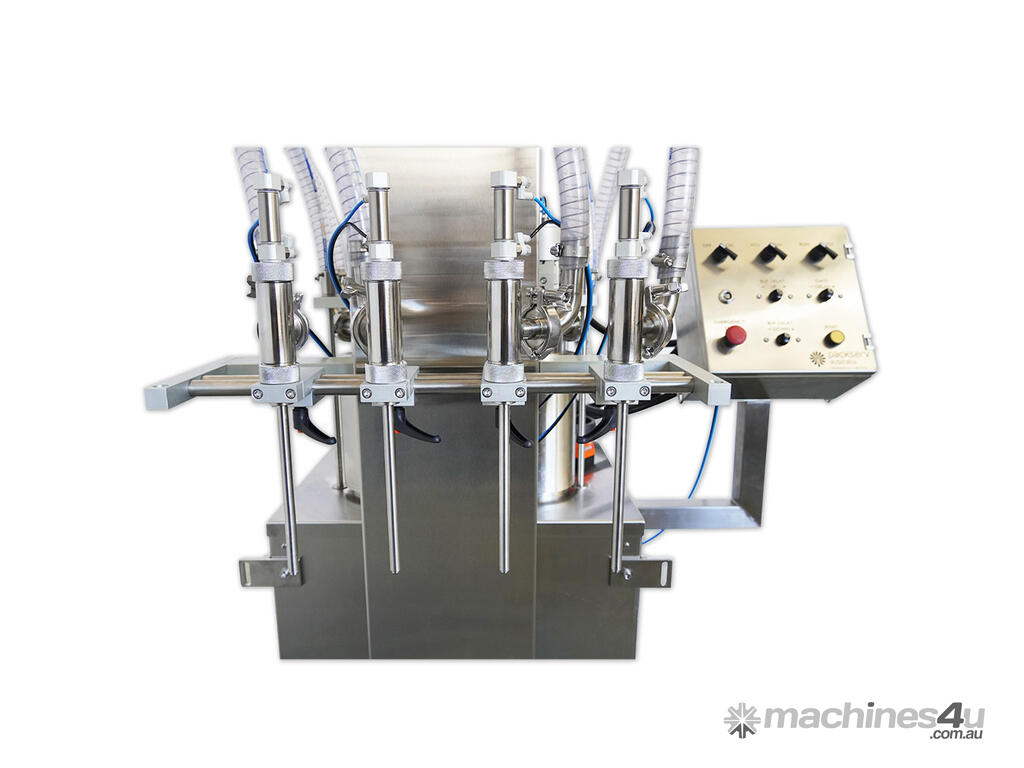

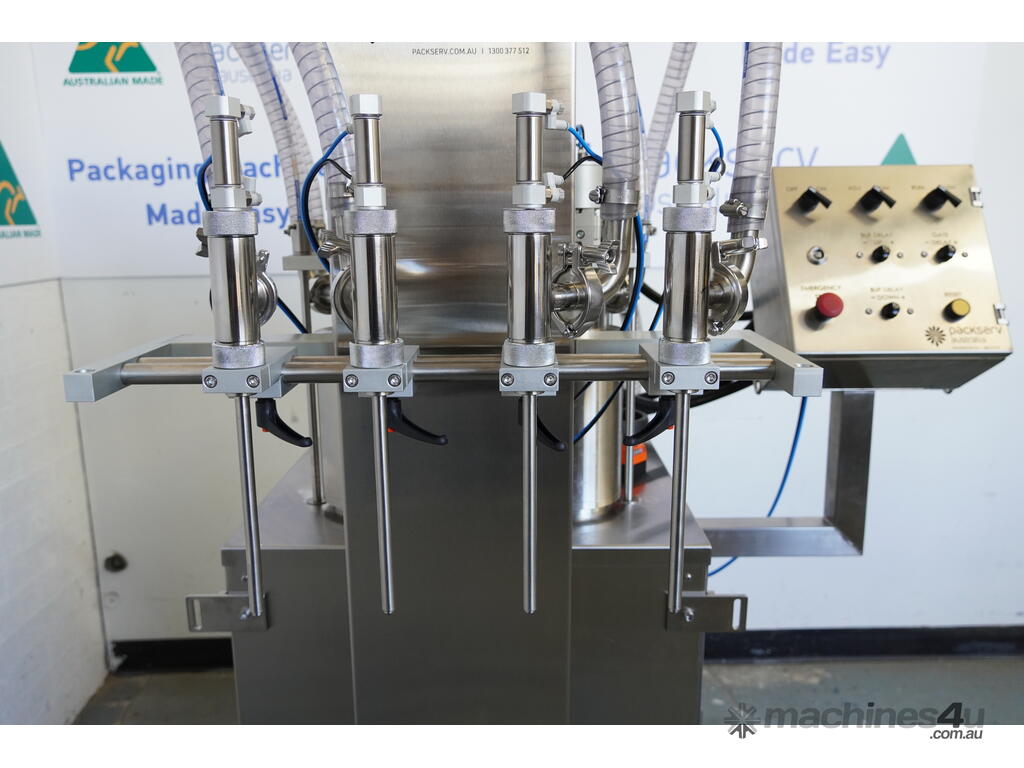

The PFM-4C also comes standard with positive shut-off nozzles and a bottom up fill assembly. The valve system of the PFM-4C handles all types of free flowing liquid products from thin liquids to lotions.
This filling machine will even package products with suspended solids; a task that previously required two different types of filling machine or expensive change parts.

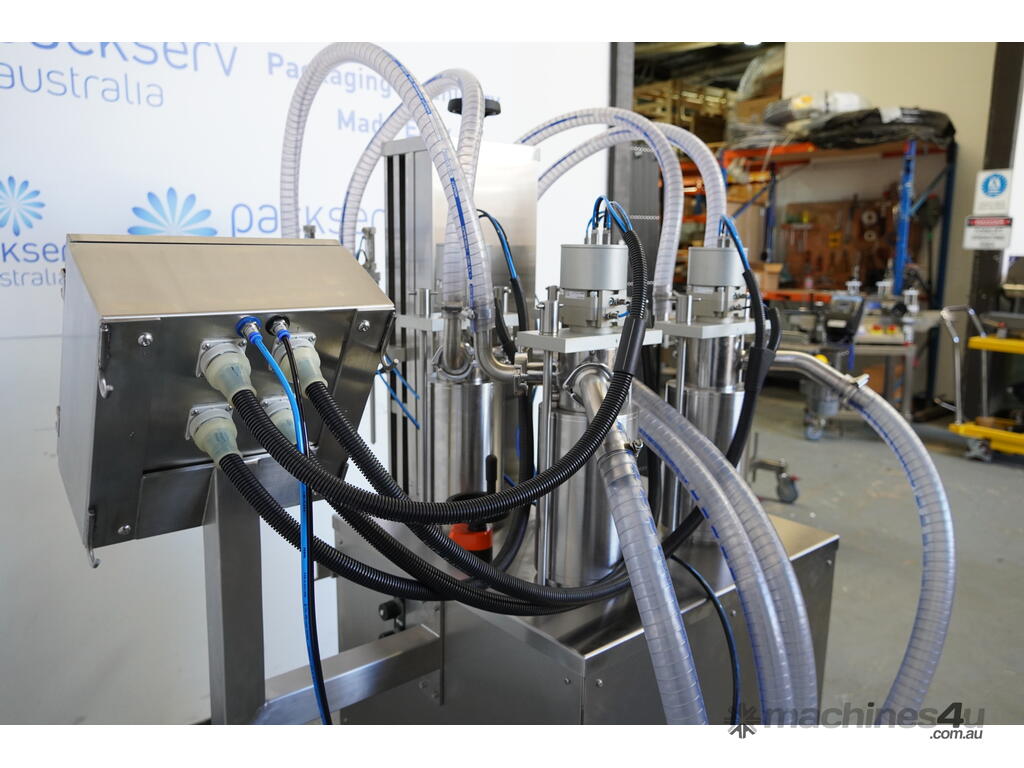

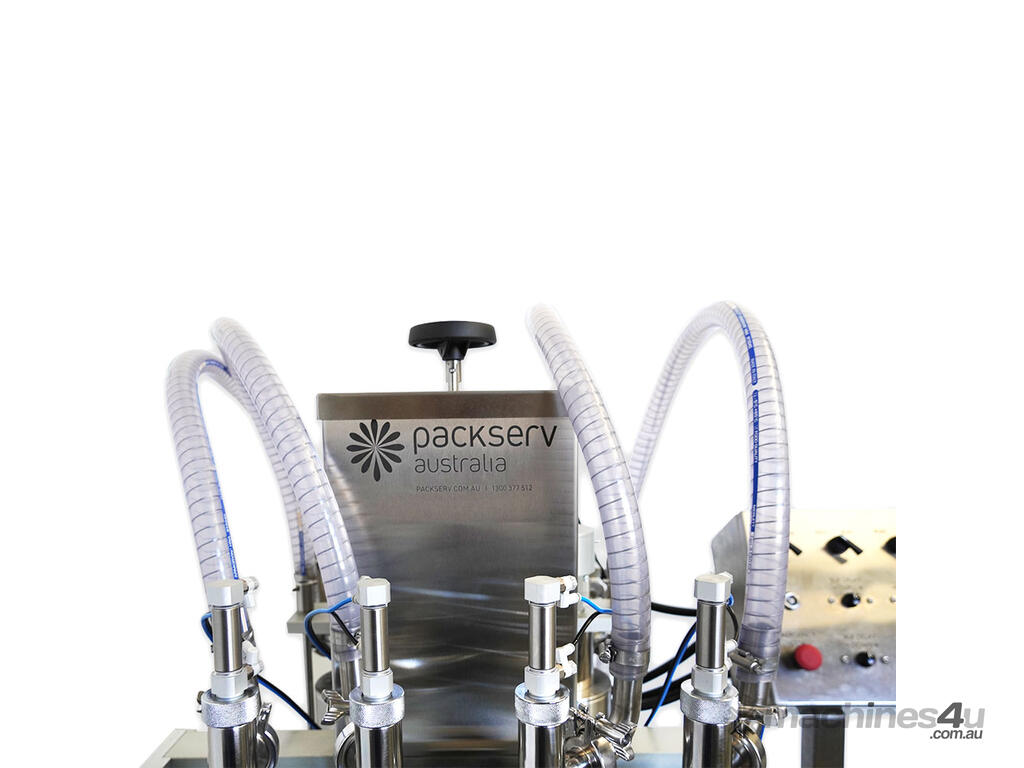

The cylinder design of the Four Head Auto Filler enables quicker dismantling and easier, more thorough cleaning of wet parts. The supply method of product to this machine is run through a stainless steel manifold system connected preferably by 2" or 3" transfer hose connected to a storage/mixing vat or IBC.

Weight 300 kilograms
Length 1400mm
Width 1000mm
Height 1700mm
Power Supply Air compression
Construction Type 316 grade stainless steel wet parts
Container Type Bottles, jars, tubs etc (any container type that will stand on a conveyor)
Mounting: Trolley mounted with lockable castors (mounts onto inline conveyor system)
Industries All food, pharmaceutical and industrial applications
Air Pressure 600kpa (80psi)
Units Per Minute 20-60UPM (guide only)
Noise Medium
Flameproof Yes

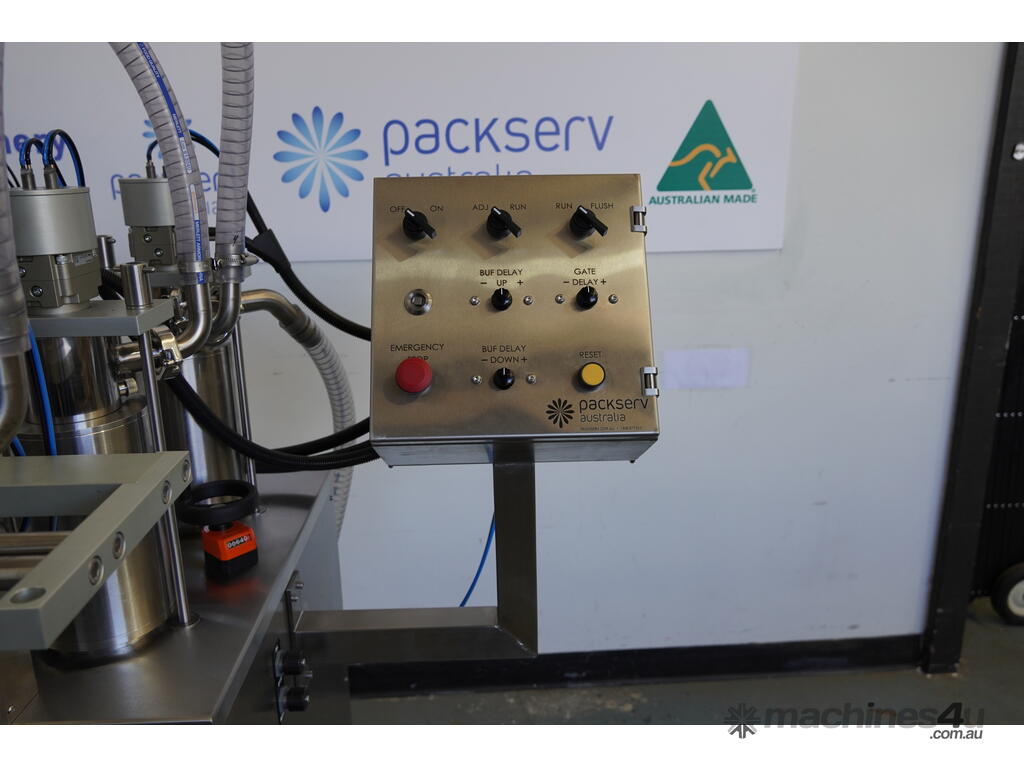

Timer Control Pneumatic
Speed Totally speed adjustable for all functions
Fill Range 2.5ml to 2000mls fill range, single shot
Fill Temperature Cold and hot fill
Fill Type Liquids, creams, lotions (suspended particles acceptable)
Not Suitable Products Dry powder and granules
Benchtop Mounted to mobile welded frame featuring castors/wheels
Machine Cleaning Easy to disassemble for full wash up
Volume Fully adjustable
Filling Accuracy +/- 0.5 to 1% variance
Cylinder Sizes 25ml, 50ml, 125ml, 250ml, 500ml, 1250ml and 2000ml
Automatic Function: Yes, designed to be completely operator free

- Automatic Function
- Heavy duty pneumatic product cylinder drive system
- All pneumatic flameproof operation suitable for use with flammable products
- Features a frame mounted on castors/wheels for easy manoeuvrability
- Easy volume adjustment while running a single cylinder
- Adjustable piston fill and recharge stroke speed
- Simple tool-free dismantling makes for easier cleaning
- Quick changeover of products and parts
- Suitable for liquids, creams and pastes
- Filler is suitable for food and pharmaceutical use
- Suitable for warm water hose down
- Quick connect tri-clover product inlet/outlet fittings
- Various methods to feed product to machine available
- Features bottom up fill (BUF) to reduce foam/froth/bubbling of products

Mounting:
Frame featuring castors

Purchase Inclusions:

1 x base machine
1 x installed bottom up fill (BUF) assembly

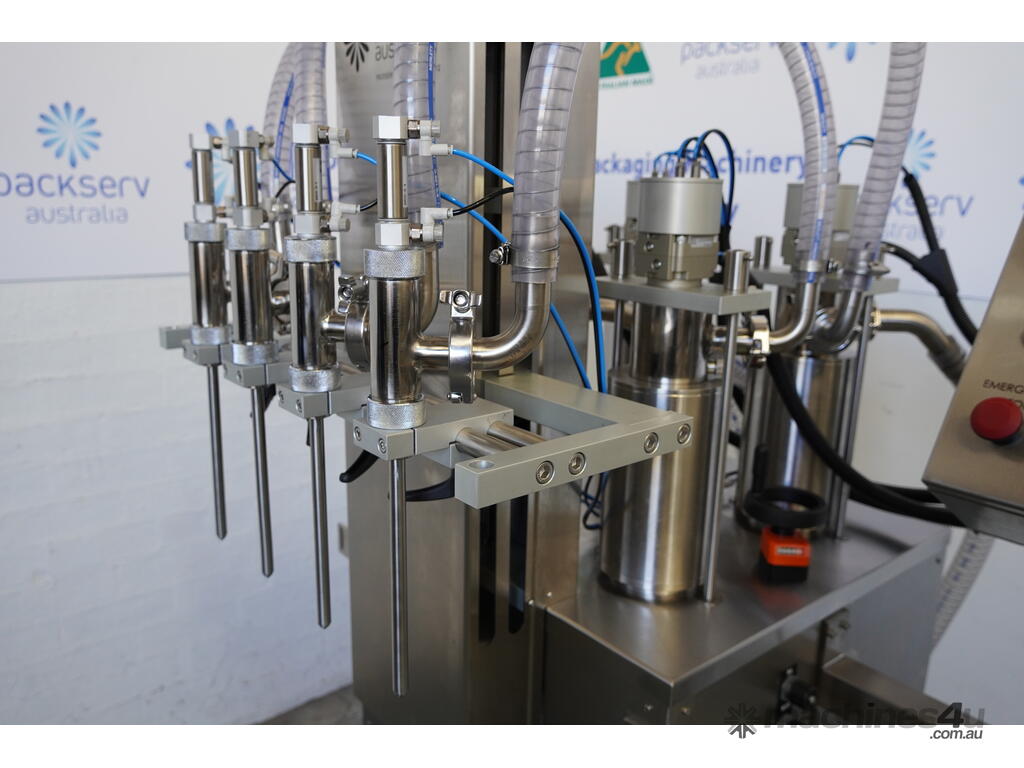

4 x positive shut off nozzles
1 x automatic attachments GDS-A (including 2 x gates, 2 x sensors and all associated brackets)
4 x castors and levelling jacks with feet
1 x 4-into-1 stainless steel manifold with fittings
4 x rotary valves (including seals)
4 x rotary valve bodies (including suckback pin)
4 x curved inlets
4 x curved outlets
4 x hose barbs
19 x triclover clamps (including seals)
4 x product cylinders (25ml-2000ml options available)

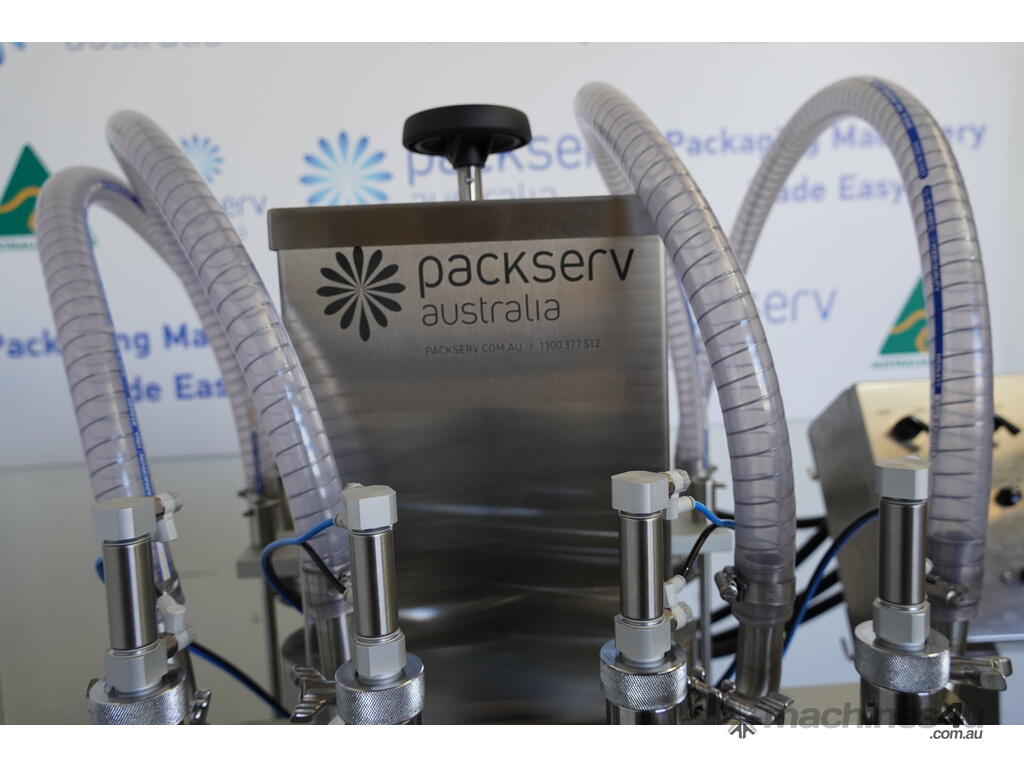

8 x transfer hose & fittings
1 x height adjusting handle

The Packserv PAT-8 is an accumulation/outfeed table designed to be the final piece in any production line.

- Suitable for all container types regardless of shape or materials
- 1200mm HDPE tabletop allowing for the mass accumulation of your products at the completion of a production line.

- Designed to reduce the number of operators required to load and pack off from an automatic line.
- Collects the containers at the out-feed end of the conveyor for packing off into cartons.
- Suited to handling containers of almost any shape and/or size.

- Suitable for food and pharmaceutical use
- Speed adjustable
- Table direction can be reversed in short-period
- Can be connected to a conveyor or stand-alone operation
- 316 stainless steel and aluminium construction
- Fast changeover of containers type
- Mounted on lockable castors (wheels)
- Fitted with threaded levelling jacks
- Driven by a variable speed AC motor and controller
- Fully guarded on edges with safety torque limiting device


Weight: 100 kilograms
Diameter 1200mm
Height: 900mm
Power Supply: Single phase 240V, 10 Amp
Construction Type: 316 stainless steel and HDPE table top
Noise: Low
Reversible: Yes
Accessories: Various accessories to suit applications

Automatic Function:
Yes

Mounting:
Frame featuring castors


Purchase Inclusions:

4 x lockable castors
4 x levelling jack with feet
1 x AC controller with reversible direction function
