PACKSERV Spacing Wheel * use with all conveyor types *

The Packserv PSW-10 Spacing Wheel is designed to be used with all types of conveyors which present a suitable side-wall to mount on. This machine spaces containers coming down the production line to assist other machines with their function – primarily wrap around labellers which cannot have multiple containers enter at once.

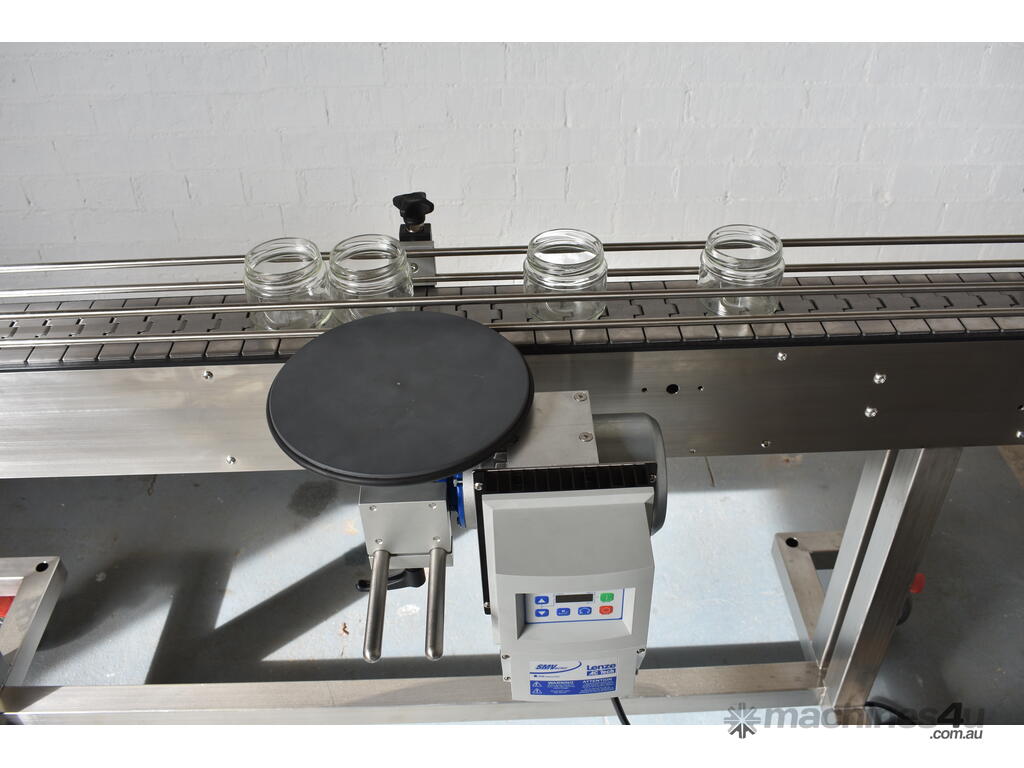

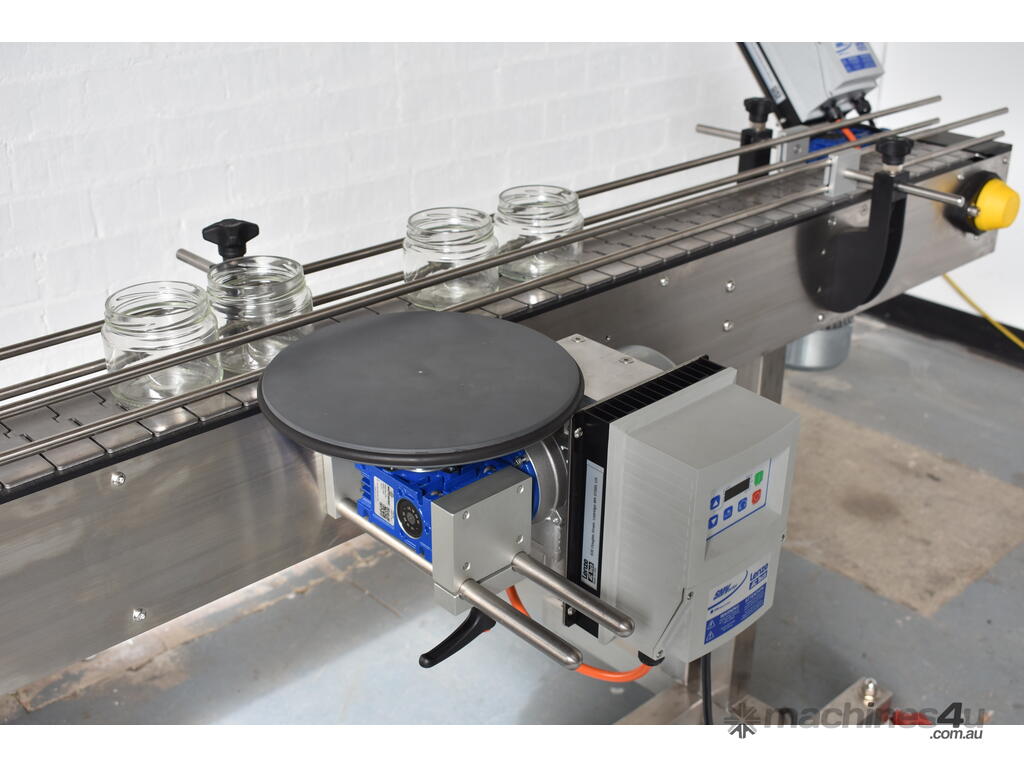

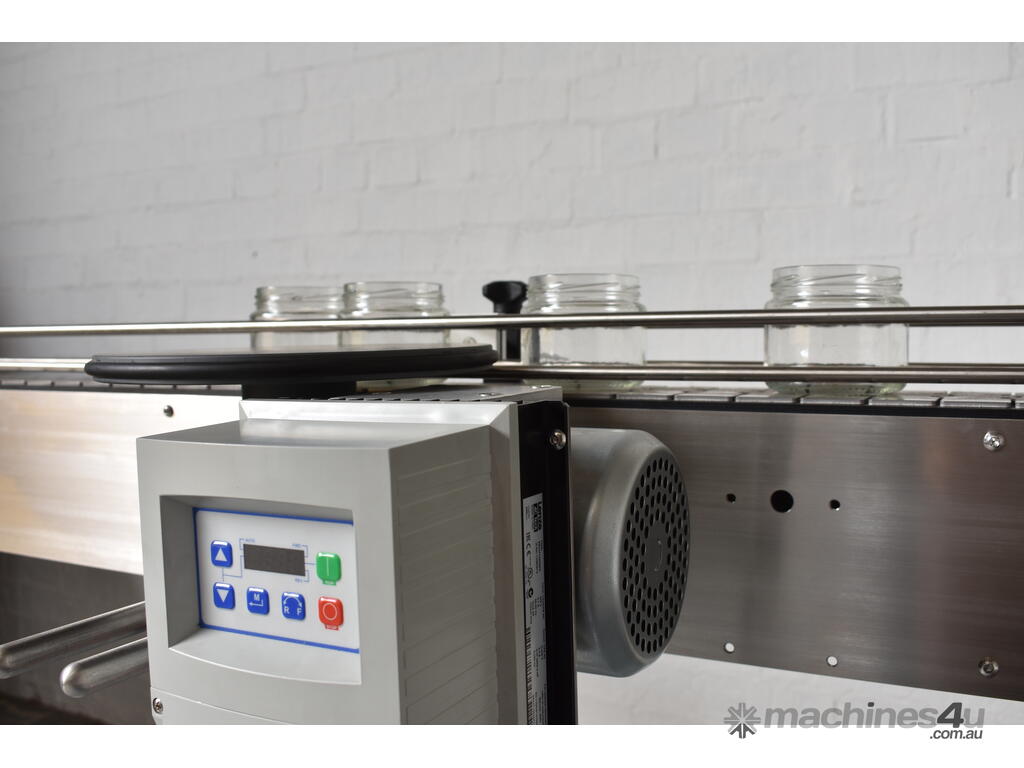

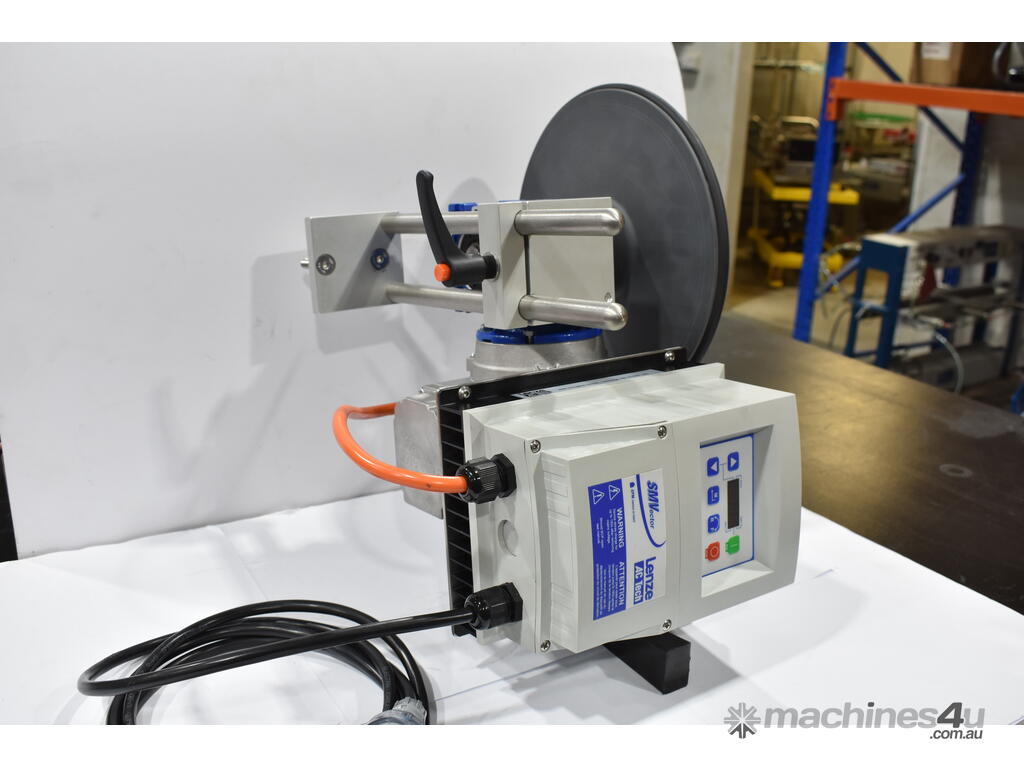

Our PSW-10 Spacing Wheel is mounted on the side of the conveyor and used to evenly space out containers running along the conveyor belt. The 20cm diameter PVC wheel comes with a variable speed controller that is also reversible to allow mounting on either side of the conveyor.

The spacing wheel is suitable for food and pharmaceutical use. The spacing wheel allows for fast changeover of containers and does not require tools for adjustments.


Weight 5 kilograms
Length 200mm
Width 200mm
Height 10mm
Operating Height Bolt on
Power Supply Single phase 240V, 10 Amp
Construction Type 200mm PVC wheel with aluminium mounting
Container Type Used for spacing bottles travelling down a conveyor
Mounting Mounted onto the side of a conveyor
Industries All food, pharmaceutical and industrial applications
Noise Low Speed
Variable speed control 300mm wide rubber belt

- Automatic Function
- Fast changeover of products and parts
- No tools required for setting adjustments
- Suitable for food and pharmaceutical
- Comes with a variable speed controller
- Reversible with a single button
- Can be easily mounted to a conveyor
- Spaces containers of all shapes and materials

Mounting:
Conveyor Mounted

Purchase Inclusions:

1 x spacing wheel
1 x variable speed controller
1 x pair of mounting horns and bracket

Established in 2007, Packserv is an Australian manufacturer of high-quality packaging machines operating Australia-wide and internationally. Our range includes machines for filling, capping, labelling and container handling, including conveyors, in-feed and out-feed tables.

Packserv also specialises in providing rentals for on-demand packaging equipment for filling, capping, labelling, printing, sealing and conveying.

Go to our Machines4u showroom to see the full range of equipment - send Packserv a message about the items that you are interested in, or give Packserv a call. We are always happy to answer your enquiries. Images are for illustration purposes only.
